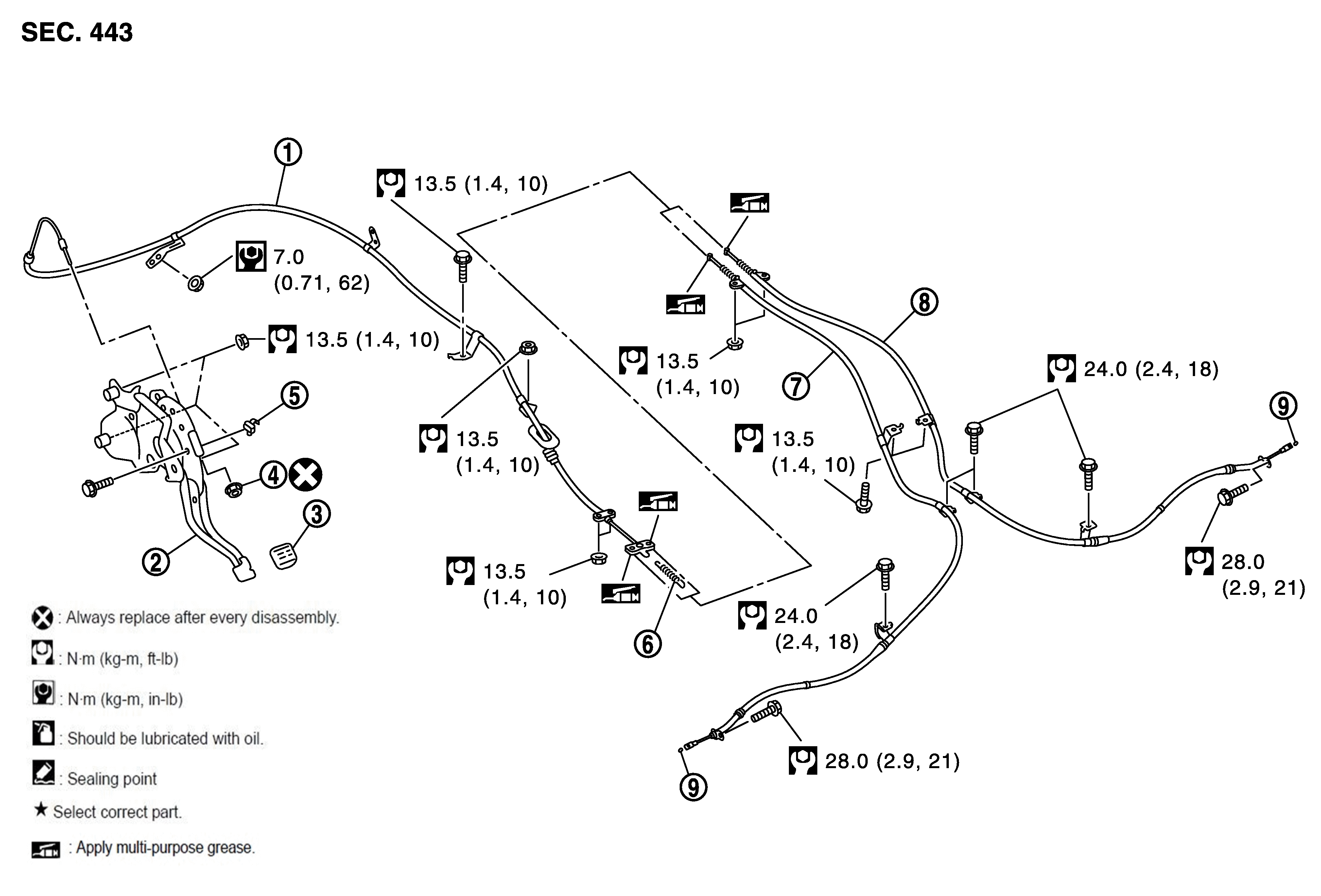

| 1. |
Front cable |
2. |
Parking brake pedal assembly |
3. |
Pedal pad |
| 4. |
Adjusting nut |
5. |
Parking brake switch |
6. |
Spring |
| 7. |
Rear cable (left side) |
8. |
Rear cable (right side) |
9. |
Pin |
: Apply multi-purpose grease. |
 |
: Always replace after every disassembly |
 |
: N•m (kg - m, ft - lb) |
 |
: N•m (kg - m, in - lb) |
