Physical Values

FRONT POWER WINDOW SWITCH

Terminal No. (wire color)		Description		Condition	Voltage [V] (Approx.)
+	-	Signal name	Input/Output	Condition	Voltage [V] (Approx.)
3 (W/B)	Ground	Encoder ground	-	-	0
4 (G/R)	Ground	Encoder power supply	Output	When ignition switch ON or power window timer operates	12
8 (L)	Ground	Power window motor UP signal	Output	When power window motor is operated UP	12
9 (G)	Ground	Power window motor DOWN signal	Output	When power window motor is operated DOWN	12
10 (W)	Ground	Battery power supply	Input	-	12
11 (B)	Ground	Ground	-	-	0
12 (G/Y)	Ground	Encoder pulse signal 1	Input	When power window motor operates	Courtesy of NISSAN NORTH AMERICA, INC.
15 (G/W)	Ground	Encoder pulse signal 2	Input	When power window motor operates	Courtesy of NISSAN NORTH AMERICA, INC.

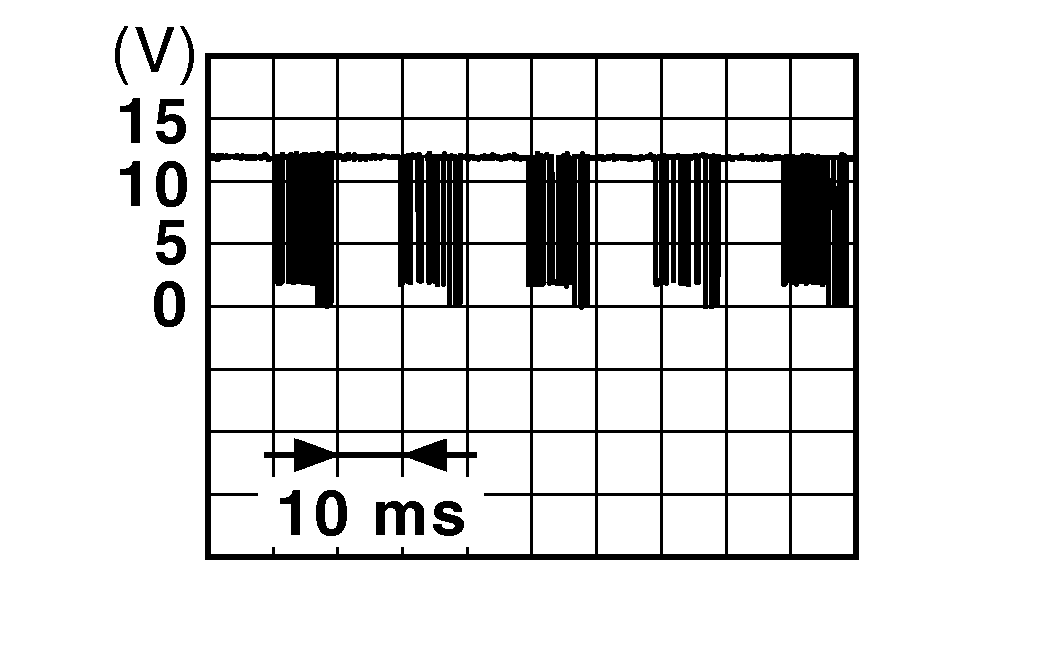

16 (V)	Ground	Power window serial link	Input/Output	When ignition switch ON or power window timer operates	Courtesy of NISSAN NORTH AMERICA, INC.
