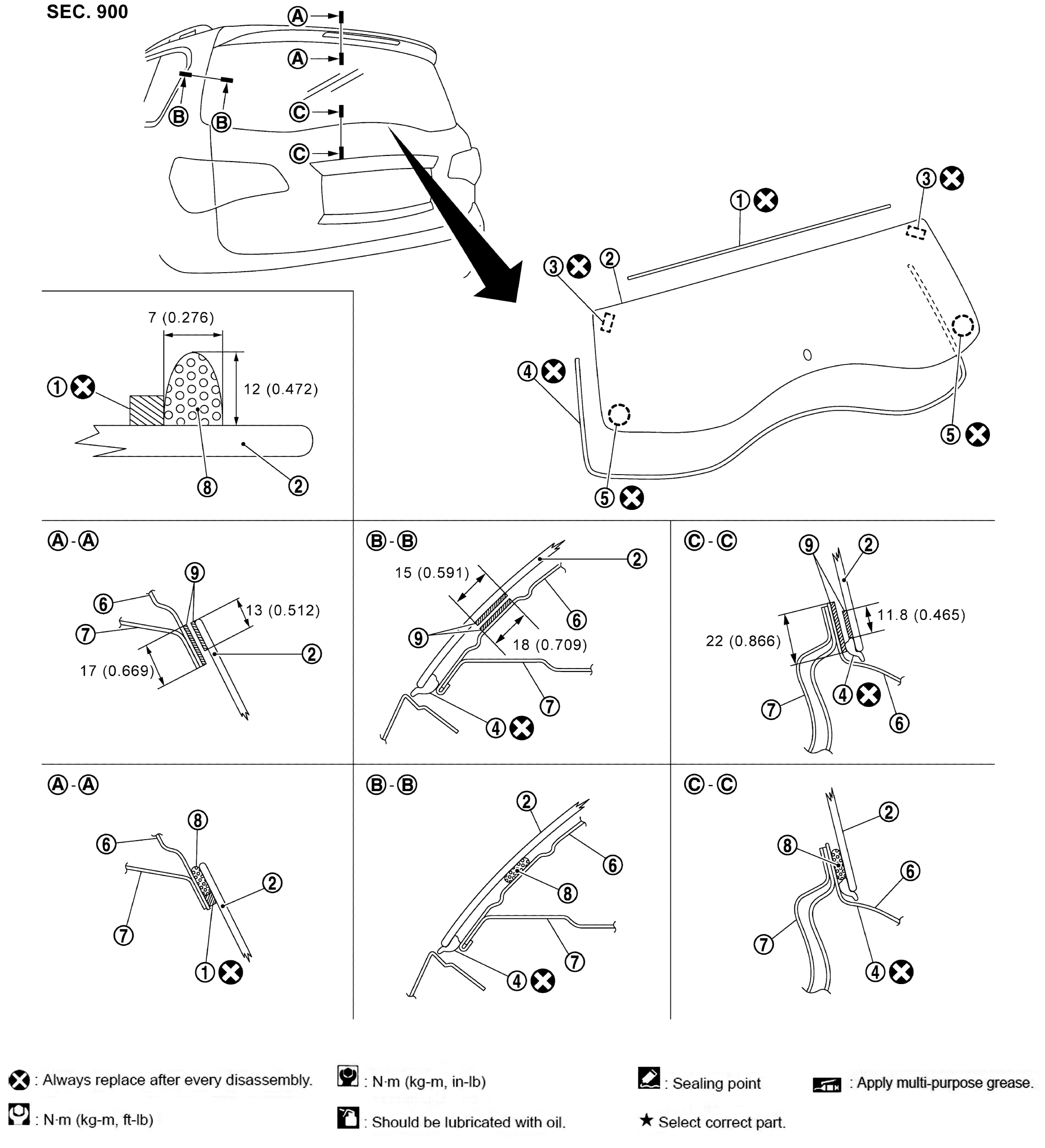

| 1. |
Dam-sealant rubber upper |
2. |
Back door window glass |
3. |
Back door window glass holder (upper) |
| 4. |
Back door window glass molding |
5. |
Back door window glass holder (lower) |
6. |
Back door panel outer |
| 7. |
Back door panel inner |
8. |
Adhesive |
9. |
Primer |
 |
: Always replace after every disassembly. |
| Unit |
: mm (in) |
