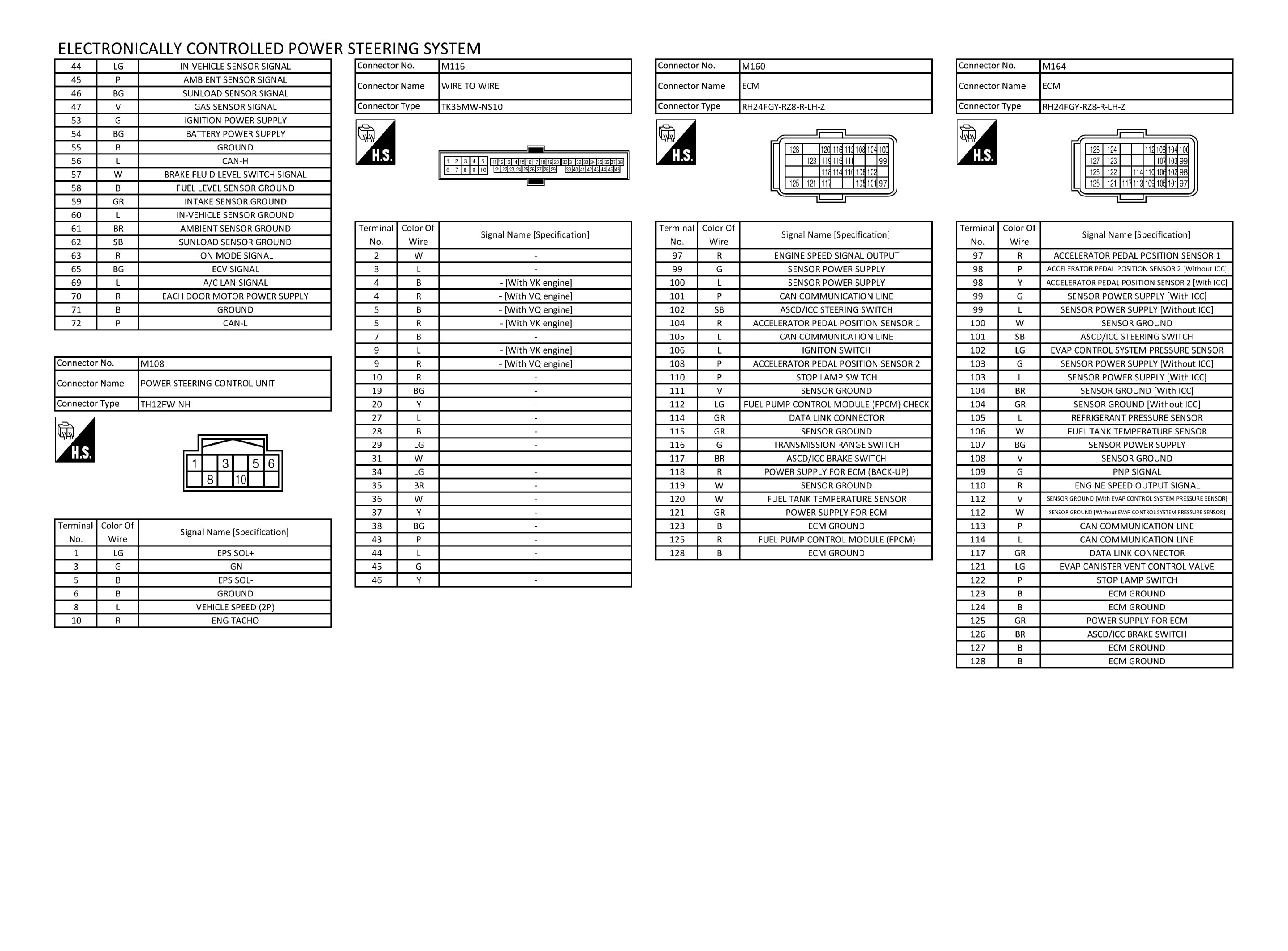

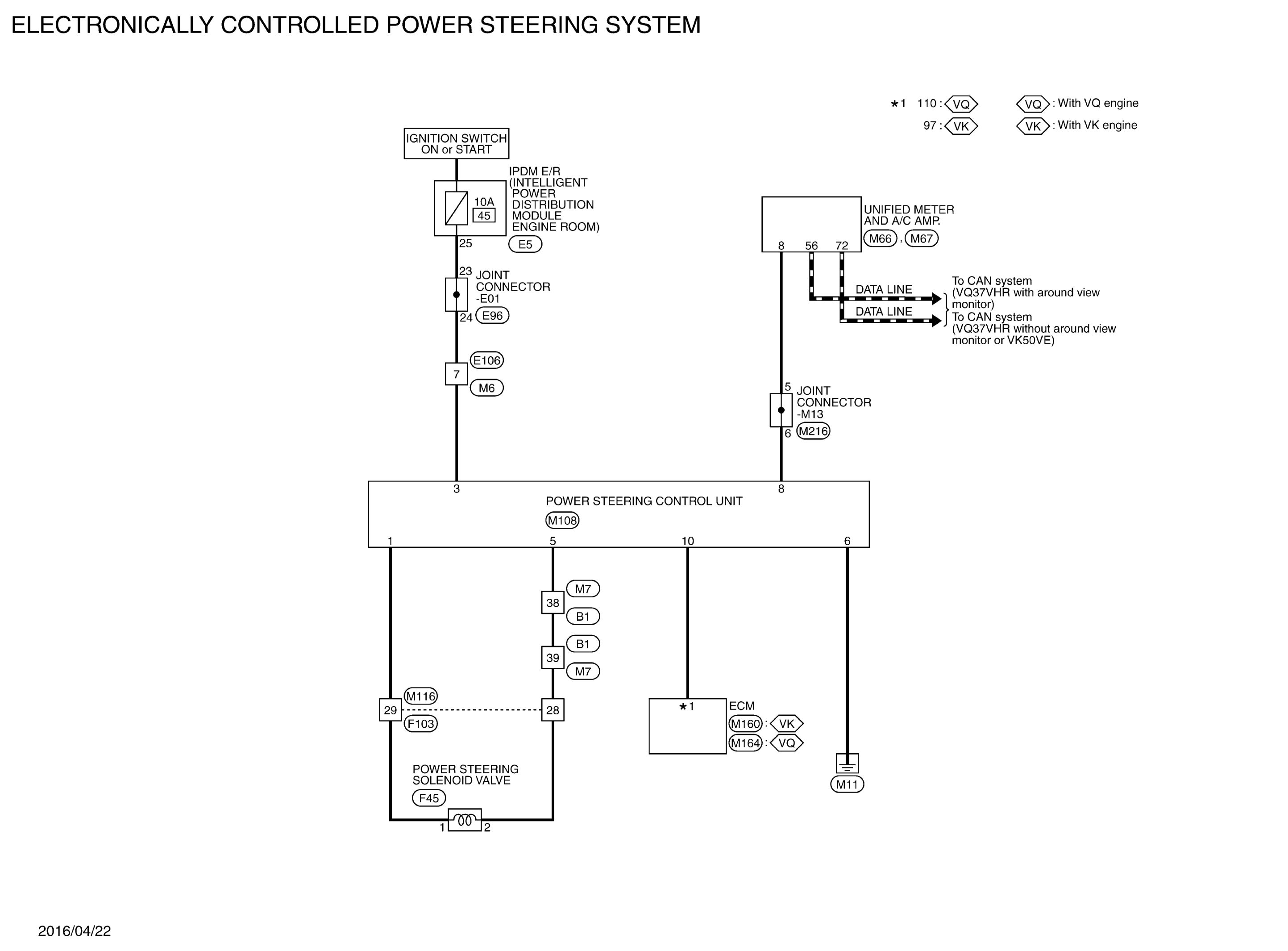

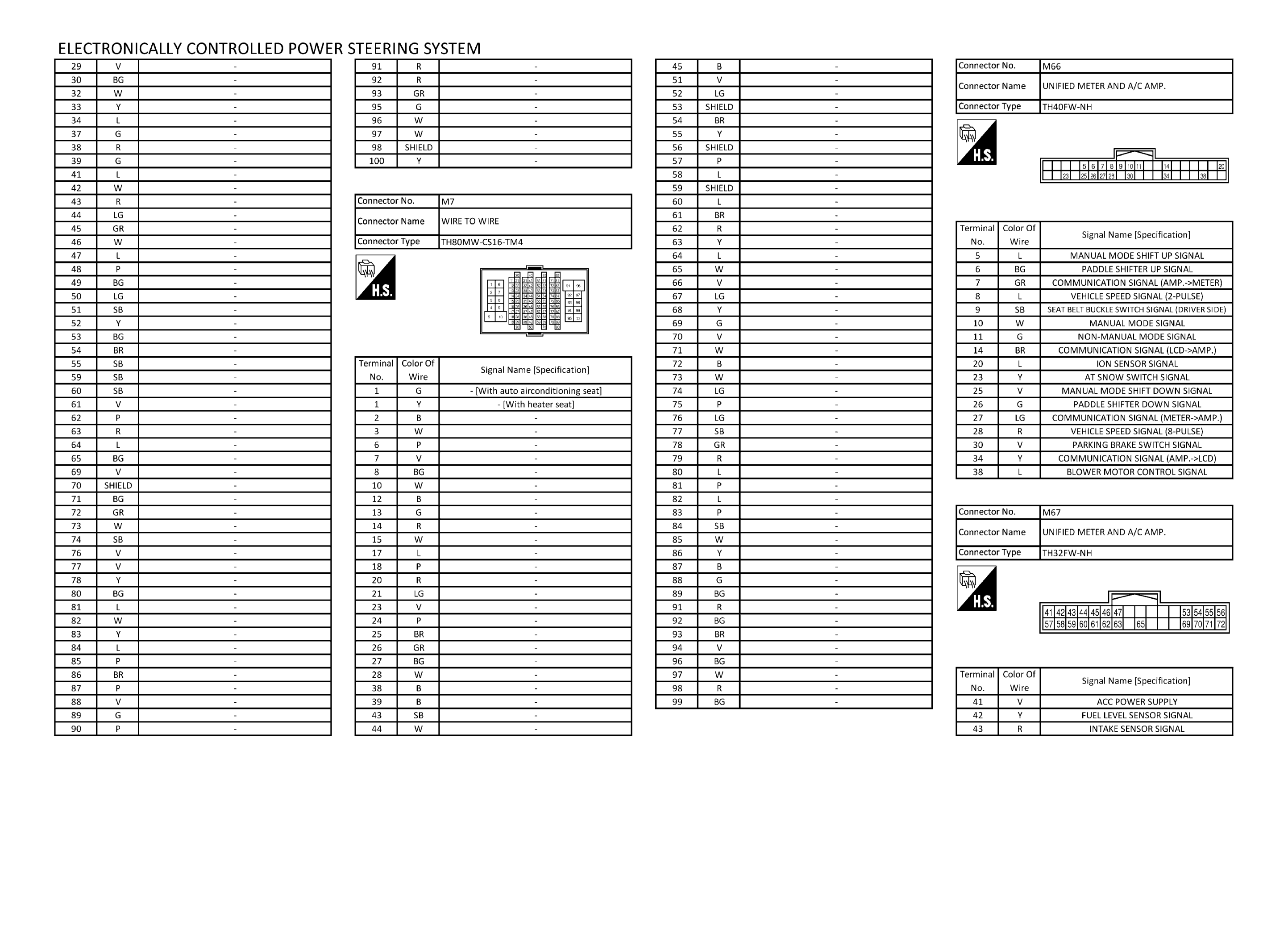

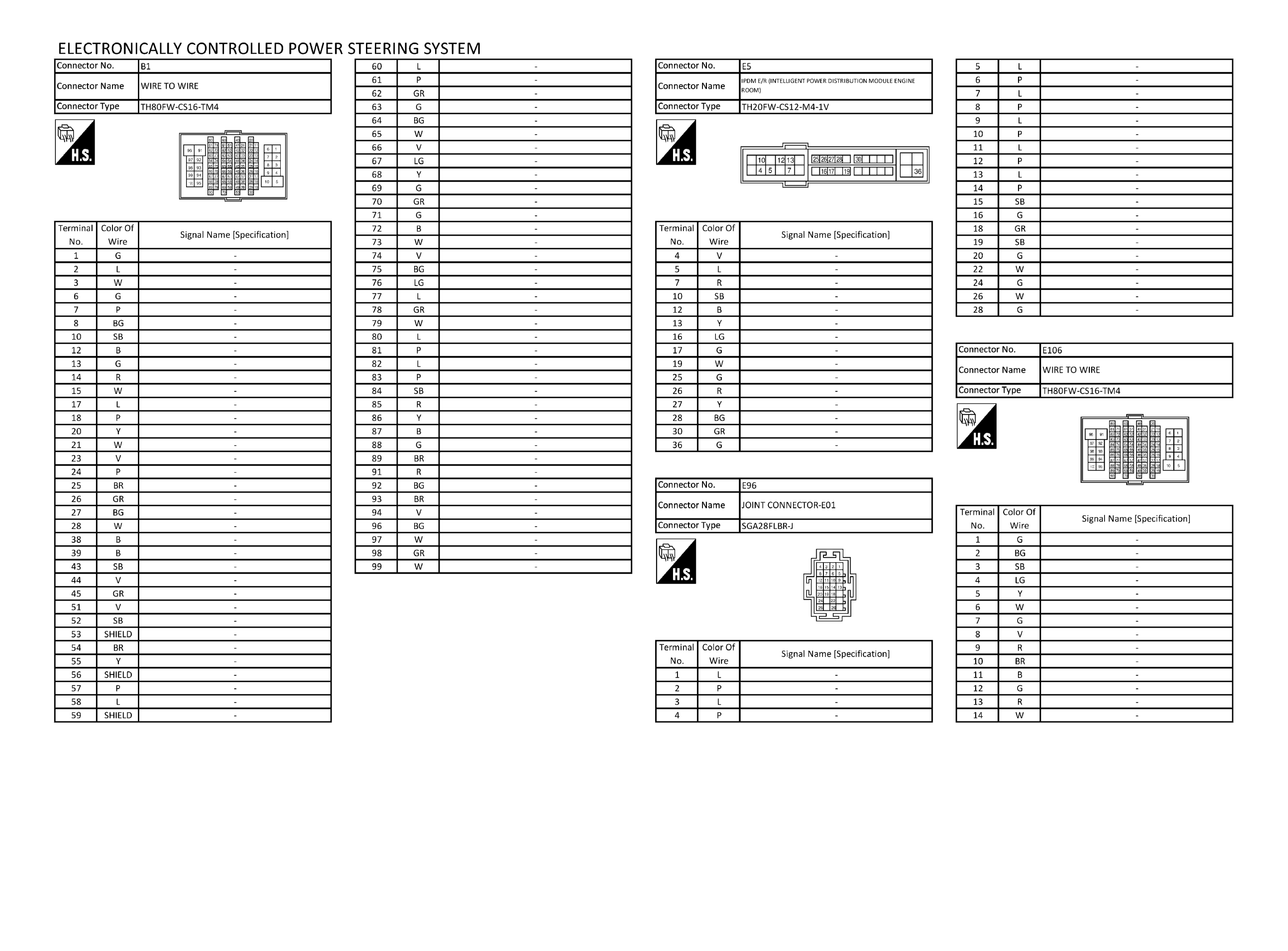

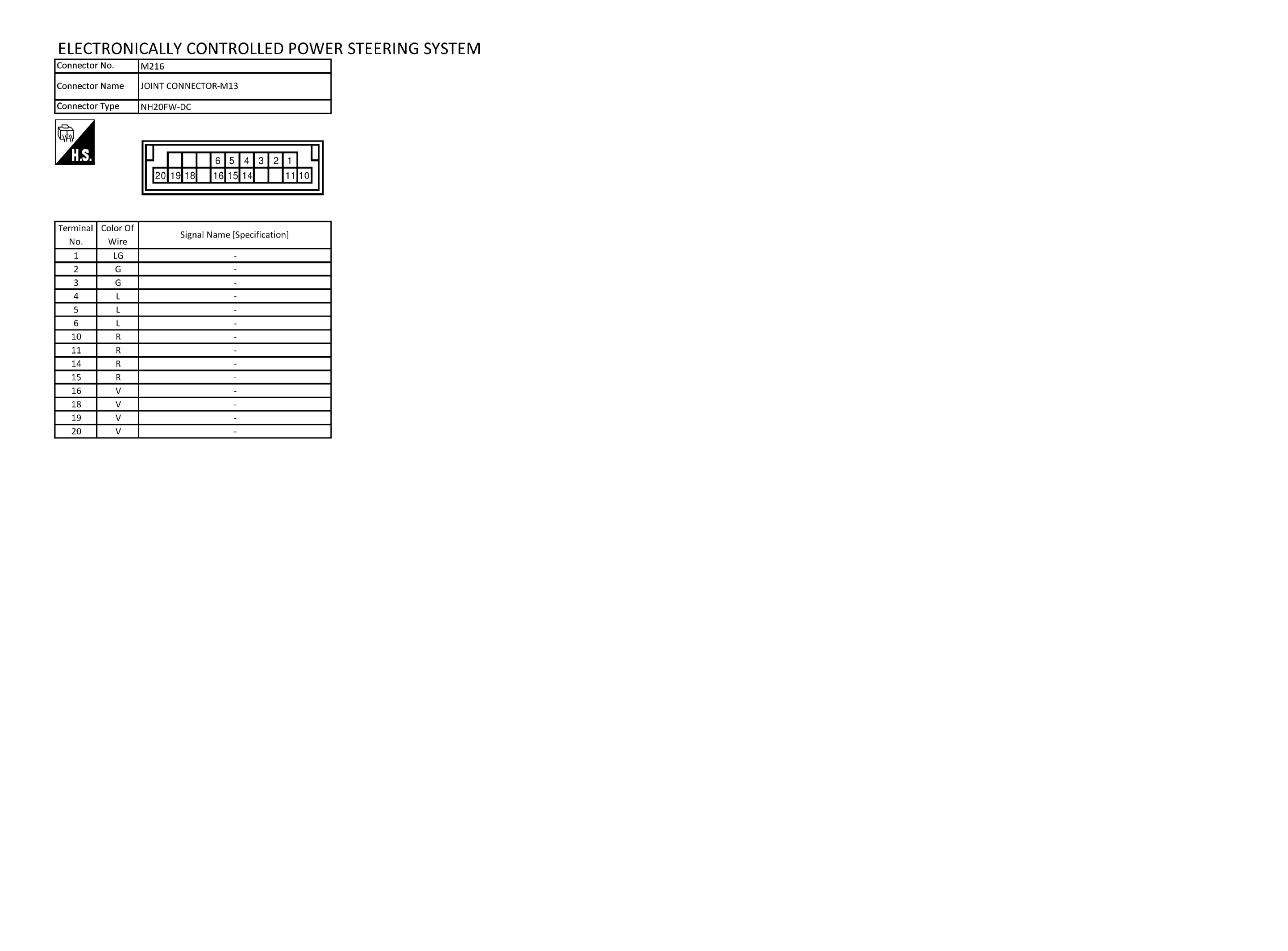

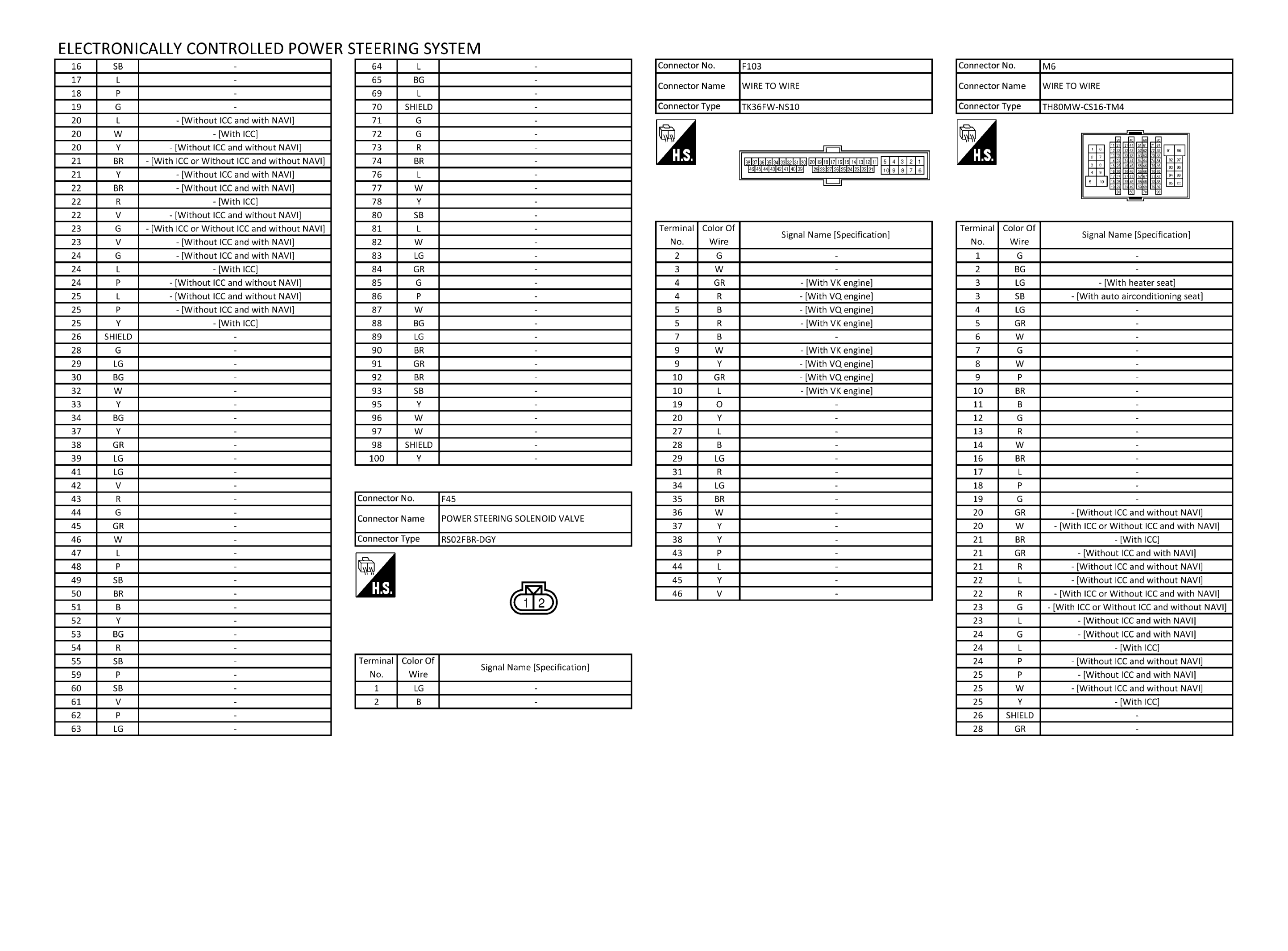

Wiring Diagram - Electronically Controlled Power Steering System

Courtesy of NISSAN NORTH AMERICA, INC.

Courtesy of NISSAN NORTH AMERICA, INC.

Courtesy of NISSAN NORTH AMERICA, INC.

Courtesy of NISSAN NORTH AMERICA, INC.

Courtesy of NISSAN NORTH AMERICA, INC.

Courtesy of NISSAN NORTH AMERICA, INC.
