Home
>>
Infiniti
>>
2017
>>
QX70 AWD
>>
Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
Seat Belt (Removal And Installation)
>>
Removal And Installation
>>
Latch System For Children
>>
Exploded View
Exploded View

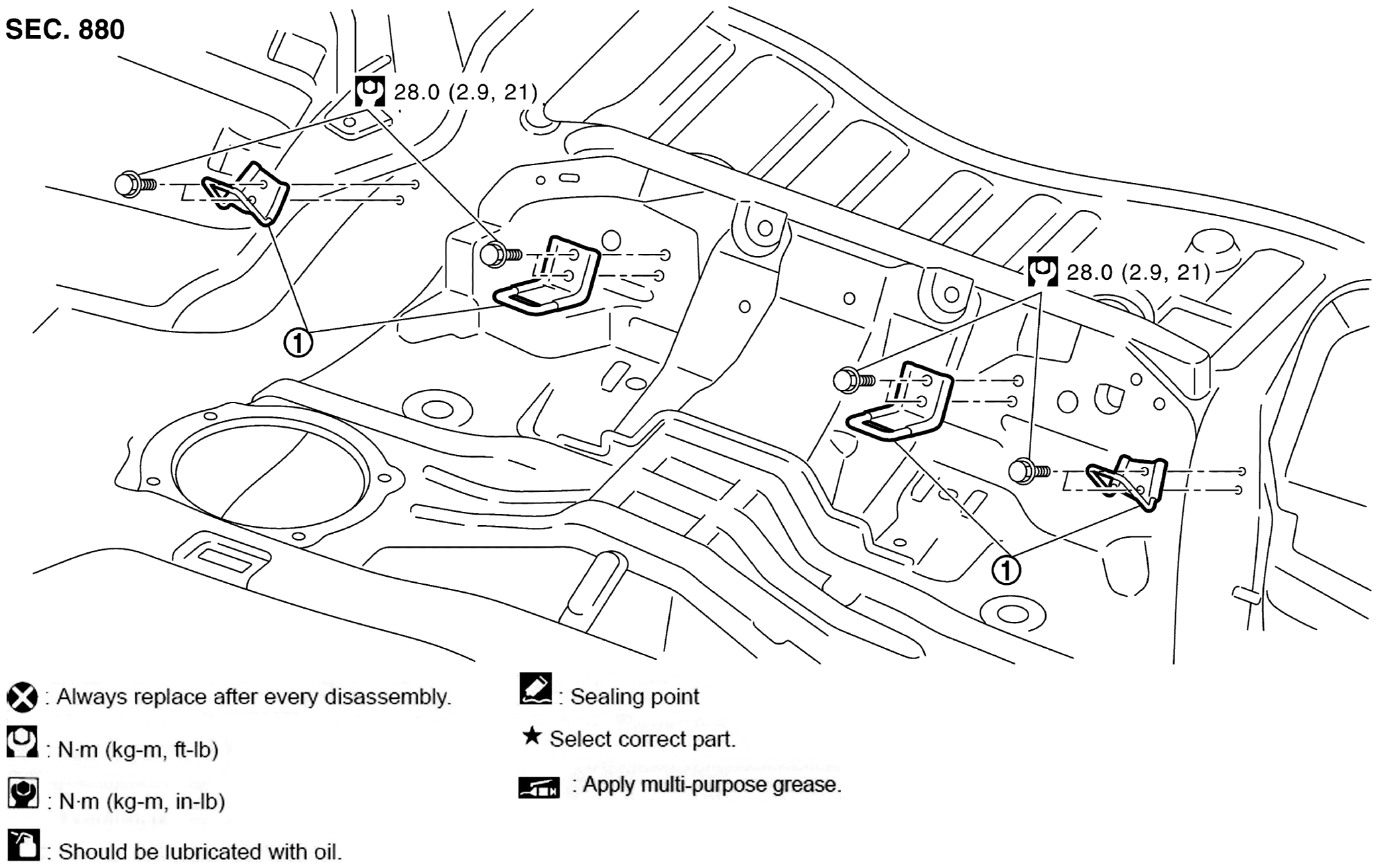

Fig 1: Latch System For Children With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
LATCH System
: N•m (kg - m, ft - lb)
Courtesy of NISSAN NORTH AMERICA, INC.
