Cross-Sectional View
WARNING: This page is about a different car, the 2016 Infiniti QX70. However, it is still accessible from the selected car via links, so may be relevant.

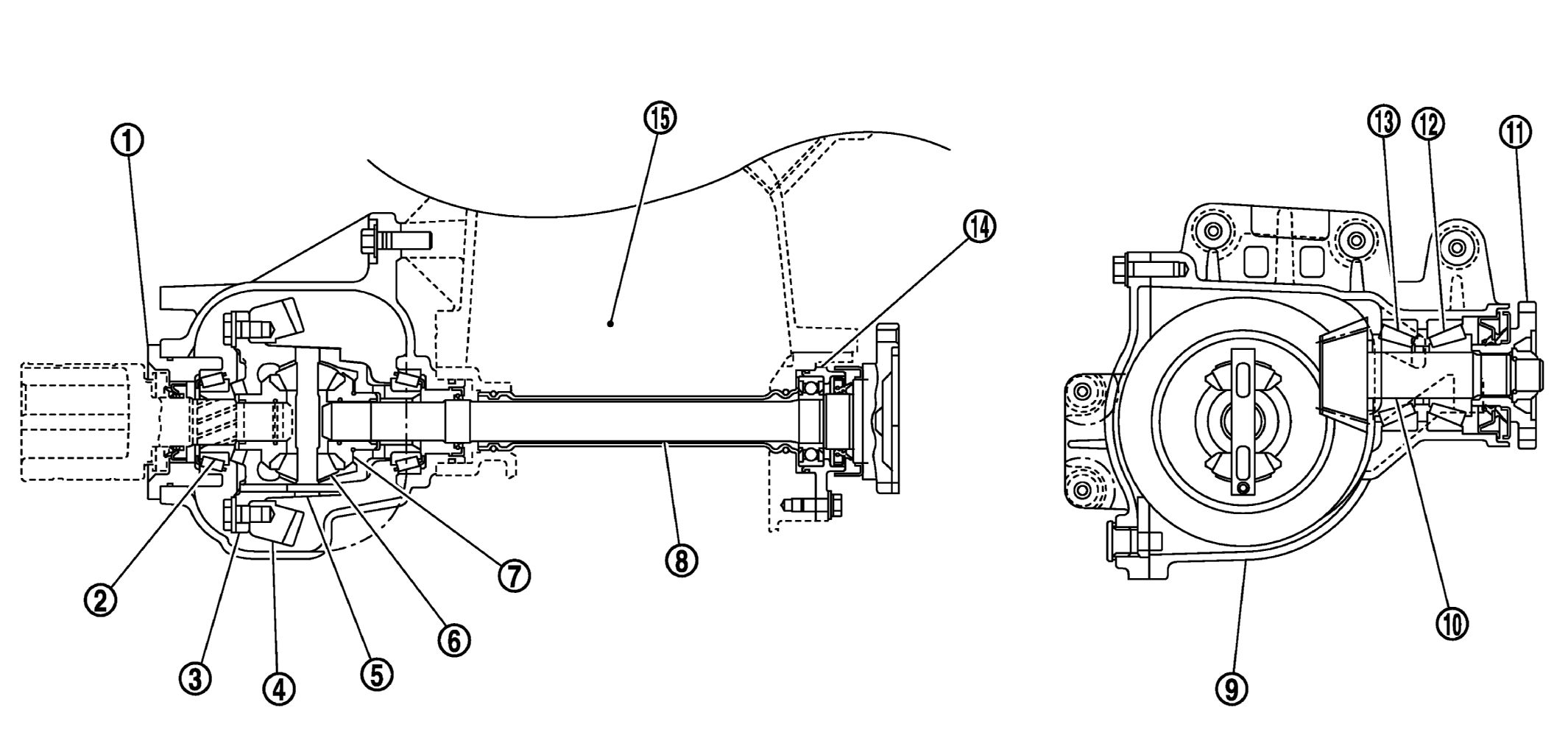

VQ37VHR
| 1. | Side retainer | 2. | Side bearing | 3. | Differential case |
| 4. | Drive gear | 5. | Pinion mate shaft | 6. | Pinion mate gear |
| 7. | Side gear | 8. | Side shaft | 9. | Gear carrier |
| 10. | Drive pinion | 11. | Companion flange | 12. | Pinion front bearing |
| 13. | Pinion rear bearing | 14. | Extension tube retainer | 15. | Engine assembly |
VK50VE
| 1. | Side retainer | 2. | Side bearing | 3. | Differential case |
| 4. | Drive gear | 5. | Pinion mate shaft | 6. | Pinion mate gear |
| 7. | Side gear | 8. | Side shaft | 9. | Gear carrier |
| 10. | Drive pinion | 11. | Companion flange | 12. | Pinion front bearing |
| 13. | Pinion rear bearing | 14. | Extension tube retainer | 15. | Engine assembly |
