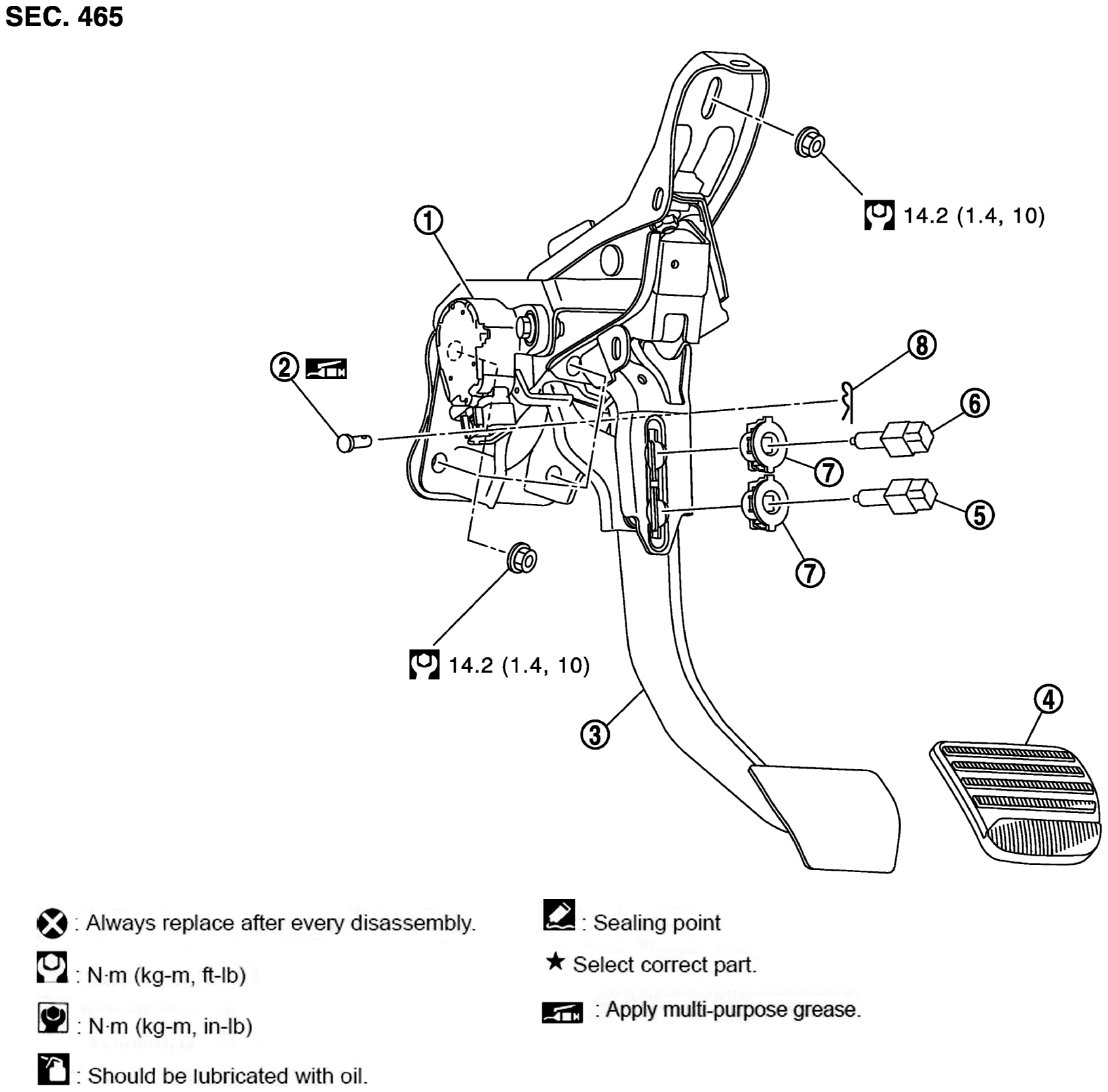

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX70. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Brake pedal stroke sensor (with pre-crash seat belt) | 2. | Clevis pin | 3. | Brake pedal assembly |
| 4. | Brake pedal pad | 5. | ASCD brake switch | 6. | Stop lamp switch |
| 7. | Clip | 8. | Snap pin | ||
| : Apply multi-purpose grease. | |||||
| Refer to COMPONENTS for symbols not described on the above. | |||||
