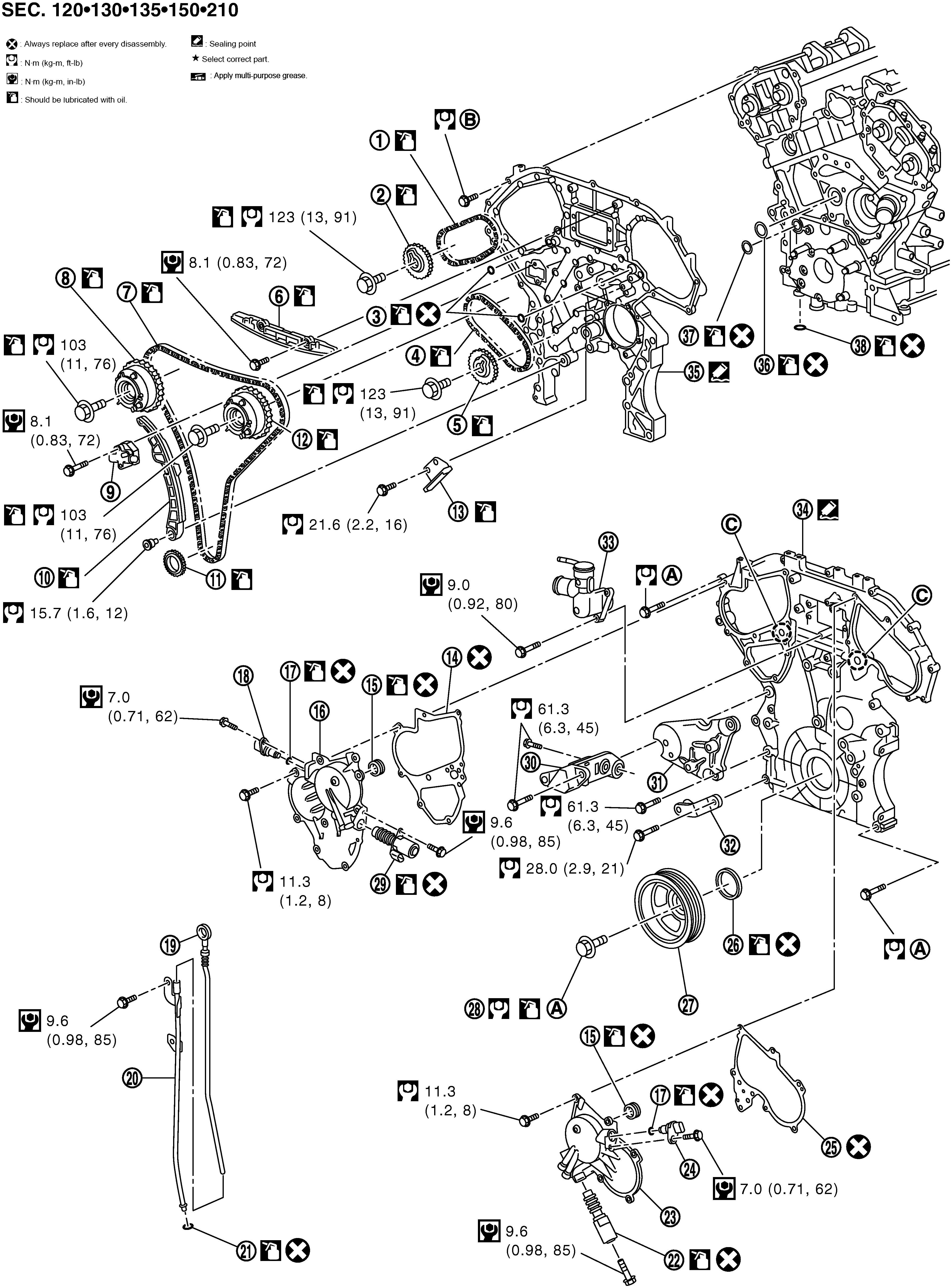

| 1. |
Timing chain (secondary) |
2. |
Camshaft sprocket (EXH) |
3. |
O-Ring |
| 4. |
Timing chain (secondary) |
5. |
Camshaft sprocket (EXH) |
6. |
Internal chain guide |
| 7. |
Timing chain (primary) |
8. |
Camshaft sprocket (INT) |
9. |
Timing chain tensioner (primary) |
| 10. |
Slack guide |
11. |
Crankshaft sprocket |
12. |
Camshaft sprocket (INT) |
| 13. |
Tension guide |
14. |
Intake valve timing control cover gasket (bank 1) |
15. |
Seal ring |
| 16. |
Intake valve timing control cover (bank 1) |
17. |
O-Ring |
18. |
Camshaft position sensor (PHASE) (bank 1) |
| 19. |
Oil level gauge |
20. |
Oil level gauge guide |
21. |
O-Ring |
| 22. |
Intake valve timing control solenoid valve (bank 2) |
23. |
Intake valve timing control cover (bank 2) |
24. |
Camshaft position sensor (PHASE) (bank 2) |
| 25. |
Intake valve timing control cover gasket (bank 2) |
26. |
Front oil seal |
27. |
Crankshaft pulley |
| 28. |
Crankshaft pulley bolt |
29. |
Intake valve timing control solenoid valve (bank 1) |
30. |
Power steering oil pump bracket |
| 31. |
Idler pulley bracket |
32. |
Alternator bracket |
33. |
Water outlet (front) |
| 34. |
Front timing chain case |
35. |
Rear timing chain case |
36. |
O-Ring |
| 37. |
O-Ring |
38. |
O-Ring |
|
|
| A. |
Comply with the installation procedure when tightening. Refer to REMOVAL AND INSTALLATION |
B. |
Comply with the installation procedure when tightening. Refer to DISASSEMBLY AND ASSEMBLY |
C. |
Oil filter |
| Refer to COMPONENTS
for symbols in the figure. |
