Disassembly And Assembly: Disassembly

  1. Remove center console assembly. Refer to REMOVAL AND INSTALLATION .
  2. Remove console lid assembly.

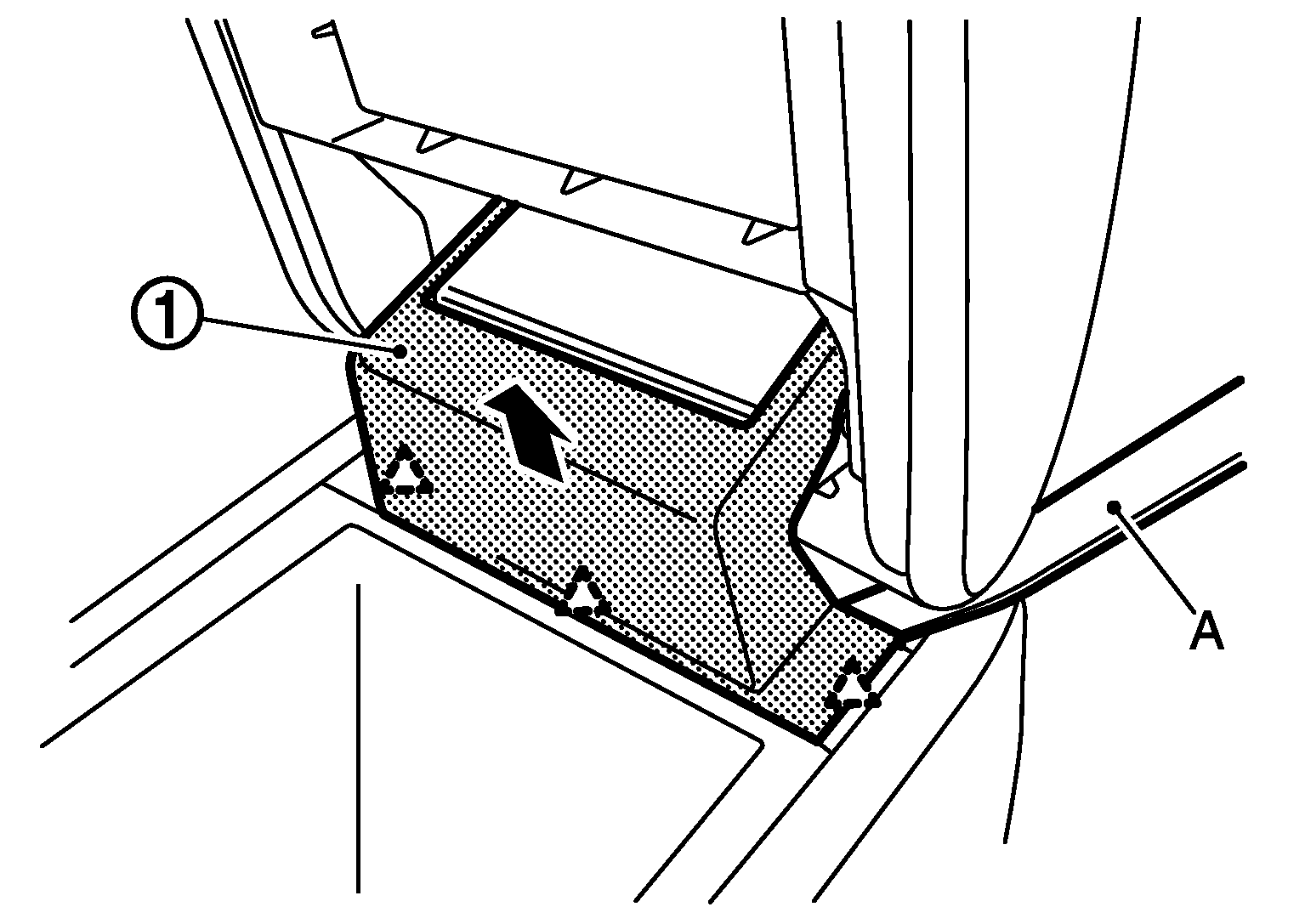

    GNSJMJIA2471ZZ-471Courtesy of NISSAN NORTH AMERICA, INC.
    1. Open the console lid.
    2. Remove console hinge mask (1) fixing pawls with remover tool (A).
      SANKAKU-H : Pawl
    3. Remove console lid assembly (1) fixing screws (A), and then remove console lid assembly.
      G07234116Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove console box assembly.
    1. Remove console pad LH.
      G05984843Courtesy of NISSAN NORTH AMERICA, INC.
      • Remove console pad LH (1) fixing screws (A).
      • Pull toward the arrow direction.
    2. Remove console pad RH.

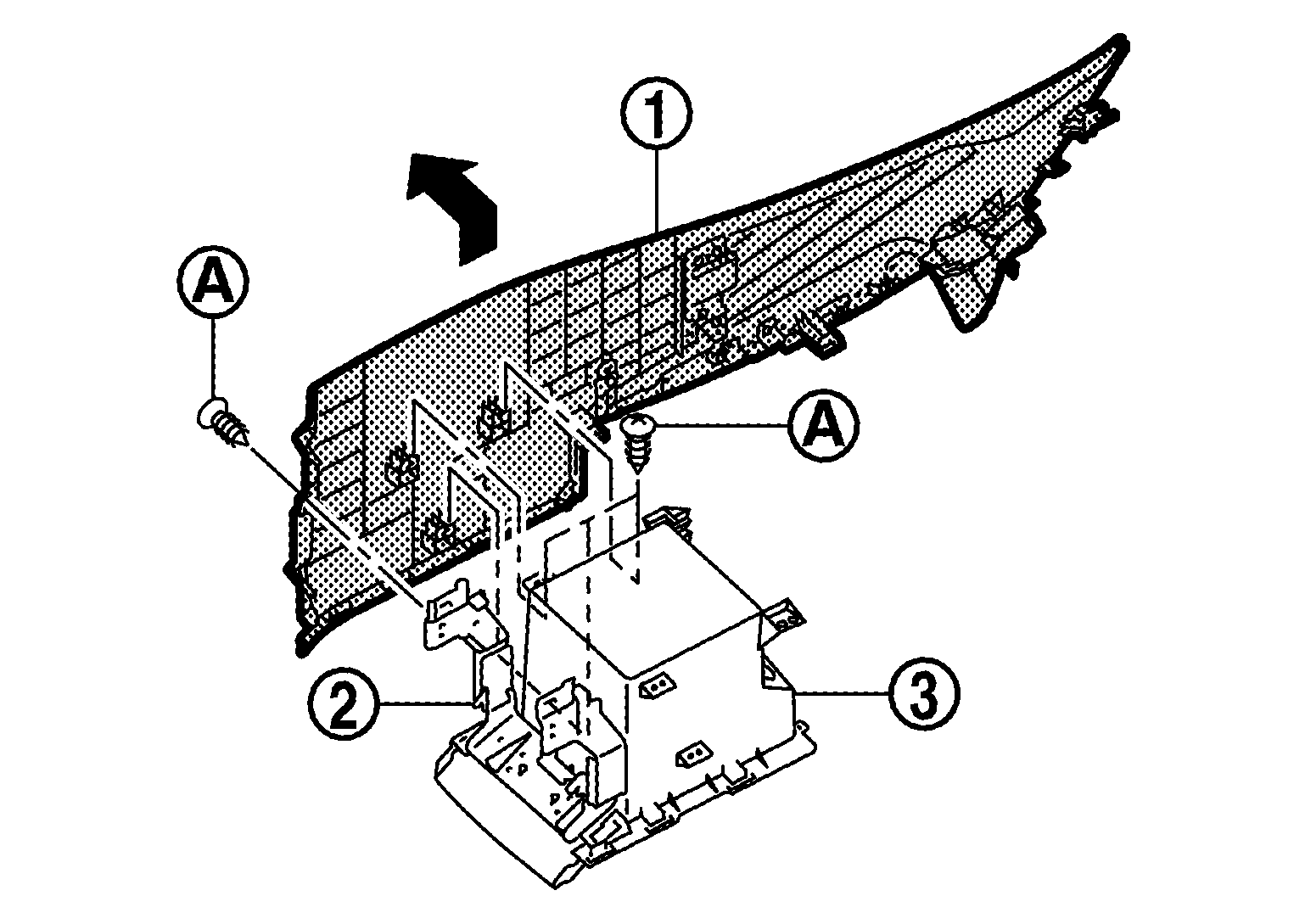

      GNSJSJIA0674ZZ-674Courtesy of NISSAN NORTH AMERICA, INC.
      • Remove console pad RH (1) fixing screws (A).
      • Pull toward the arrow direction.
      • Remove console rear bracket (2).
      • Remove console box assembly (3).
