Exploded View

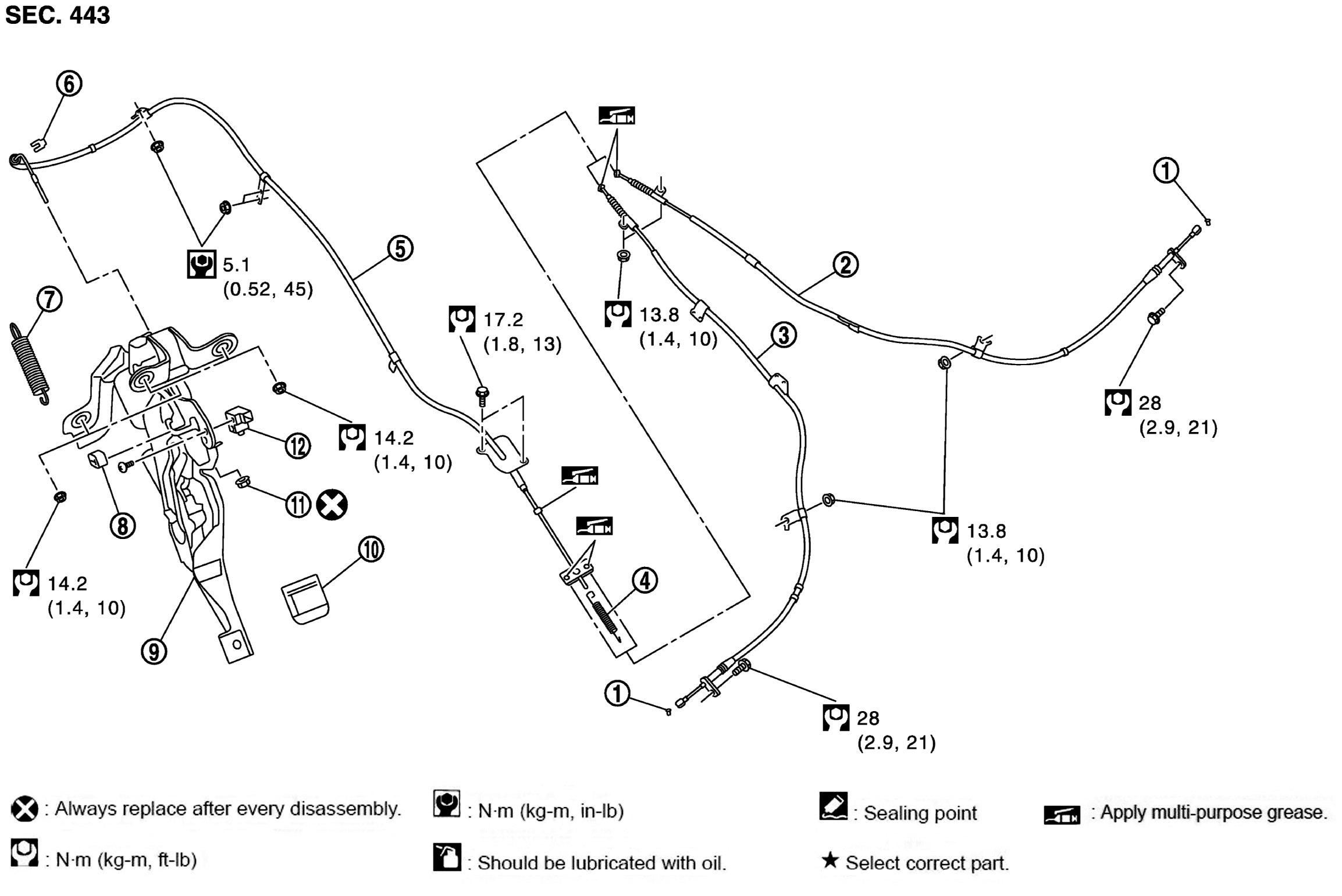

Fig 1: Parking Brake Control With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Pin	2.	Rear Cable (Right Side)	3.	Rear Cable (Left Side)
4.	Spring	5.	Front Cable	6.	Lock Plate
7.	Return Spring	8.	Stopper Rubber	9.	Parking Brake Pedal Assembly
10.	Pedal Pad	11.	Adjusting Nut	12.	Parking Brake Switch
: Apply multi-purpose grease.
Refer to COMPONENTS for symbols not described on the above.
