Wiring Diagram - Power Window Control System -

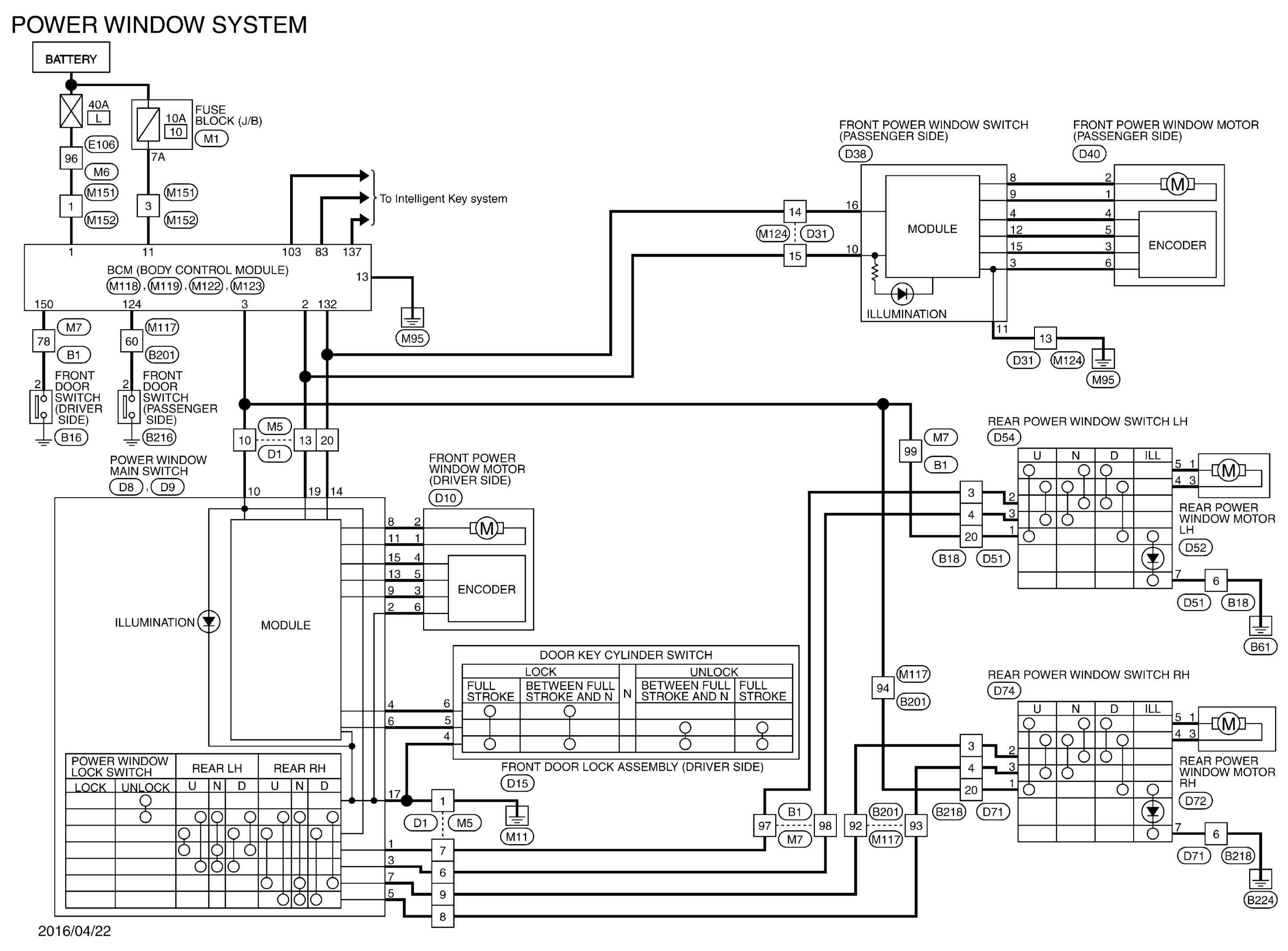

GNSJRKWG0706GB-706

Courtesy of NISSAN NORTH AMERICA, INC.

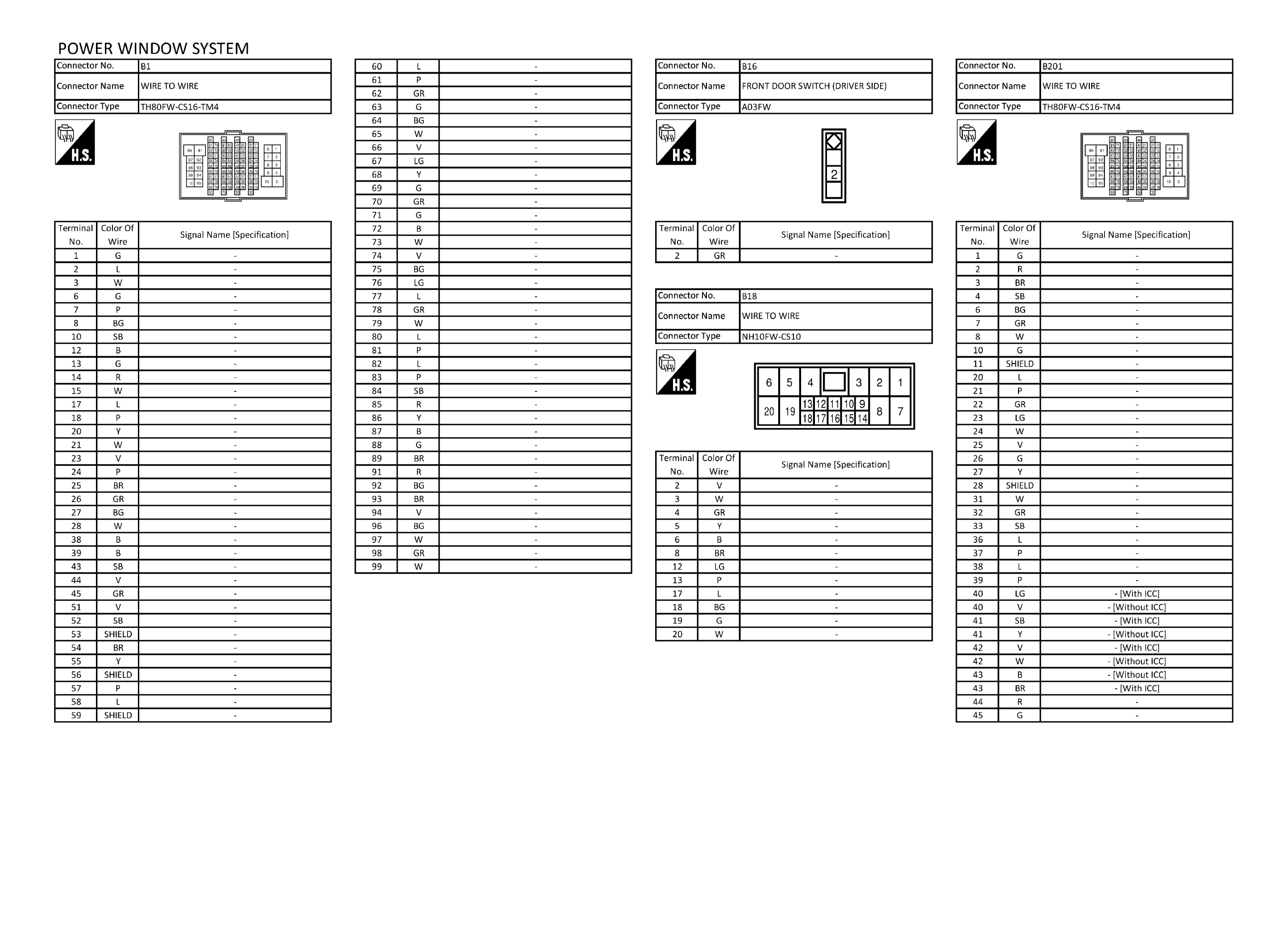

GNSJRKWG0707GB-707

Courtesy of NISSAN NORTH AMERICA, INC.

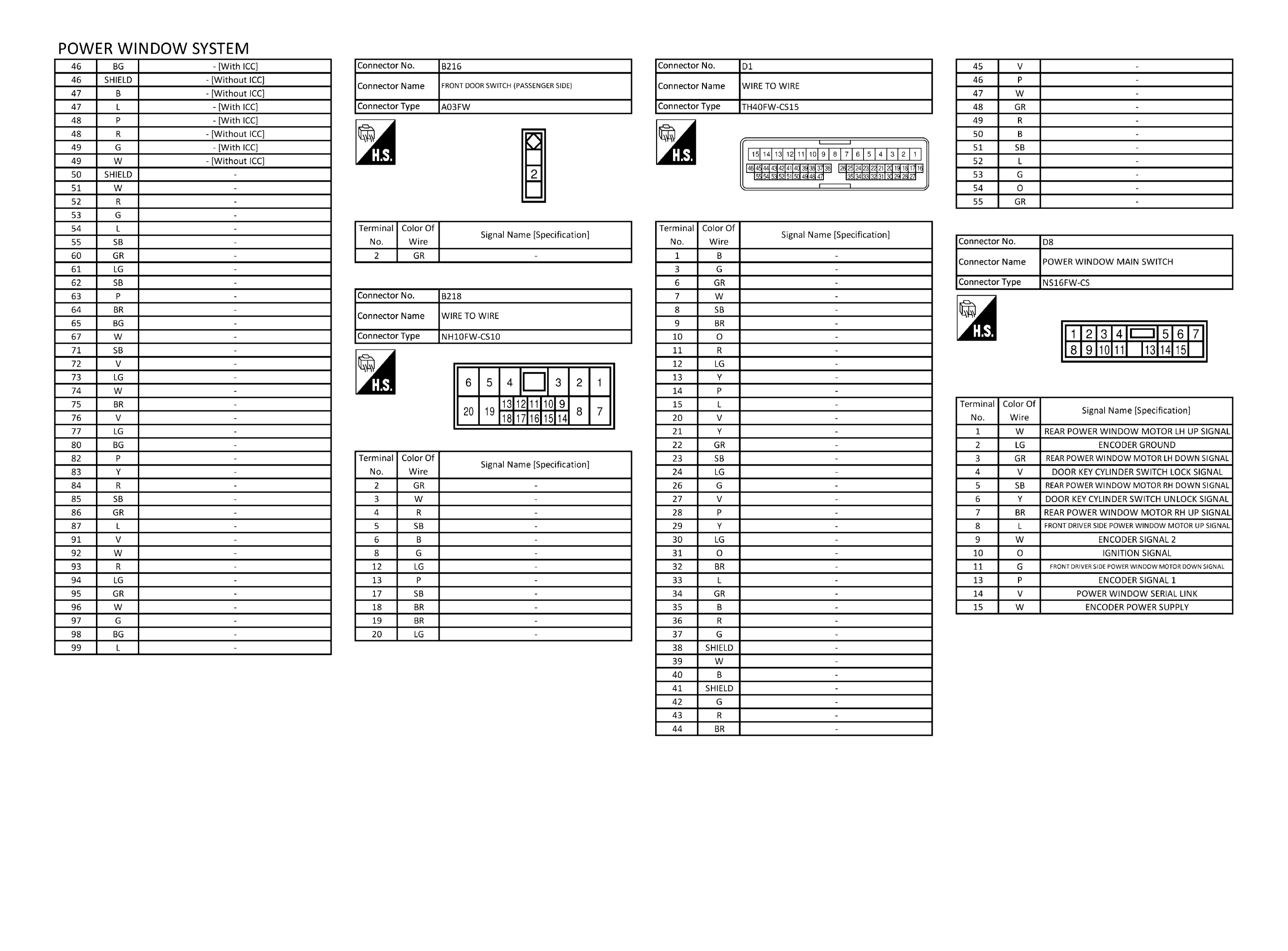

GNSJRKWG0708GB-708

Courtesy of NISSAN NORTH AMERICA, INC.

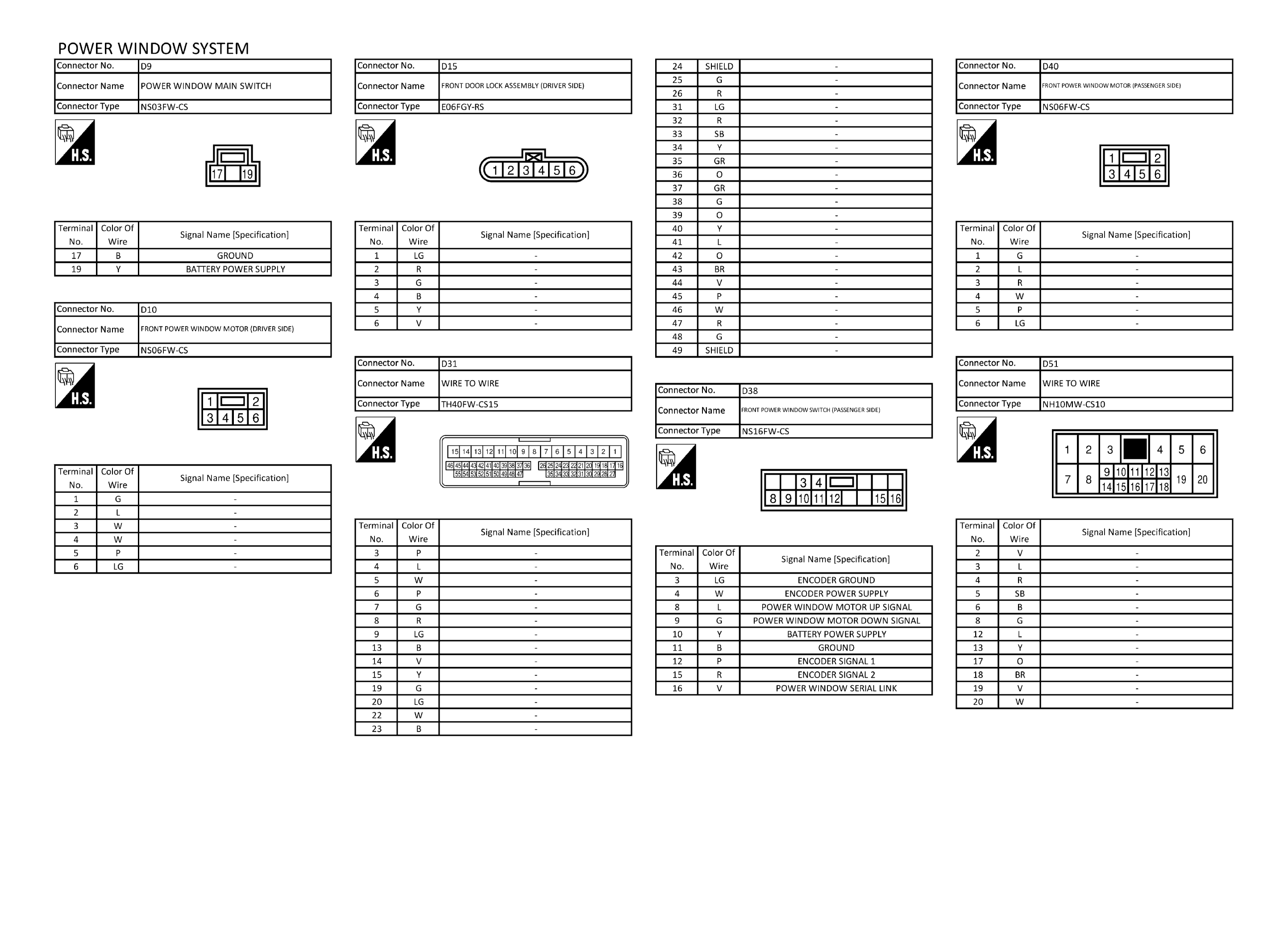

GNSJRKWG0709GB-709

Courtesy of NISSAN NORTH AMERICA, INC.

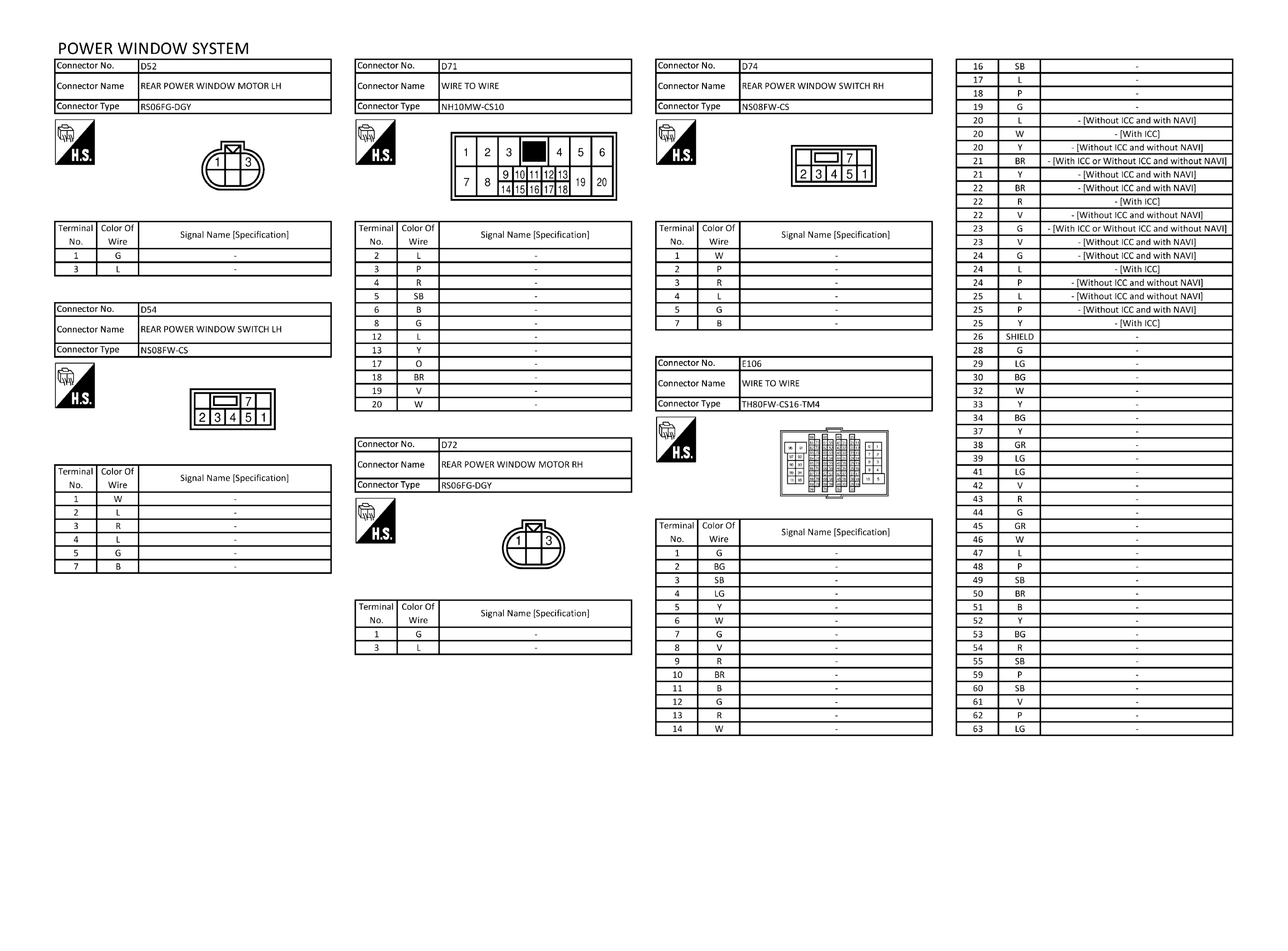

GNSJRKWG0710GB-710

Courtesy of NISSAN NORTH AMERICA, INC.

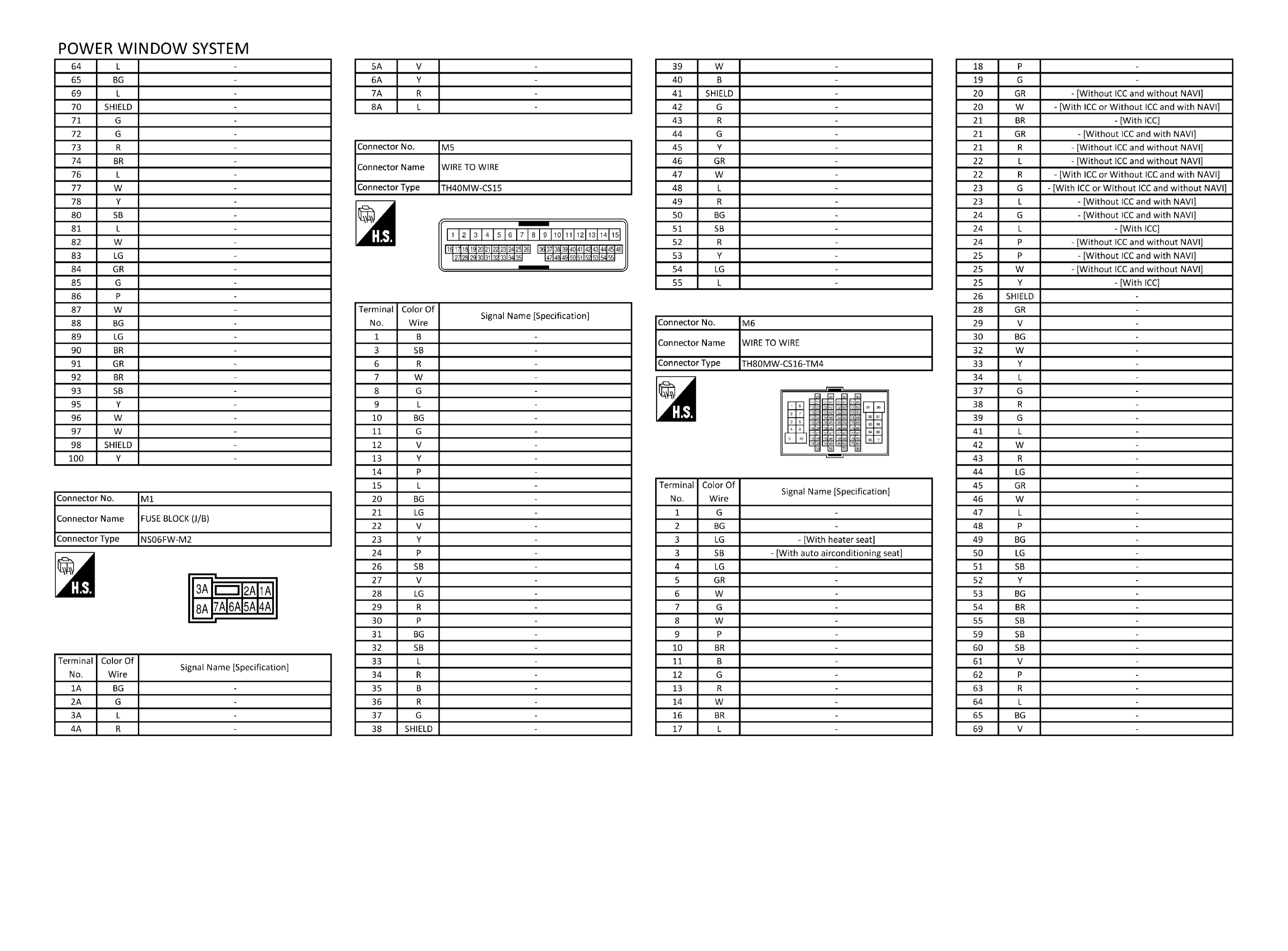

GNSJRKWG0711GB-711

Courtesy of NISSAN NORTH AMERICA, INC.

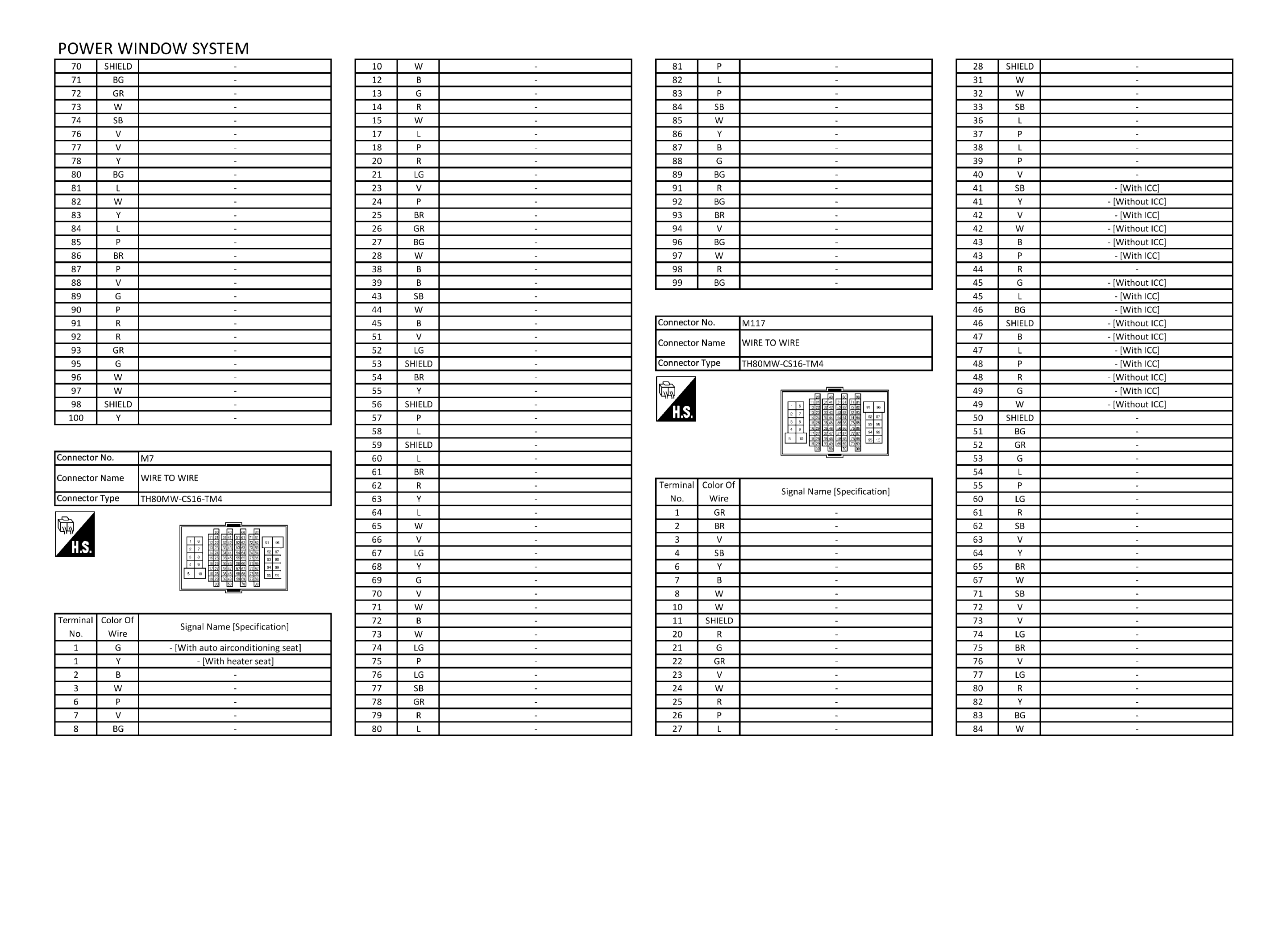

GNSJRKWG0712GB-712

Courtesy of NISSAN NORTH AMERICA, INC.

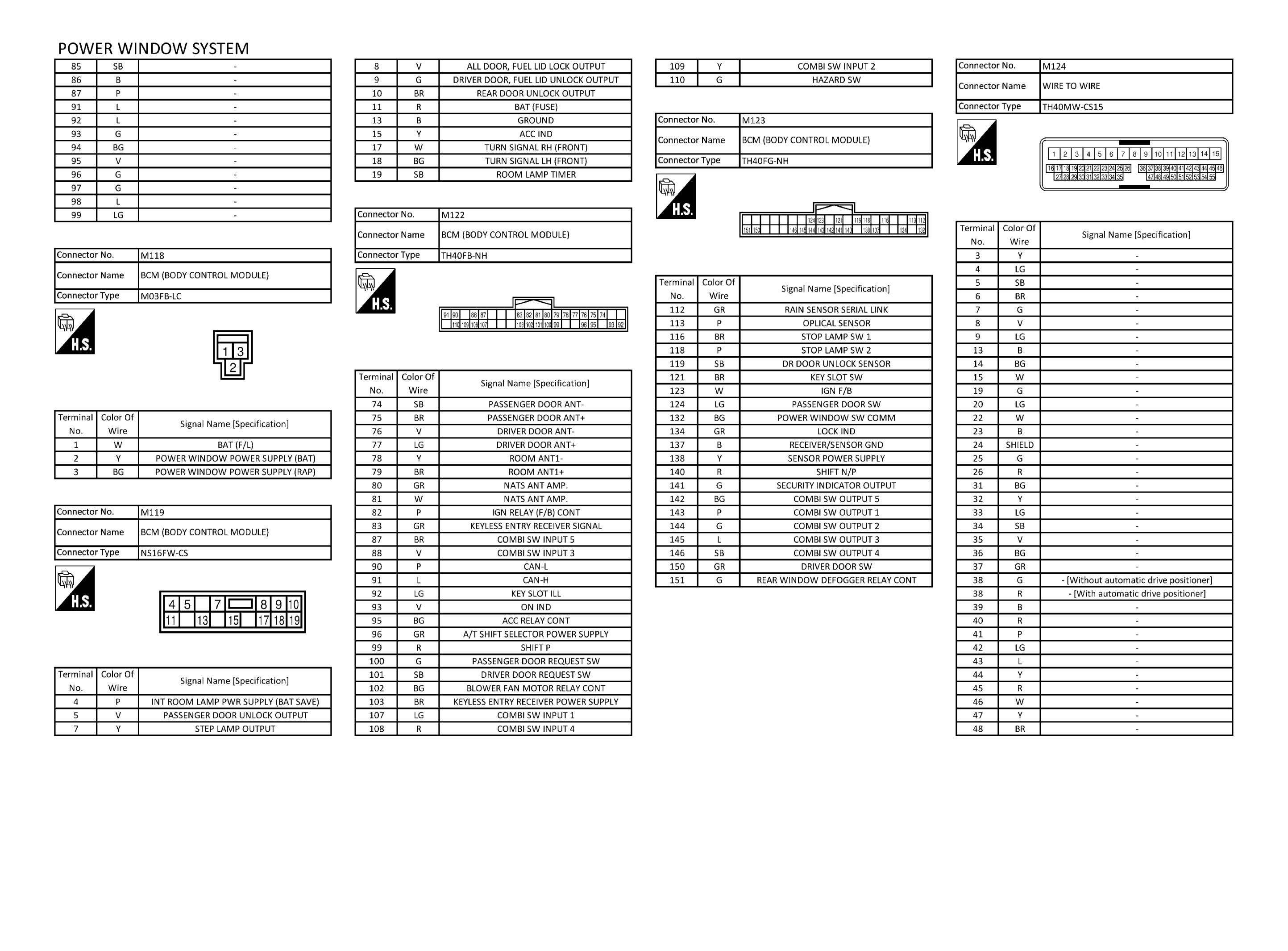

GNSJRKWG0713GB-713

Courtesy of NISSAN NORTH AMERICA, INC.

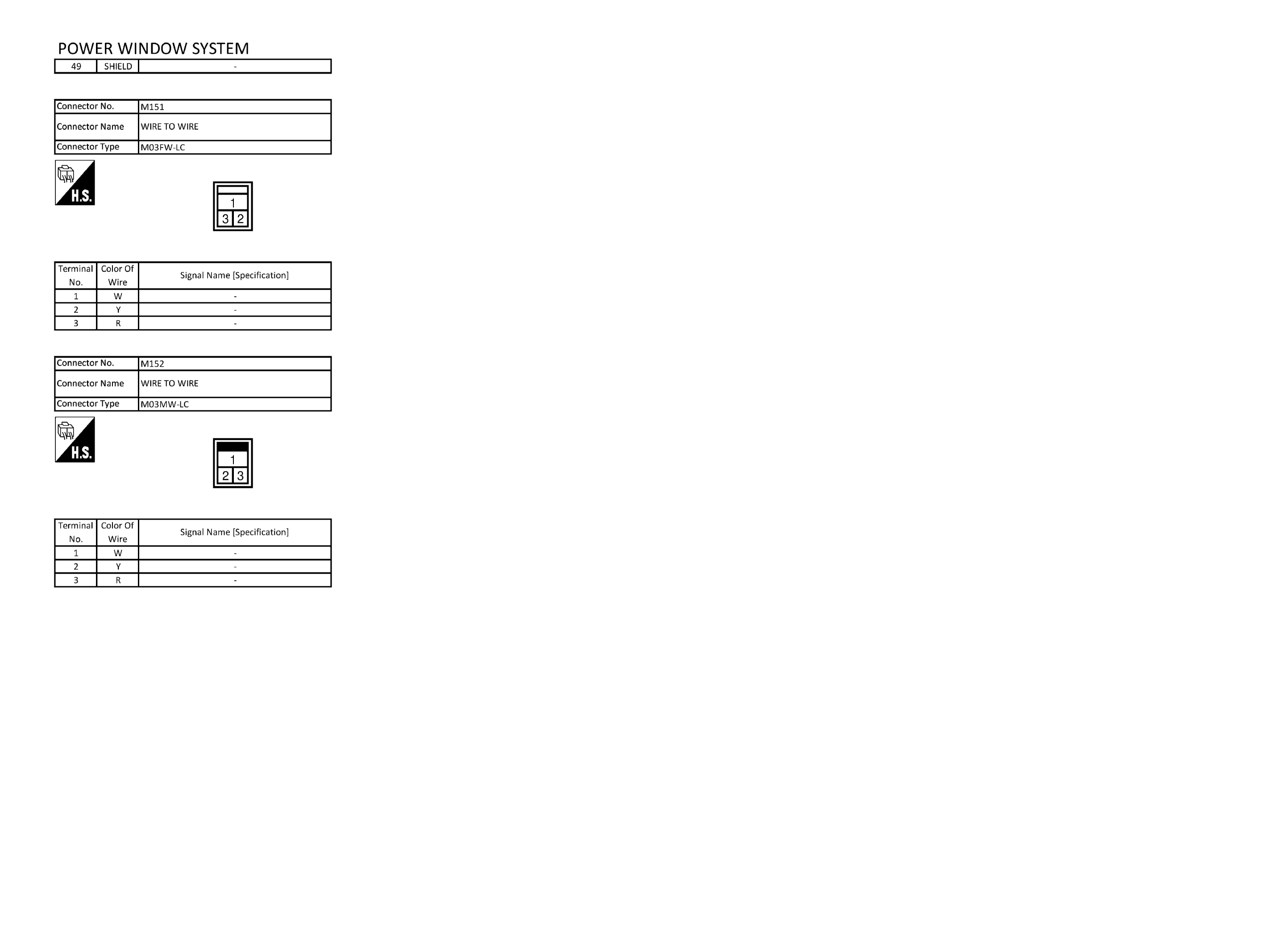

GNSJRKWG0714GB-714

Courtesy of NISSAN NORTH AMERICA, INC.
