Component Location

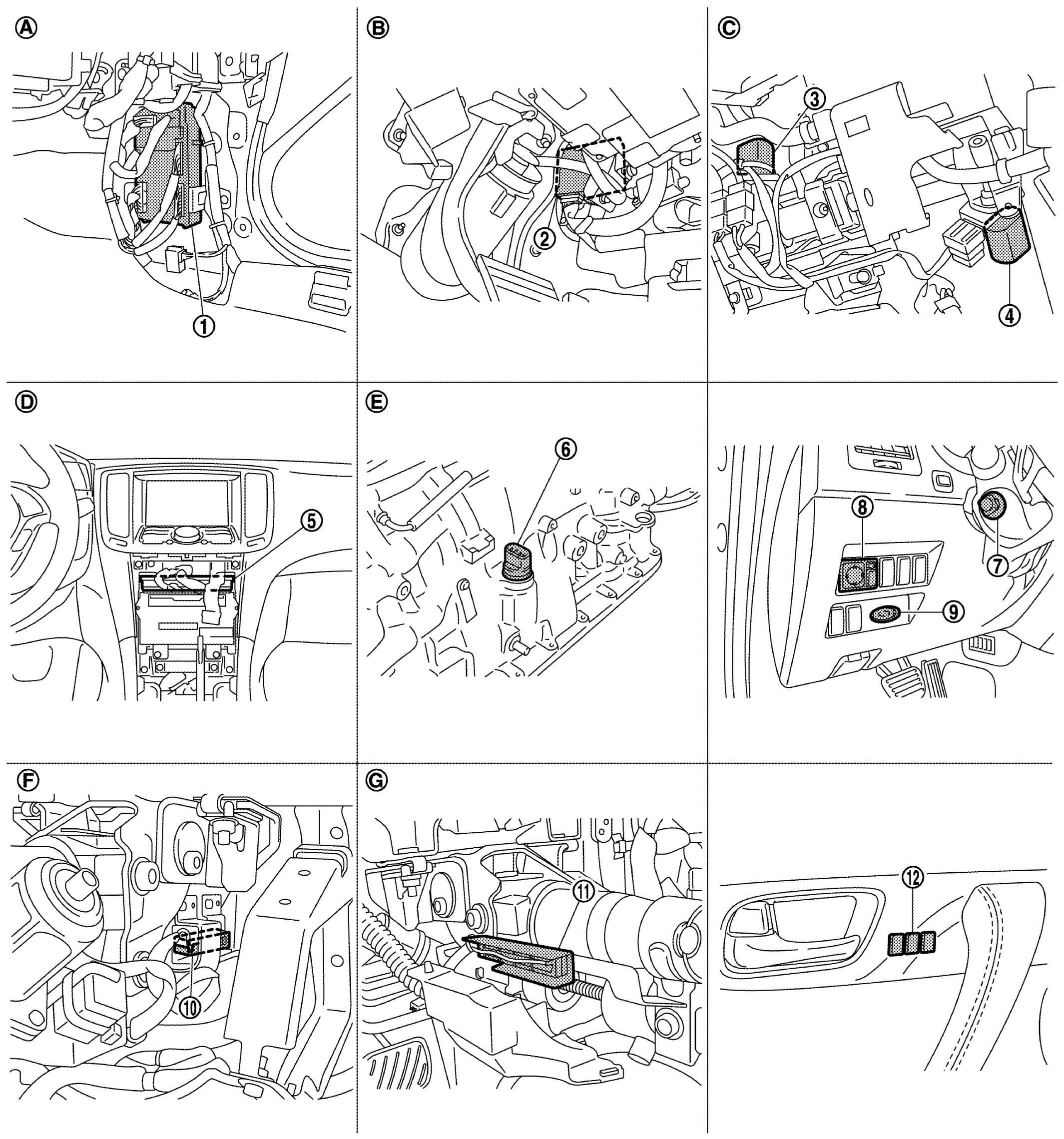

GNSJSJIA0645ZZ-645Courtesy of NISSAN NORTH AMERICA, INC.
1. BCM 2. Automatic Drive Positioner Control Unit 3. Tilt Motor
4. Telescopic Motor 5. Unified Meter And A/C Amp. 6. AT Assembly Connector
7. Tilt & Telescopic Switch 8. Door Mirror Remote Control Switch 9. Key Slot
10. Tilt Sensor 11. Telescopic Sensor 12. Seat Memory Switch
A. Dash Side Lower (Passenger Side) B. View With Instrument Driver Lower Panel Removed C. View With Steering Column Cover Lower And Upper Removed
D. Behind Cluster Lid C E. A/T Assembly
(TCM is built in A/T Assembly)		 F. View With Instrument Driver Lower Panel Removed
G View With Steering Column Cover Lower And Upper Removed

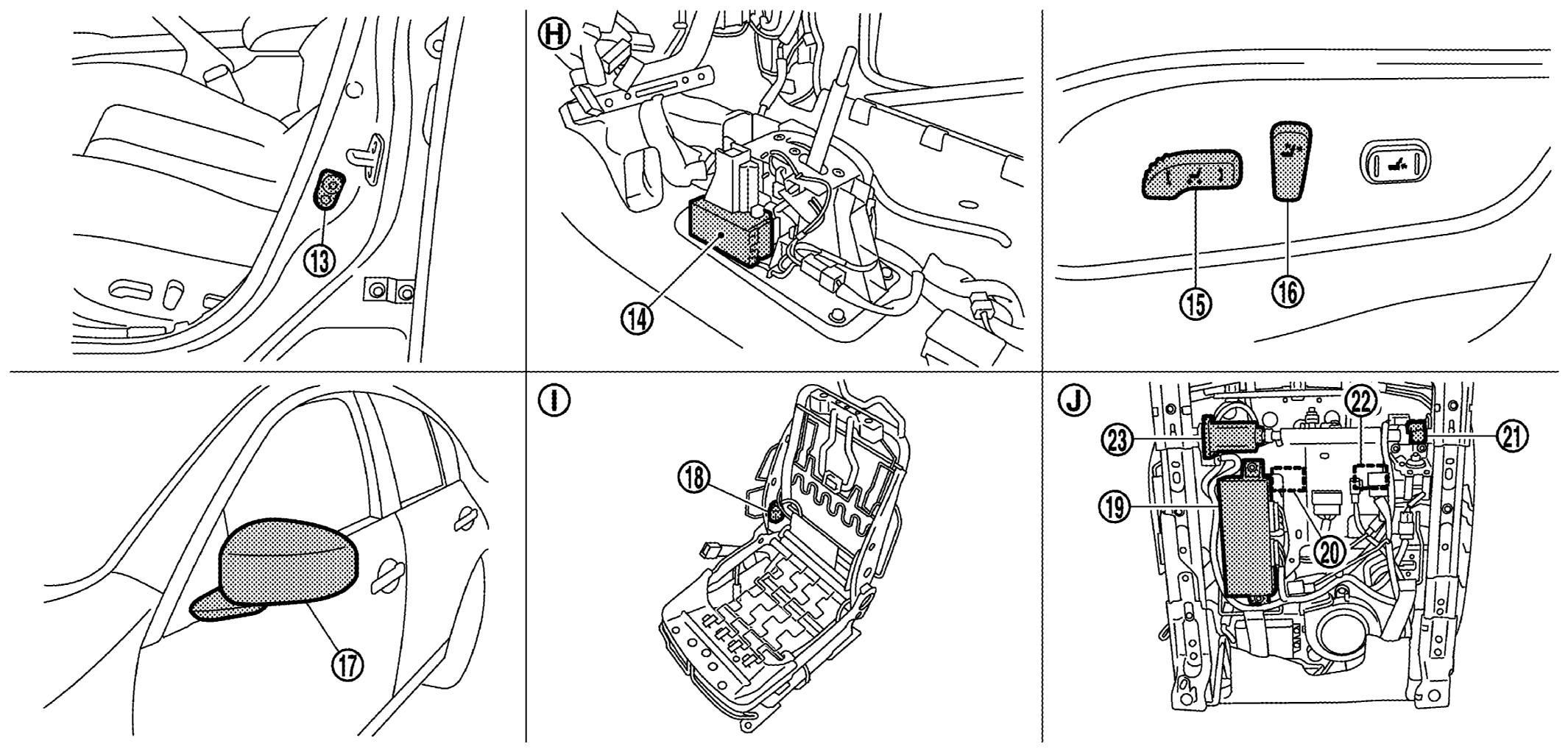

GNSJSJIA0646ZZ-646Courtesy of NISSAN NORTH AMERICA, INC.
13. Front Door Switch (Driver Side) 14. A/T Shift Selector (Detention Switch) 15. Sliding, Lifting Switch
16. Reclining Switch 17. Door Mirror (Driver Side) 18. Reclining Motor
19. Driver Seat Control Unit 20. Lifting Motor (Front) 21. Sliding Sensor
22. Lifting Motor (Rear) 23. Sliding Motor
H. View With Center Console Assembly Removed I. View With Seat Cushion Pad And Seatback Pad Removed J. Backside Of The Seat Cushion
