Component Location

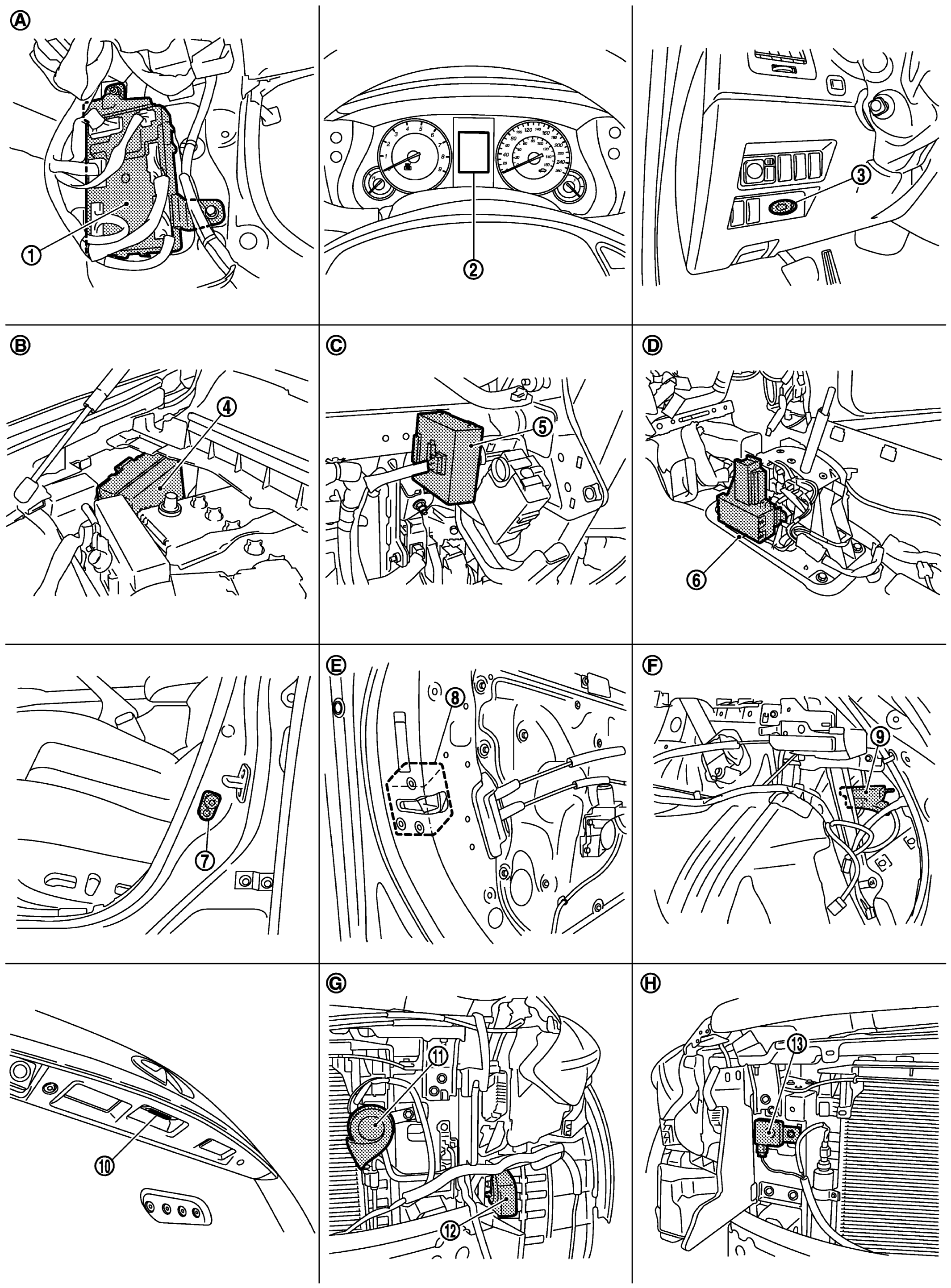

GNSJMKIA2606ZZ-606Courtesy of NISSAN NORTH AMERICA, INC.
1. BCM 2. Combination Meter 3. Key Slot
4. IPDM E/R 5. Remote Keyless Entry Receiver 6. A/T Shift Selector (Detention Switch)
7. Front Door Switch (Driver Side) 8. Front Door Lock Assembly (Driver Side) 9. Fuel Lid Lock Actuator
10. Back Door Opener Switch 11. Horn (low) 12. Horn (high)
13. Intelligent Key Warning Buzzer
A. Dash side lower (Passenger Side) B. Engine room dash panel (RH) C. Behind the instrument lower panel (Driver Side)
D. View with center console assembly removed E. View with front door finisher (LH) removed F. View with luggage side finisher lower (RH) removed
G. View with front bumper removed H. View with front bumper removed

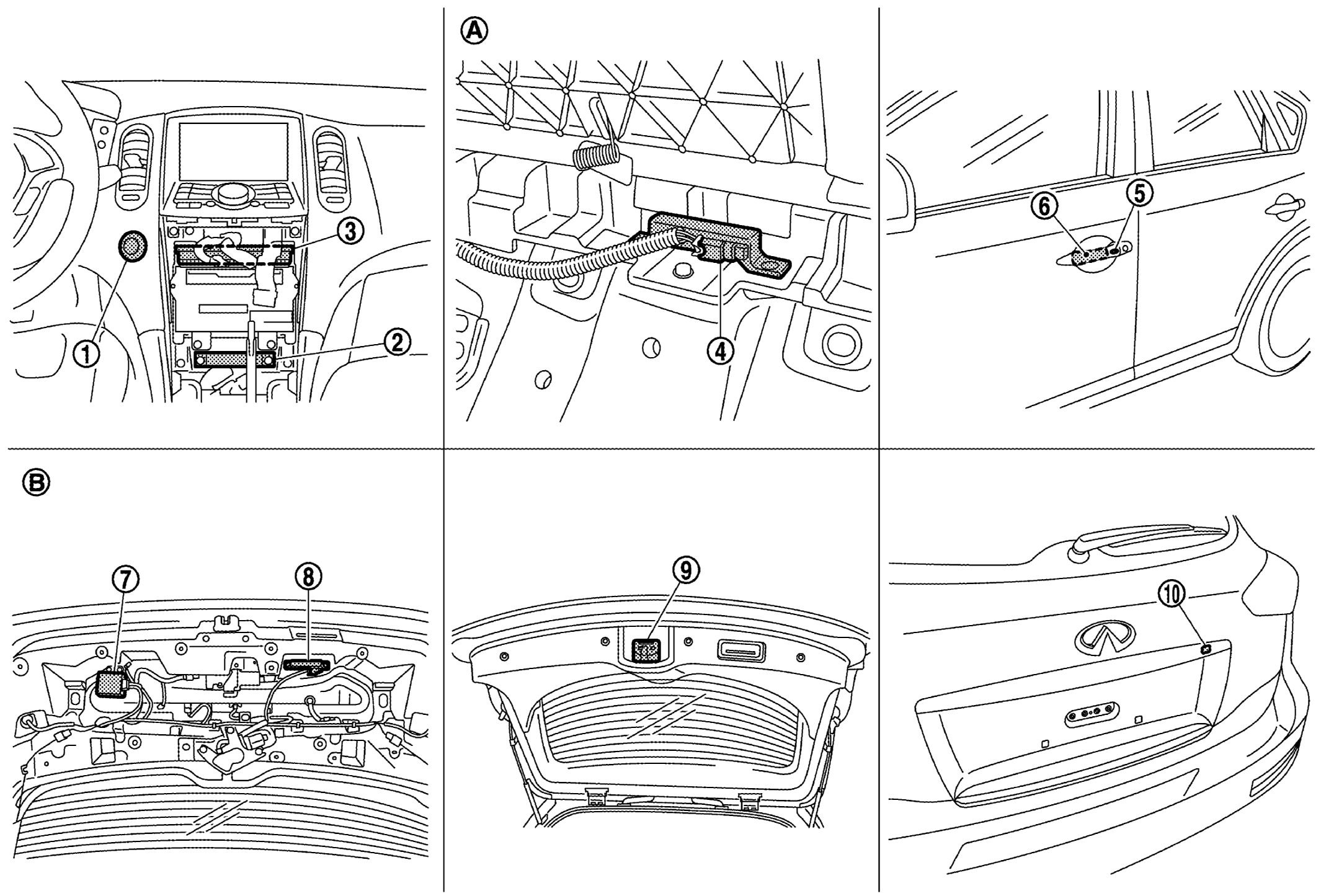

GNSJMKIA9356ZZ-356Courtesy of NISSAN NORTH AMERICA, INC.
1. Push-Button Ignition Switch (Push Switch) 2. Inside Key Antenna (Instrument Center) 3. Unified Meter And A/C Amp.
4. Inside Key Antenna (Luggage Room) 5. Front Outside Handle LH (Request Switch) 6. Front Outside Handle LH (Outside Key Antenna)
7. Back Door Control Unit 8. Outside Key Antenna (Back Door) 9. Back Door Lock Assembly
10. Back Door Opener Request Switch
A. View with luggage floor finisher front removed B. View with back door finisher inner removed
