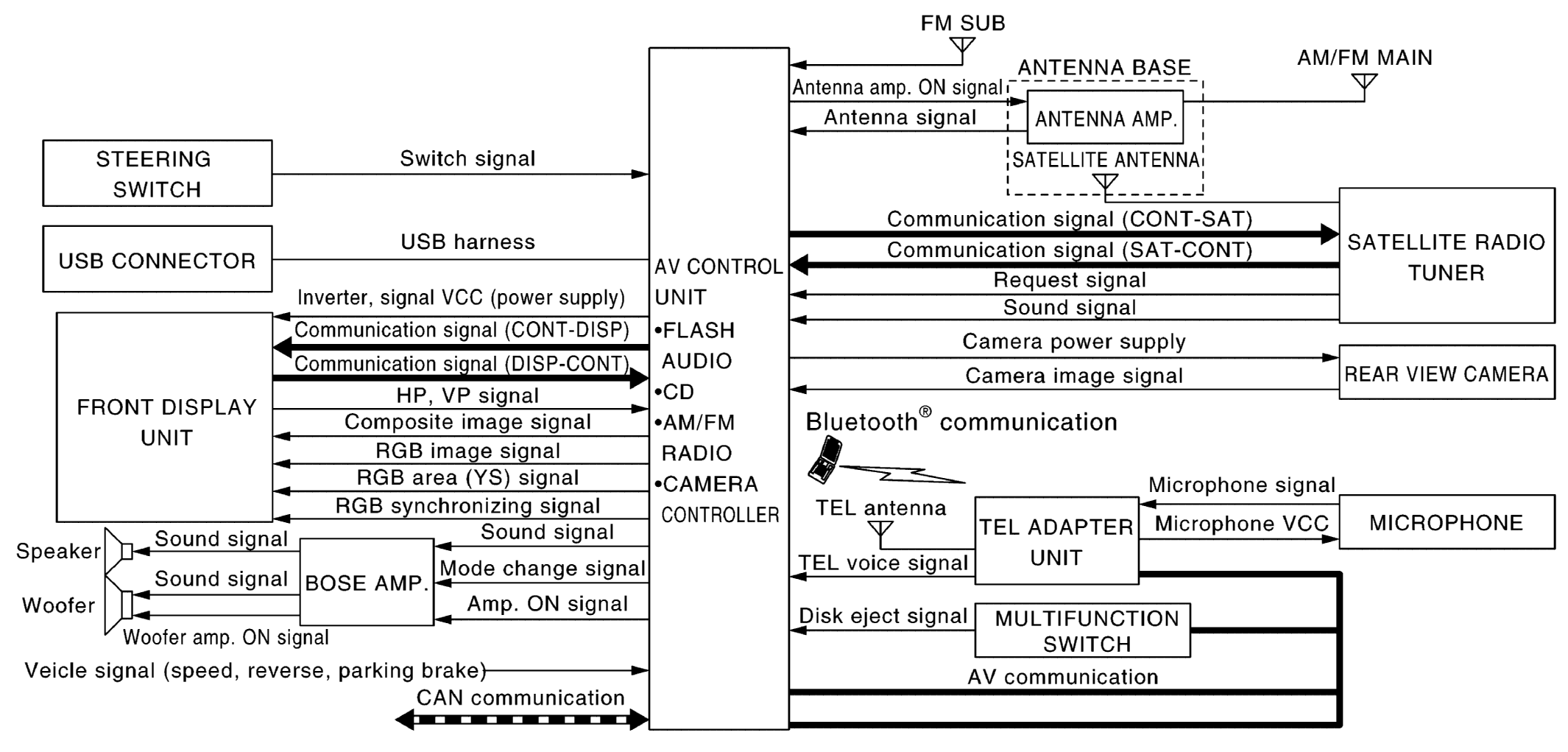

System Diagram

G09505640Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
  • The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION SWITCH virtually.
  • An antenna base integrated with radio antenna and satellite radio antenna is adopted.
    G05731530Courtesy of NISSAN NORTH AMERICA, INC.
