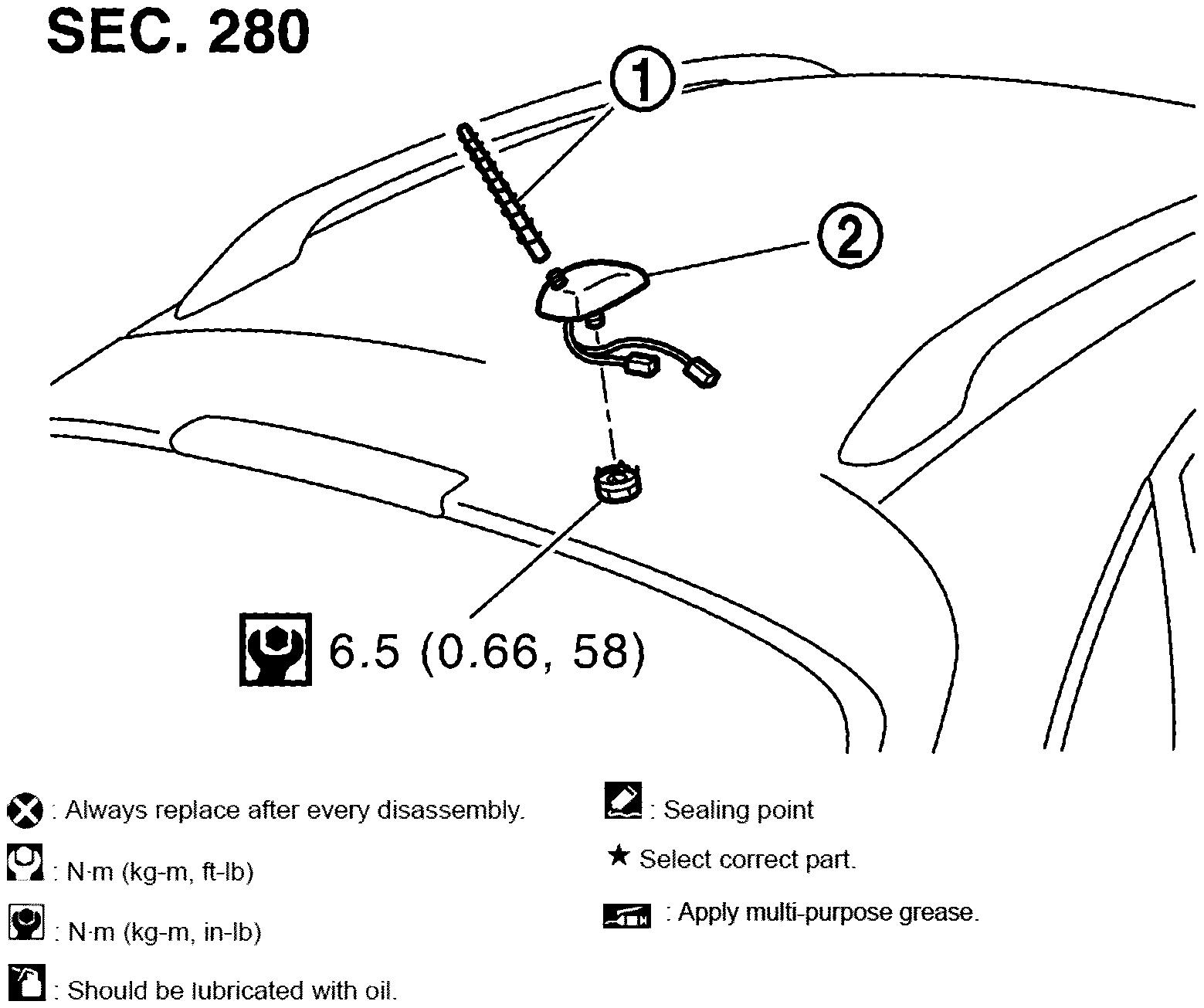

Exploded View With Torque Specifications

GNSJSNIA1463ZZ-463

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Antenna rod
2.	Antenna base
Refer to COMPONENTS for symbols in the figure.
