Component Location

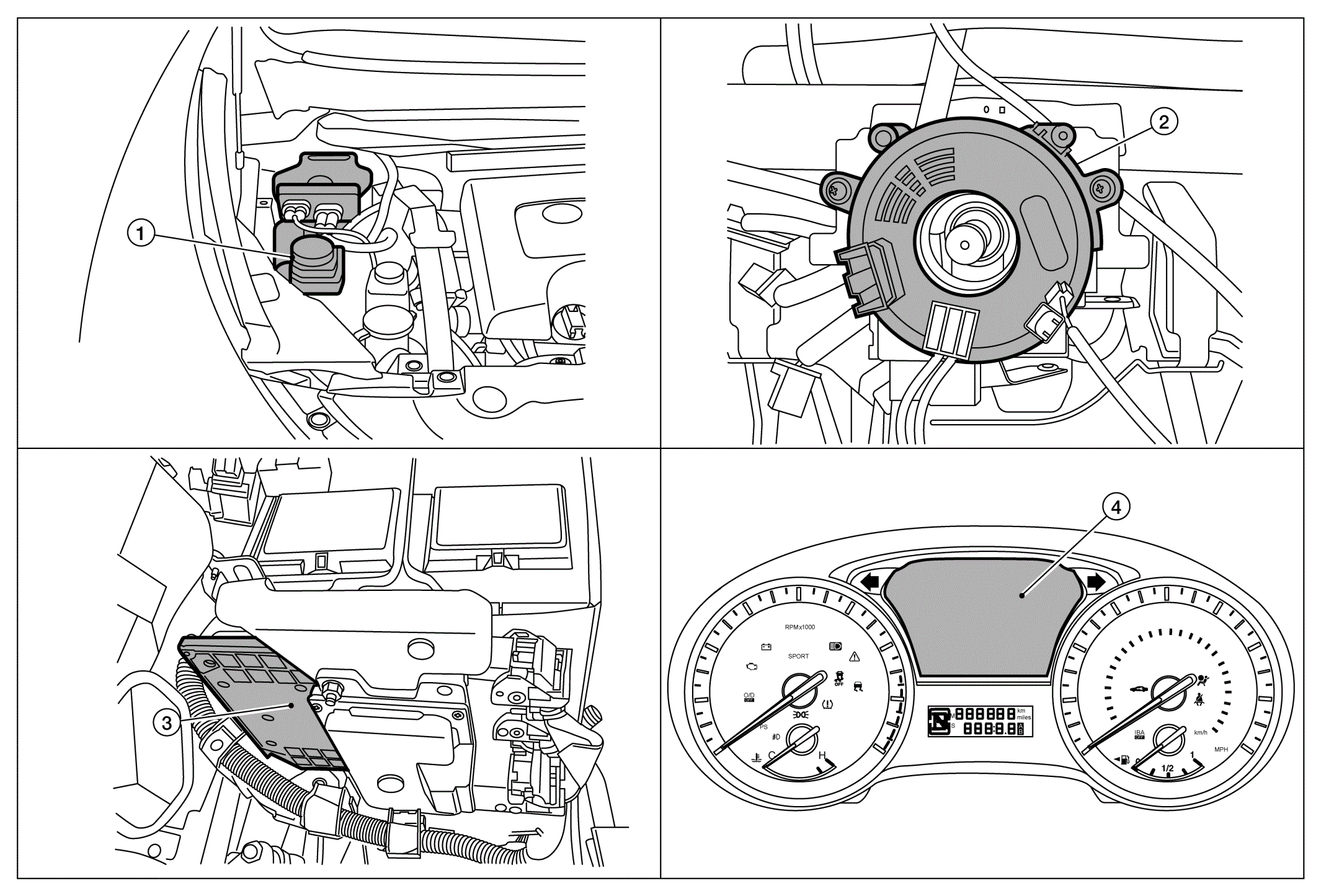

GNSALGIA0104ZZ-104Courtesy of NISSAN NORTH AMERICA, INC.
1. Power steering oil pump assembly
(view from the right side of the engine compartment)		 2. Steering angle sensor
(view with the steering wheel removed)		 3. ECM
(view from the left side of the engine compartment)
4. Combination meter
