Exploded View: Removal

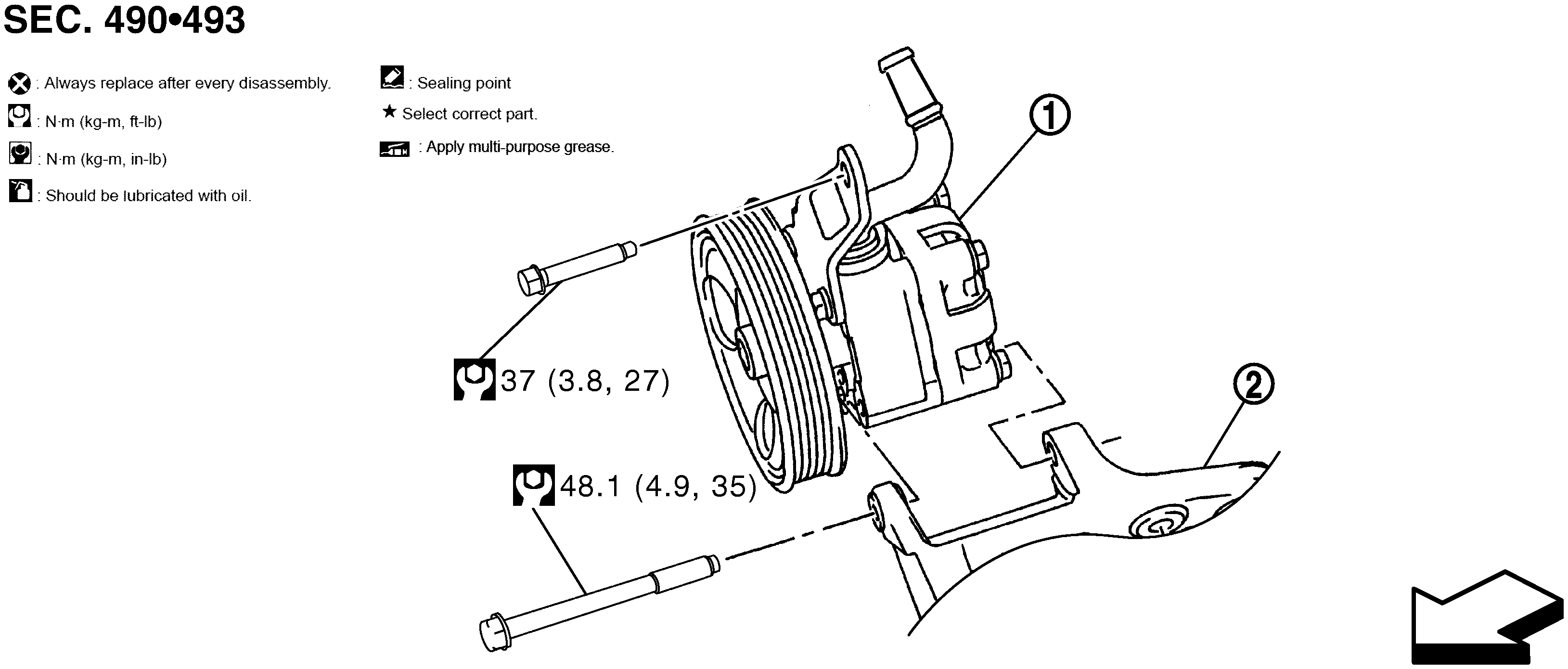

Fig 1: Power Steering Oil Pump With Torque Specifications
GNSJSGIA0046GB-046Courtesy of NISSAN NORTH AMERICA, INC.
1. Power steering oil pump 2. Bracket
ARROW : Vehicle front
Refer to COMPONENTS for symbols in the illustration.
