Disassembly And Assembly: Disassembly

  1. Remove rear cover mounting bolts, and then remove rear cover from body assembly.
    CAUTION:
    • Fix oil pump with a vise if necessary.
    • Use copper plates when fixing with a vise.
  2. Remove O-ring from body assembly.
  3. Remove rear side plate from cartridge, and then remove Teflon ring and O-ring from rear side plate.

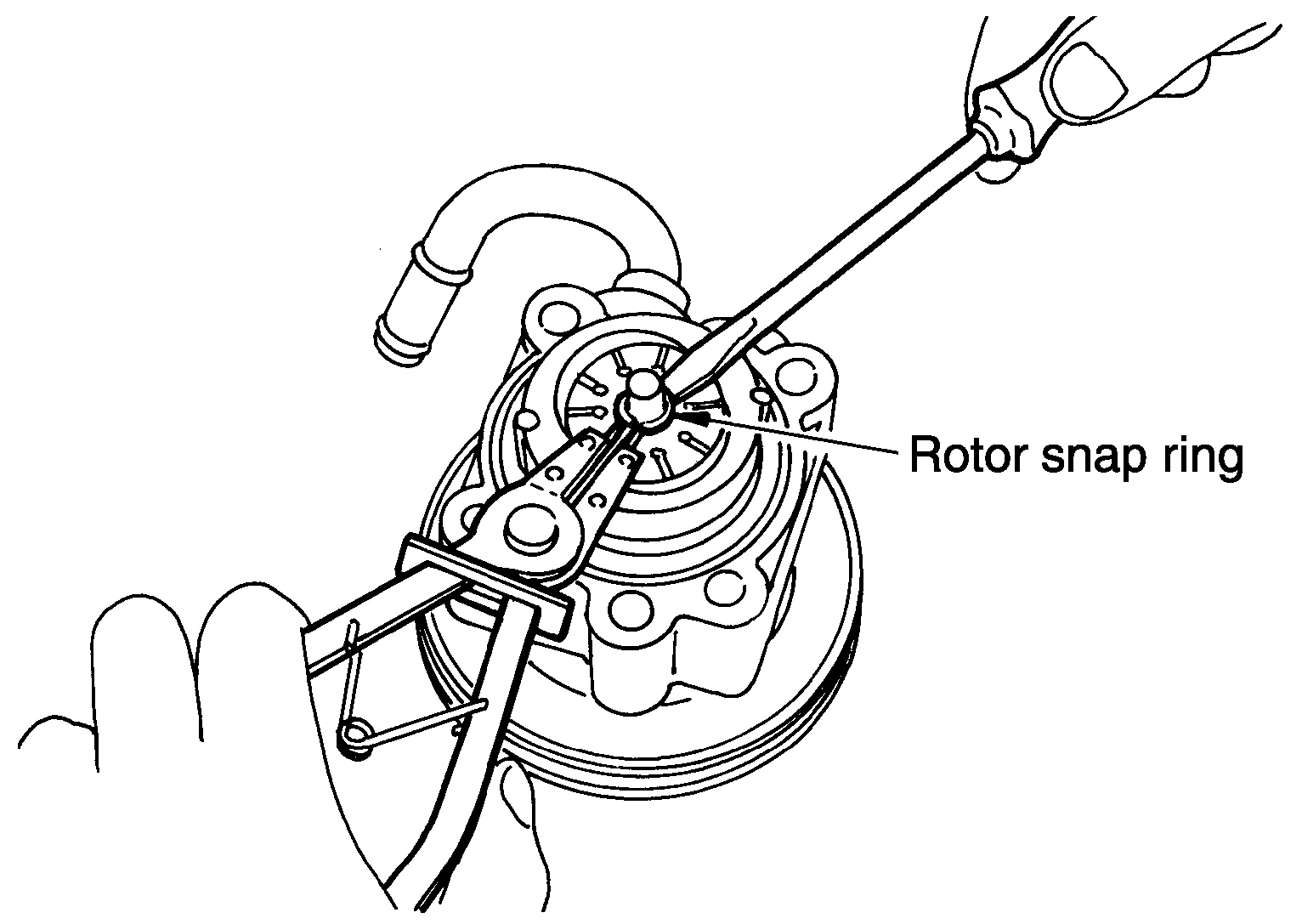

  4. Remove rotor snap ring using a snap ring pliers, and remove pulley from body assembly.
    G04076785Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Remove pulley so as not to be damaged when removing rotor snap ring.

  5. Remove cartridge and front side plate.
  6. Remove flow control valve A (1), flow control valve spring (2) and flow control valve B assembly (3) from body assembly (4).
    G05729693Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Never drop and damage flow control valve A and flow control valve B assembly when removing.

  7. Remove oil seal from body assembly.
  8. Remove mounting bolt of suction pipe, and then remove suction pipe from body assembly.
  9. Remove O-ring from body assembly.
  10. Remove bracket mounting bolts, and then remove bracket from body assembly.
