Exploded View: Removal

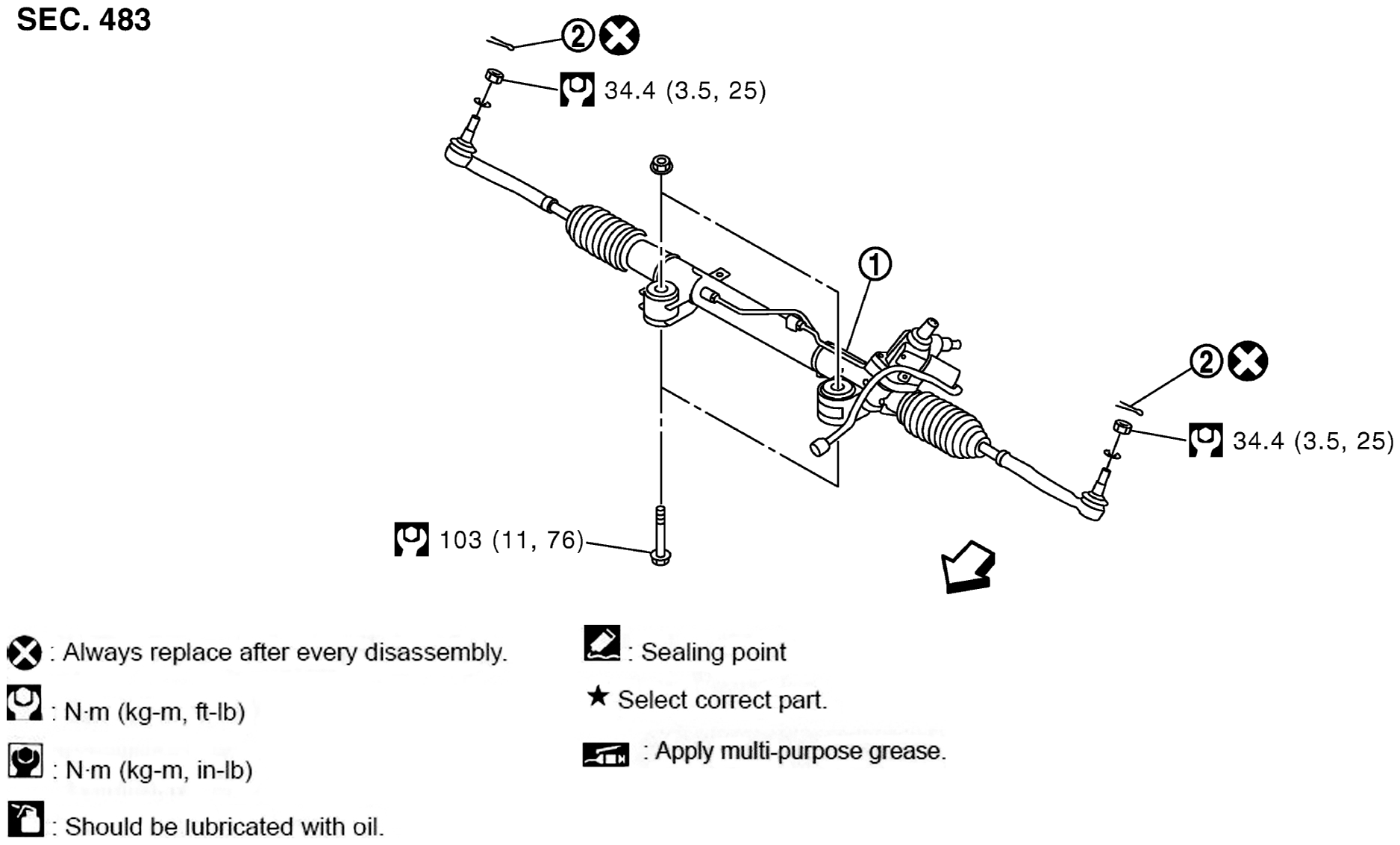

Fig 1: Steering Gear And Linkage AWD With Torque Specifications
GNSJSGIA0039GB-039Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering gear assembly 2. cotter pin
ARROW : Vehicle front
Refer to COMPONENTS for symbols in the illustration.
