Exploded View

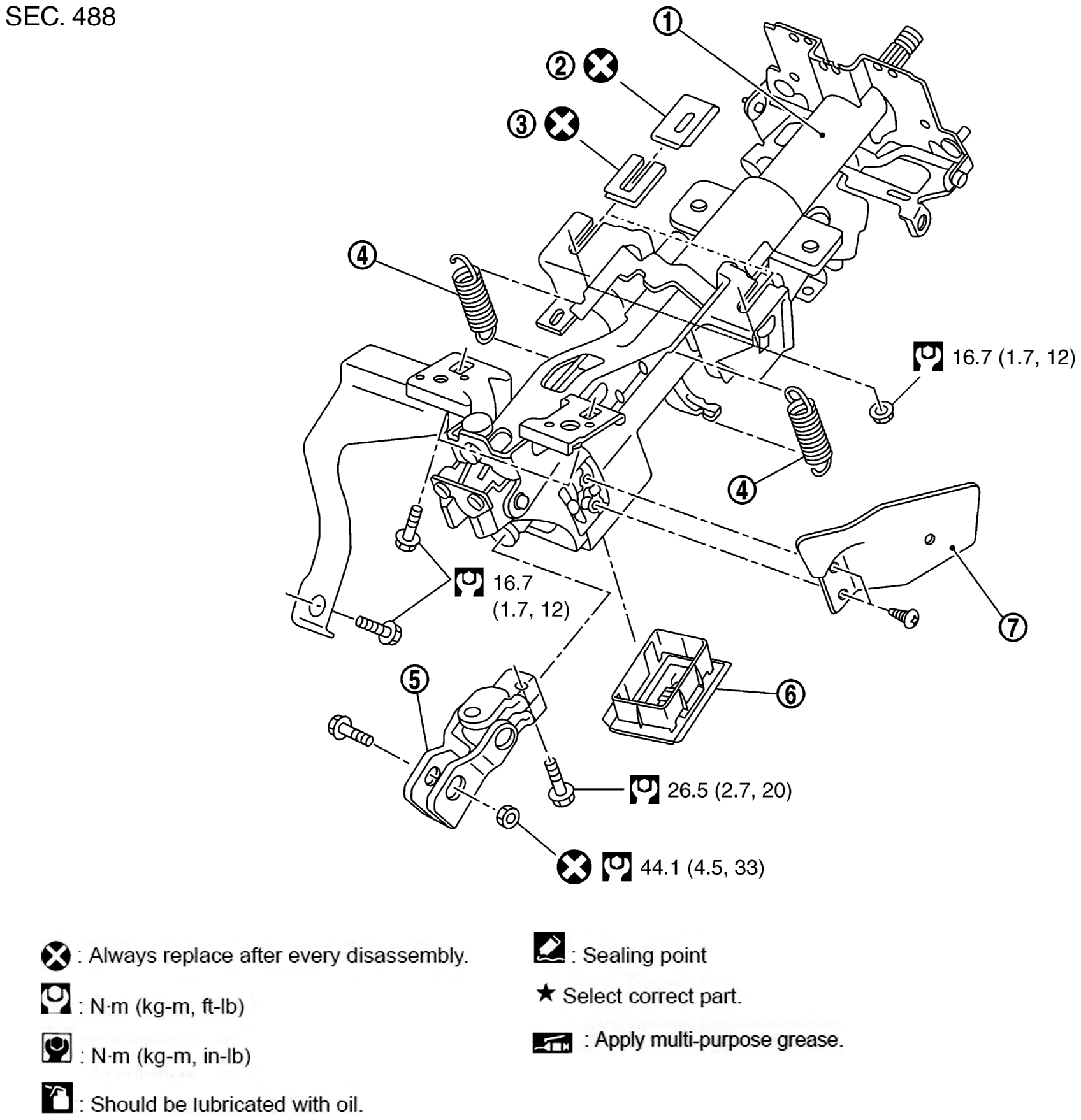

Fig 1: Steering Column W/O Electric Motor With Torque Specifications
GNSJSGIA0974GB-974Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering column assembly 2. Clip 3. Clip
4. Spring 5. Upper joint 6. Dust cover
7. Bracket
Refer to COMPONENTS for symbols in the illustration.
