Wiring Diagram - Engine Control System -

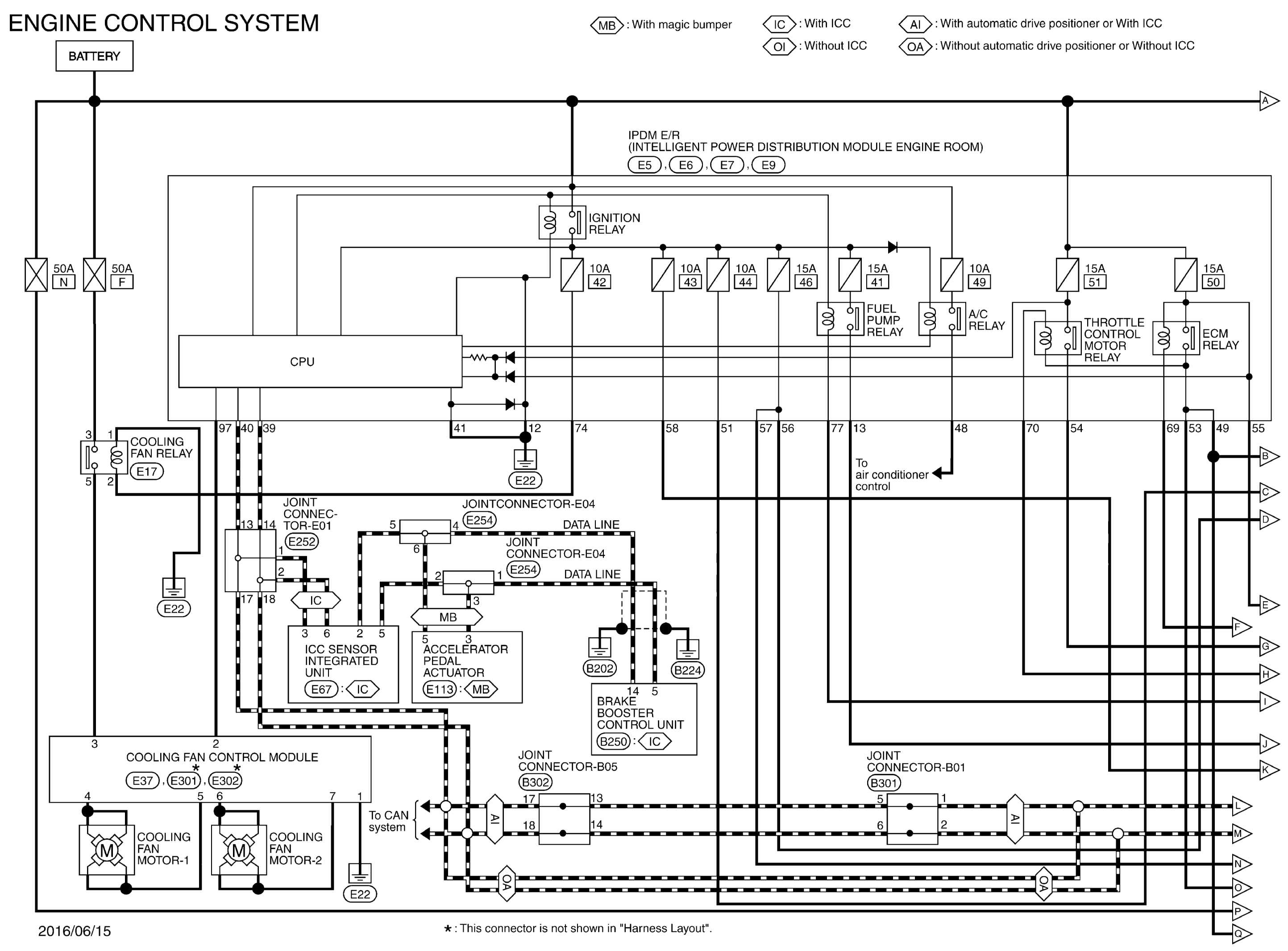

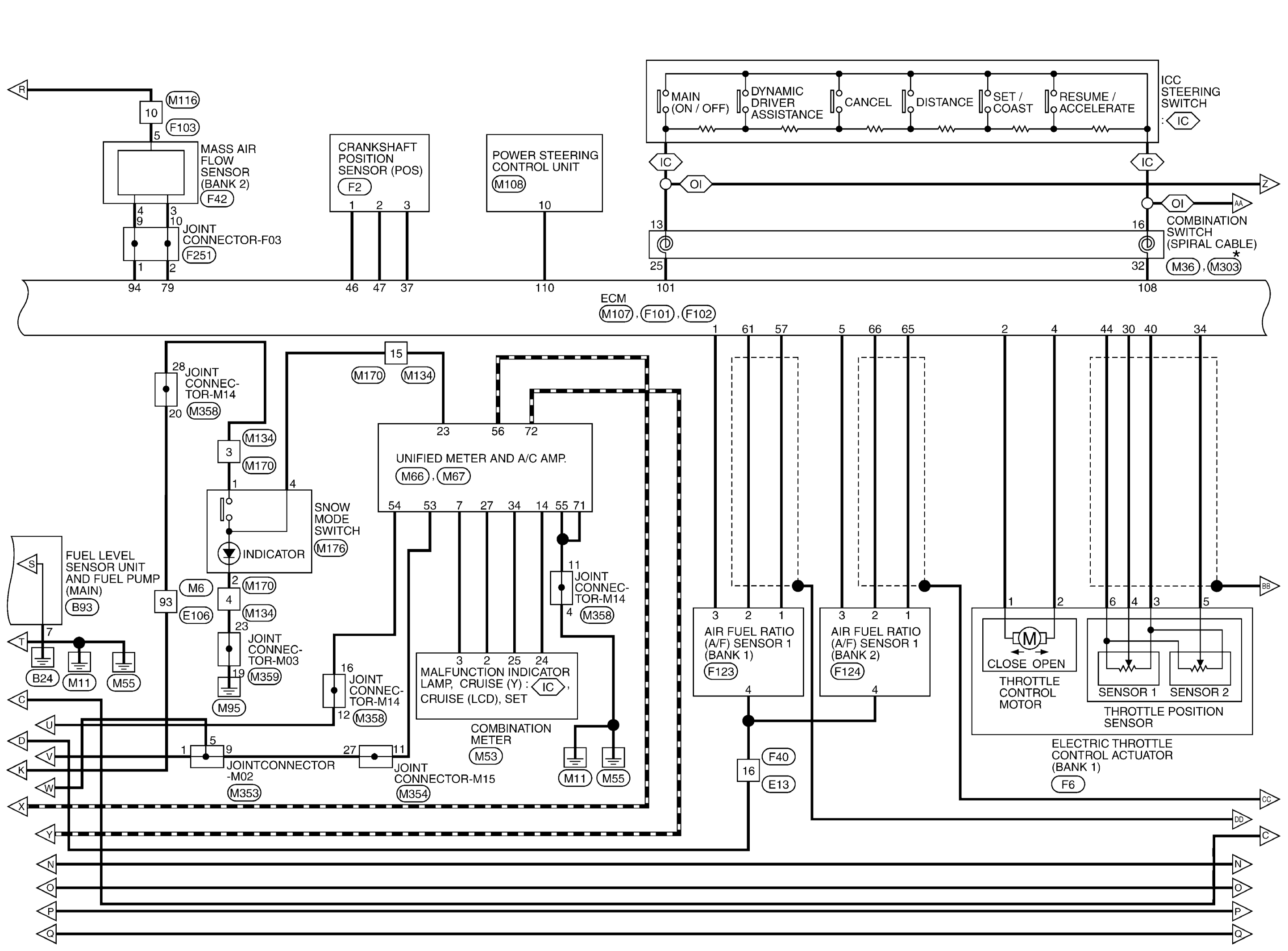

GNSJRBWE1124GB-124

Courtesy of NISSAN NORTH AMERICA, INC.

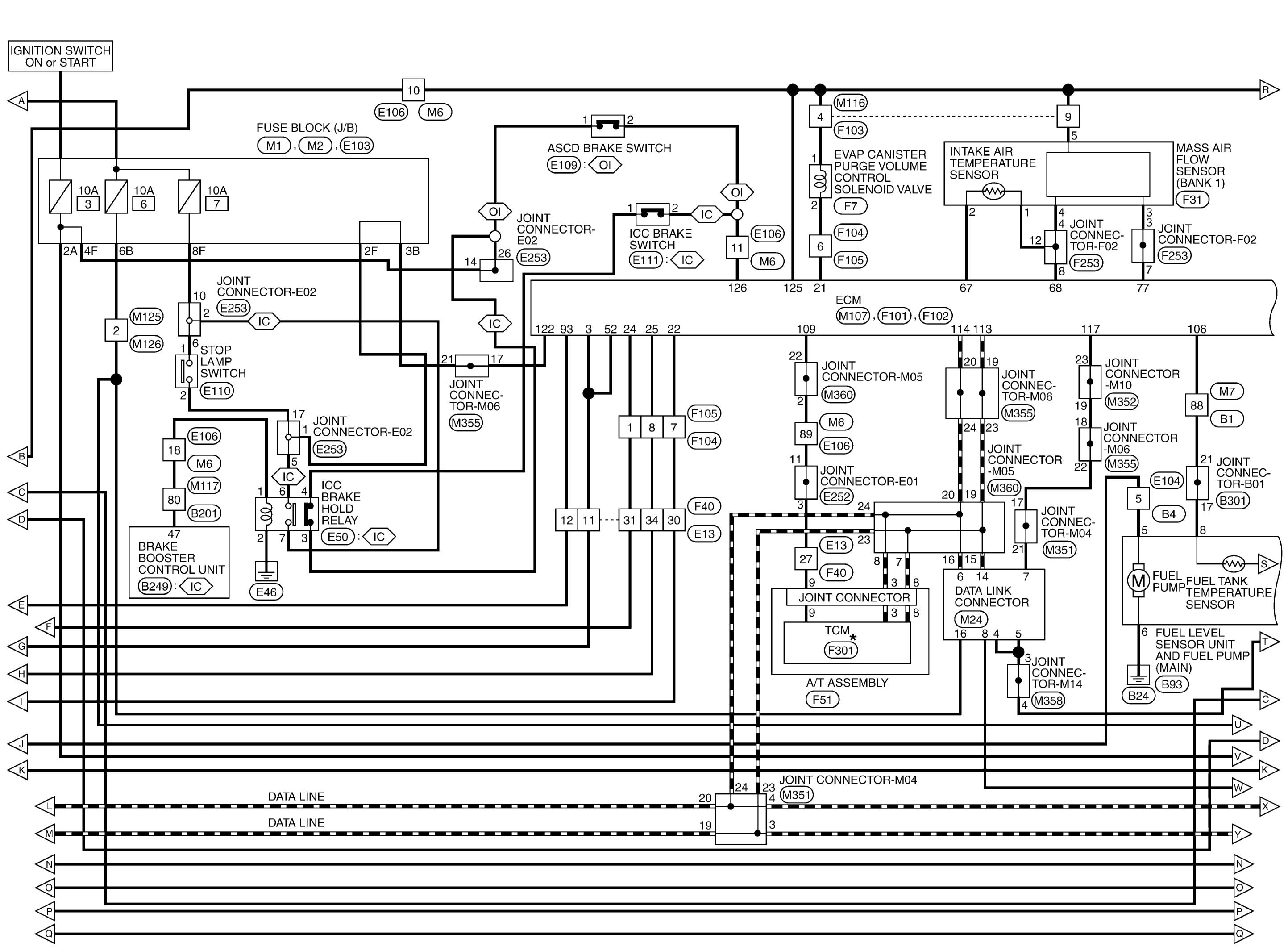

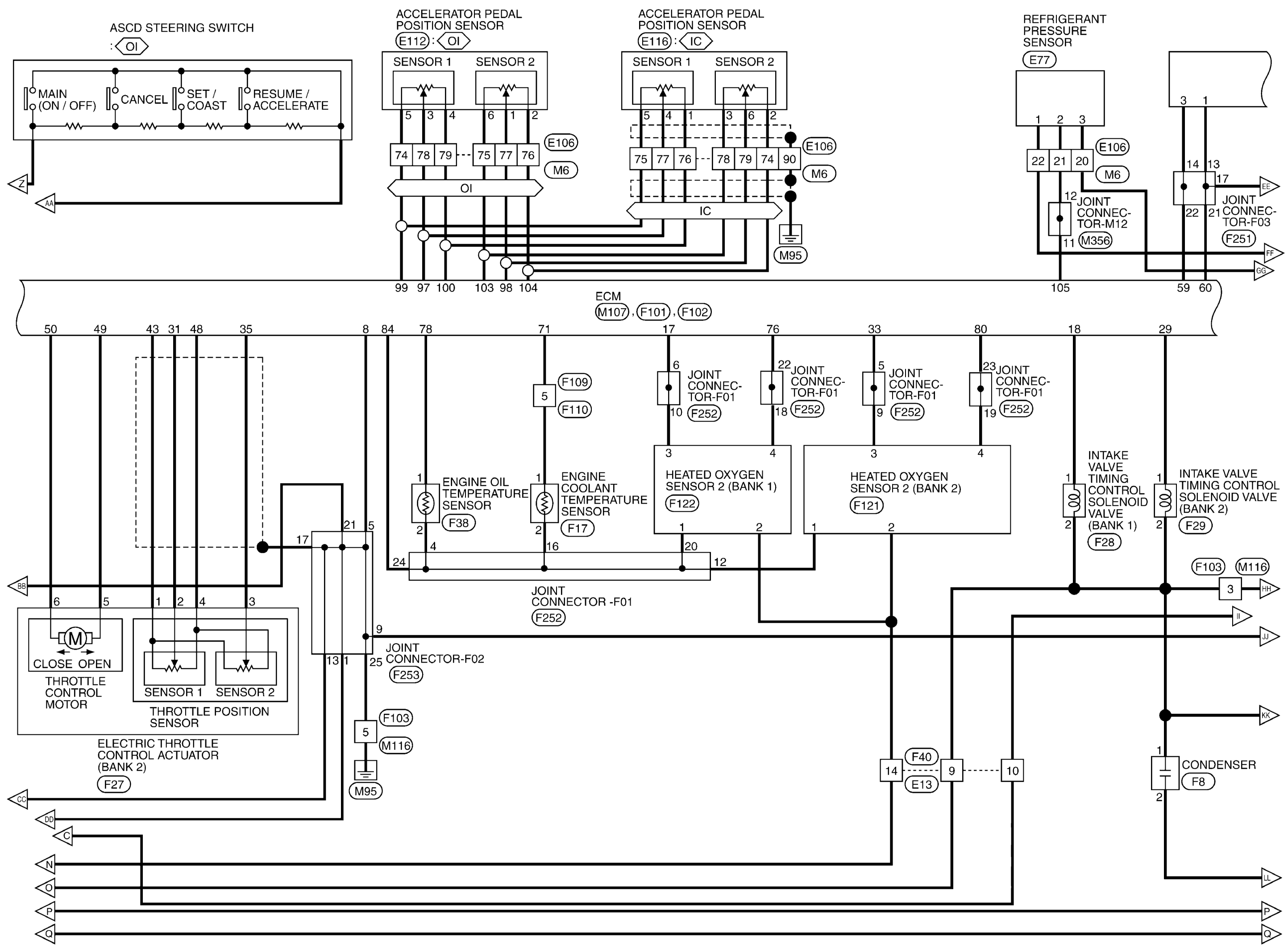

GNSJRBWE1125GB-125

Courtesy of NISSAN NORTH AMERICA, INC.

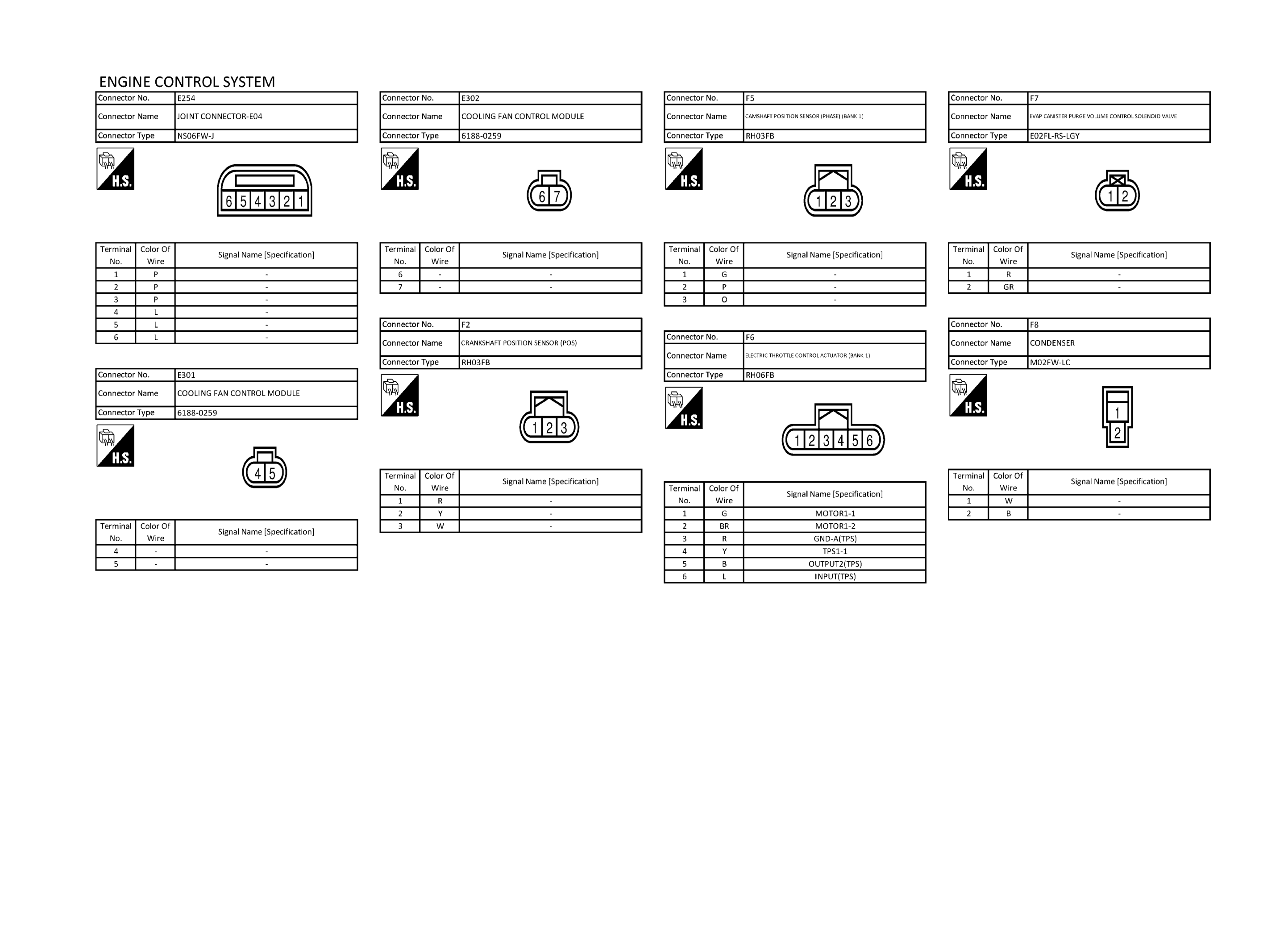

GNSJRBWE1126GB-126

Courtesy of NISSAN NORTH AMERICA, INC.

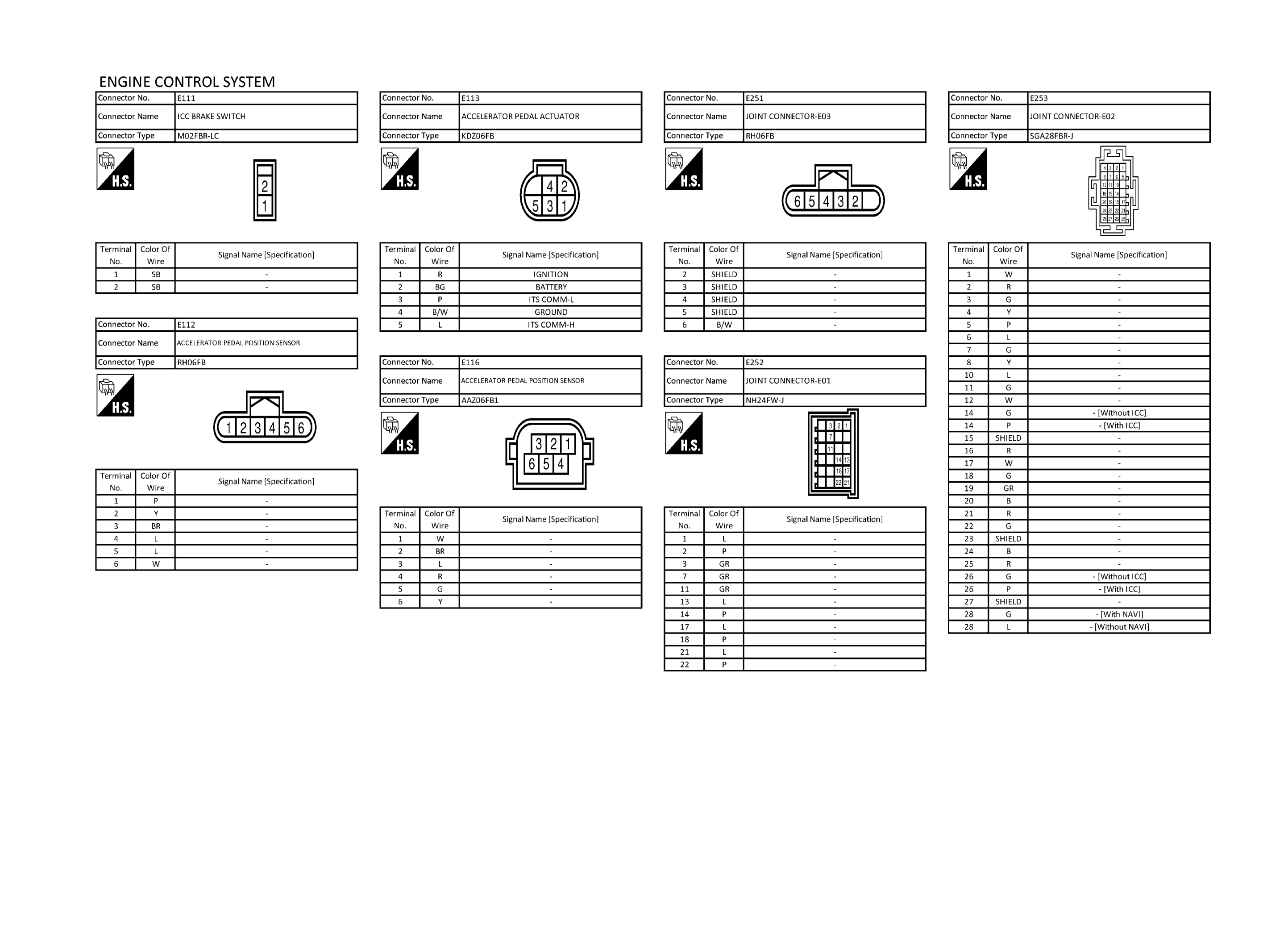

GNSJRBWE1127GB-127

Courtesy of NISSAN NORTH AMERICA, INC.

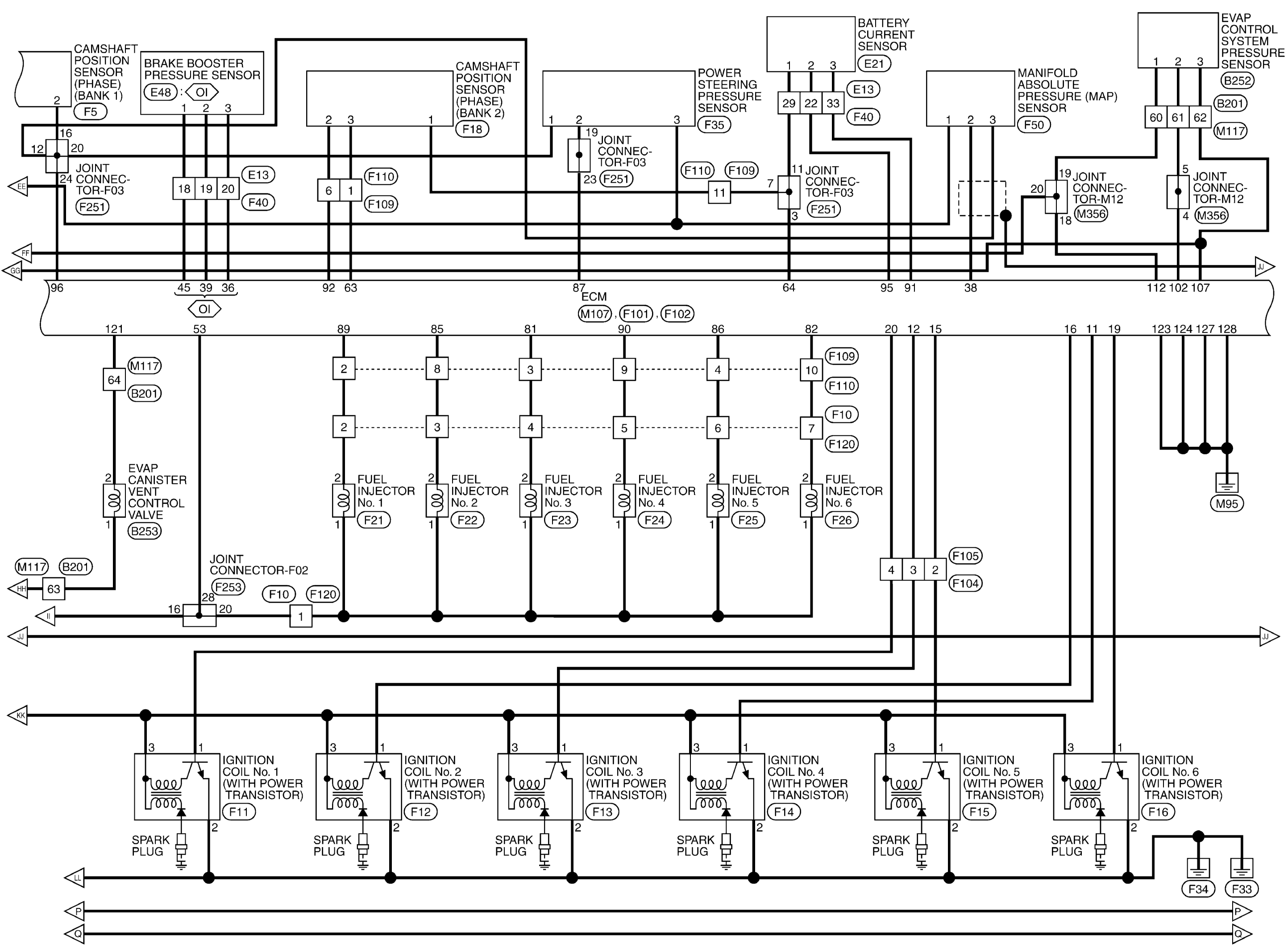

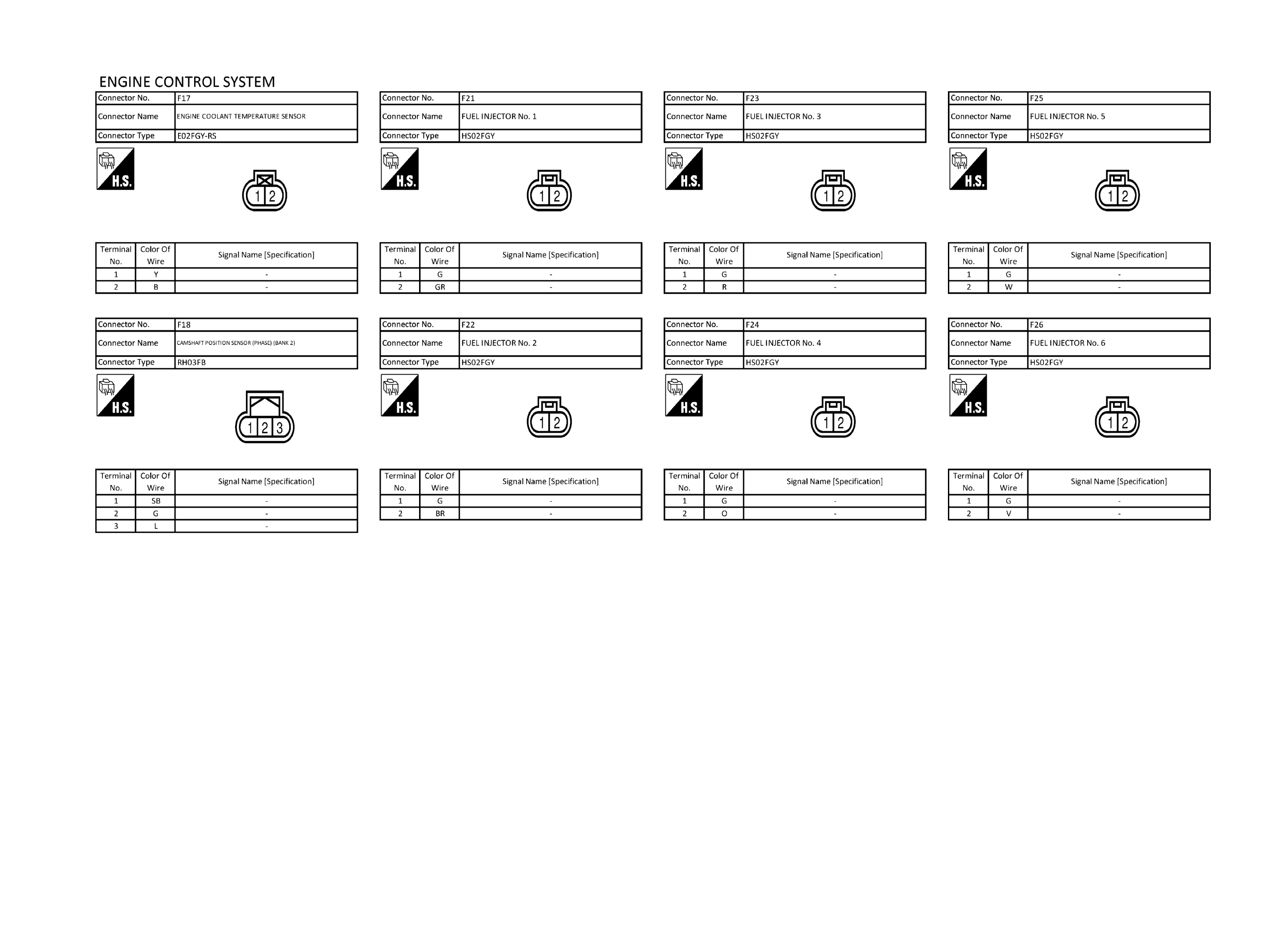

GNSJRBWE1128GB-128

Courtesy of NISSAN NORTH AMERICA, INC.

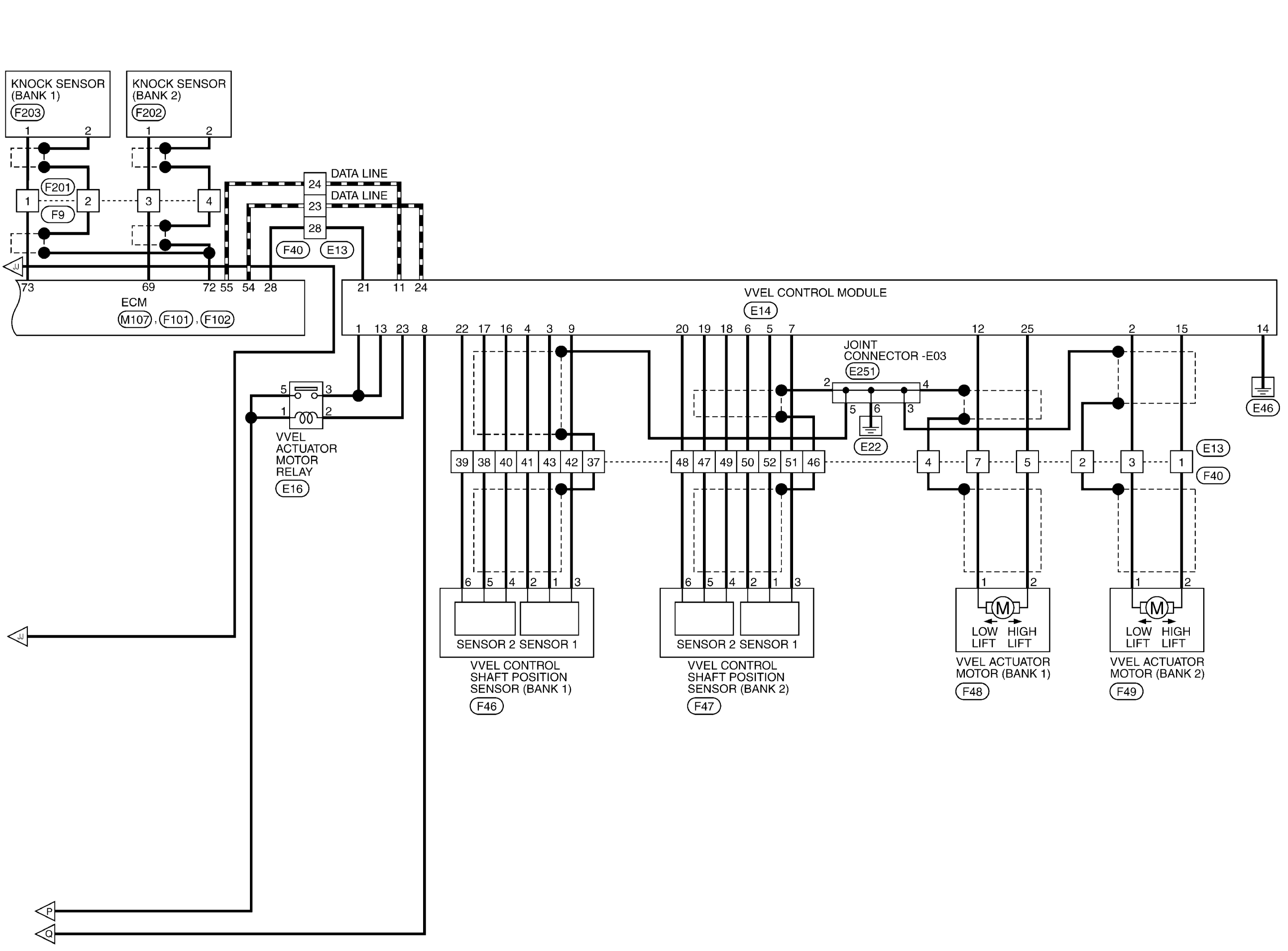

GNSJRBWE1129GB-129

Courtesy of NISSAN NORTH AMERICA, INC.

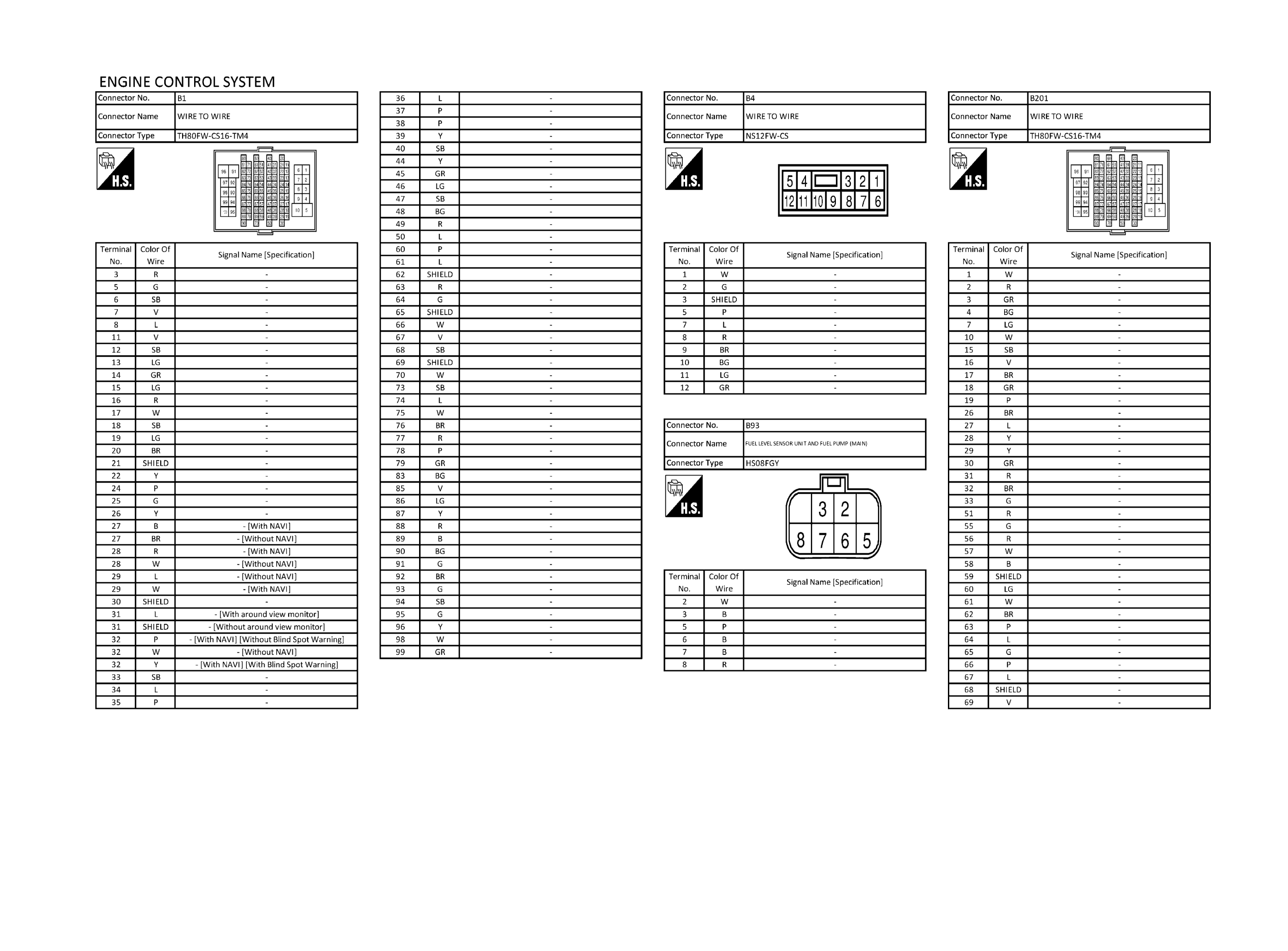

GNSJRBWE1130GB-130

Courtesy of NISSAN NORTH AMERICA, INC.

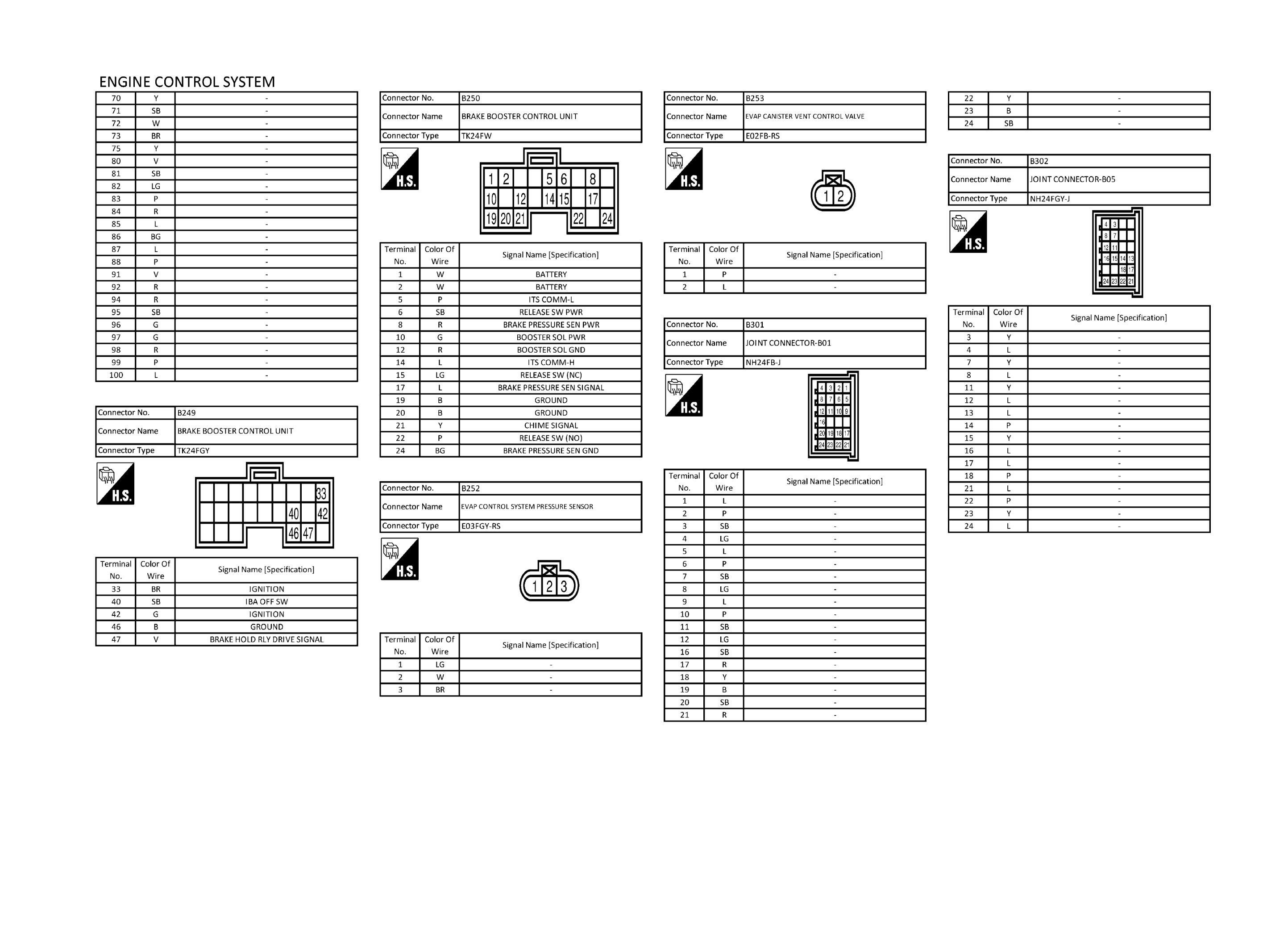

GNSJRBWE1131GB-131

Courtesy of NISSAN NORTH AMERICA, INC.

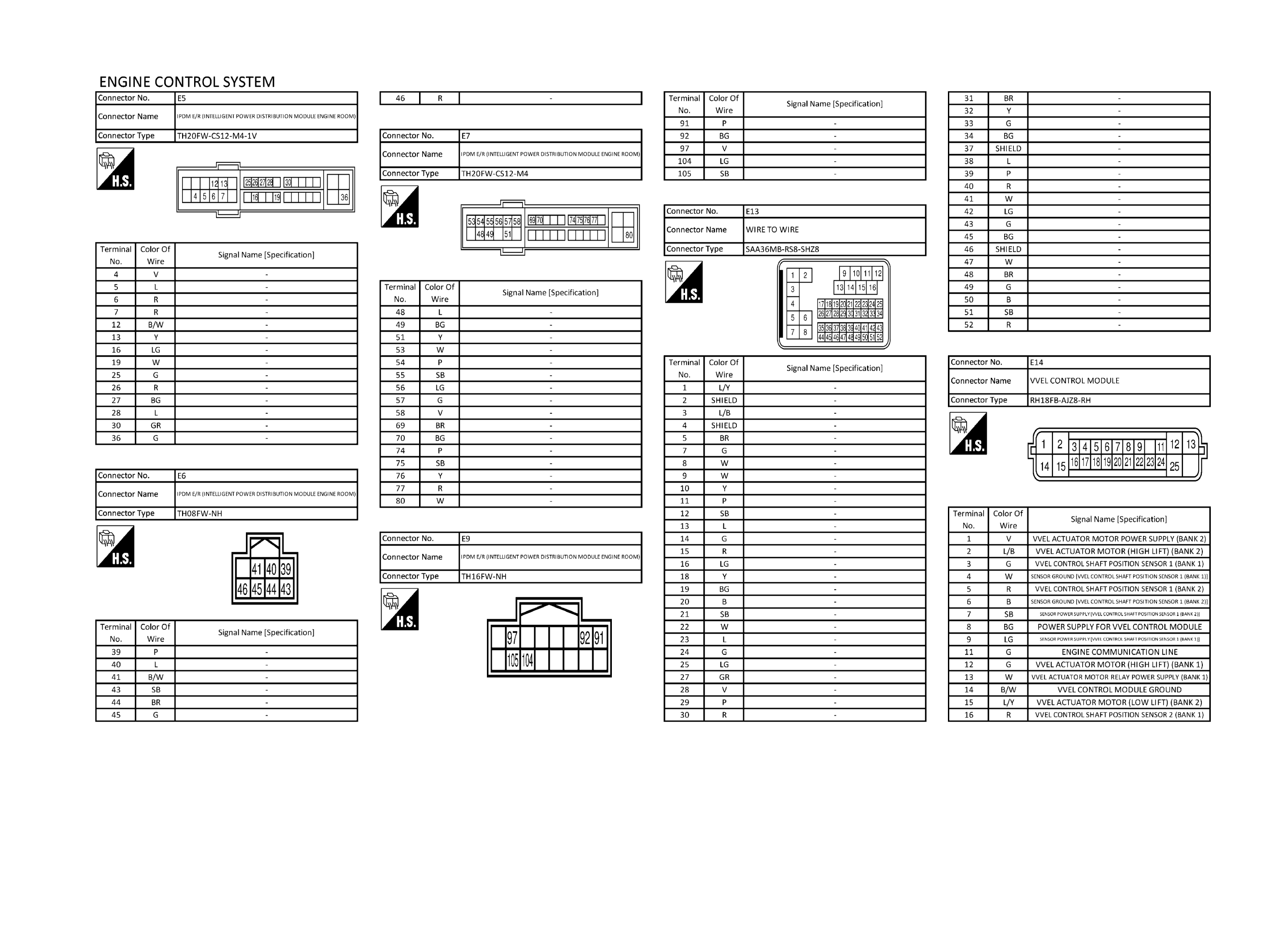

GNSJRBWE1132GB-132

Courtesy of NISSAN NORTH AMERICA, INC.

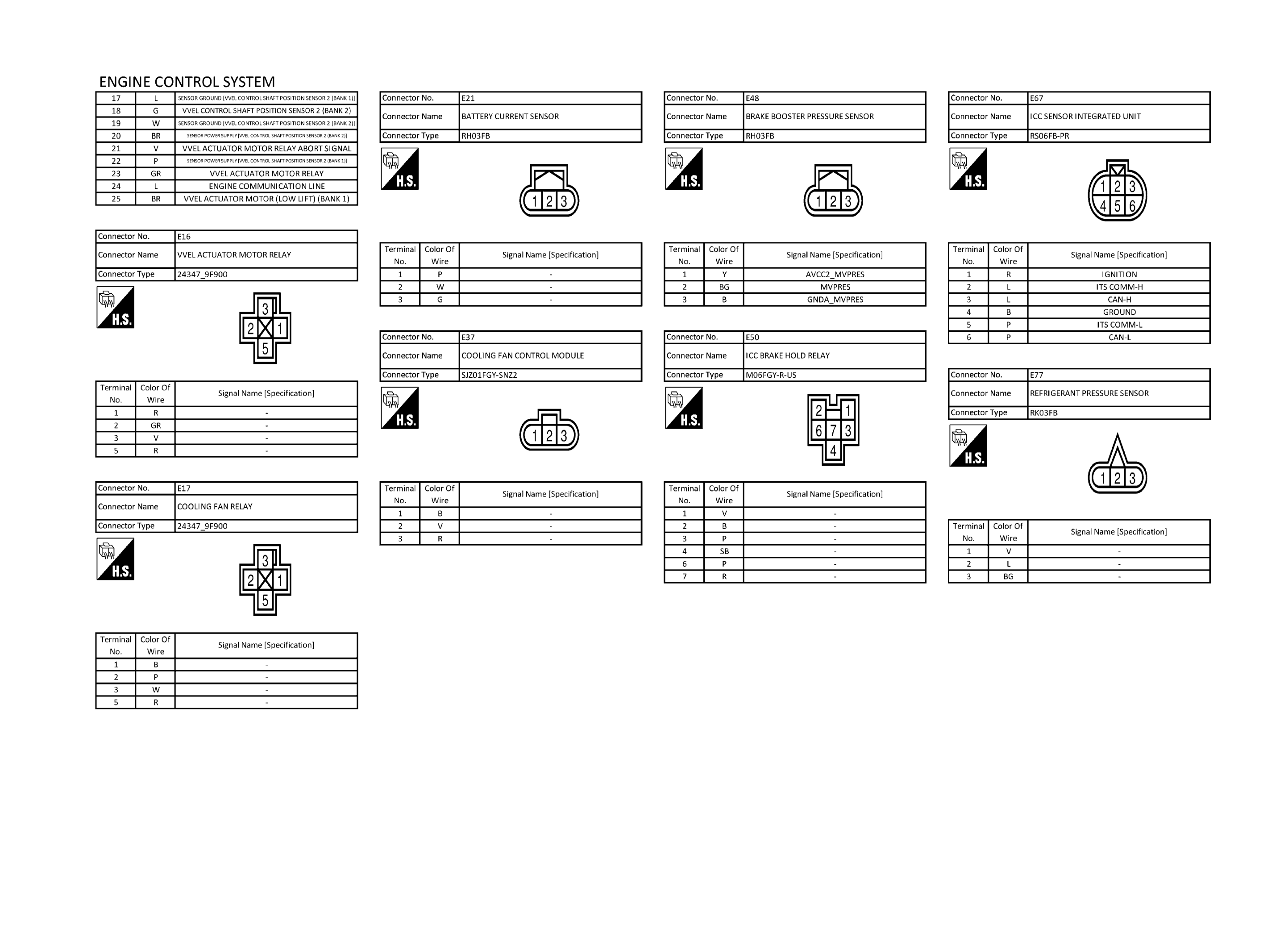

GNSJRBWE1133GB-133

Courtesy of NISSAN NORTH AMERICA, INC.

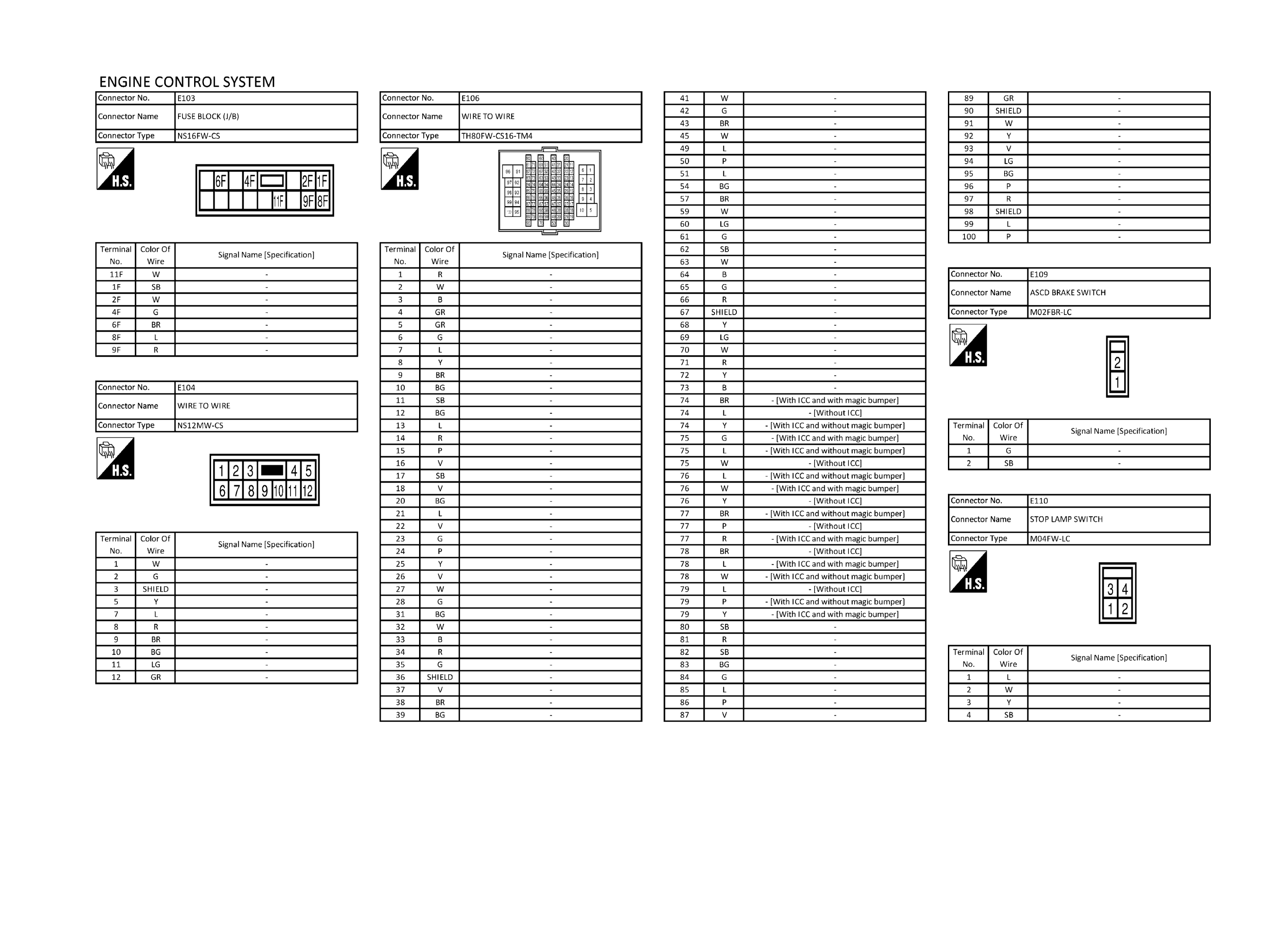

GNSJRBWE1134GB-134

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRBWE1135GB-135

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRBWE1136GB-136

Courtesy of NISSAN NORTH AMERICA, INC.

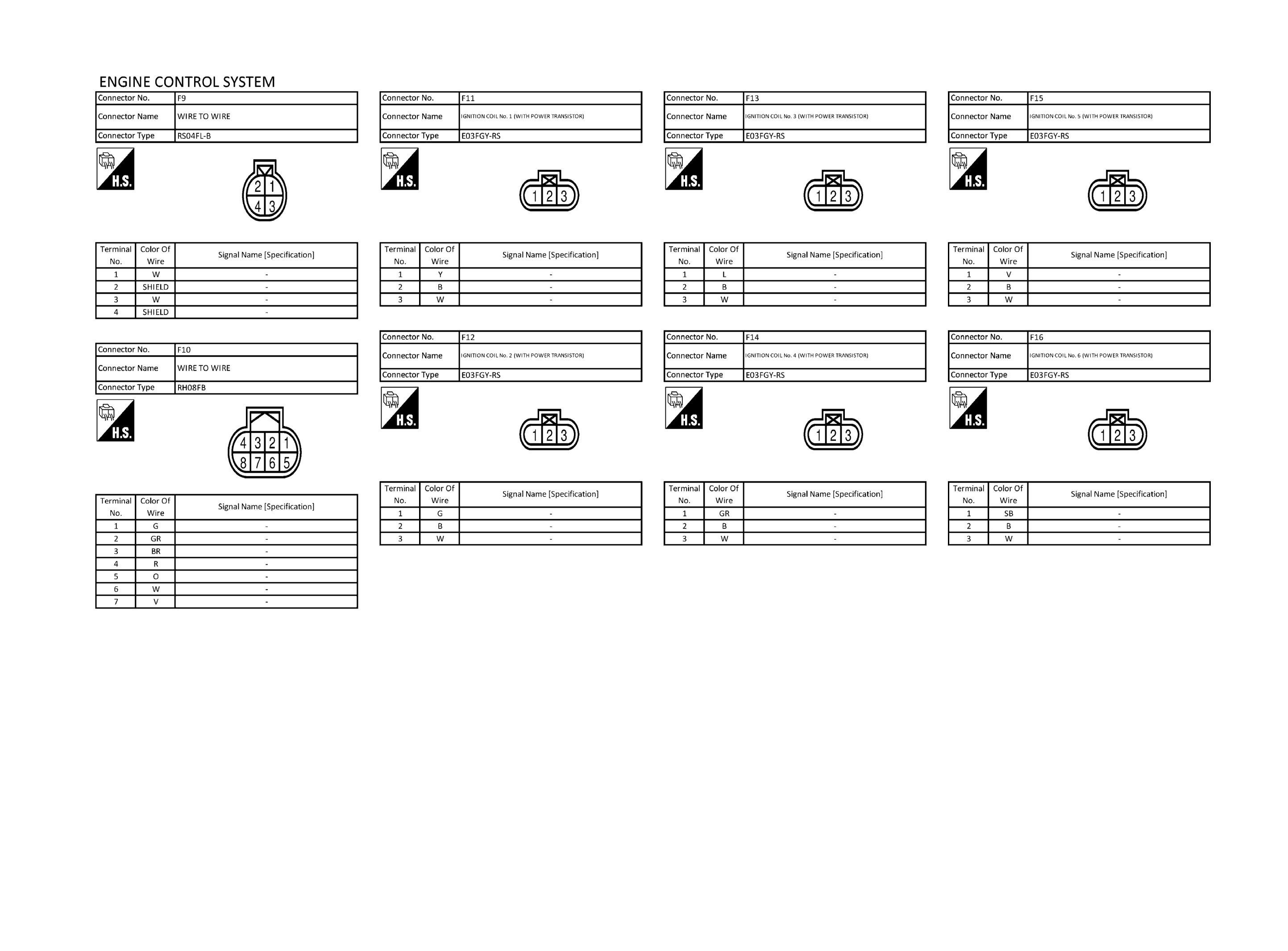

GNSJRBWE1137GB-137

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRBWE1138GB-138

Courtesy of NISSAN NORTH AMERICA, INC.

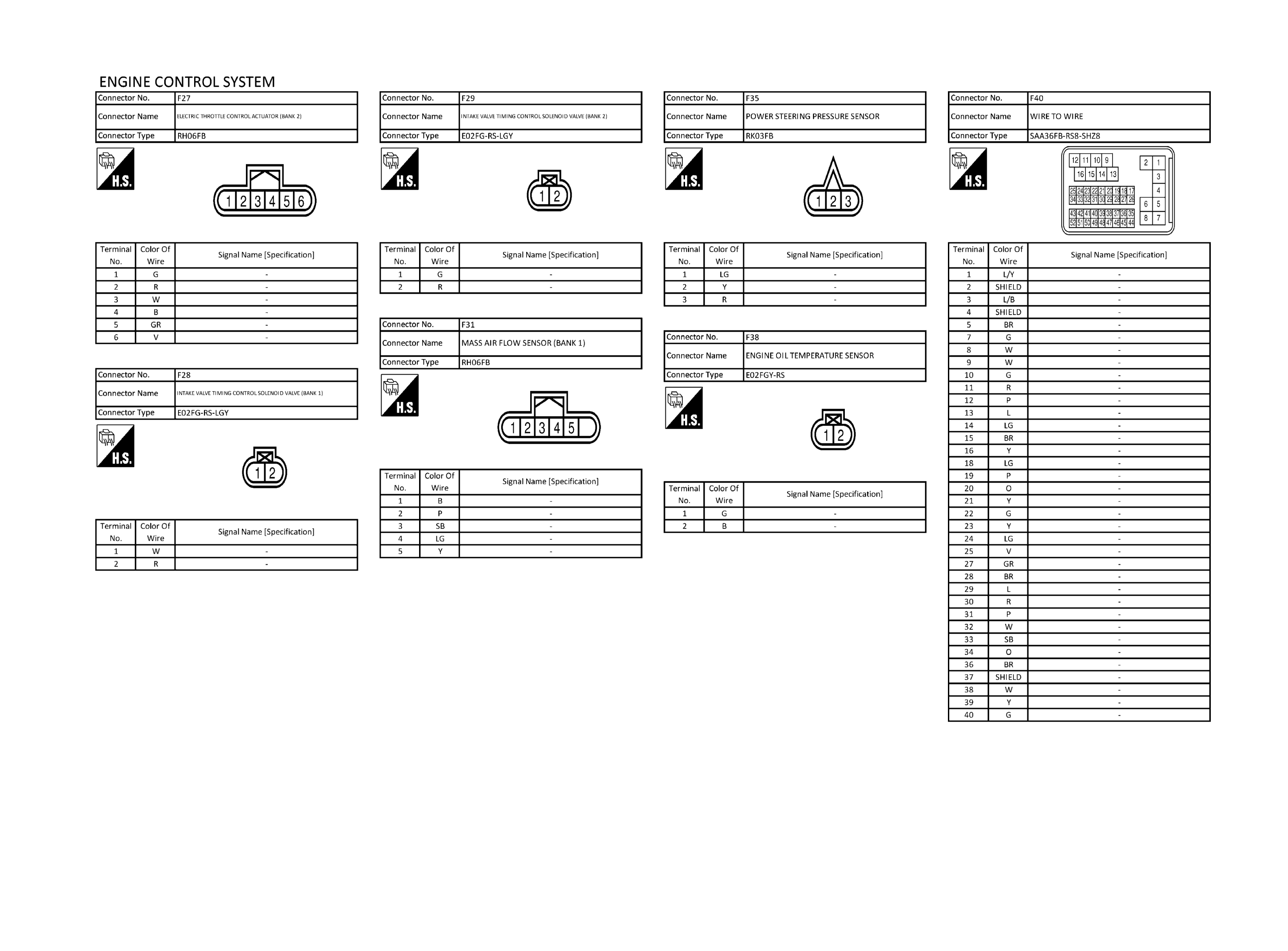

GNSJRBWE1139GB-139

Courtesy of NISSAN NORTH AMERICA, INC.

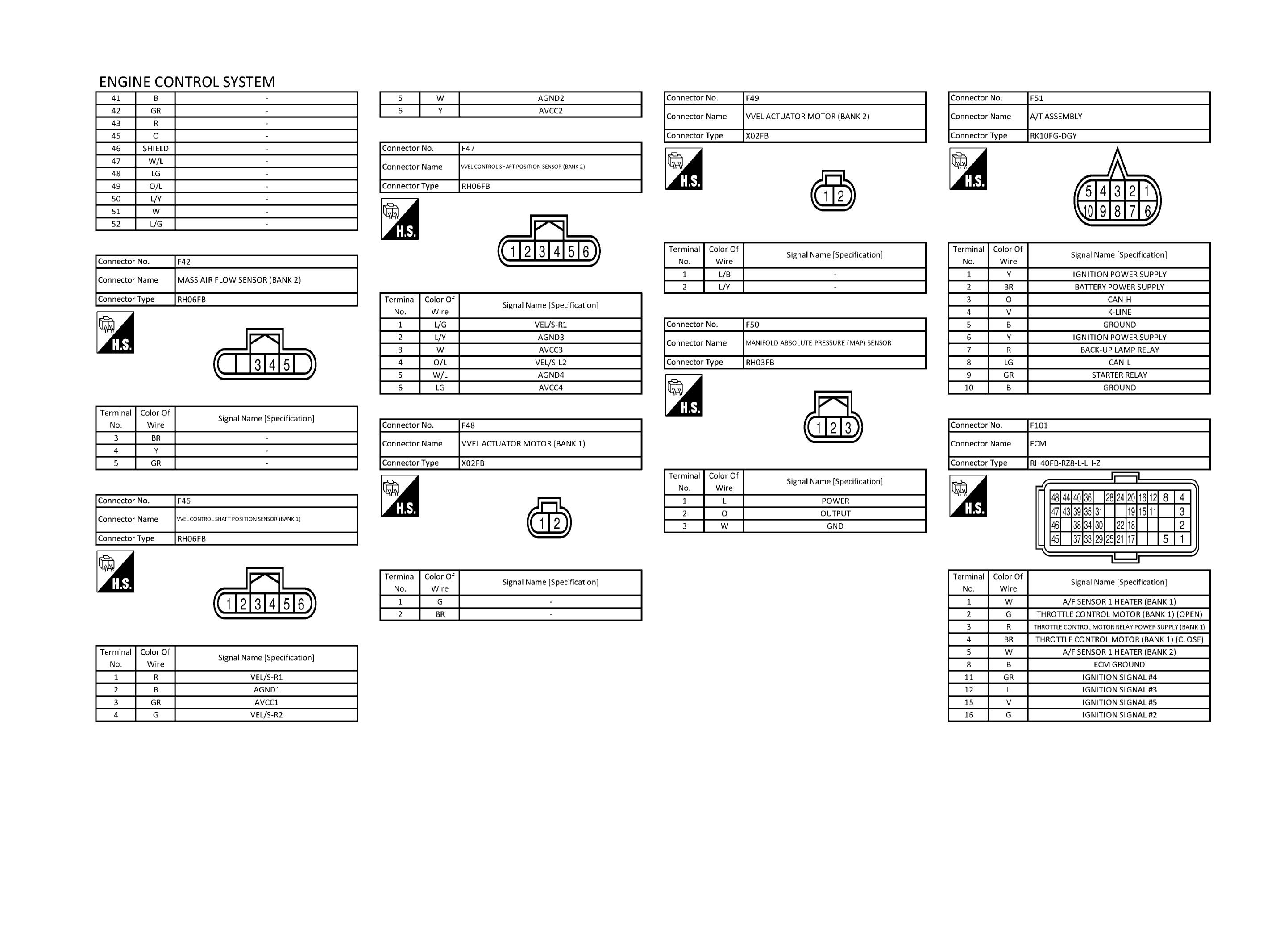

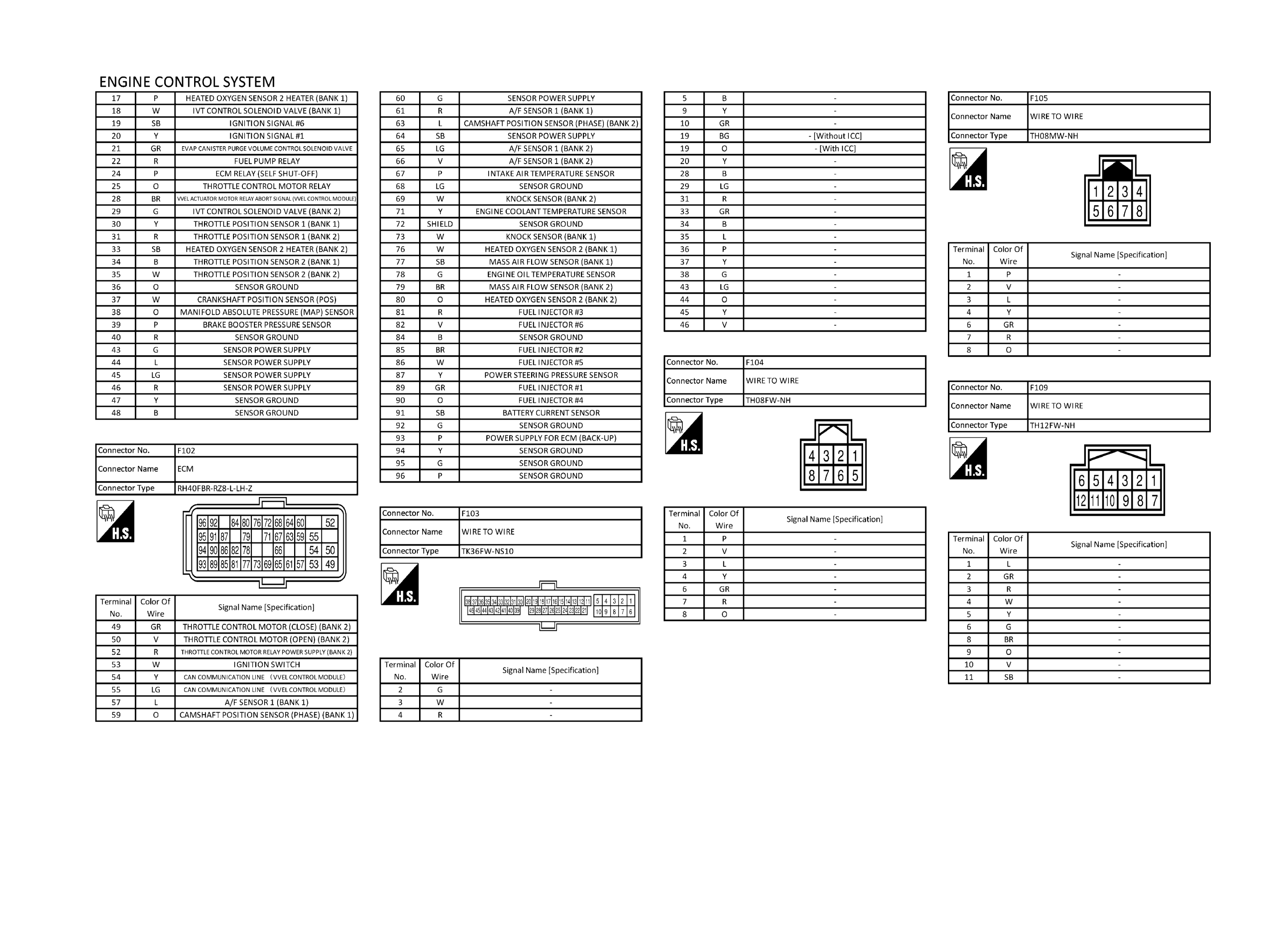

GNSJRBWE1140GB-140

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRBWE1141GB-141

Courtesy of NISSAN NORTH AMERICA, INC.

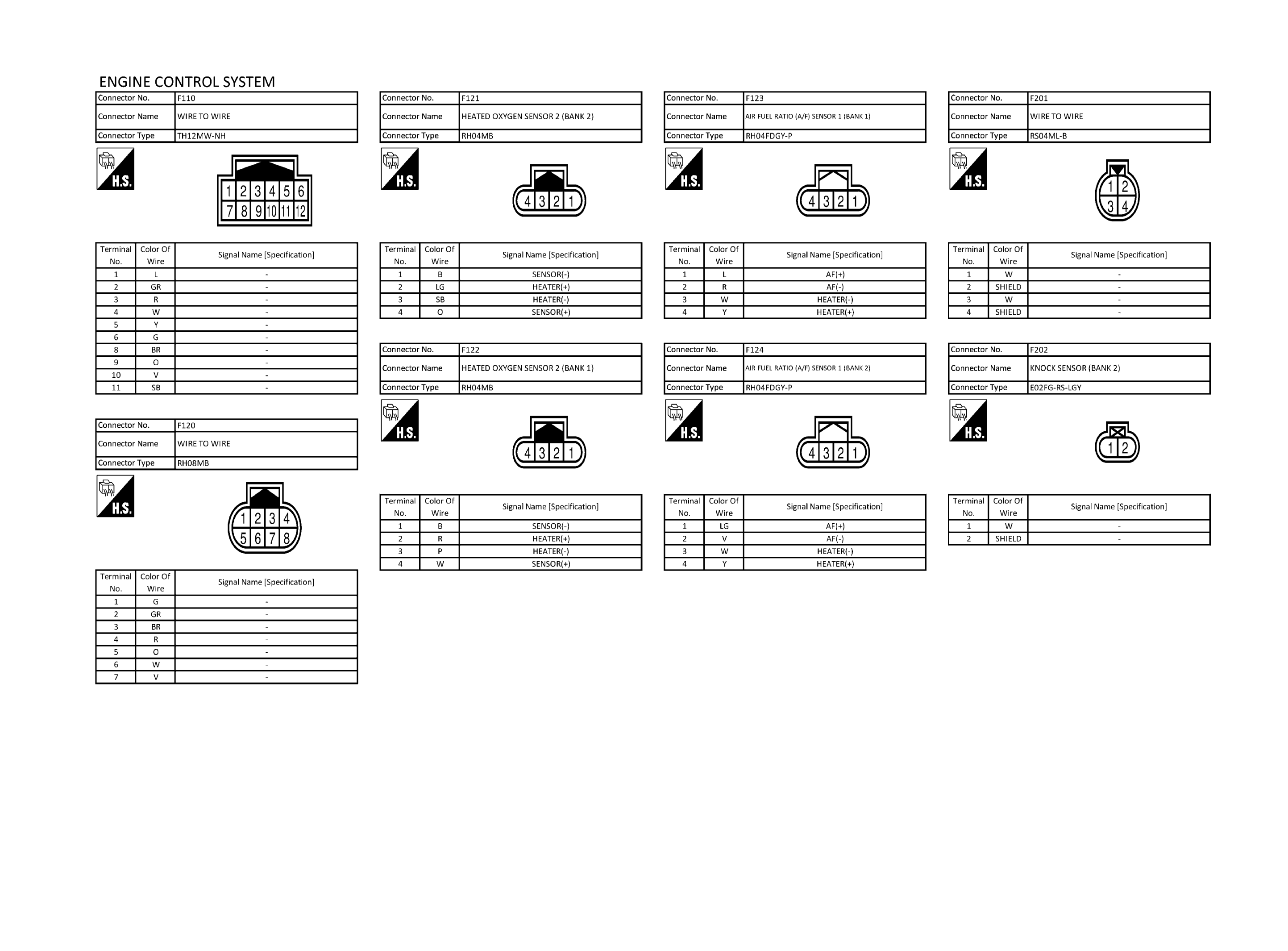

GNSJRBWE1142GB-142

Courtesy of NISSAN NORTH AMERICA, INC.

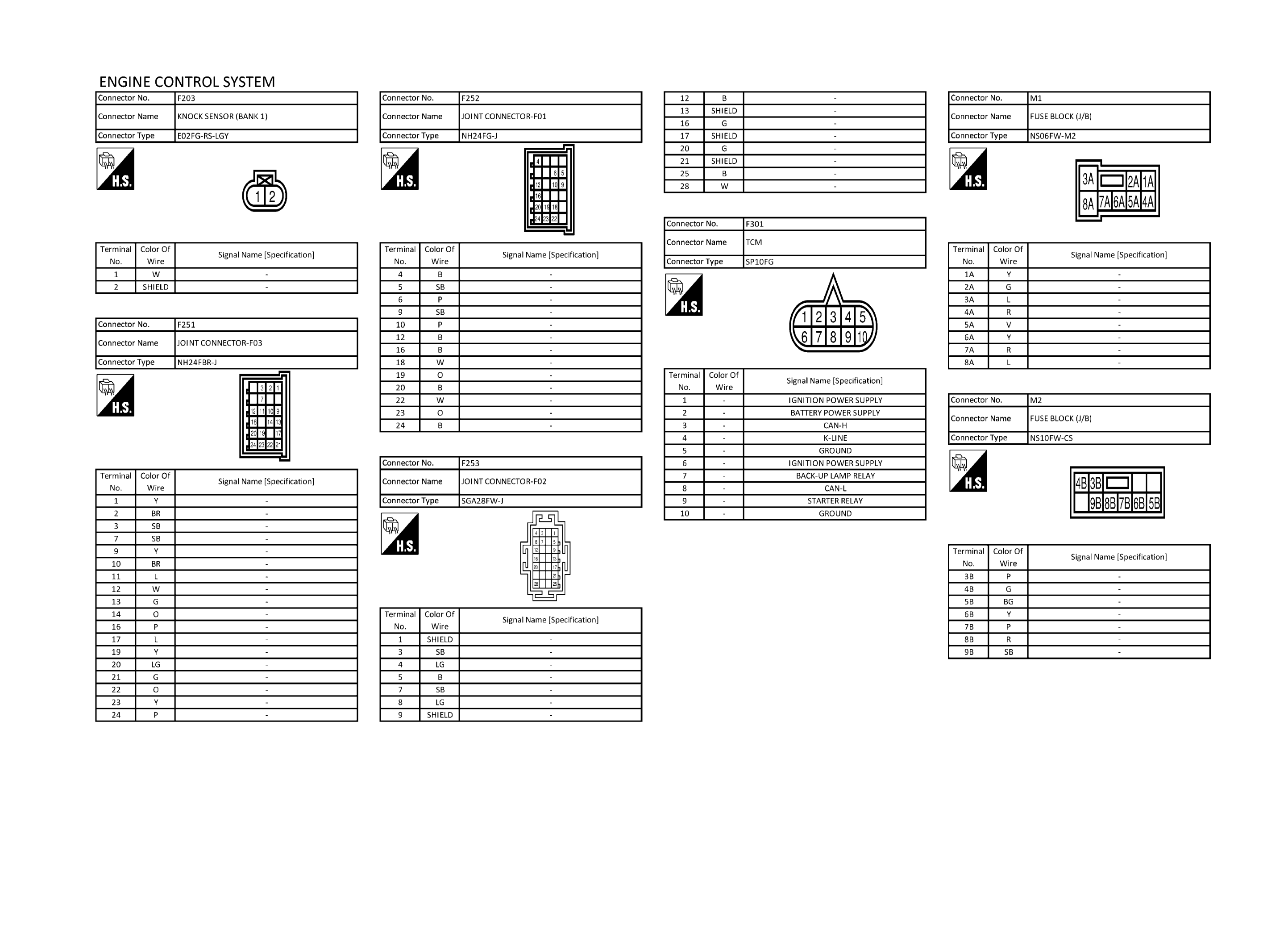

GNSJRBWE1143GB-143

Courtesy of NISSAN NORTH AMERICA, INC.

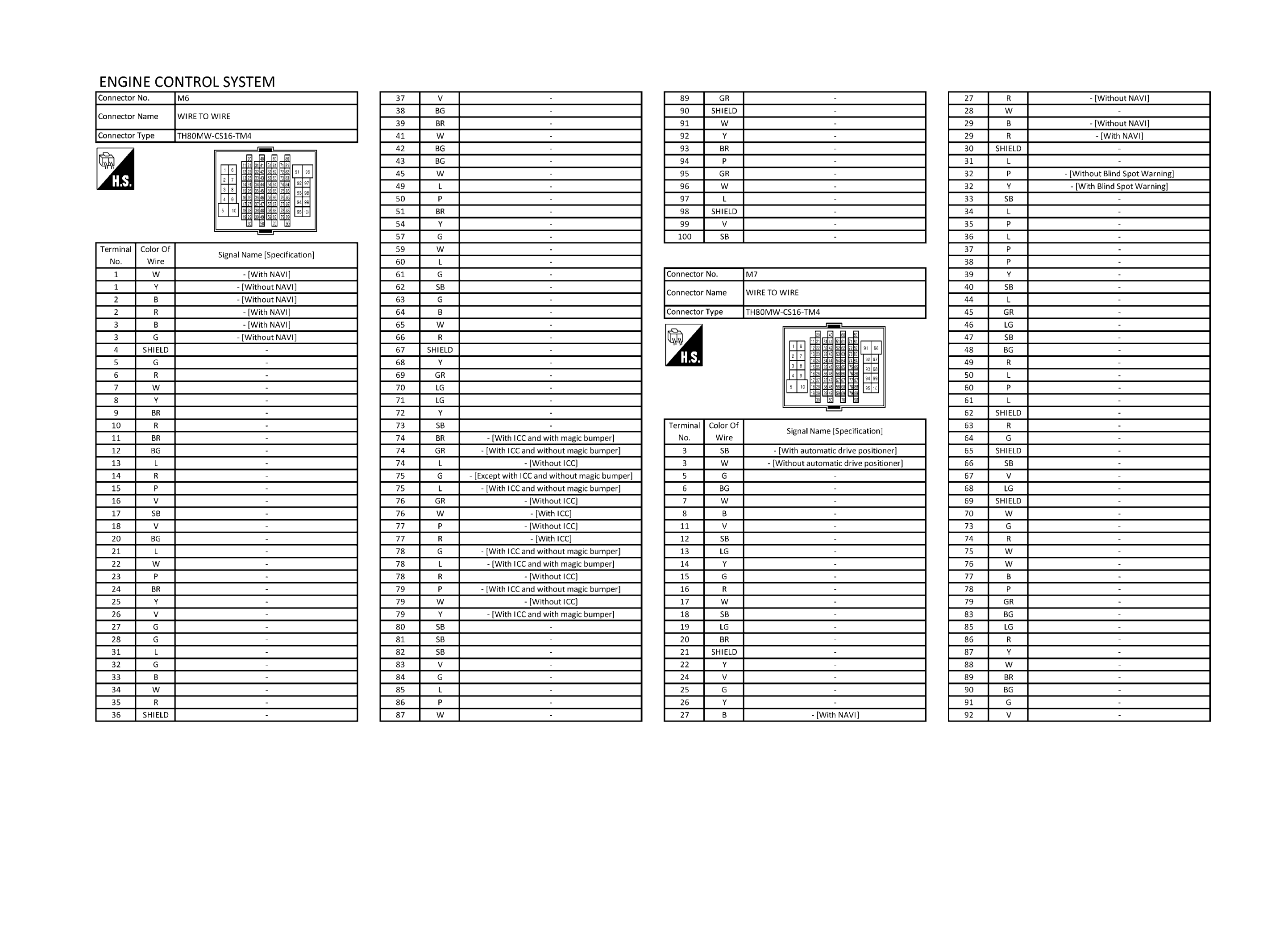

GNSJRBWE1144GB-144

Courtesy of NISSAN NORTH AMERICA, INC.

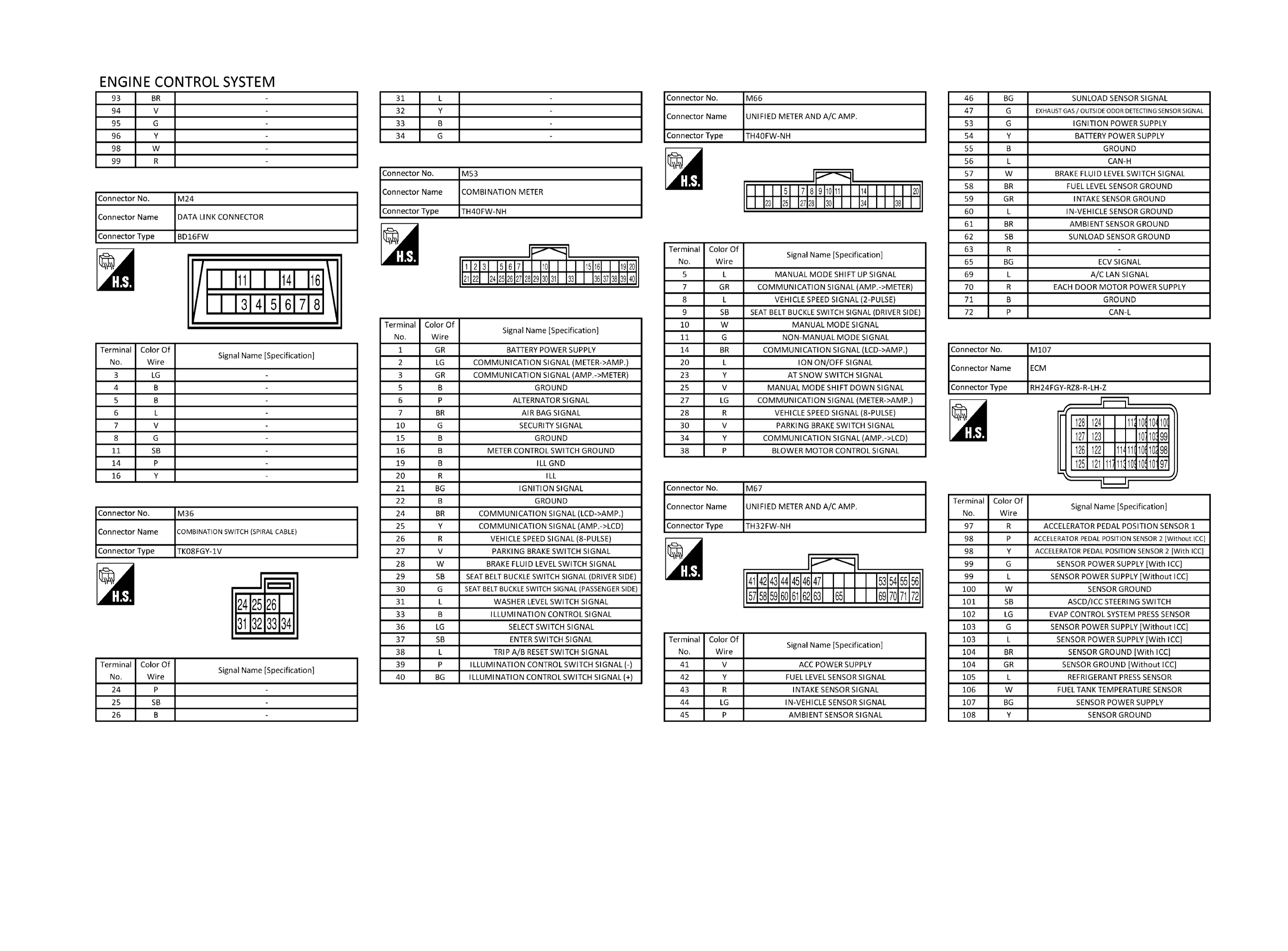

GNSJRBWE1145GB-145

Courtesy of NISSAN NORTH AMERICA, INC.

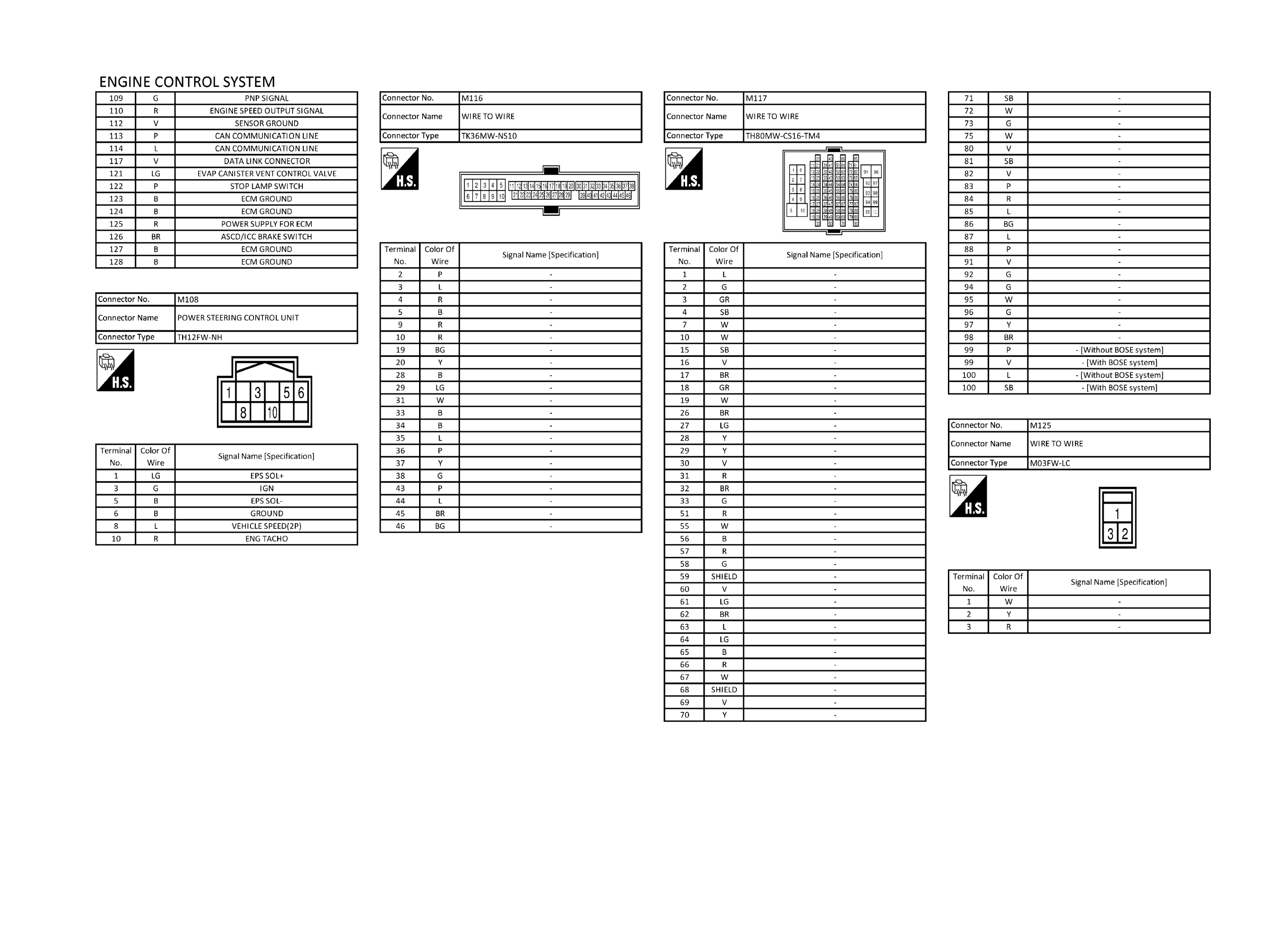

GNSJRBWE1146GB-146

Courtesy of NISSAN NORTH AMERICA, INC.

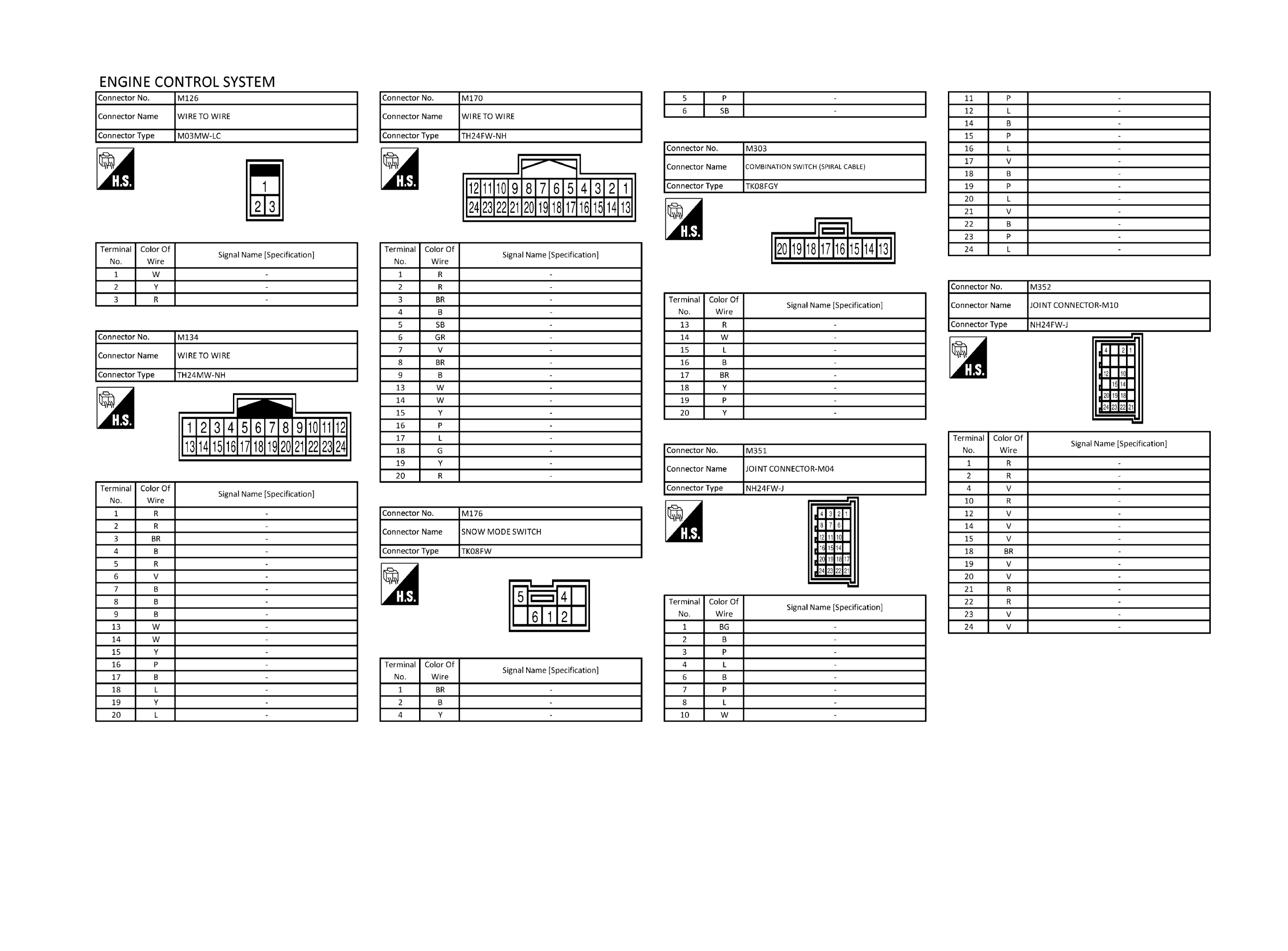

GNSJRBWE1147GB-147

Courtesy of NISSAN NORTH AMERICA, INC.

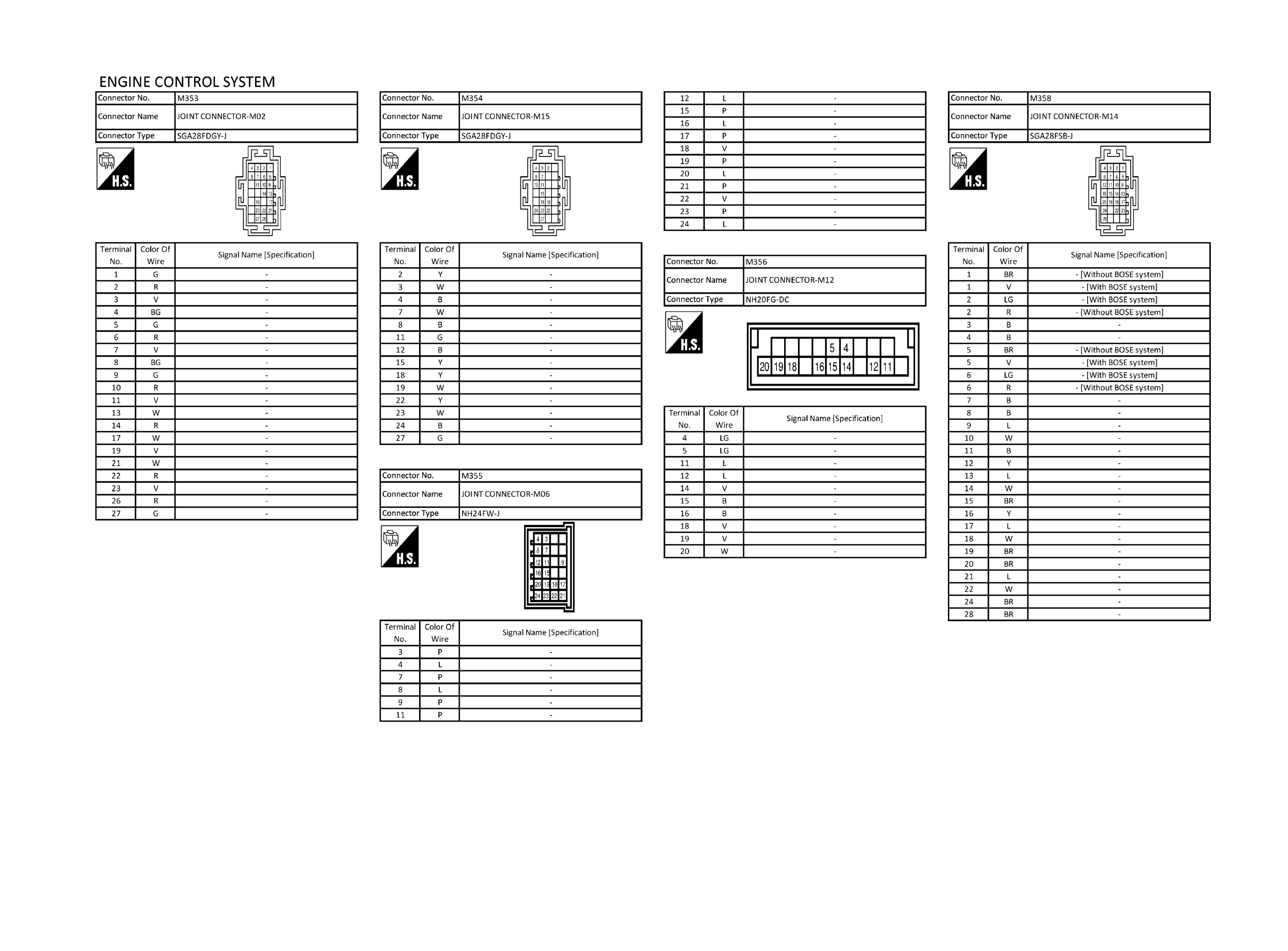

GNSJRBWE1148GB-148

Courtesy of NISSAN NORTH AMERICA, INC.

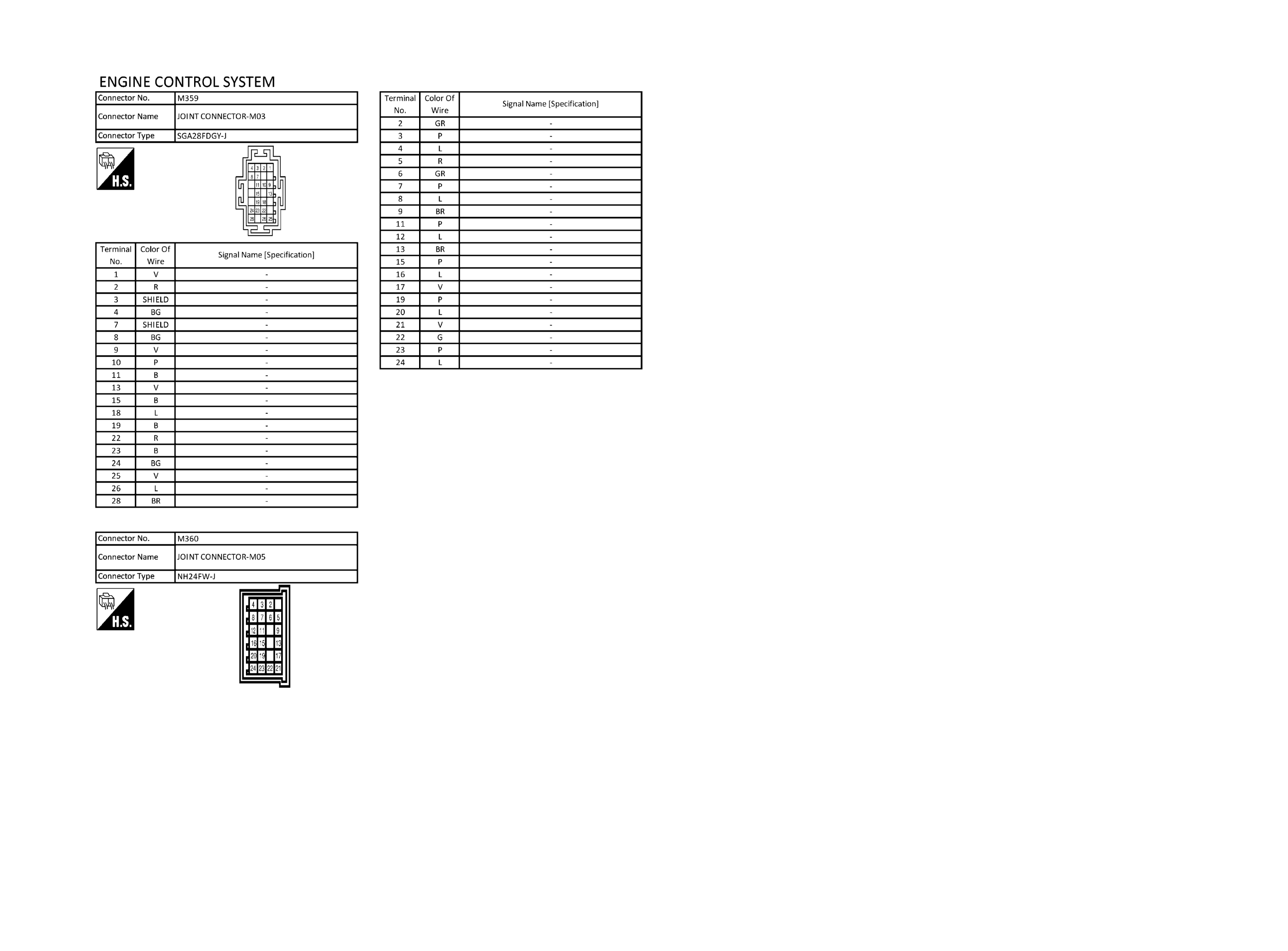

GNSJRBWE1149GB-149

Courtesy of NISSAN NORTH AMERICA, INC.
