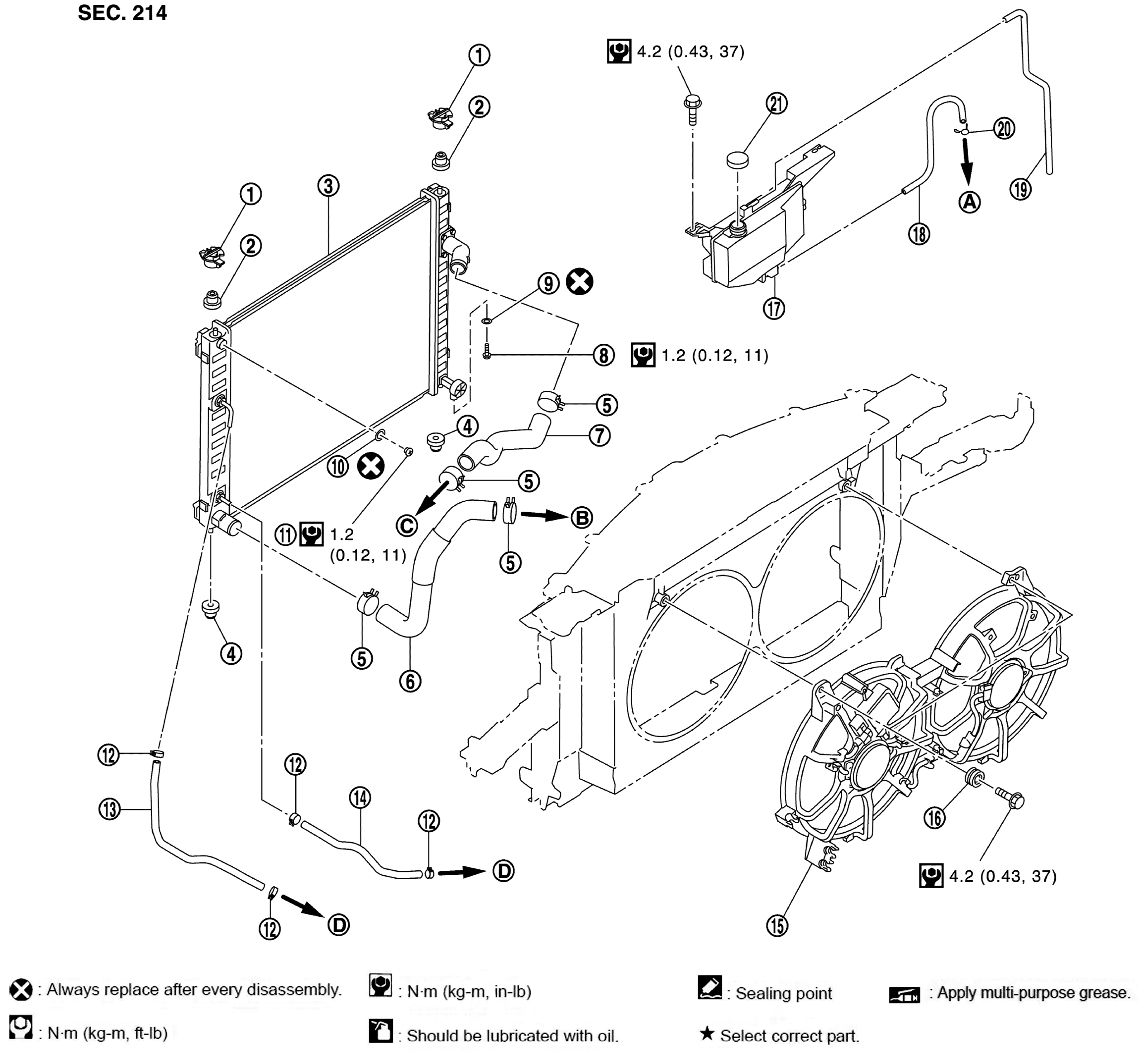

Exploded View
| 1. | Upper mount bracket | 2. | Mounting rubber (upper) | 3. | Radiator |
| 4. | Mounting rubber (lower) | 5. | Clamp | 6. | Radiator hose (lower) |
| 7. | Radiator hose (upper) | 8. | Drain plug | 9. | O - ring |
| 10. | O - ring | 11. | Air relief plug | 12. | Clamp |
| 13. | A/T fluid cooler hose | 14. | A/T fluid cooler hose | 15. | Cooling fan assembly |
| 16. | Grommet | 17. | Reservoir tank | 18. | Reservoir tank hose |
| 19. | Reservoir tank hose | 20. | Clamp | 21. | Reservoir tank cap |
| A. | To water outlet (front) | B. | To water inlet | C. | To water outlet (front) |
| D. | To A/T fluid cooler pipe | ||||
| Refer to COMPONENTS for symbols in the illustration. | |||||
