Engine Control System: Wiring Diagram

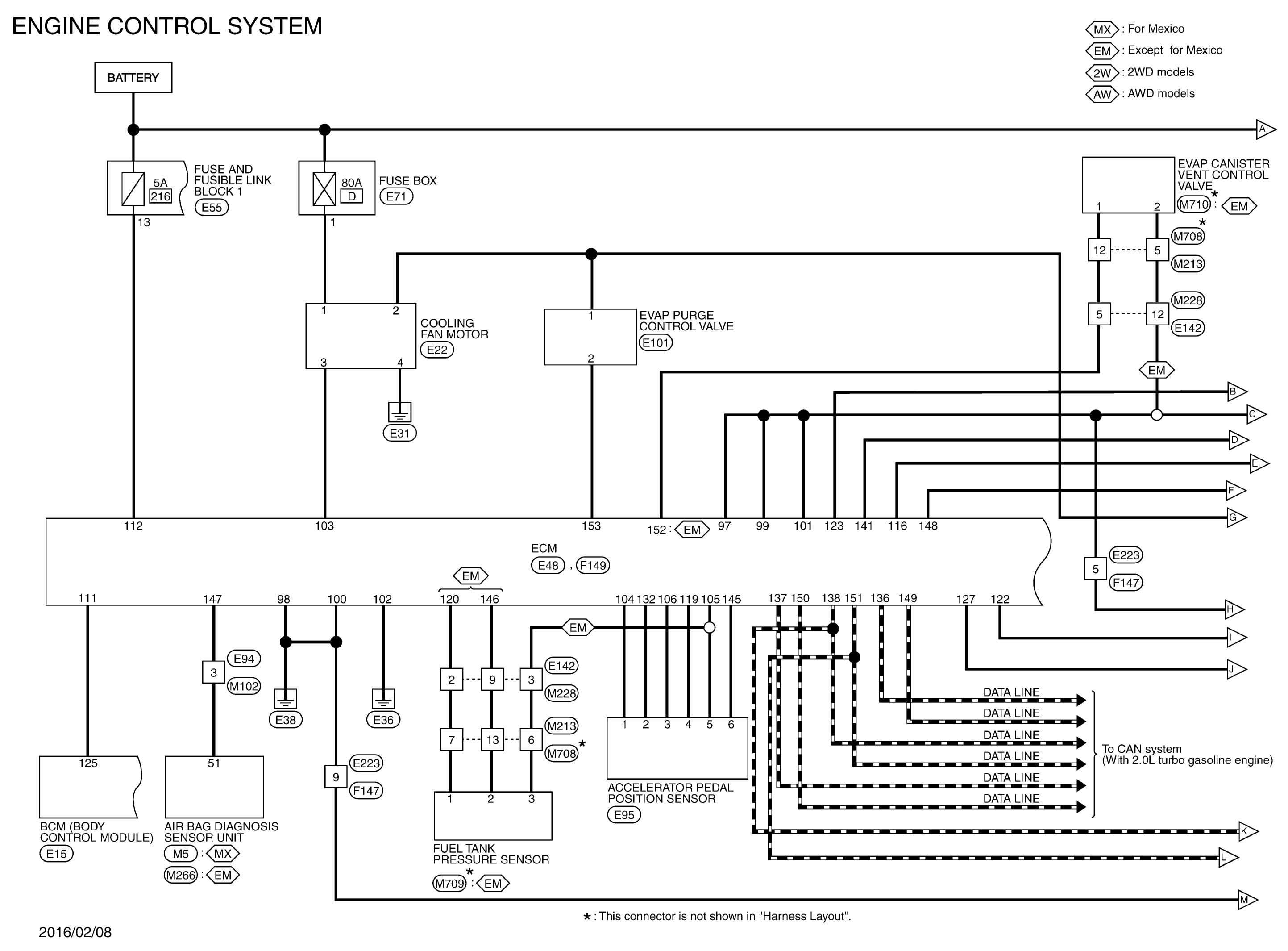

GNSJRBWD9675GB-675

Courtesy of NISSAN NORTH AMERICA, INC.

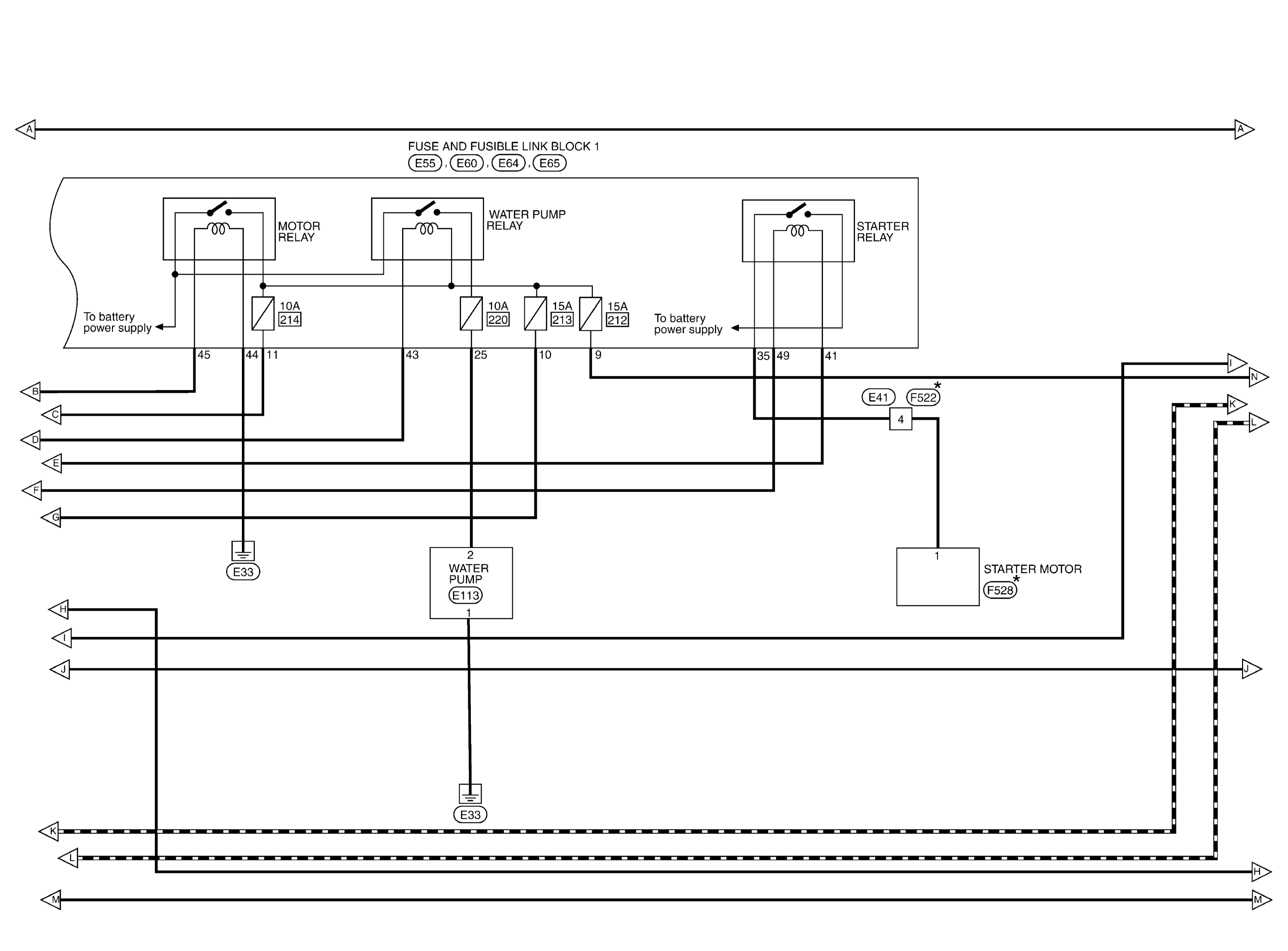

GNSJRBWD9676GB-676

Courtesy of NISSAN NORTH AMERICA, INC.

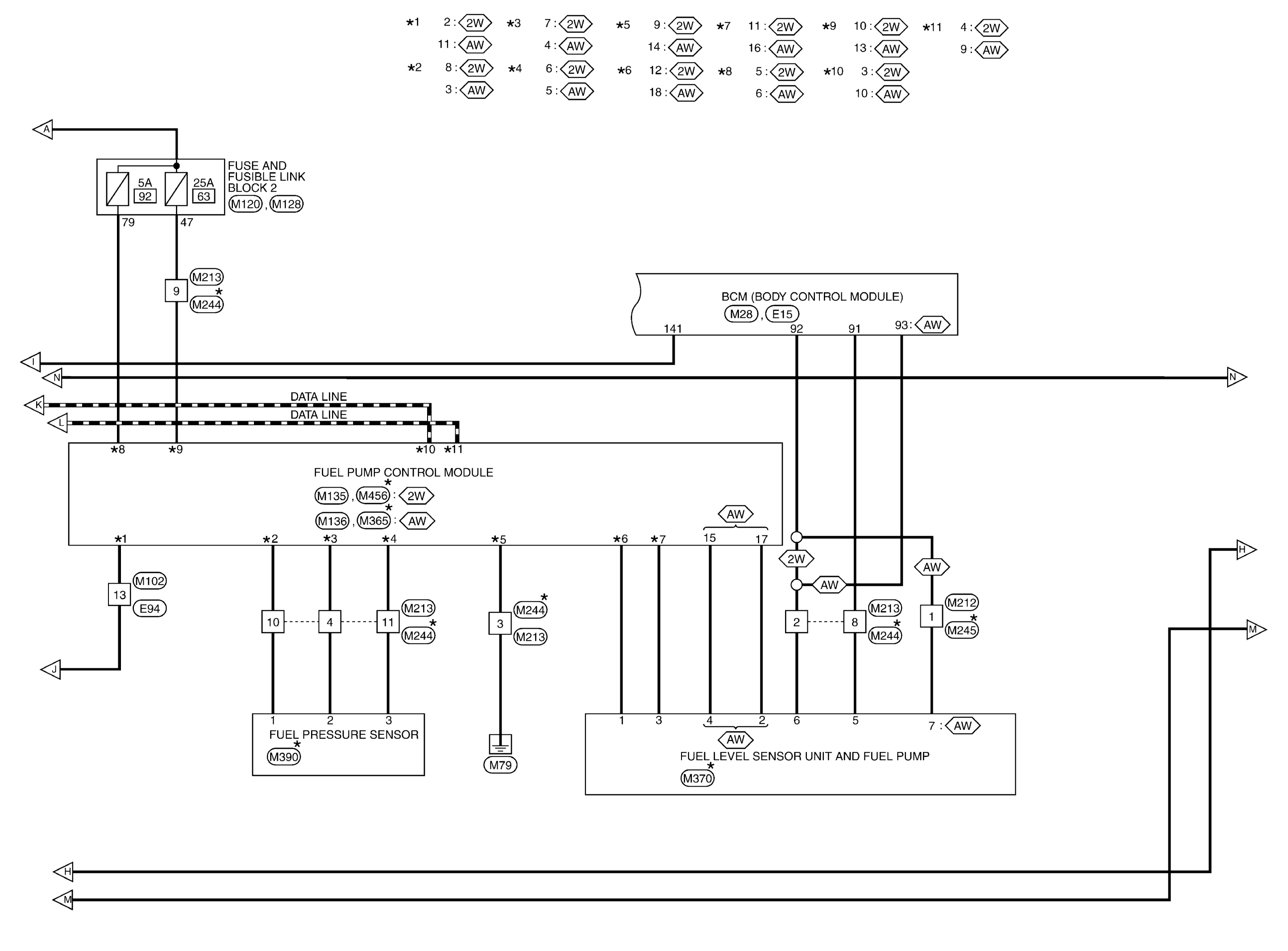

GNSJRBWD9677GB-677

Courtesy of NISSAN NORTH AMERICA, INC.

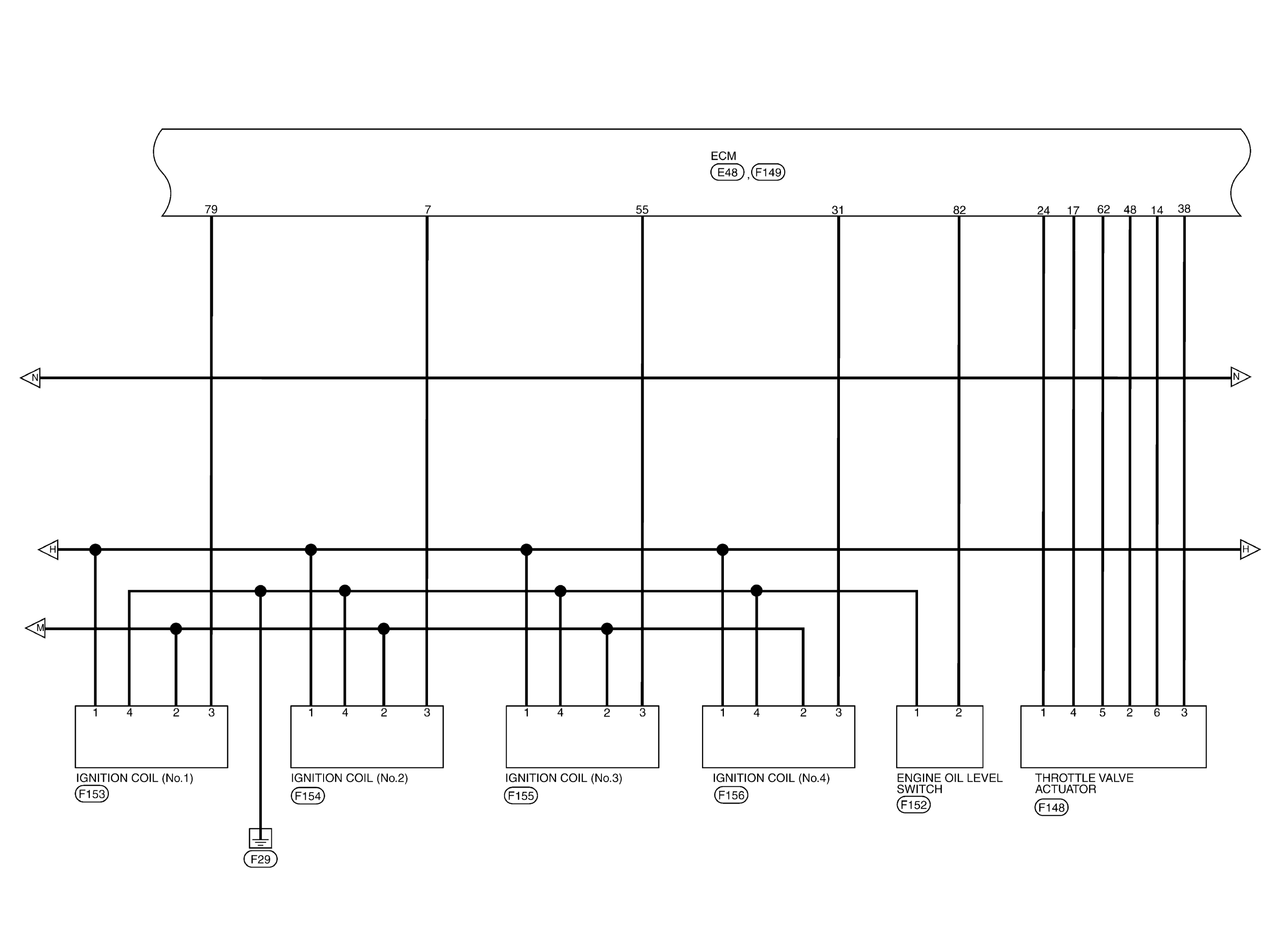

GNSJRBWD9678GB-678

Courtesy of NISSAN NORTH AMERICA, INC.

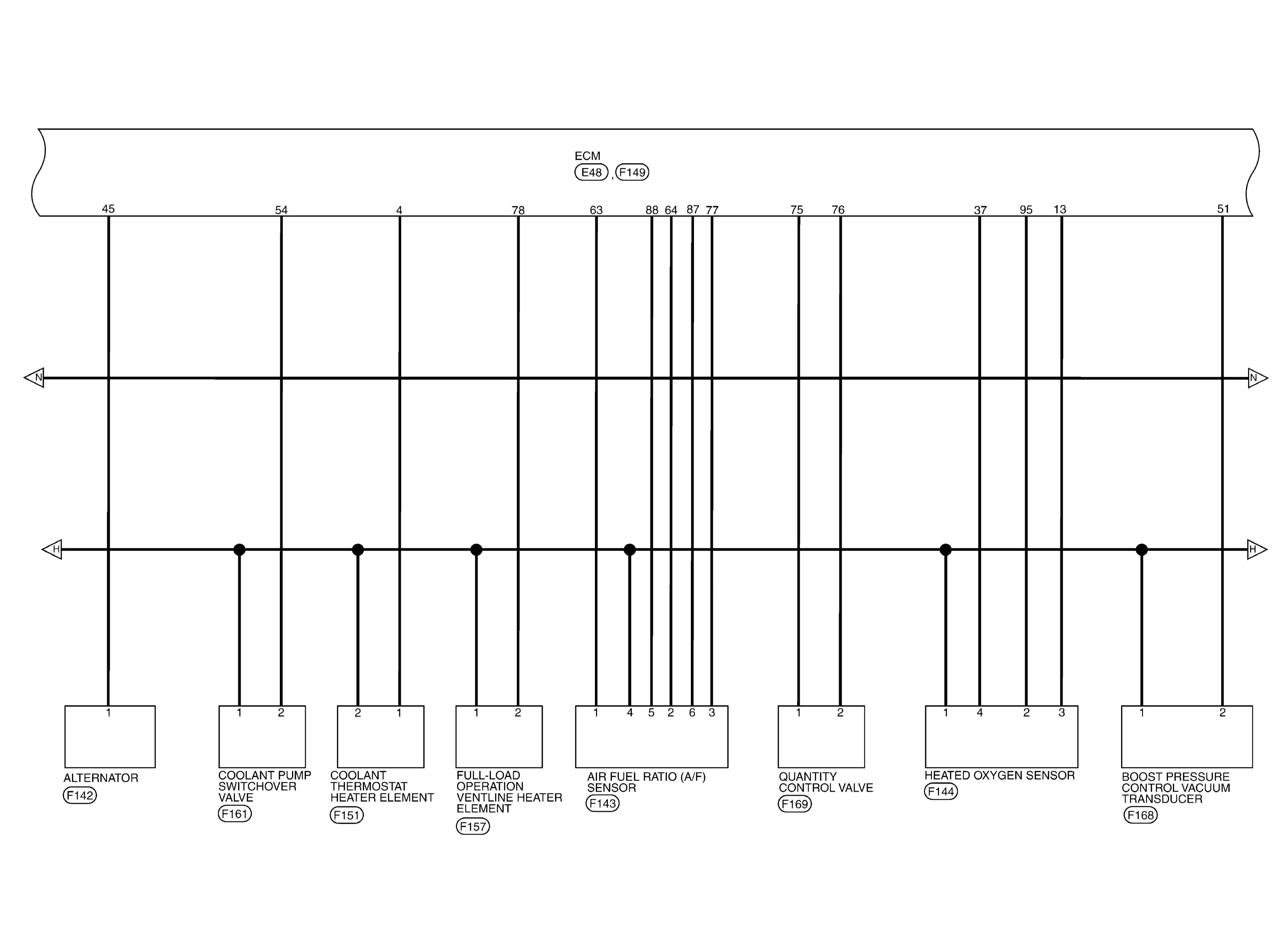

GNSJRBWD9679GB-679

Courtesy of NISSAN NORTH AMERICA, INC.

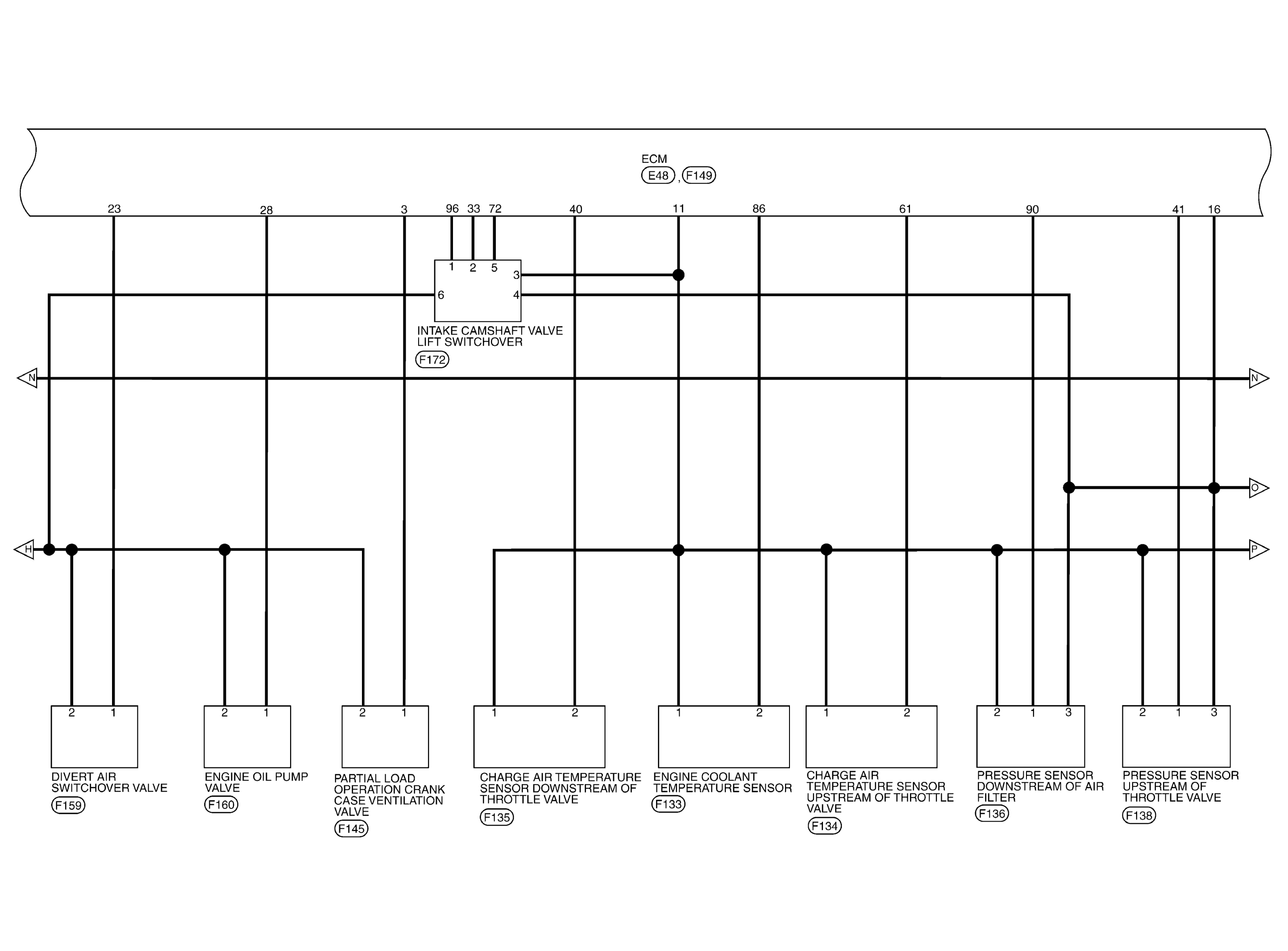

GNSJRBWD9680GB-680

Courtesy of NISSAN NORTH AMERICA, INC.

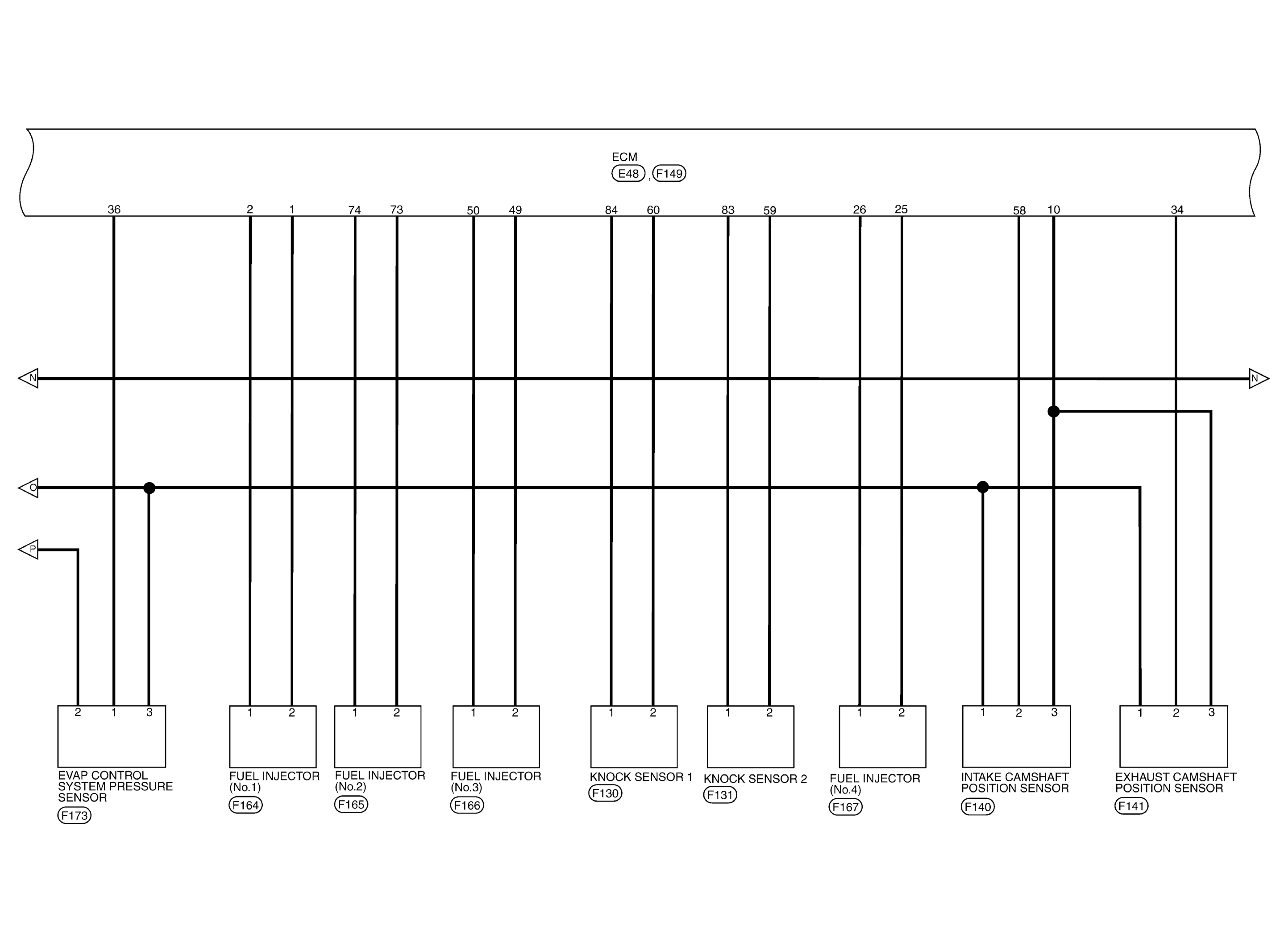

GNSJRBWD9681GB-681

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRBWD9682GB-682

Courtesy of NISSAN NORTH AMERICA, INC.

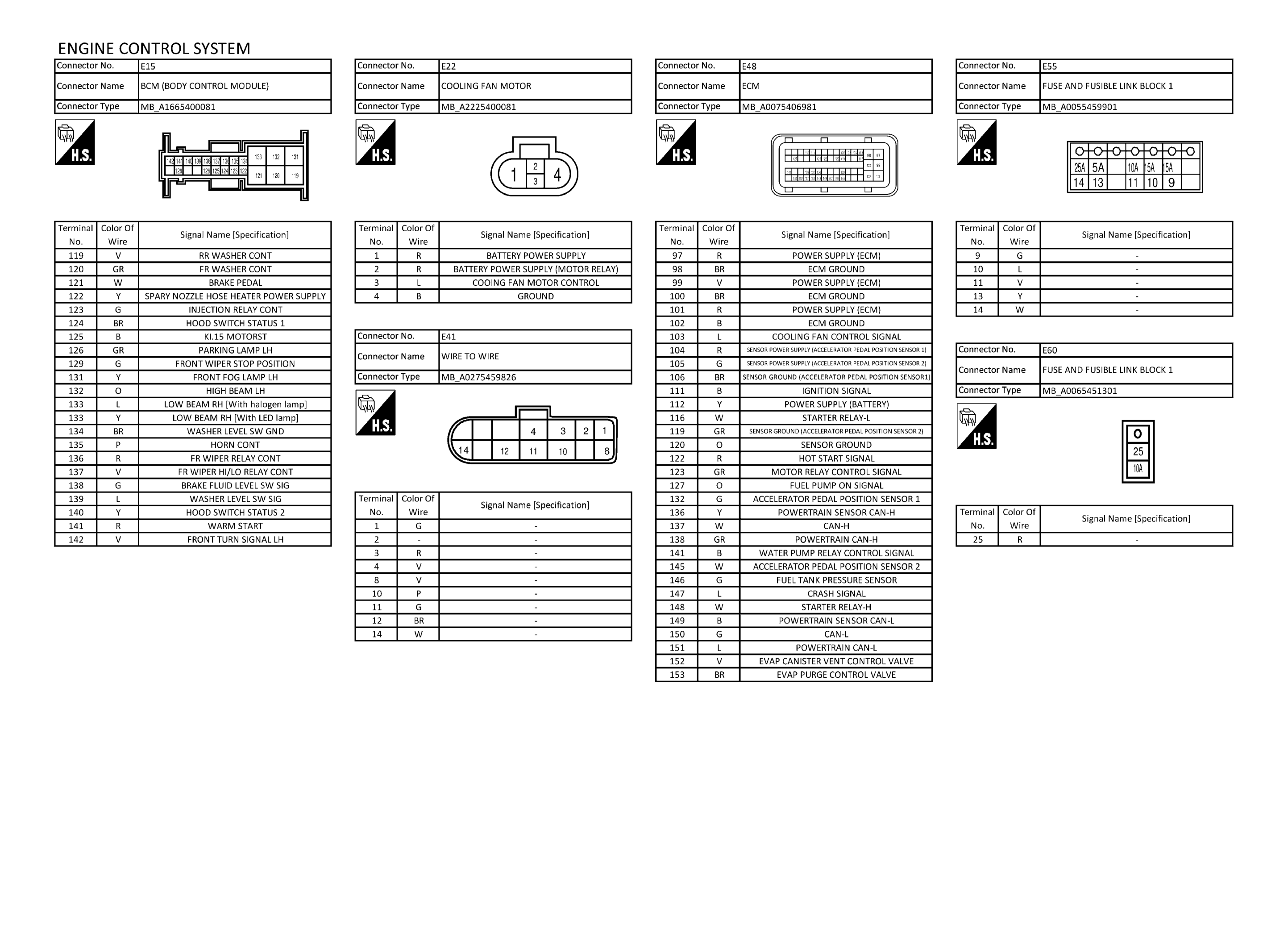

GNSJRBWD9683GB-683

Courtesy of NISSAN NORTH AMERICA, INC.

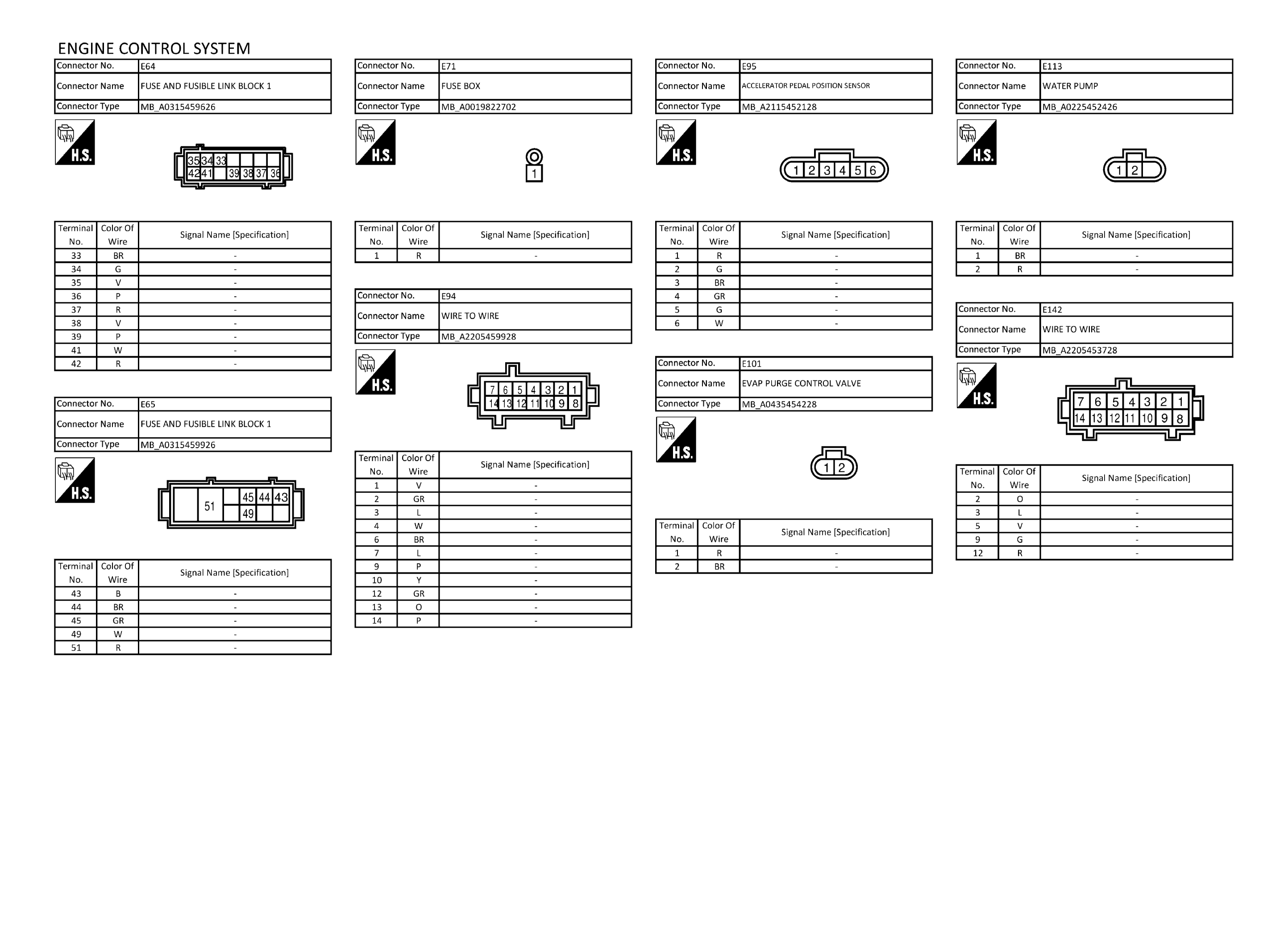

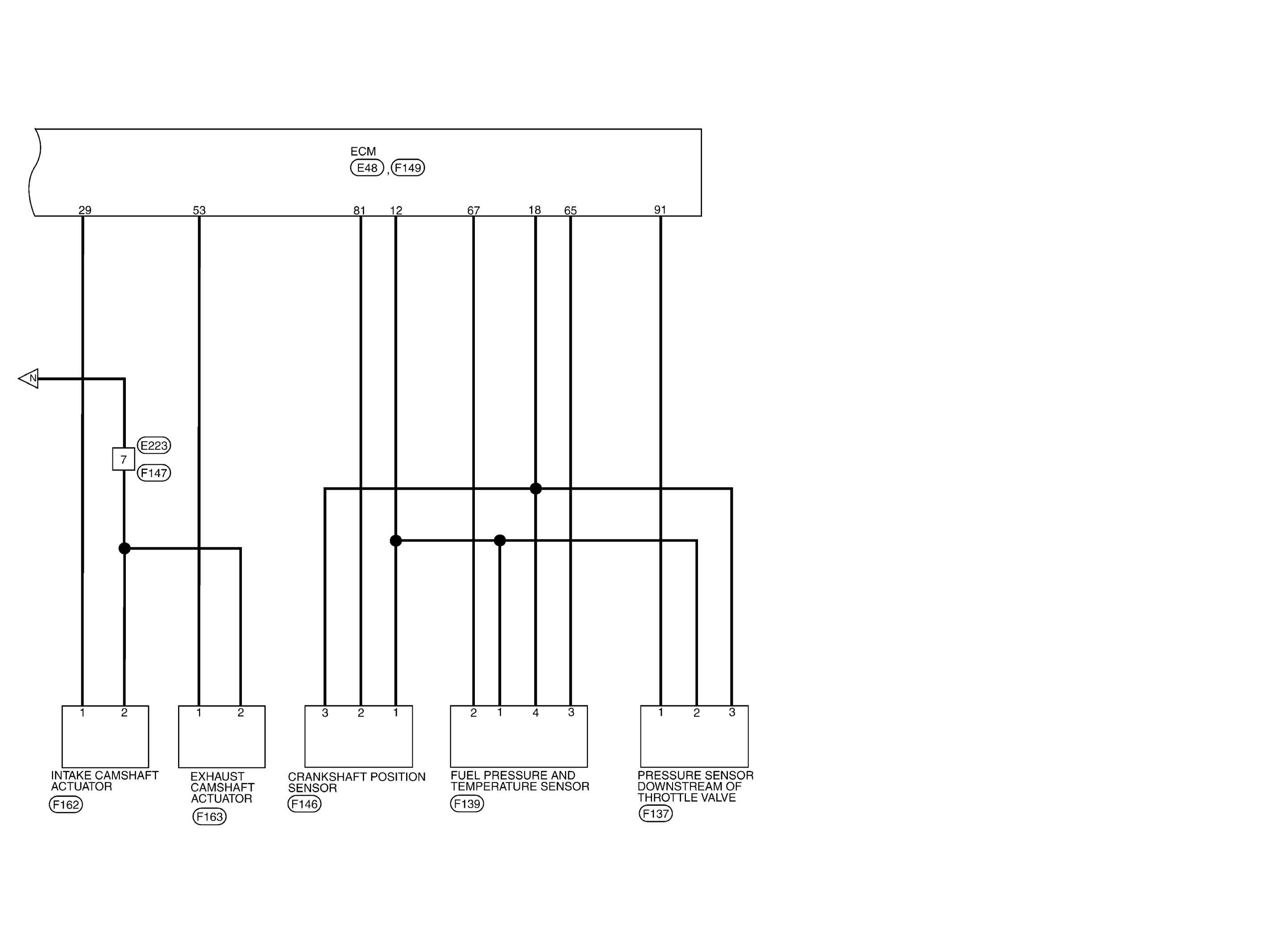

GNSJRBWD9684GB-684

Courtesy of NISSAN NORTH AMERICA, INC.

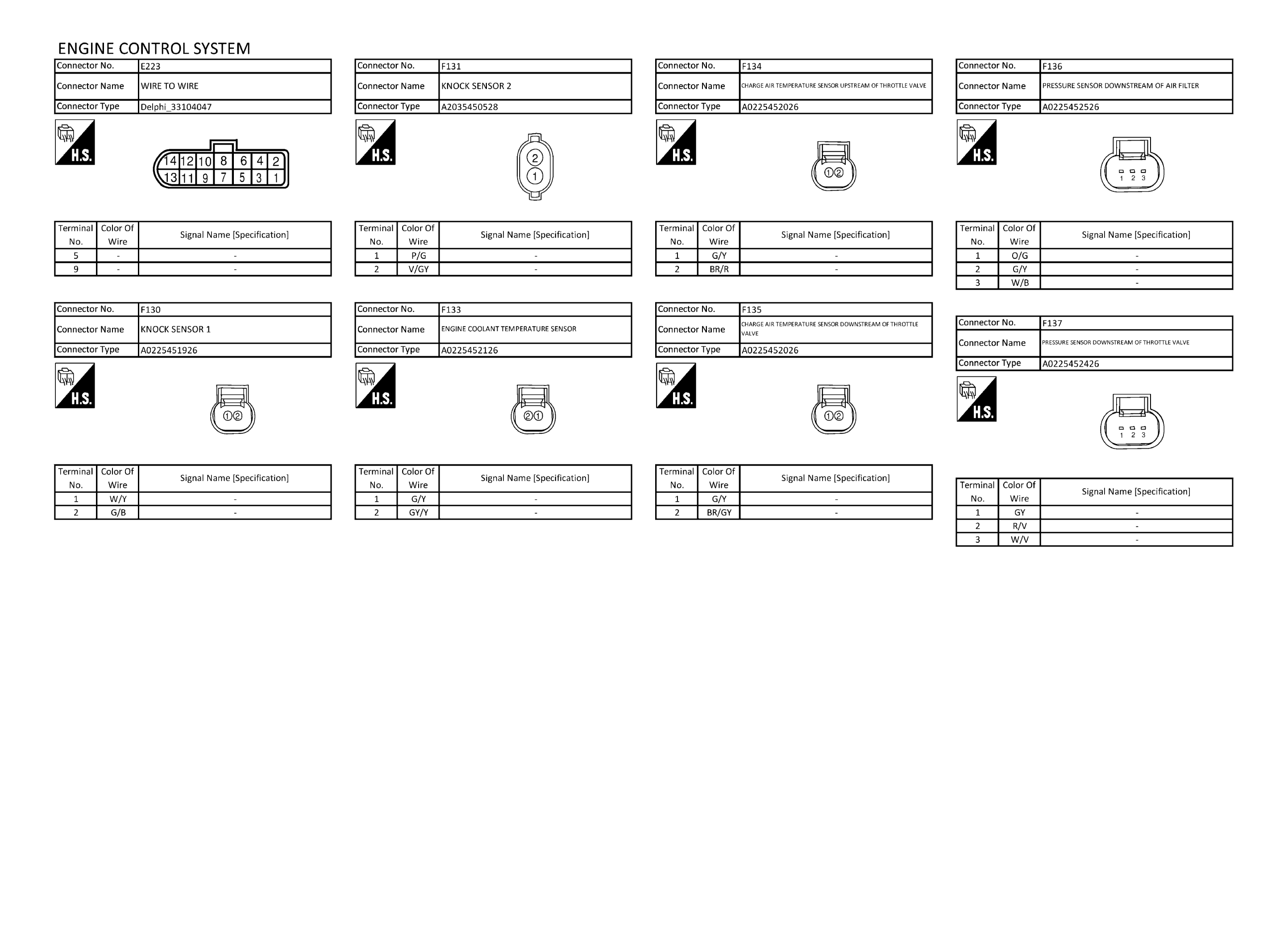

GNSJRBWD9685GB-685

Courtesy of NISSAN NORTH AMERICA, INC.

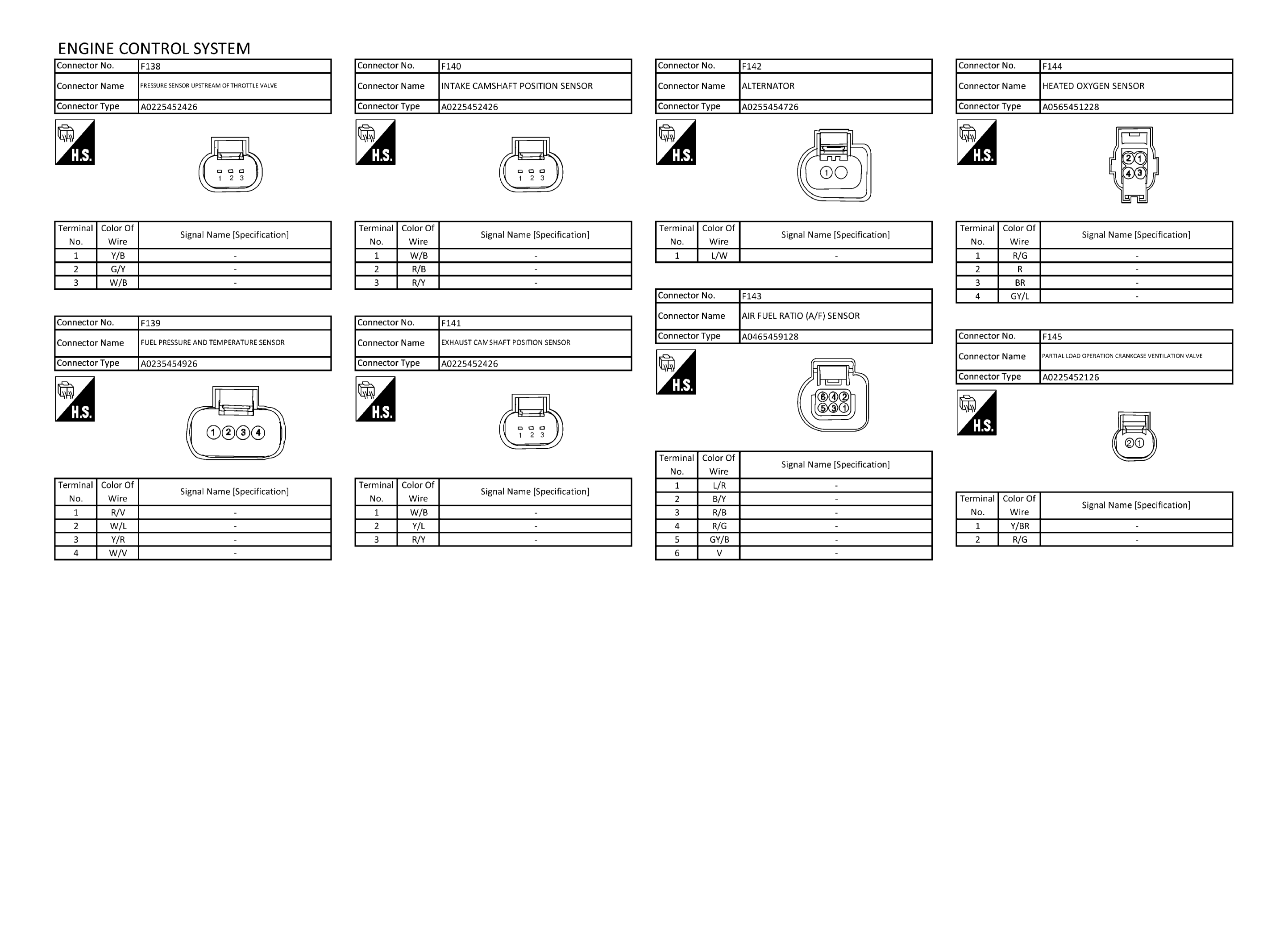

GNSJRBWD9686GB-686

Courtesy of NISSAN NORTH AMERICA, INC.

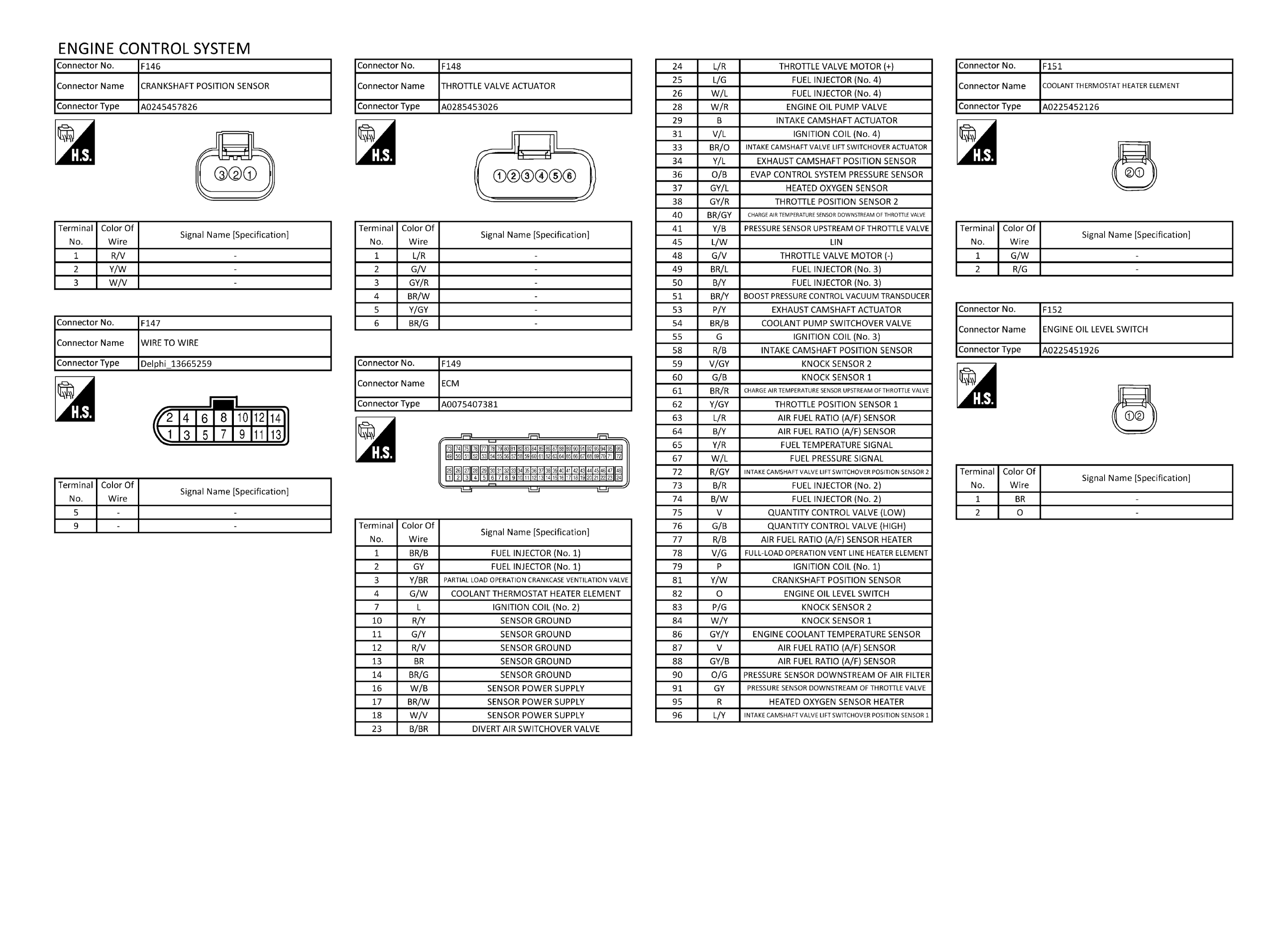

GNSJRBWD9687GB-687

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRBWD9688GB-688

Courtesy of NISSAN NORTH AMERICA, INC.

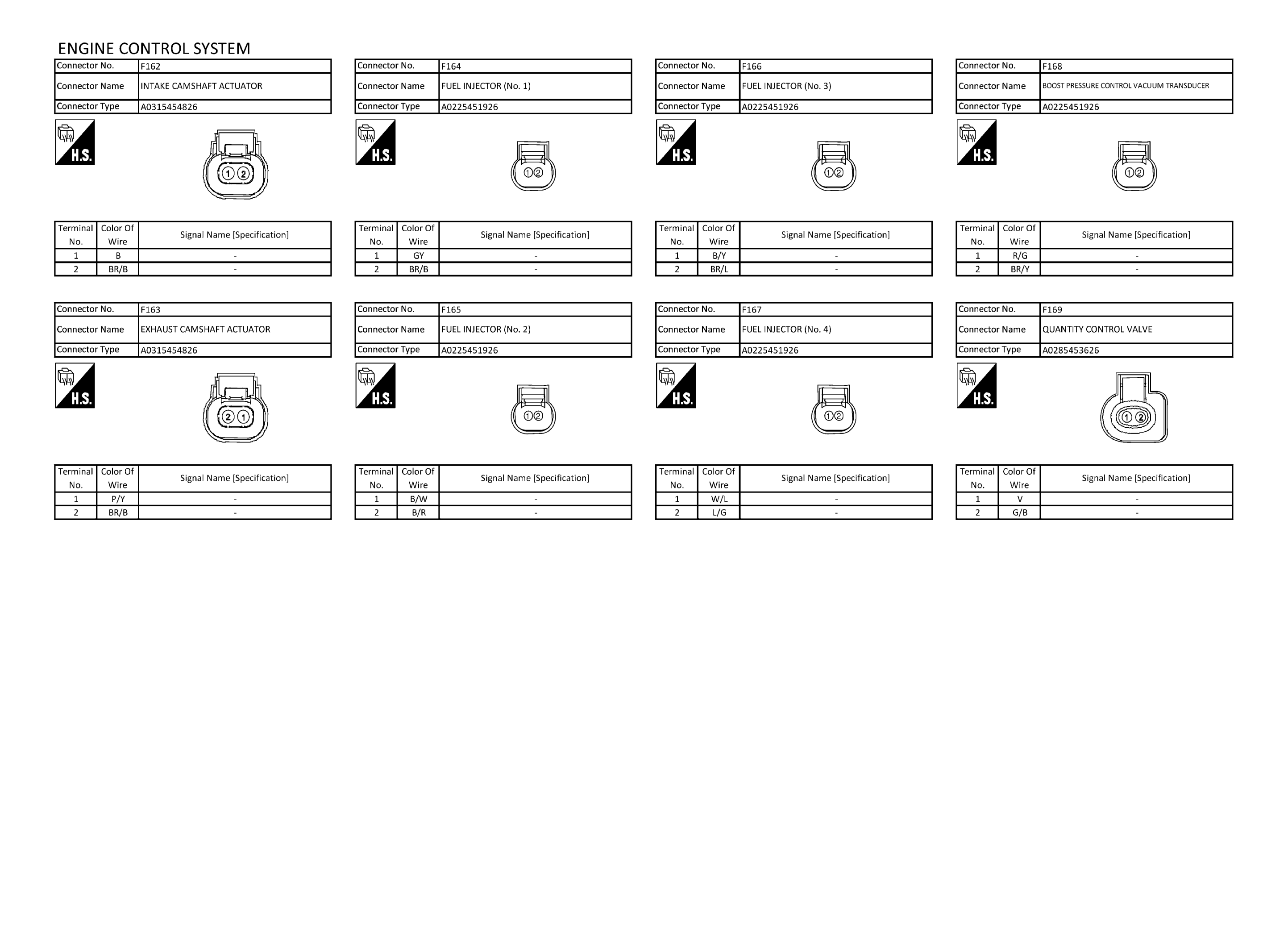

GNSJRBWD9689GB-689

Courtesy of NISSAN NORTH AMERICA, INC.

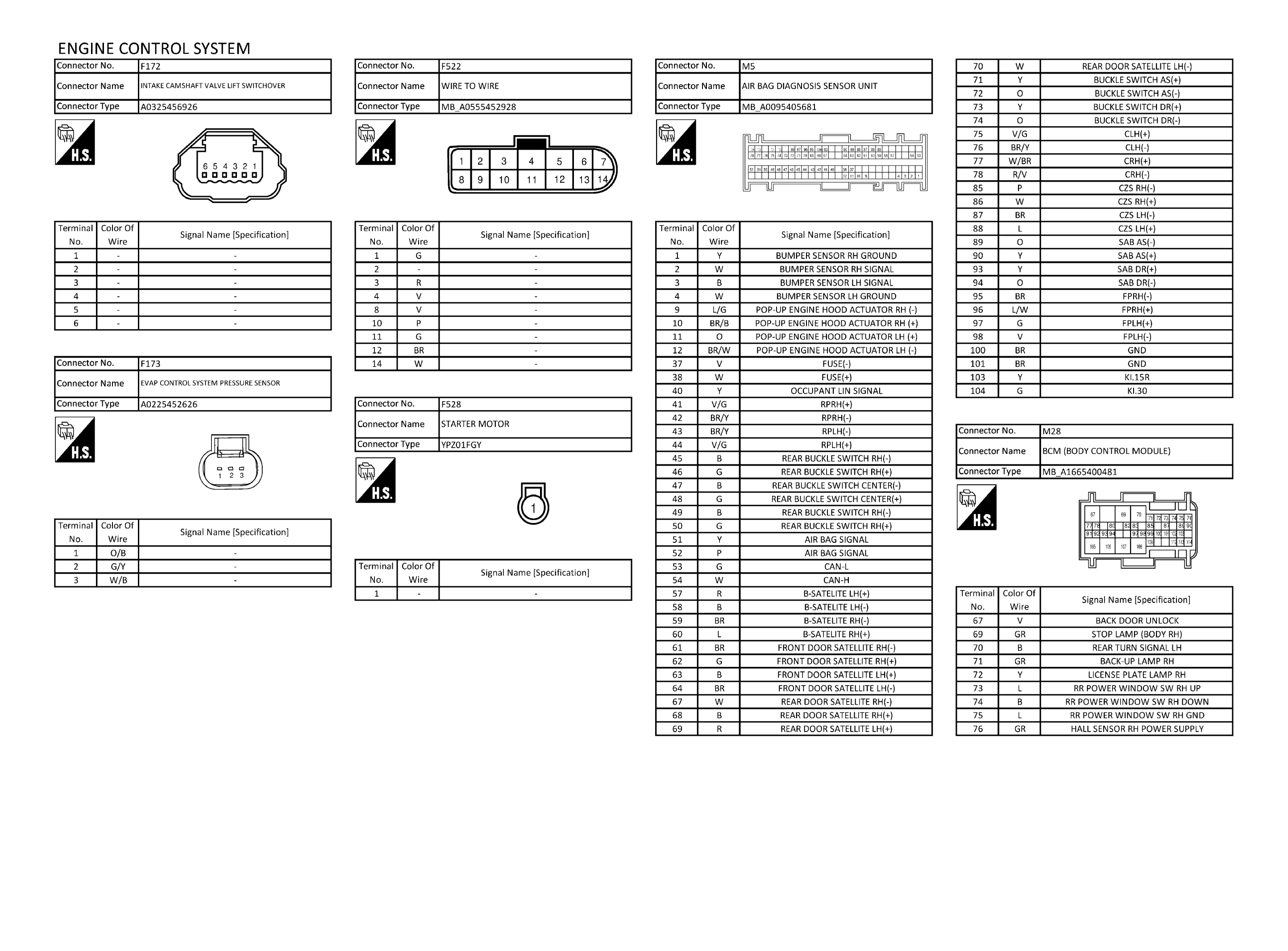

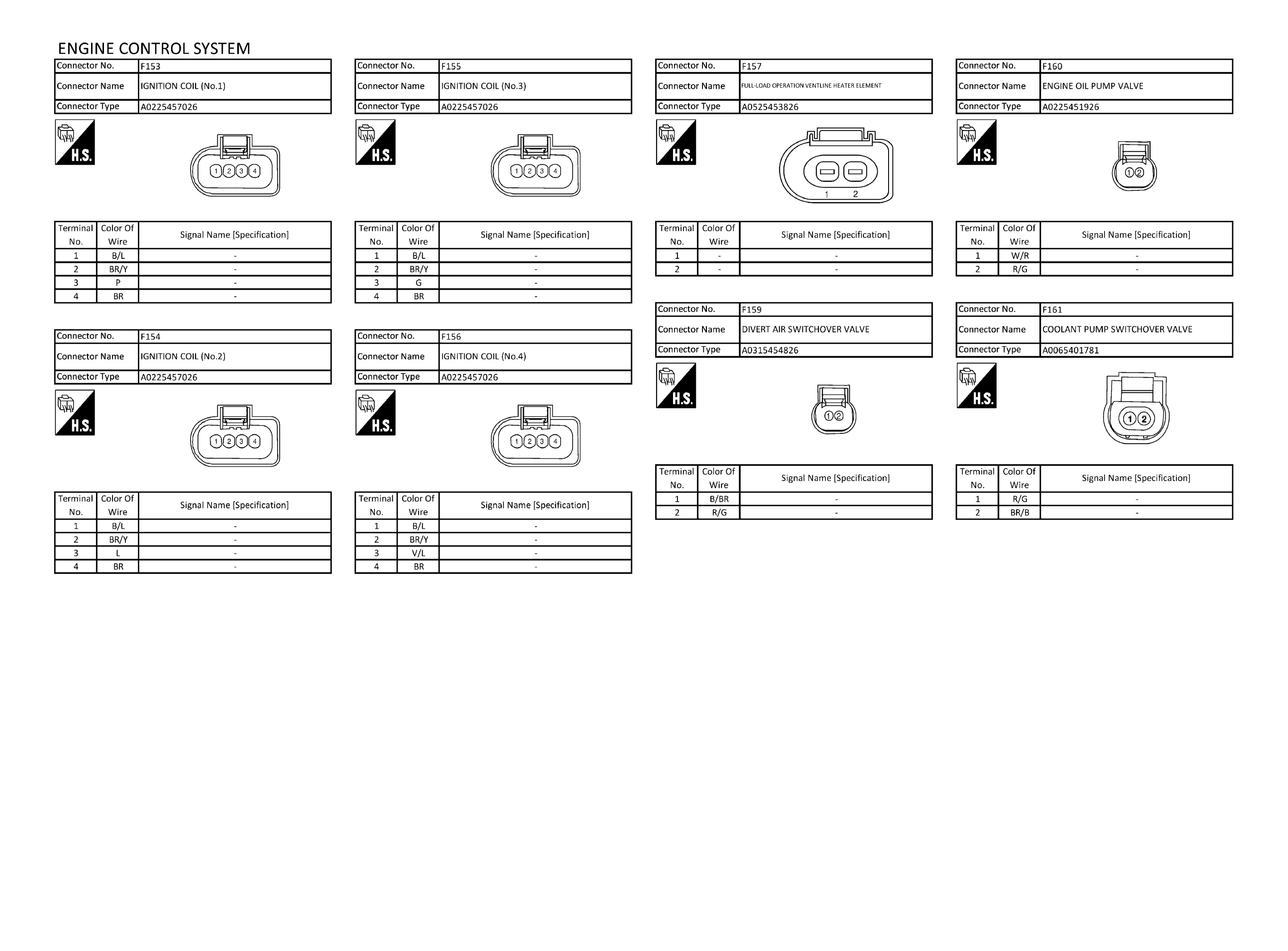

GNSJRBWD9690GB-690

Courtesy of NISSAN NORTH AMERICA, INC.

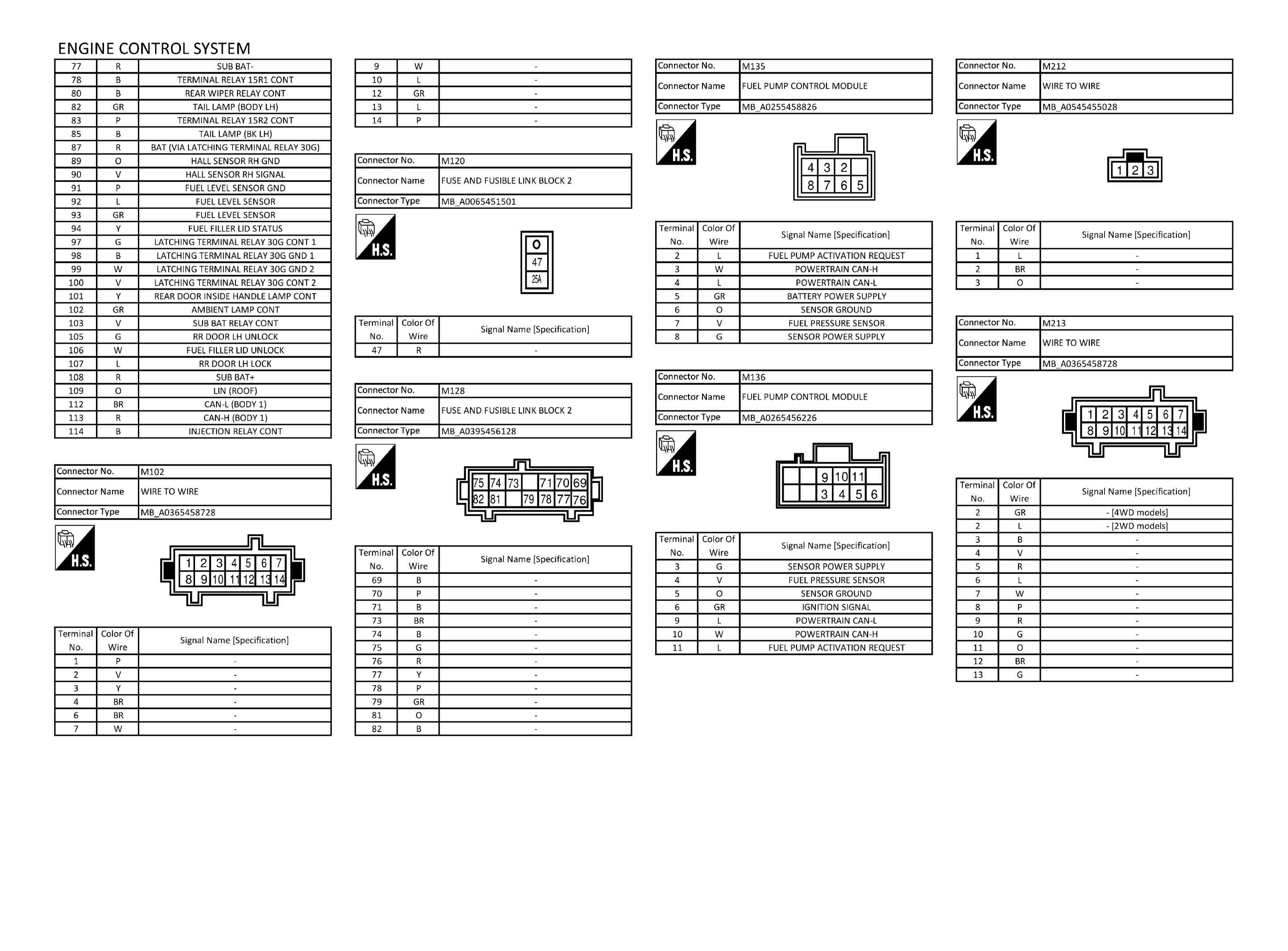

GNSJRBWD9691GB-691

Courtesy of NISSAN NORTH AMERICA, INC.

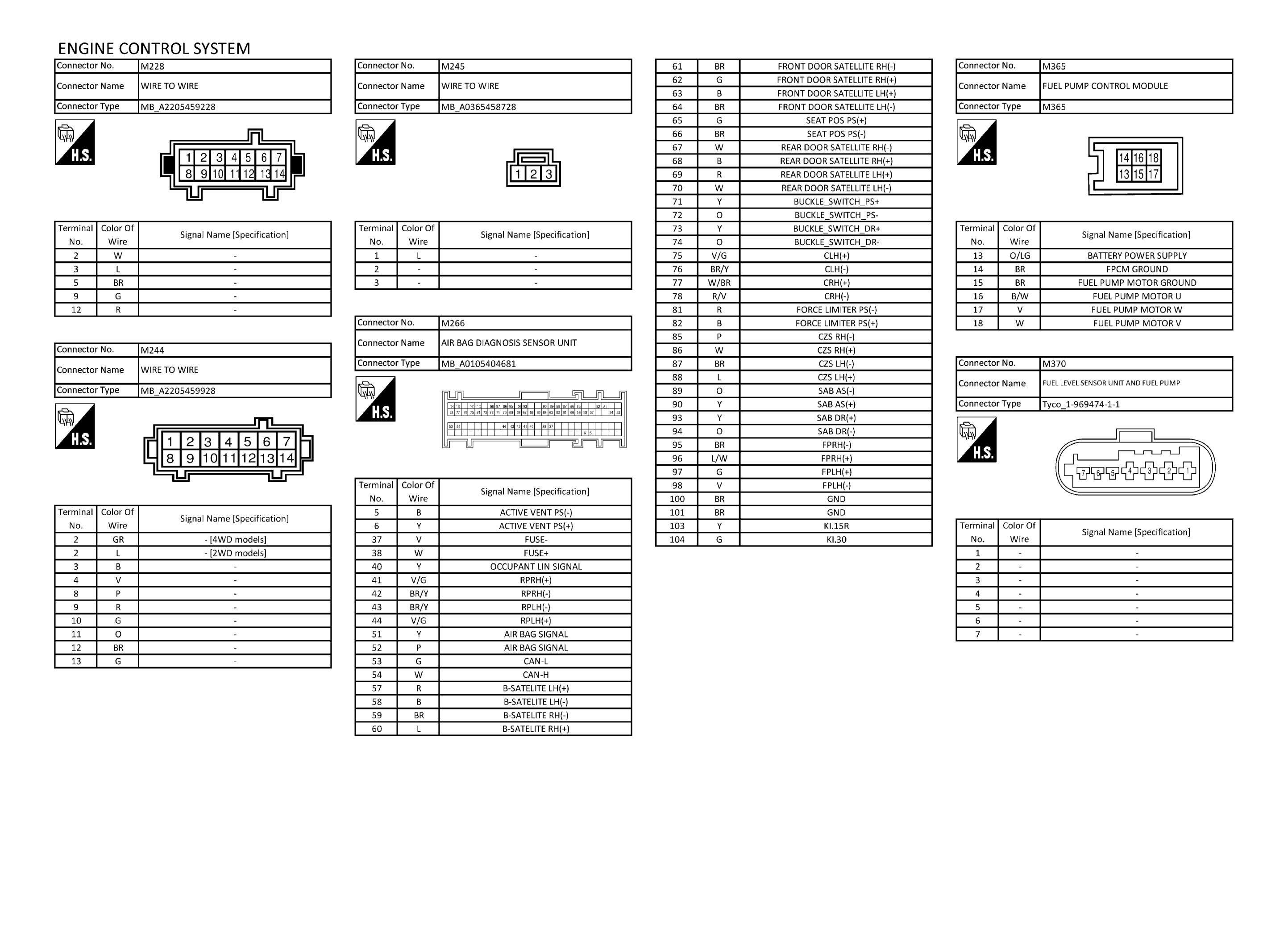

GNSJRBWD9692GB-692

Courtesy of NISSAN NORTH AMERICA, INC.

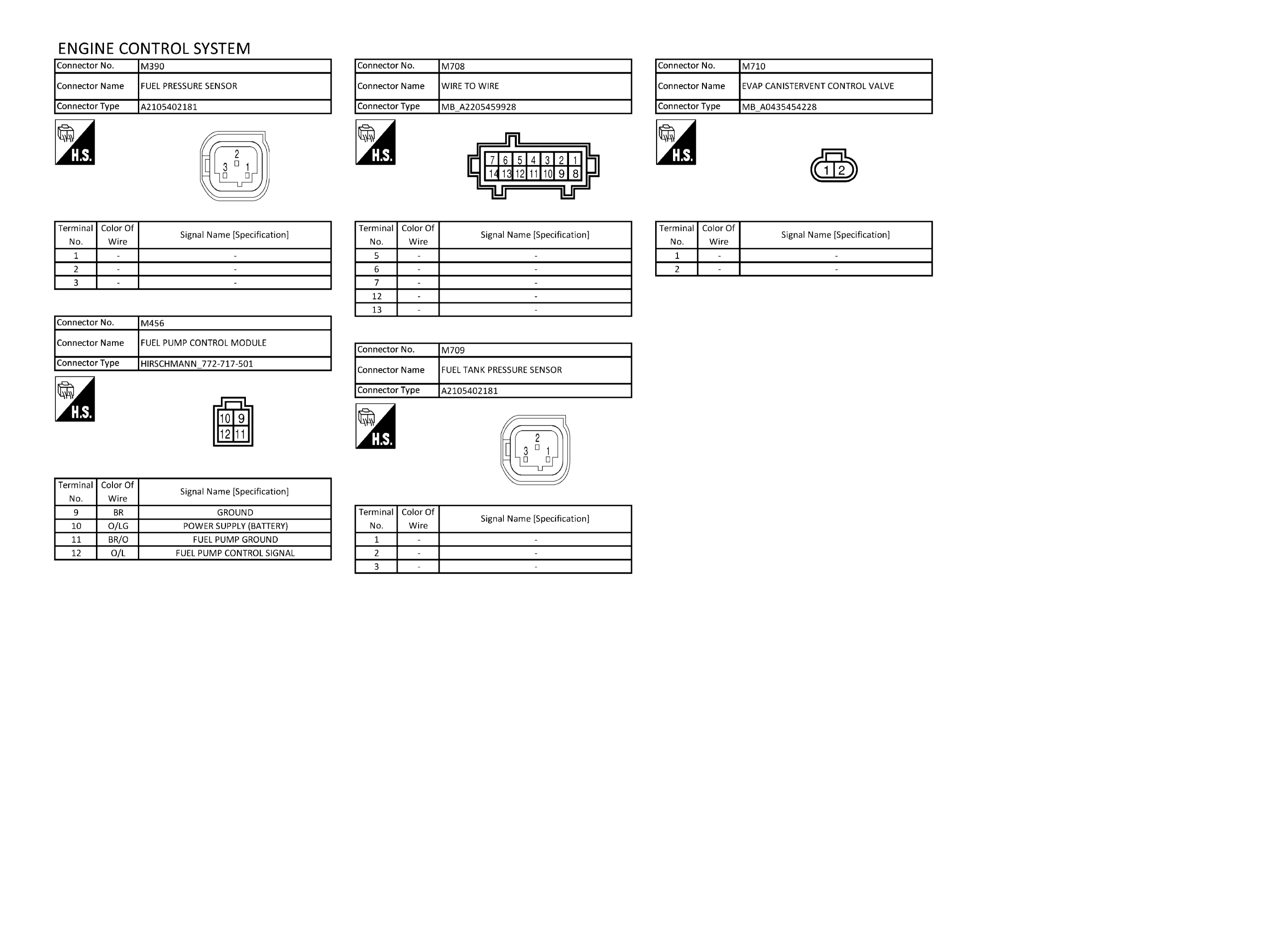

GNSJRBWD9693GB-693

Courtesy of NISSAN NORTH AMERICA, INC.
