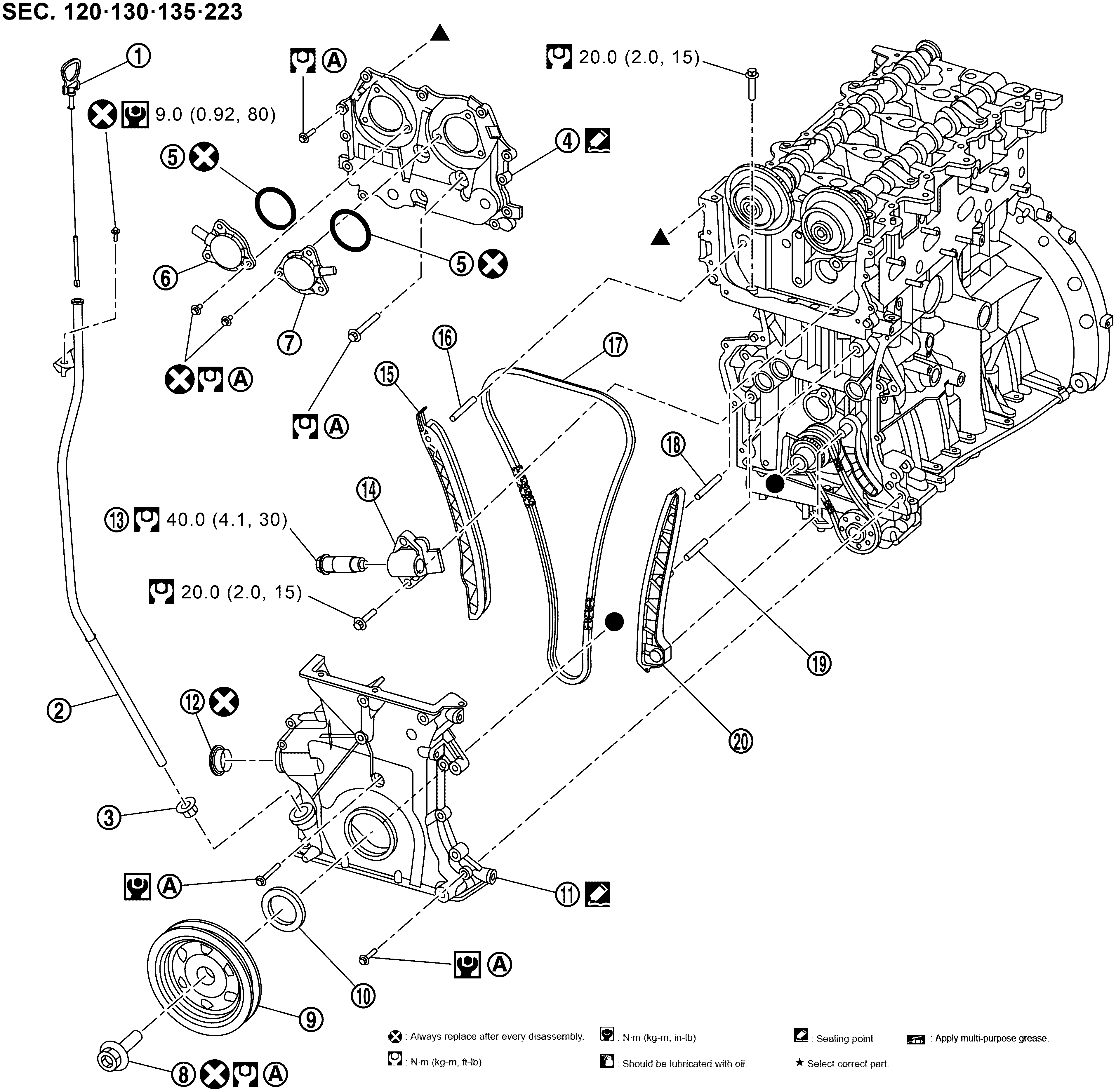

Oil level gauge |
 |
Oil level gauge guide |
 |
Gasket |
 |
Front cover |
 |
O-ring |
 |
Intake camshaft actuator |
 |
Exhaust camshaft actuator |
 |
Centering bolt |
 |
Crankshaft pulley |
 |
Front oil seal |
 |
Timing case cover |
 |
Chain tensioner cover |
 |
Chain tensioner |
 |
Chain tensioner bracket |
 |
Timing chain slide rail 1 |
 |
Slide rail pin |
 |
Timing chain |
 |
Slide rail pin |
 |
Slide rail pin |
 |
Timing chain slide rail 2 |
|
|
 |
Comply with the assembly procedure when tightening. Refer to REMOVAL AND INSTALLATION . |
|
|
|
|
 |
: Always replace after every disassembly. |
 |
: N•m (kg-m, ft-lb) |
 |
: N•m (kg-m, in-lb) |
 |
: Sealing point |
|
|
|
|
,
: Indicates that the part is connected at points with same symbol in actual vehicle. |
