Exploded View

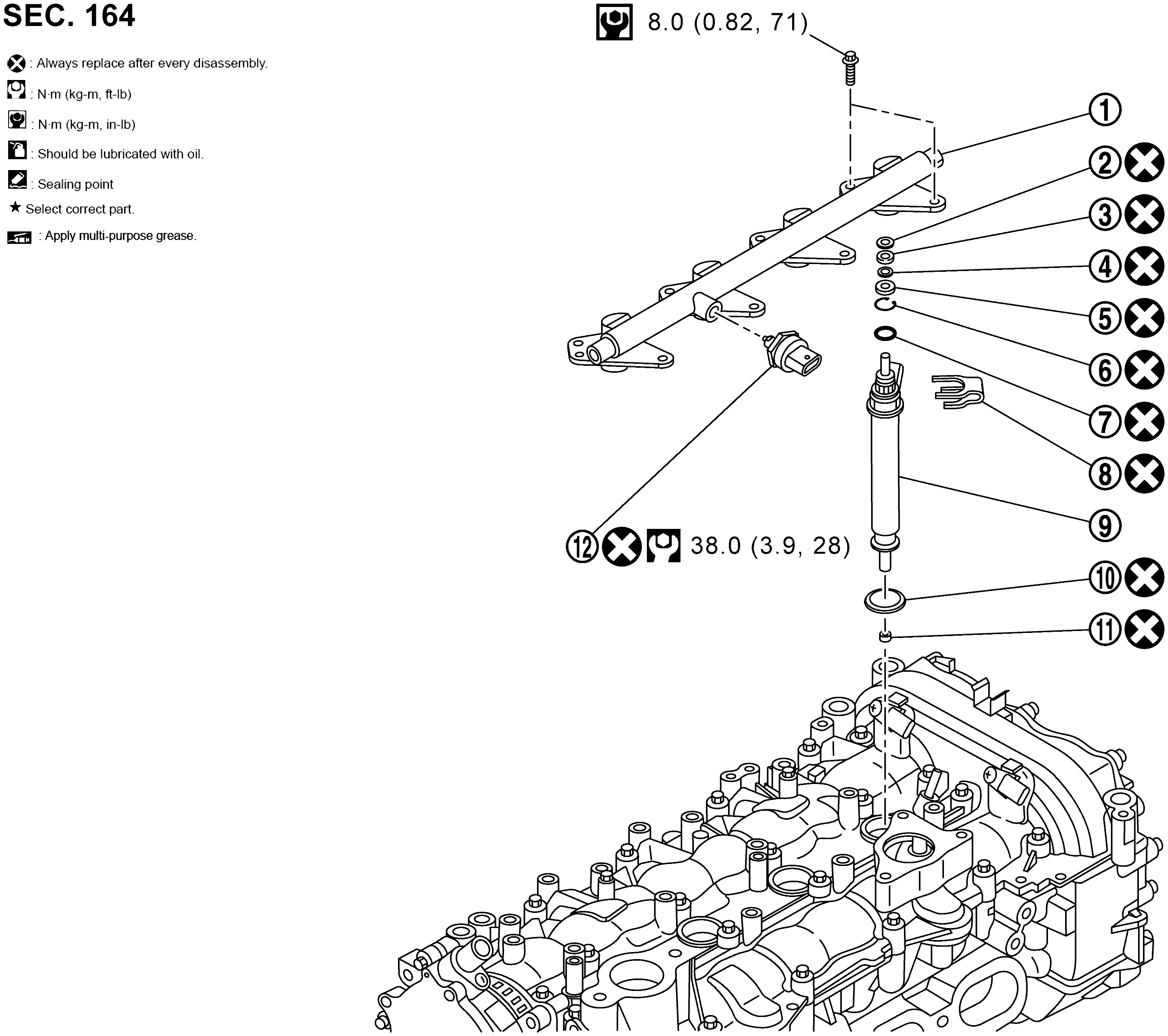

Fig 1: Fuel Injector With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Fuel rail	Plastic support ring (white)	Seal ring
Plastic support ring (slit)	Metal support disk	Snap ring
Seal ring	Fuel injector holder	Fuel injector
Fuel injector dust seal	Seal ring	Fuel pressure sensor
: N•m (kg-m, ft-lb)
: N•m (kg-m, in-lb)
: Always replace after every disassembly.

CAUTION:

Never remove or disassemble parts unless instructed as shown in the figure.
