Removal And Installation: Removal

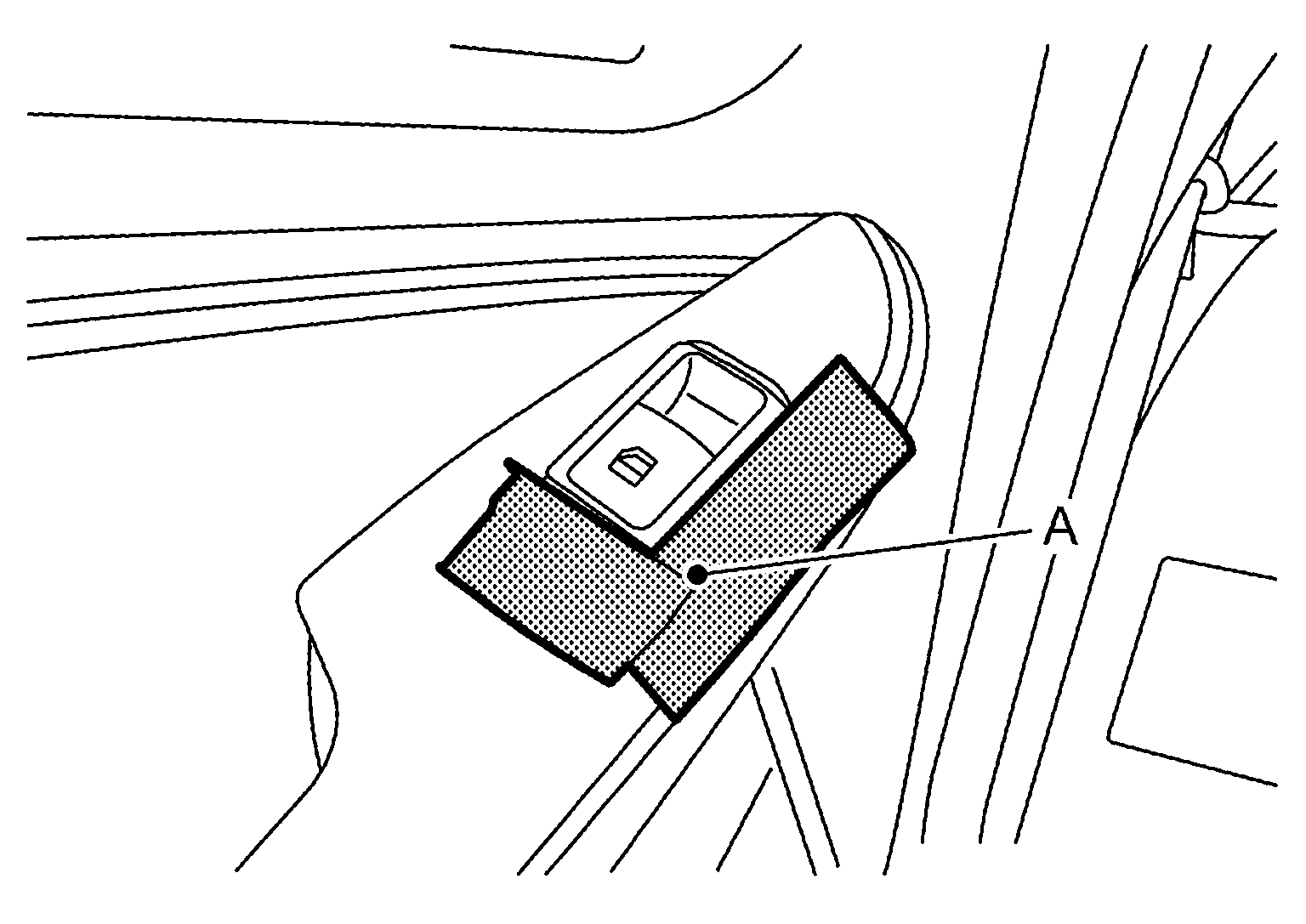

  1. Apply protective tape (A) on the rear door grip to protect from damage.
    GNSJMKIB6085ZZ-085Courtesy of NISSAN NORTH AMERICA, INC.

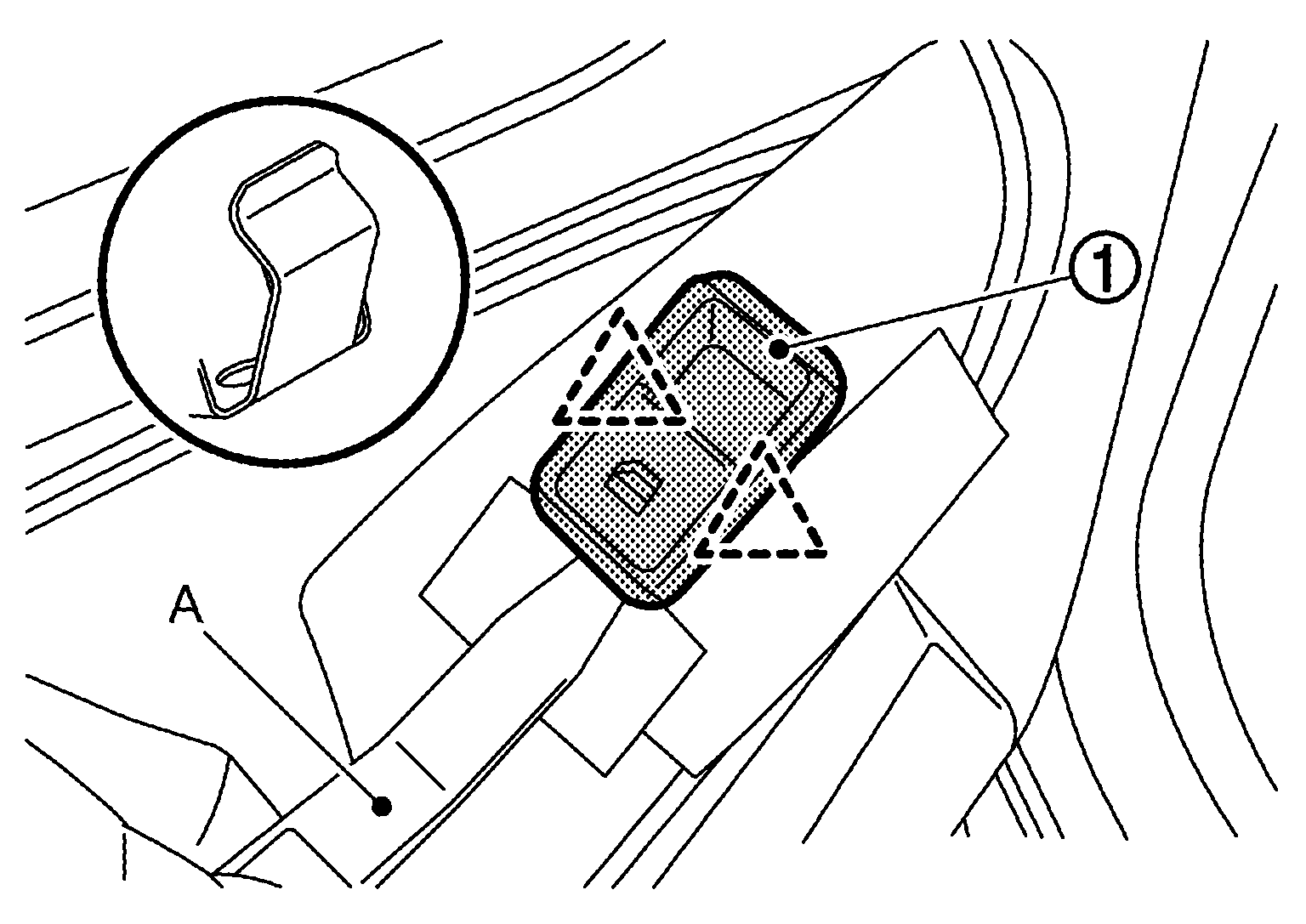

  2. Disengage rear power window switch fixing pawls using removal tool (A), and than remove rear power window switch WHITE-1 from door handle.
    GNSJMKIB6086ZZ-086Courtesy of NISSAN NORTH AMERICA, INC.
    SANKAKU-H : Pawl

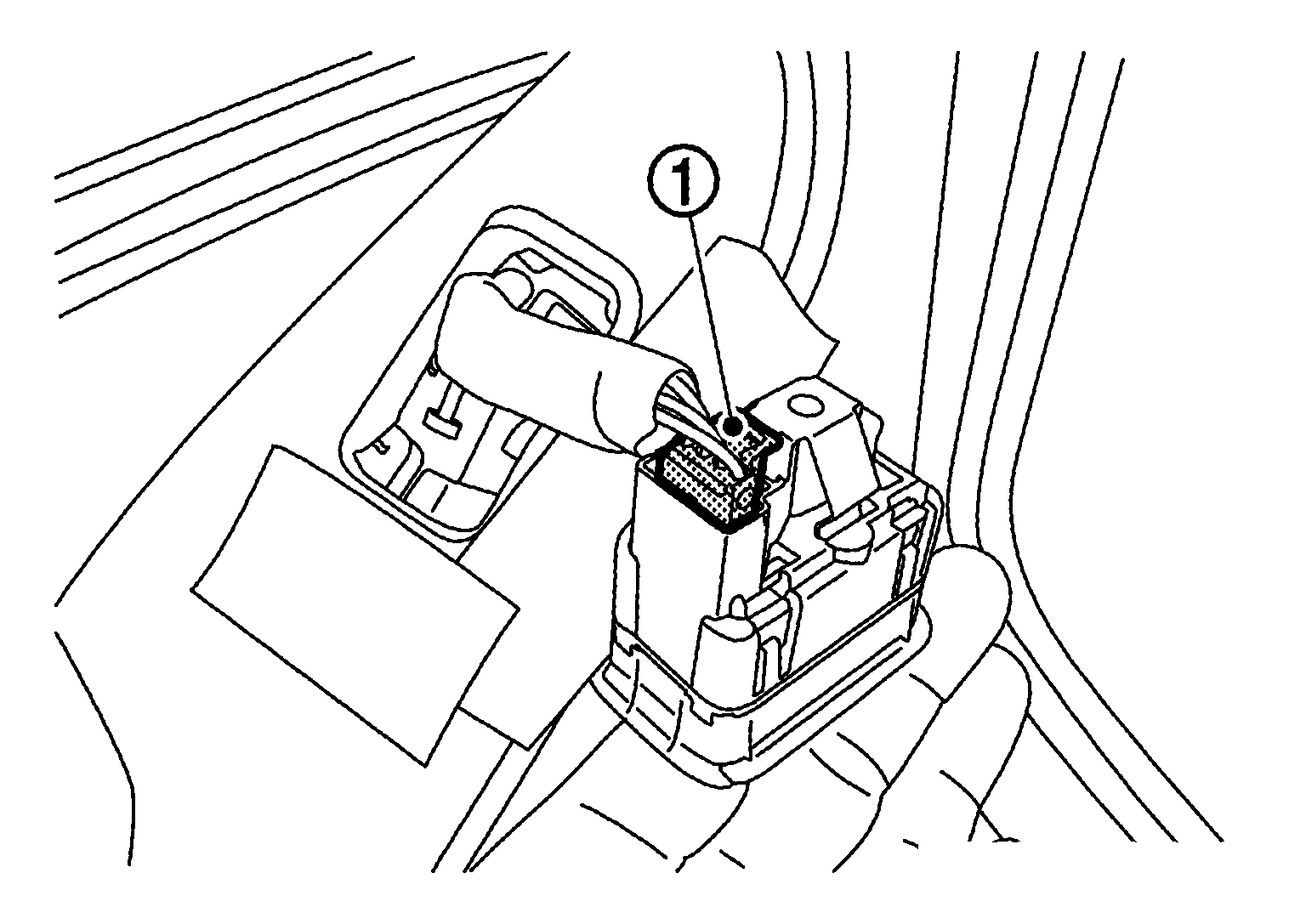

  3. Disconnect rear power window switch connector WHITE-1 from rear power window switch.
    GNSJMKIB6087ZZ-087Courtesy of NISSAN NORTH AMERICA, INC.
