Disassembly And Assembly: Assembly
Note the following, and install in the reverse order of disassembly.

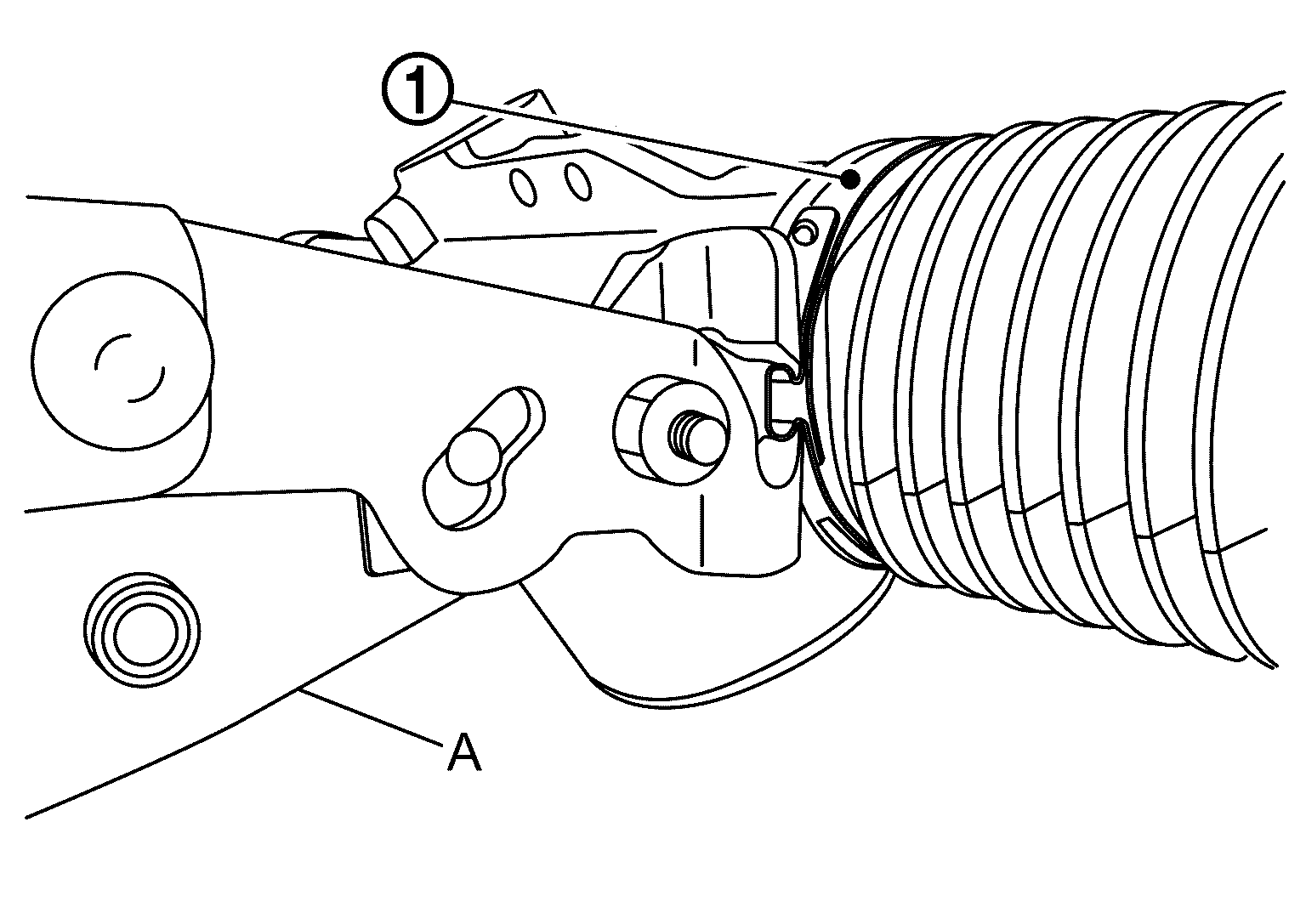

- Secure the ends of the boot with boot clamp (large diameter)
using the boot band crimping tool (SST: KV40107300) (A).
Courtesy of NISSAN NORTH AMERICA, INC.
|
CAUTION:
Never reuse boot clamp (large diameter).
- Install boot clamp (small diameter).
CAUTION:
Never reuse boot clamp (small diameter).
