Exploded View

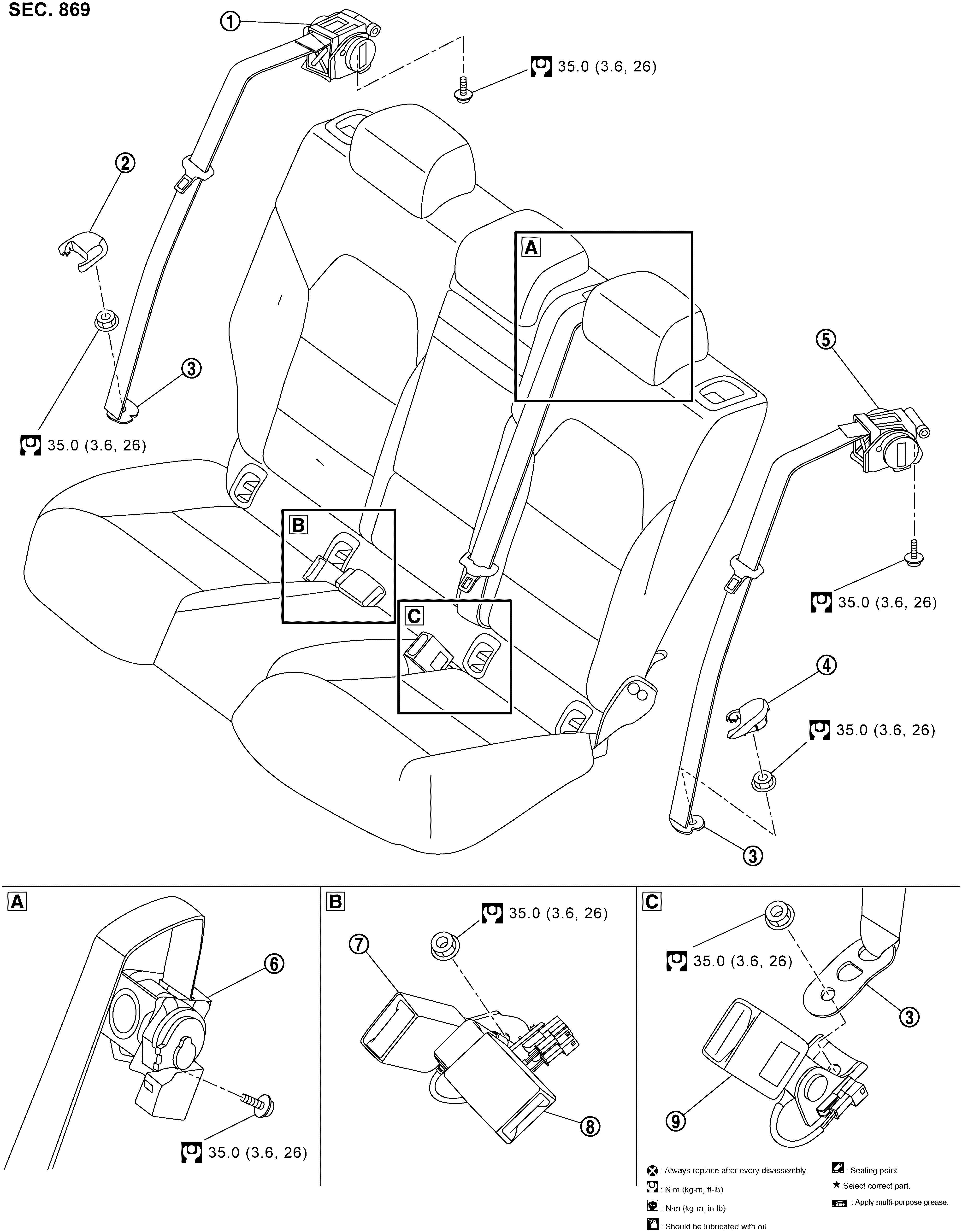

Fig 1: Rear Seat Belt With Torque Specifications
GNSJMHIA3350GB-350Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Seat belt retractor RH WHITE-2 Floor anchor cover RH WHITE-3 Floor anchor
WHITE-4 Floor anchor cover LH WHITE-5 Seat belt retractor LH WHITE-6 Center seat belt retractor
WHITE-7 Seat belt buckle RH WHITE-8 Center seat belt buckle WHITE-9 Seat belt buckle LH
BOLT : N•m (kg-m, ft-lb)
