Exploded View

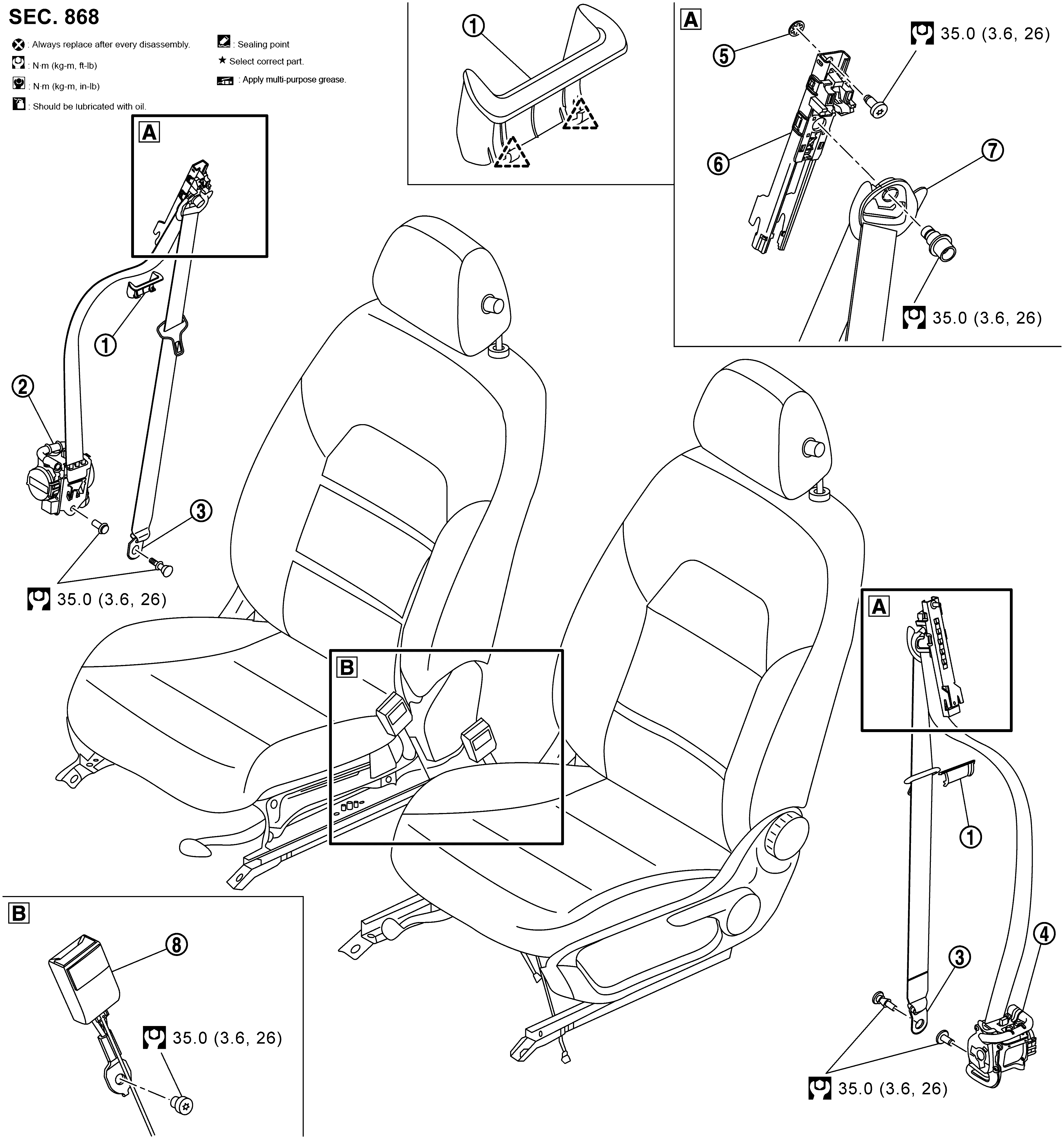

Fig 1: Front Seat Belt With Torque Specifications
GNSJMHIA3349GB-349Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Seat belt guide WHITE-2 Seat belt retractor RH WHITE-3 Floor anchor
WHITE-4 Seat belt retractor LH WHITE-5 Locking washer WHITE-6 Seat belt adjuster
WHITE-7 Shoulder anchor WHITE-8 Seat belt buckle
SANKAKU-H : Pawl
BOLT : N•m (kg-m, ft-lb)
