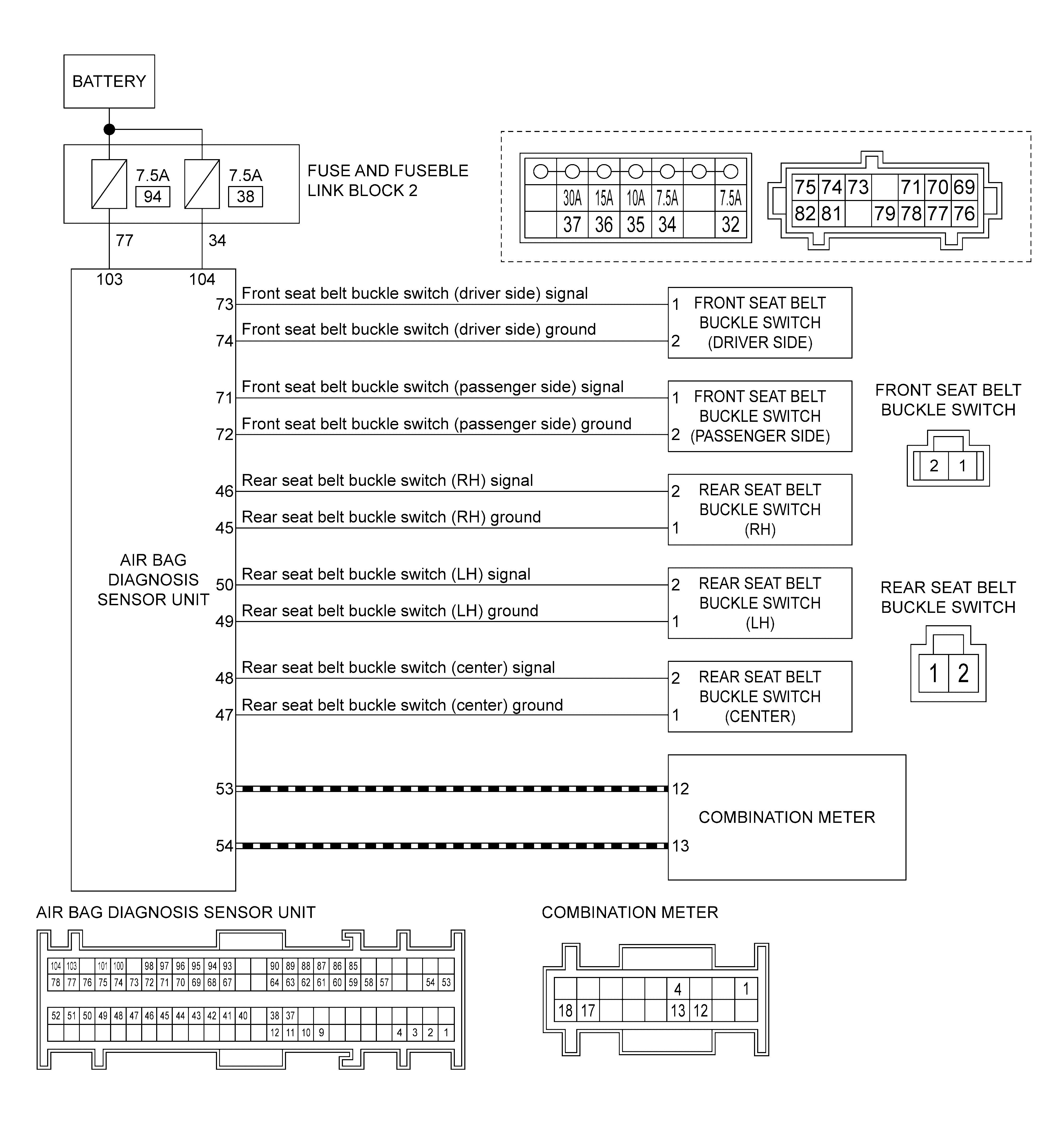

Home >> Infiniti >> 2017 >> QX30 Base >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt Control System >> System Description >> System >> Seat Belt Warning Lamp Control System >> Circuit Diagram
