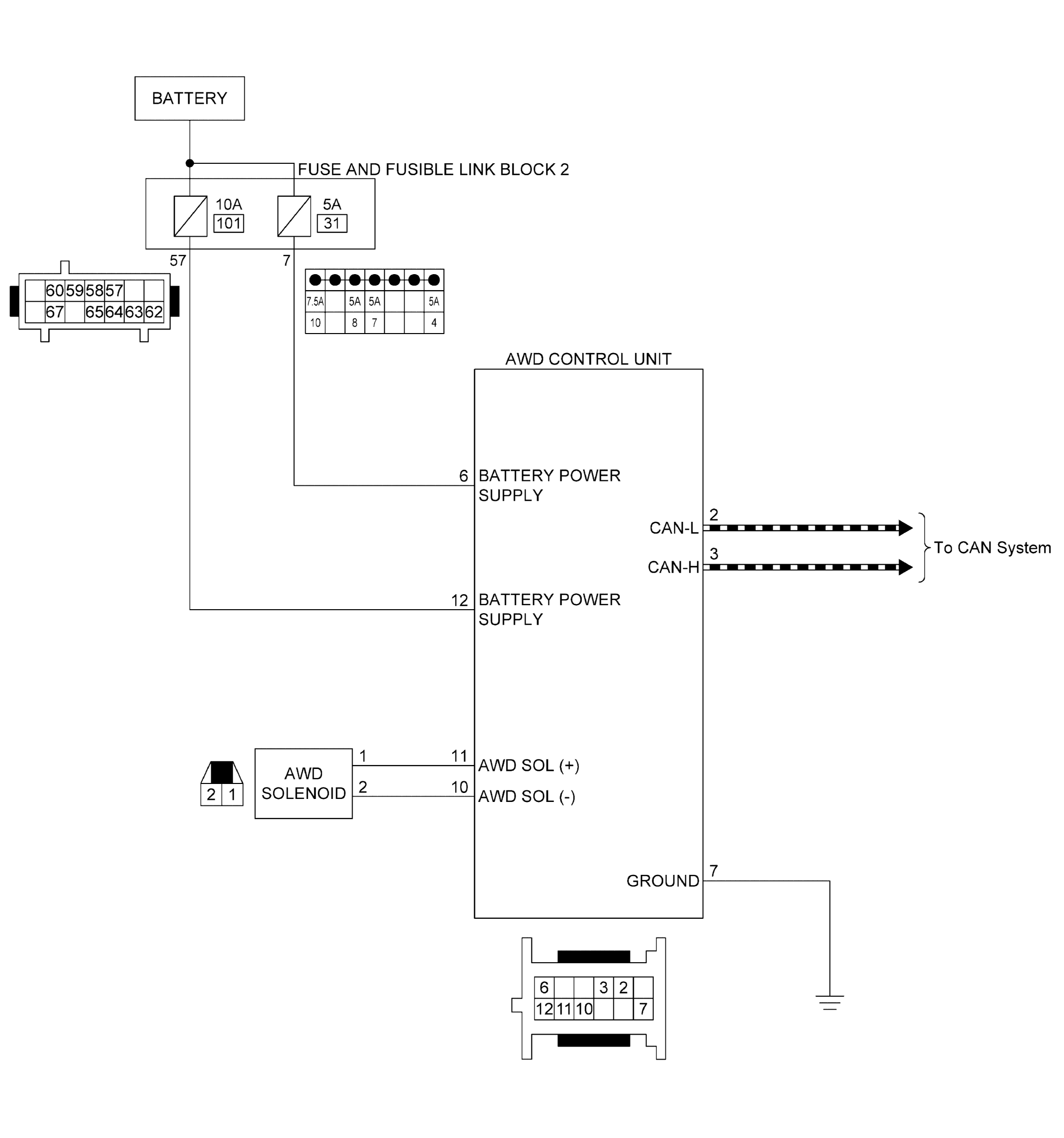

Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

GNSJSDIB0152GB-152

Courtesy of NISSAN NORTH AMERICA, INC.
