Power Transfer Components

WARNING: This page is about a different variant/trim than selected.

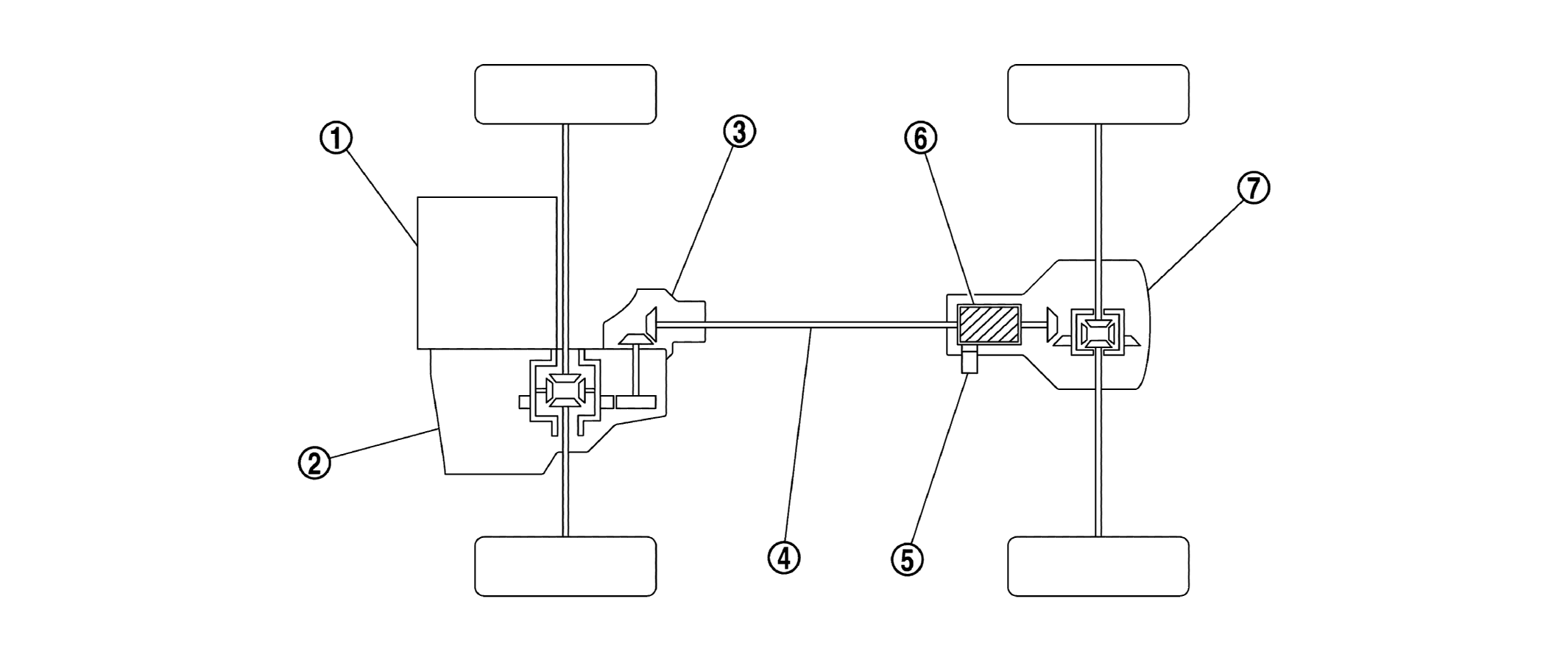

GNSJSDIA8815ZZ-815Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Engine WHITE-2 Transaxle WHITE-3 Transfer
WHITE-4 Propeller shaft WHITE-5 AWD solenoid WHITE-6 Multiple disk clutch
WHITE-7 Rear final drive
