Exploded View

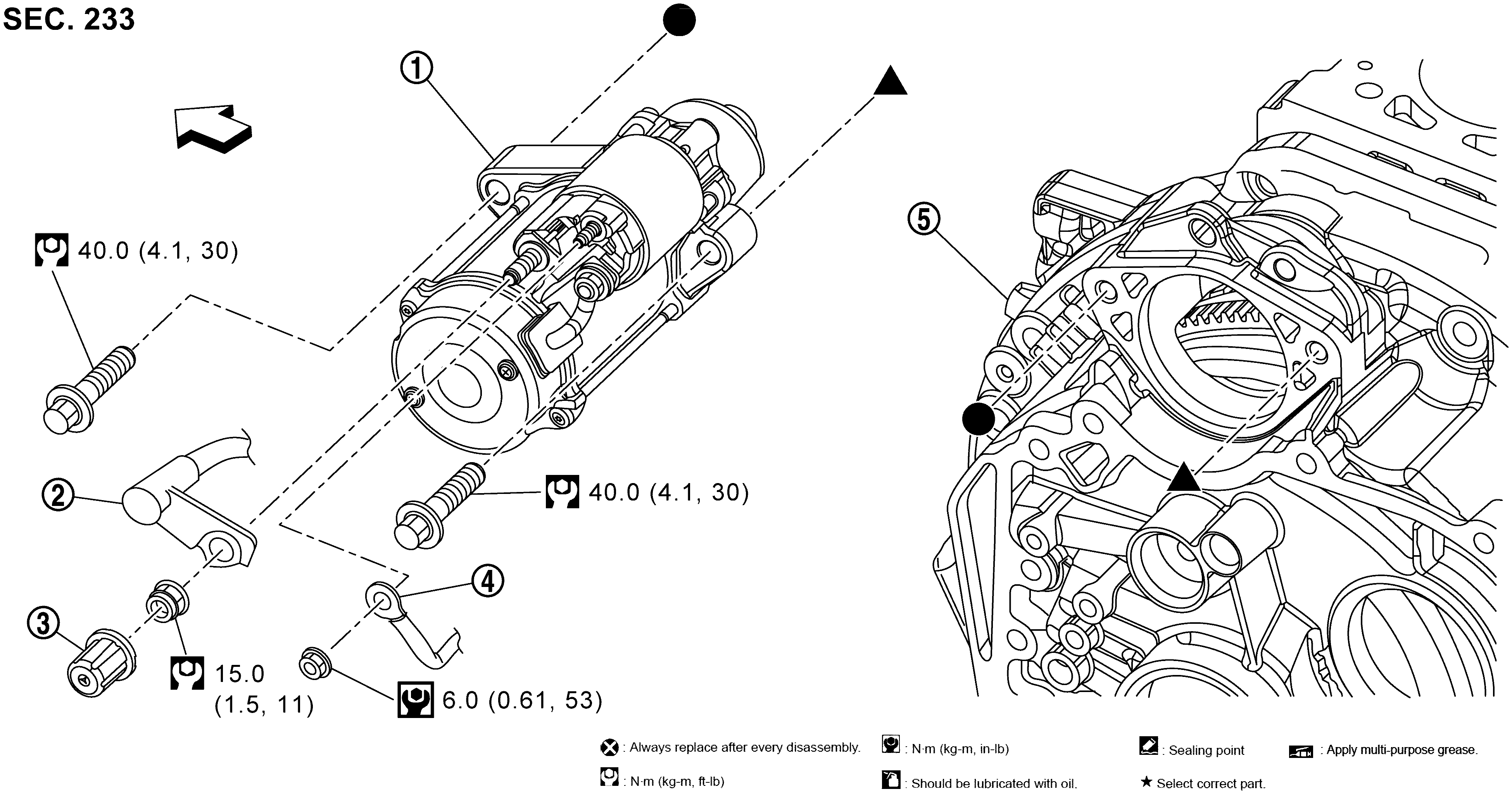

Fig 1: Starter Motor With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Starter motor	"B" terminal harness	Terminal cap
	"S" terminal harness	Transmission housing
	Vehicle front
	: N•m (kg-m, in-lb)
	: N•m (kg-m, ft-lb)
, : Indicates that the part is connected at points with same symbol in actual vehicle.
