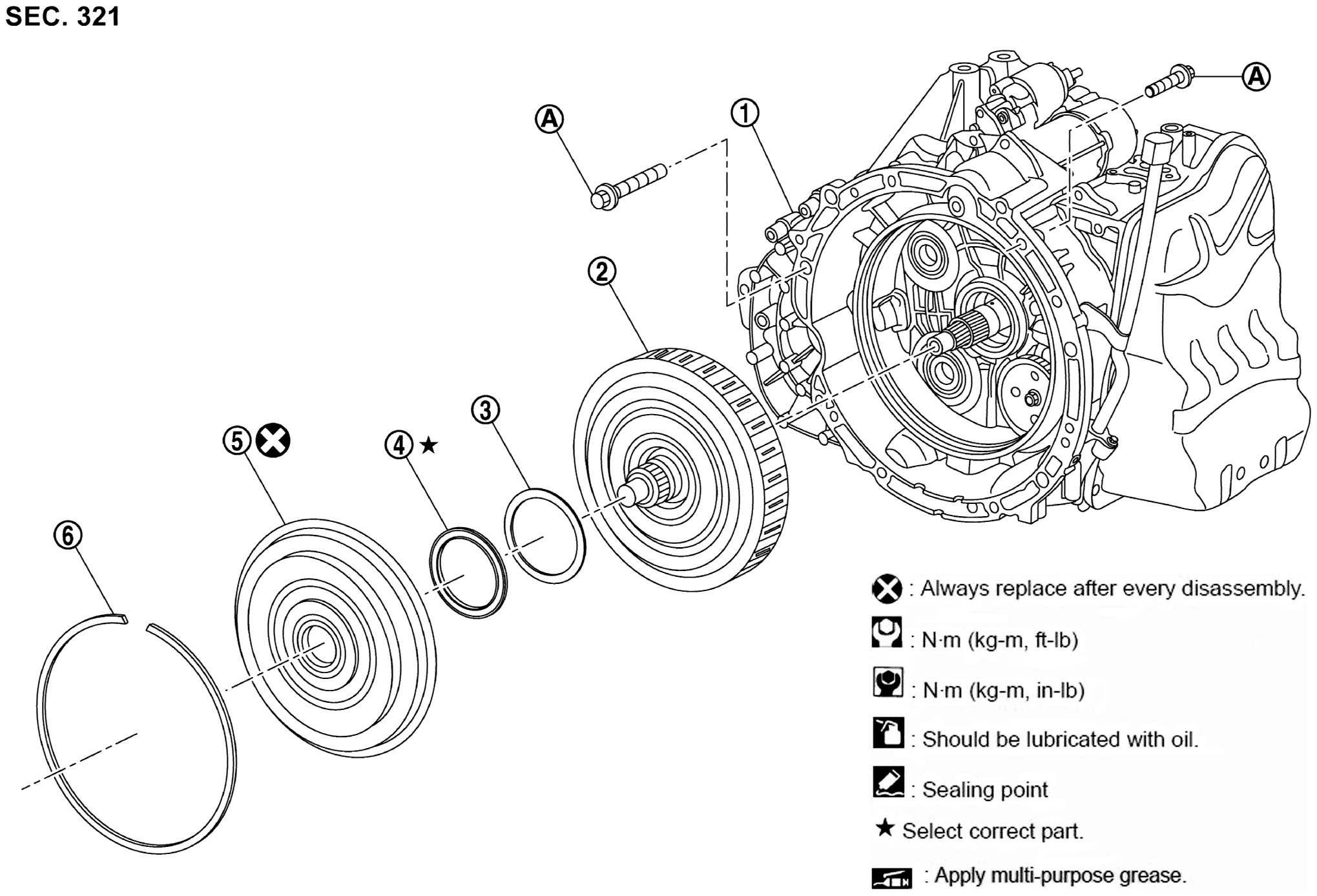

Exploded View
| Transaxle assembly | Dual clutch | Bearing | |||
| Shim | Cover | Snap ring | |||
| : For the tightening torque, refer to REMOVAL AND INSTALLATION . | |||||
| : Always replace after every disassembly. | |||||
| : Select with proper thickness. | |||||
| Transaxle assembly | Dual clutch | Bearing | |||
| Shim | Cover | Snap ring | |||
| : For the tightening torque, refer to REMOVAL AND INSTALLATION . | |||||
| : Always replace after every disassembly. | |||||
| : Select with proper thickness. | |||||
