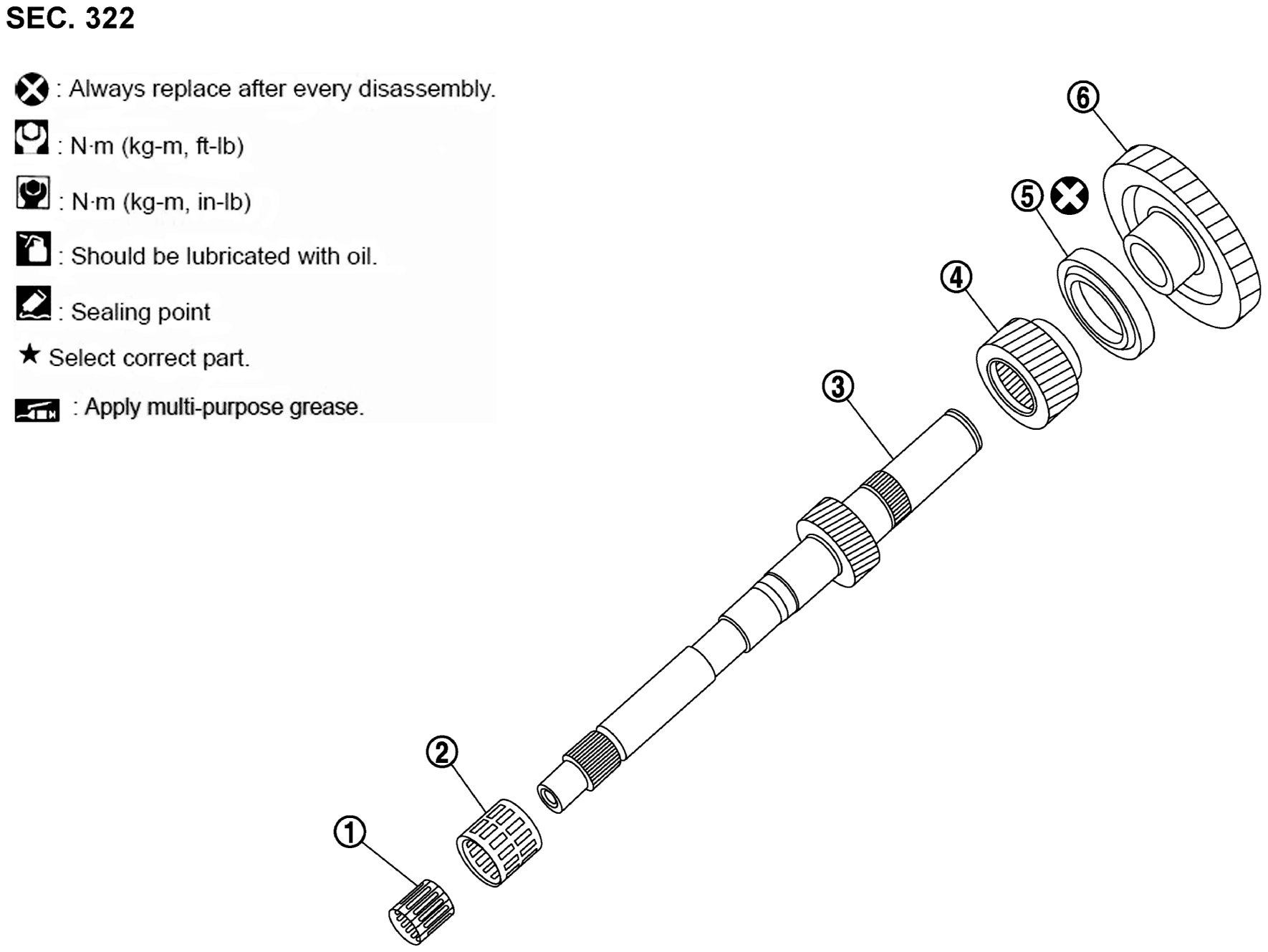

Exploded View

GNSJSDIA8935ZZ-935Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Needle bearing WHITE-2 Needle bearing WHITE-3 Drive shaft
WHITE-4 3rd gear WHITE-5 Sensor rotor WHITE-6 5th and 7th gear
DISAS : Always replace after every disassembly.
