Exploded View

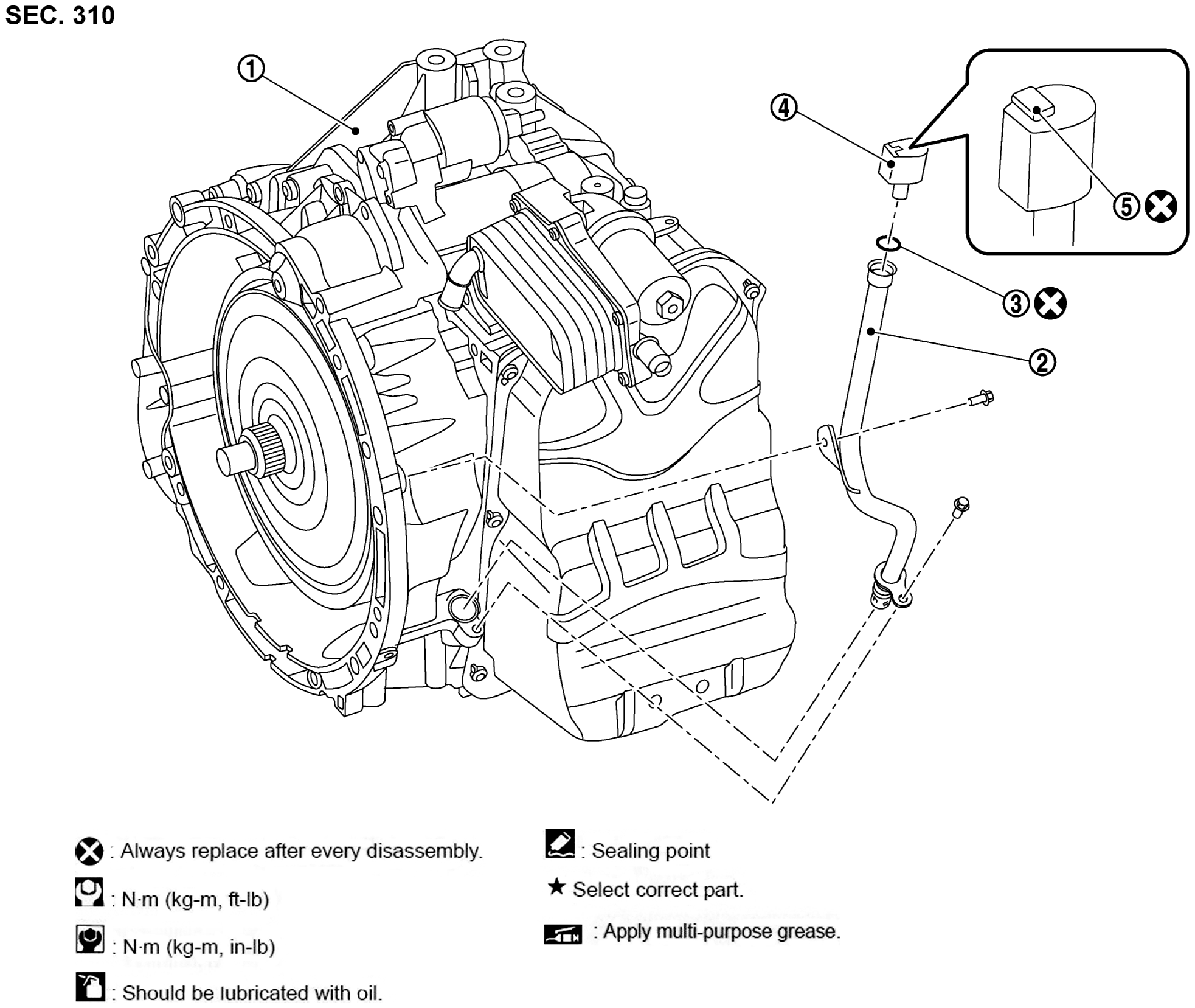

GNSJSDIA8945ZZ-945Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Transaxle assembly WHITE-2 Transaxle fluid charging pipe WHITE-3 O-ring
WHITE-4 Cap WHITE-5 Lock pin
DISAS : Always replace after every disassembly.
