Exploded View

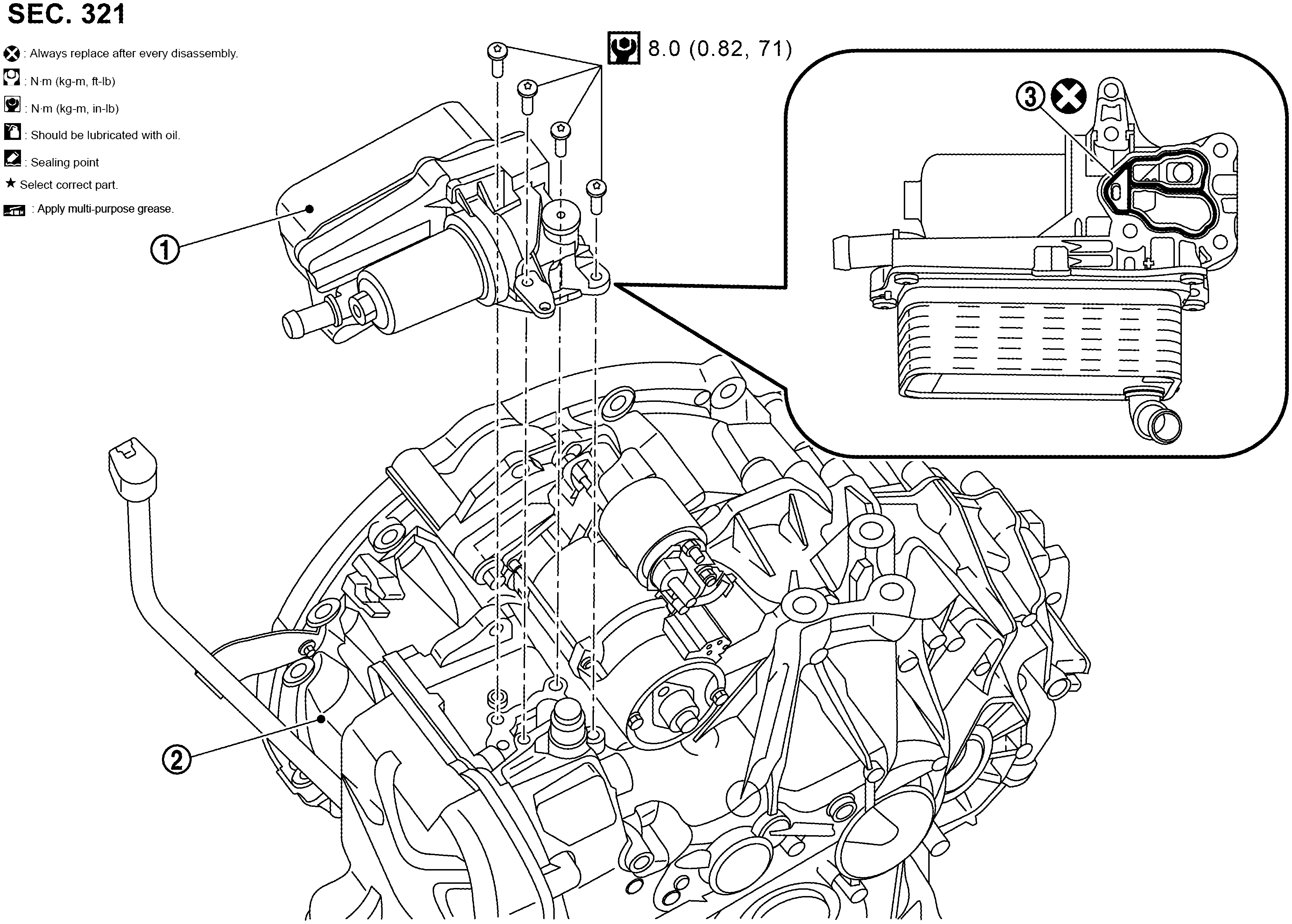

GNSJSDIA8944GB-944Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Transaxle cooling module WHITE-2 Transaxle assembly WHITE-3 Seal
DISAS : Always replace after every disassembly.
BOLTIN : N•m (kg-m, in-lb)
