Power Steering Control System: Wiring Diagram

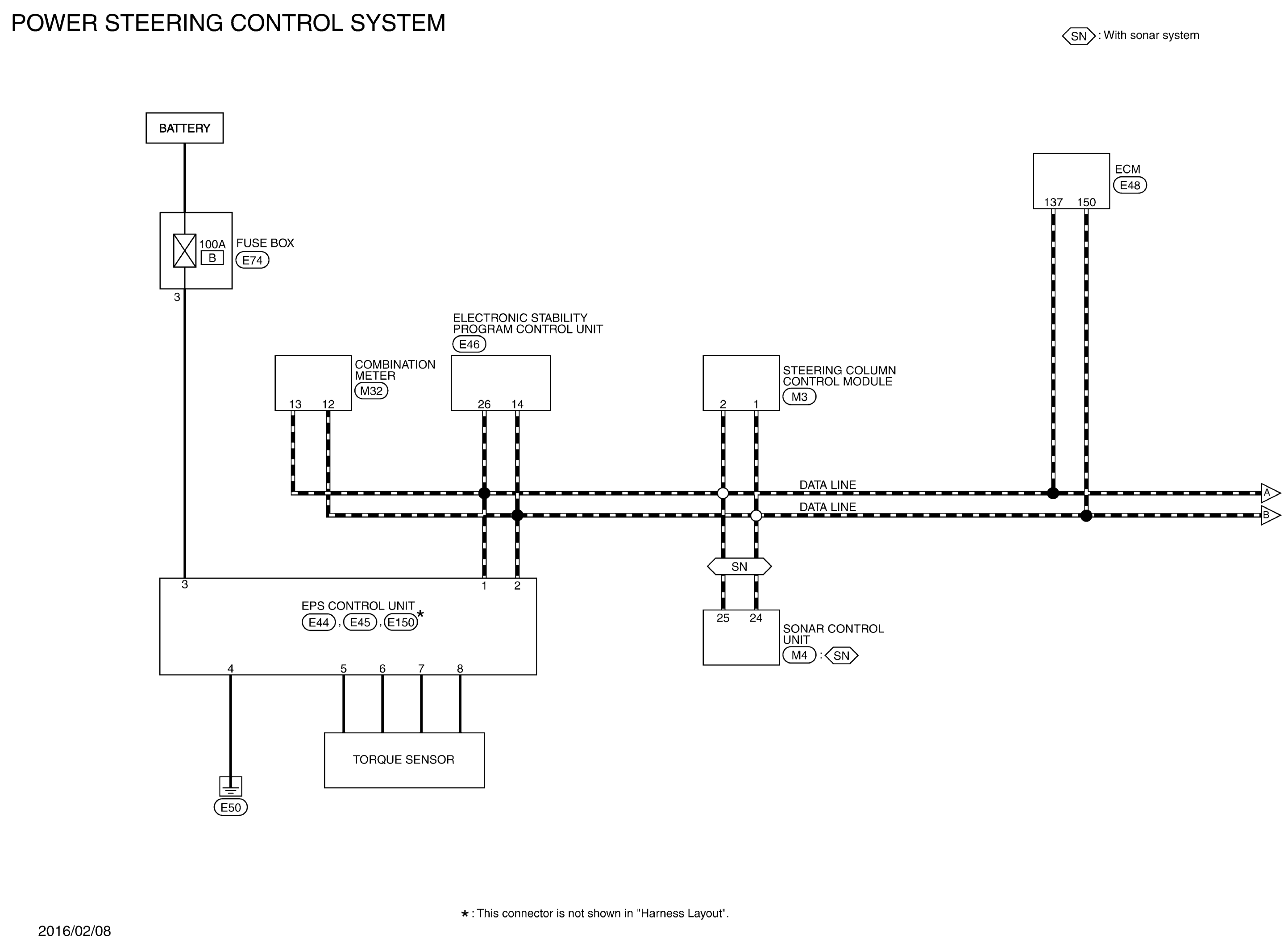

GNSJRGWC3204GB-204

Courtesy of NISSAN NORTH AMERICA, INC.

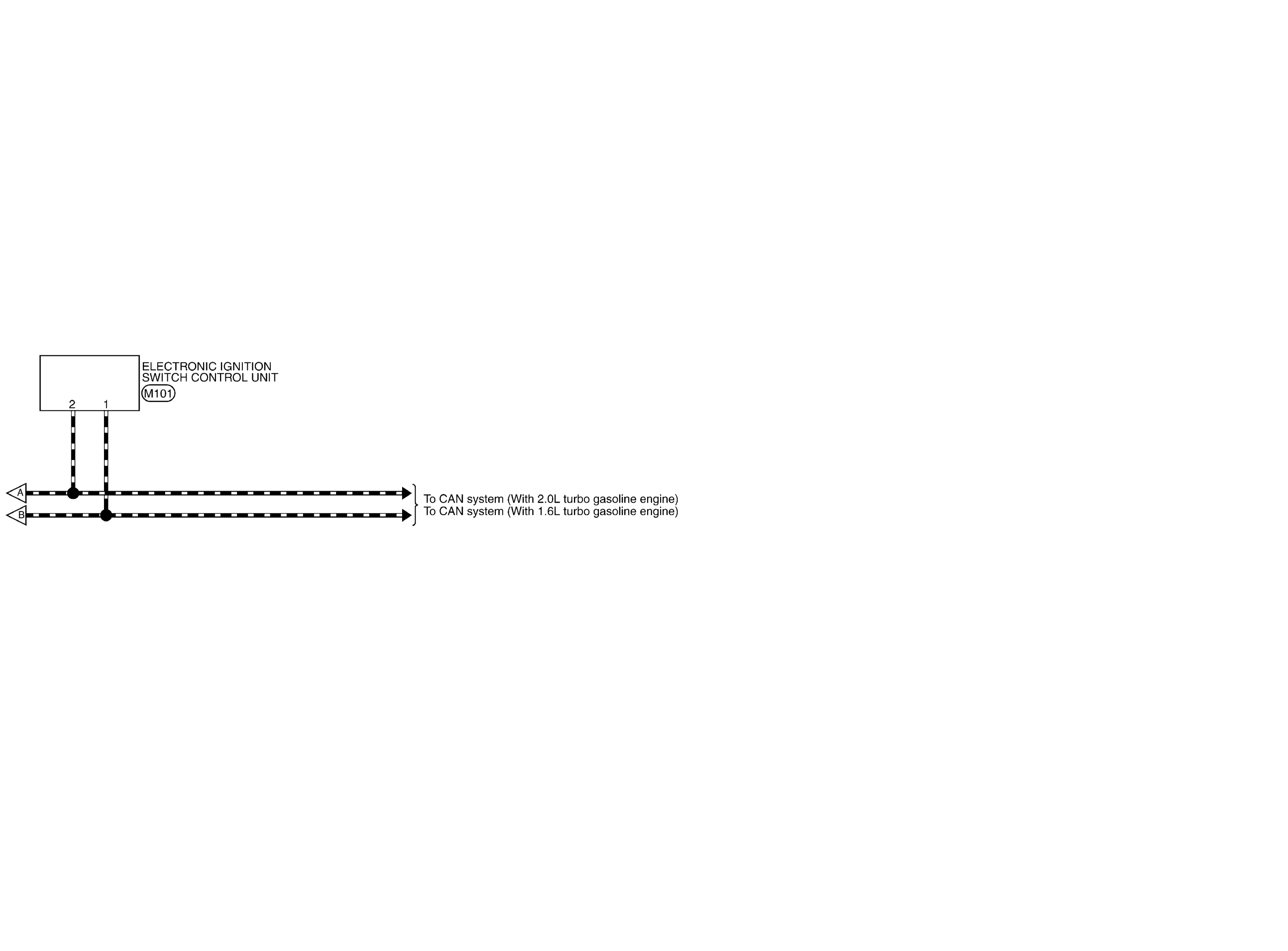

GNSJRGWC3205GB-205

Courtesy of NISSAN NORTH AMERICA, INC.

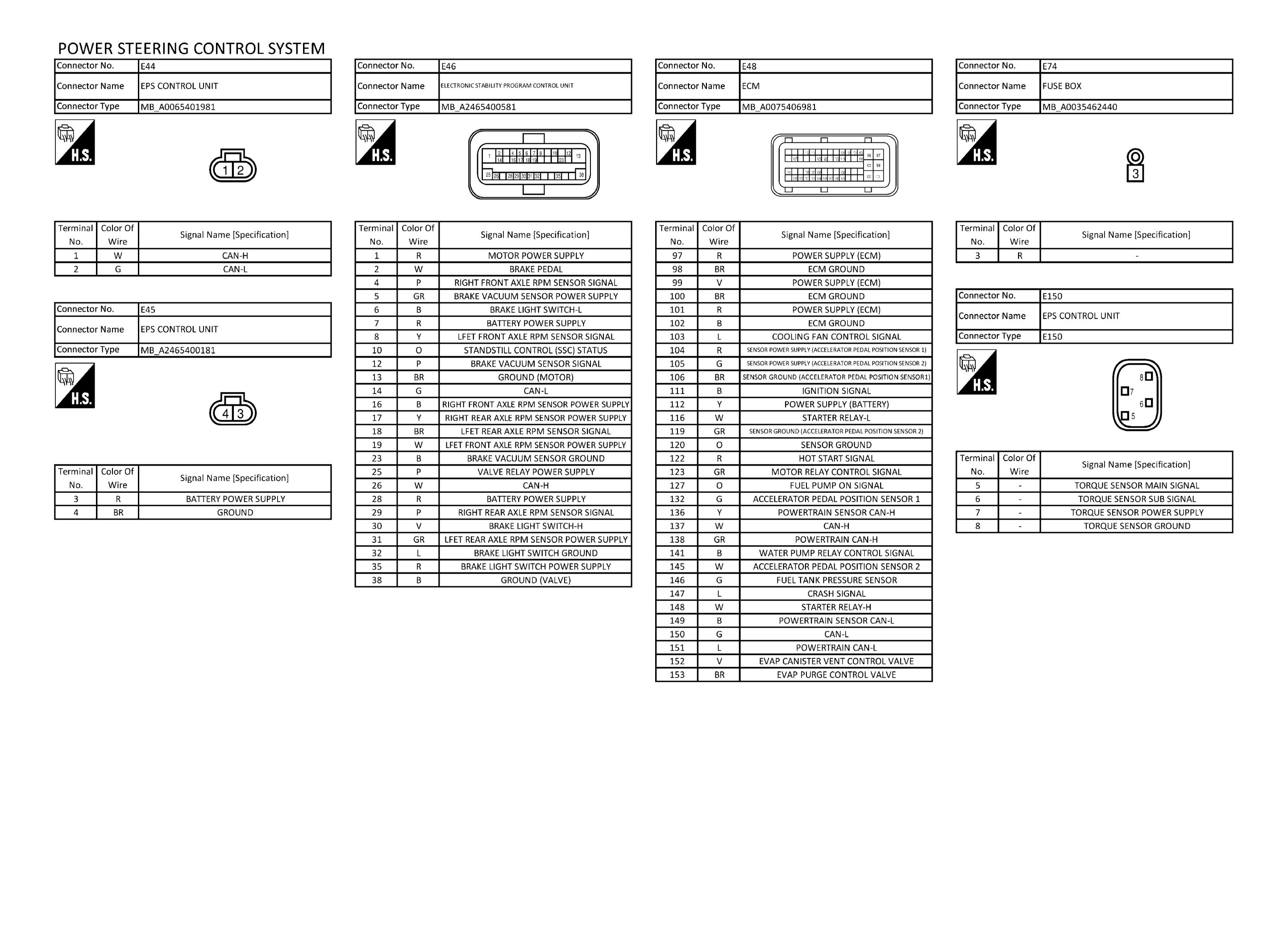

GNSJRGWC3206GB-206

Courtesy of NISSAN NORTH AMERICA, INC.

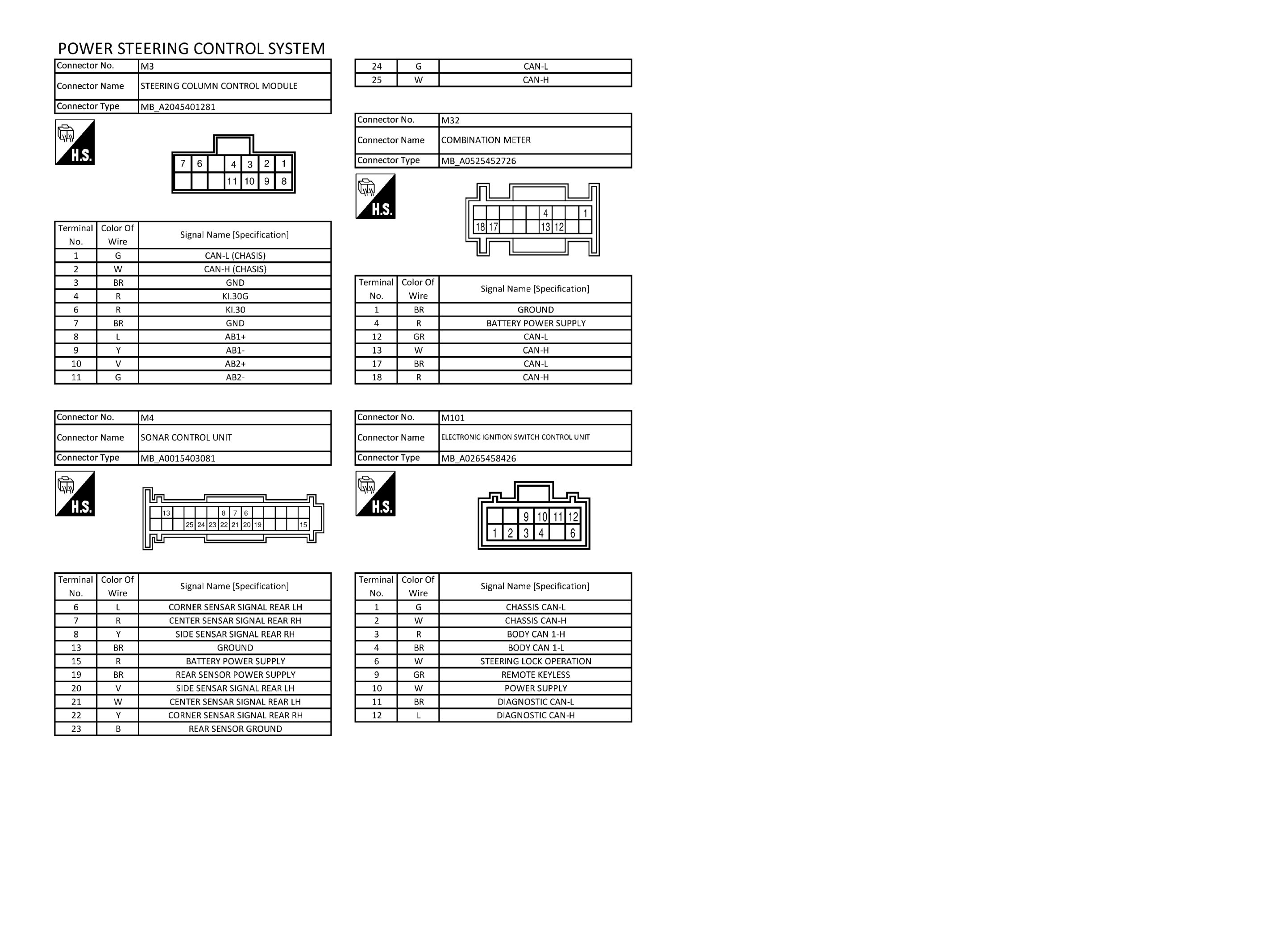

GNSJRGWC3207GB-207

Courtesy of NISSAN NORTH AMERICA, INC.
