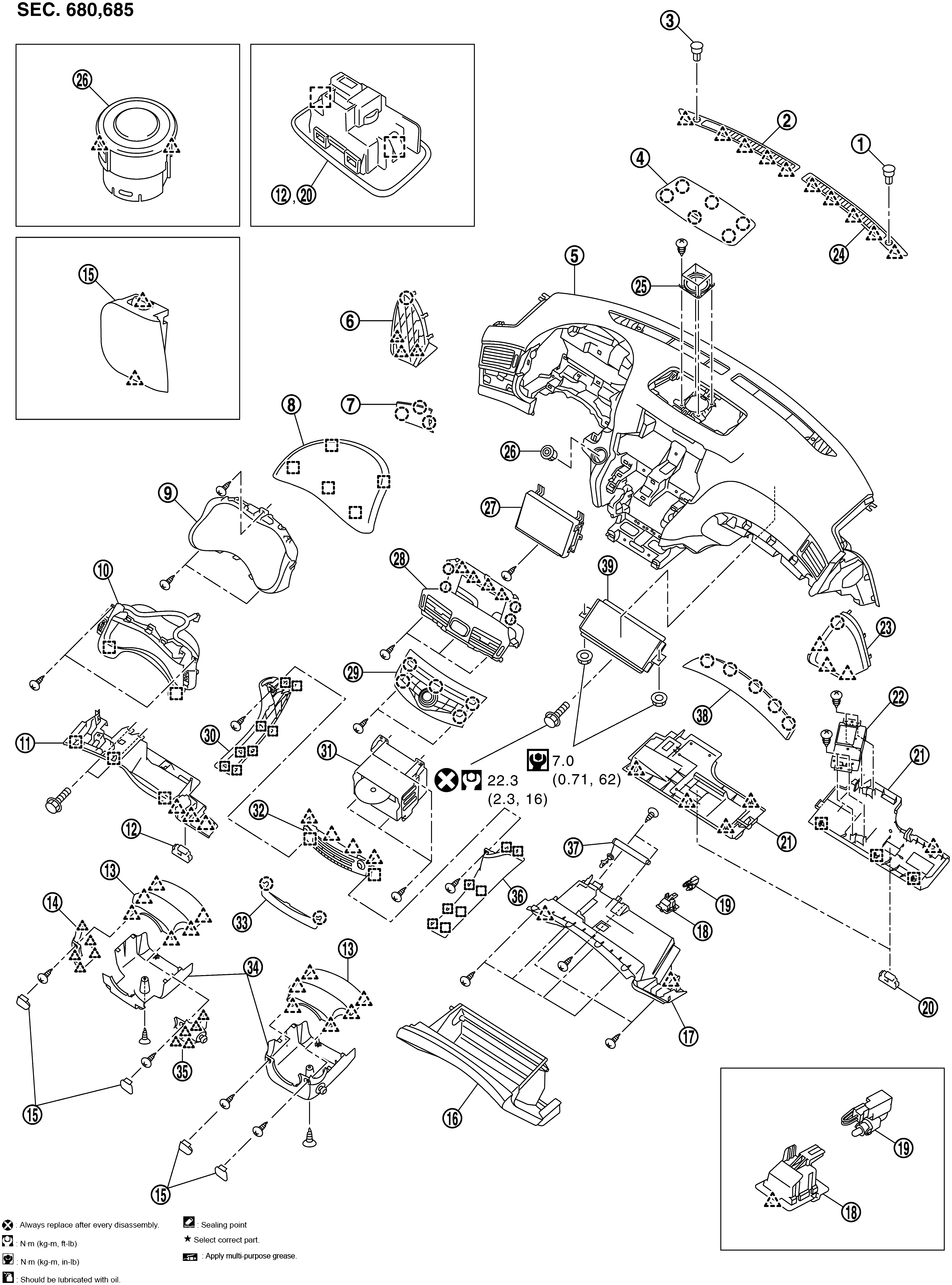

| 1. |
Optical sensor |
2. |
Front defroster grille LH |
3. |
Sunload sensor |
| 4. |
Upper ventilator grille |
5. |
Instrument panel assembly |
6. |
Instrument side finisher LH |
| 7. |
Instrument finisher A |
8. |
Cluster lid A (upper) |
9. |
Combination meter |
| 10. |
Cluster lid A |
11. |
Instrument lower panel LH |
12. |
Foot lamp LH |
| 13. |
Steering column upper cover |
14. |
Steering column side cover LH |
15. |
Steering column mask |
| 16. |
Glove box assembly |
17. |
Instrument lower panel RH |
18. |
Glove box lamp |
| 19. |
Socket and bulb |
20. |
Foot lamp RH |
21. |
Instrument lower cover |
| 22. |
TCU |
23. |
Instrument side finisher RH |
24. |
Front defroster grille RH |
| 25. |
Center speaker |
26. |
Push-button ignition switch |
27. |
Display unit |
| 28. |
Center ventilator assembly |
29. |
Cluster lid D |
30. |
Instrument side panel LH |
| 31. |
AV control unit |
32. |
Preset switch |
33. |
Cluster lid C |
| 34. |
Steering column lower cover |
35. |
Steering column side cover RH |
36. |
Instrument side panel RH |
| 37. |
Glove box dumper |
38. |
Instrument finisher B |
39. |
Passenger air bag module |
 |
: Clip |
 |
: Pawl |
 |
: Metal clip |
 |
: Always replace after every disassembly. |
 |
: N•m (kg - m, ft - lb) |
 |
: N•m (kg - m, in - lb) |
