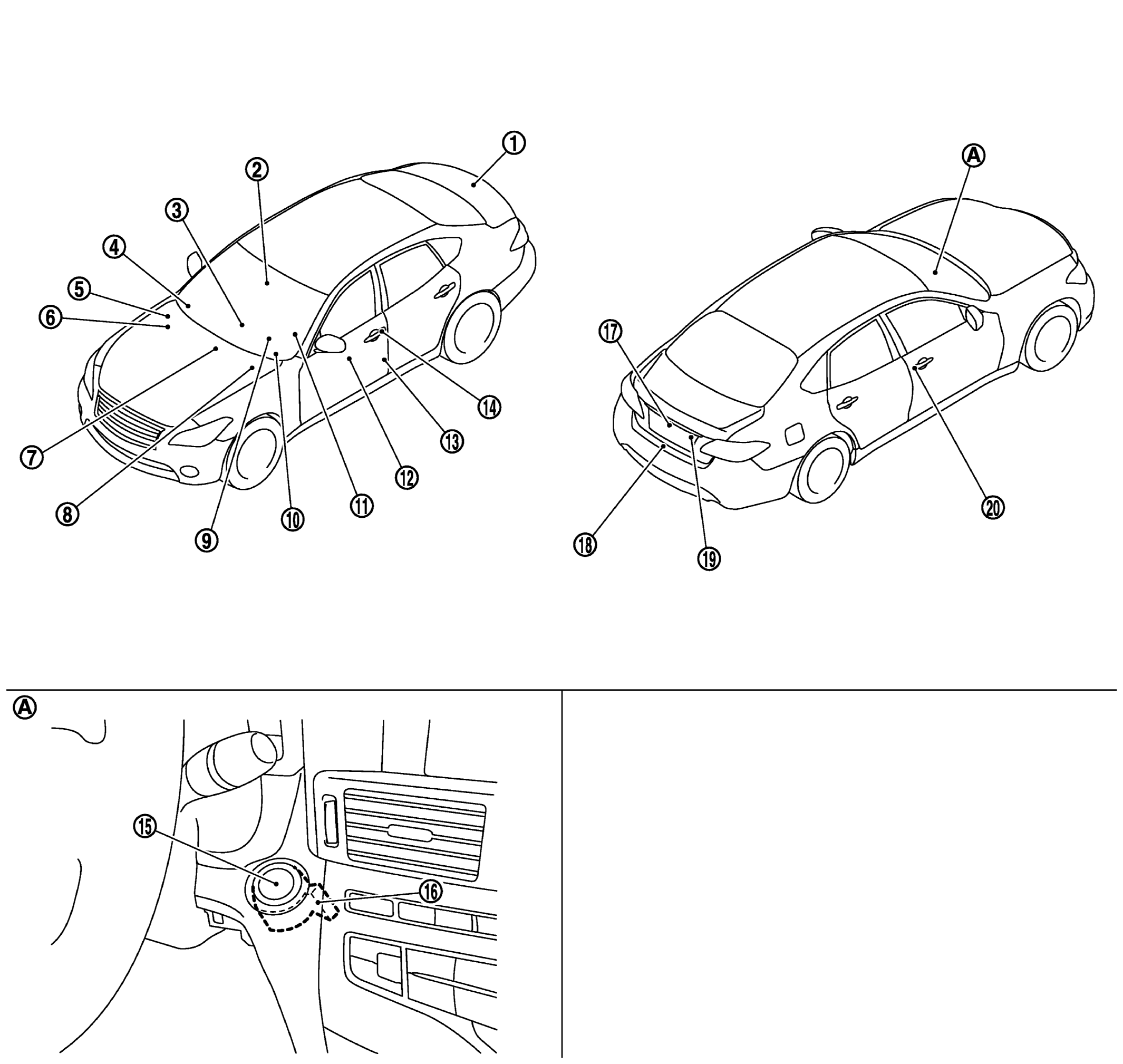

Component Location
| 1. | Inside key antenna (trunk room) Refer to COMPONENT LOCATION . |
2. | Inside key antenna (console) Refer to COMPONENT LOCATION . |
3. | Inside key antenna (instrument center) Refer to COMPONENT LOCATION . |
| 4. | Remote keyless entry receiver Refer to COMPONENT LOCATION . |
5. | IPDM E/R Refer to COMPONENT LOCATION . |
6. | ECM Refer to COMPONENT LOCATION (VQ37VHR). Refer to COMPONENT LOCATION (VK56VD). |
| 7. | Stop lamp switch Refer to COMPONENT LOCATION (VQ37VHR). Refer to COMPONENT LOCATION (VK56VD). |
8. | ABS actuator and electric unit (control unit) Refer to COMPONENT LOCATION . |
9. | Combination meter Refer to COMPONENT LOCATION . |
| 10. | BCM Refer to COMPONENT LOCATION . |
11. | TCM Refer to COMPONENT LOCATION . |
12. | Power window main switch (door lock and unlock switch) |
| 13. | Front door switch LH | 14. | Front outside handle assembly LH (request switch) | 15. | Push-button ignition switch |
| 16. | NATS antenna amp. | 17. | Trunk lid opener request switch | 18. | Trunk closure assembly |
| 19. | Trunk key cylinder switch | 20. | Front outside handle assembly RH (request switch) | ||
| A. | Behind push-button ignition switch |
