Exploded View

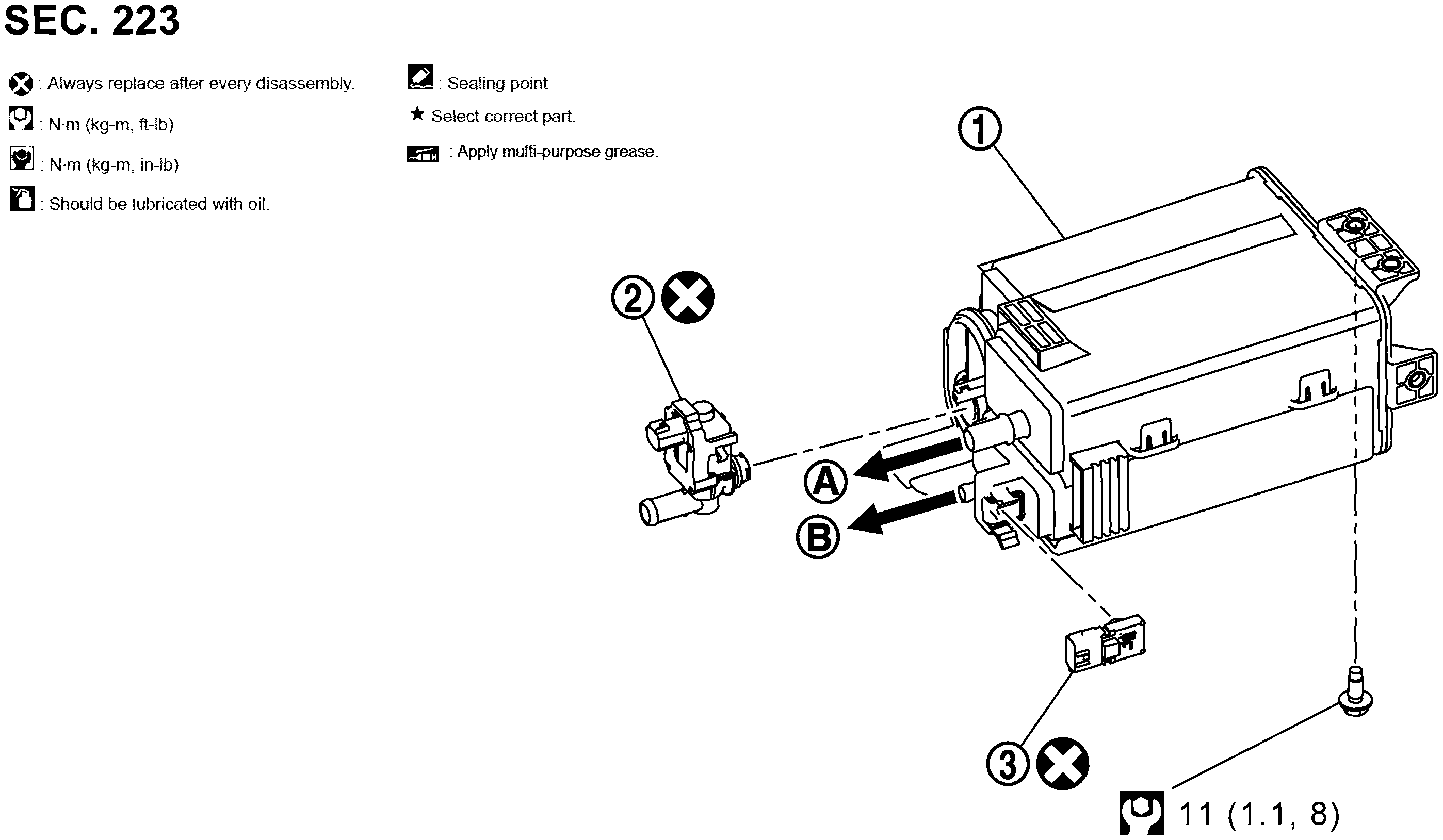

Fig 1: Evap Canister With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	EVAP canister	2.	EVAP canister vent control valve	3.	EVAP control pressure sensor
	To fuel tank		To EVAP canister purge volume control solenoid valve
: N•m (kg-m, ft-lb)
: Always replace after every disassembly.
