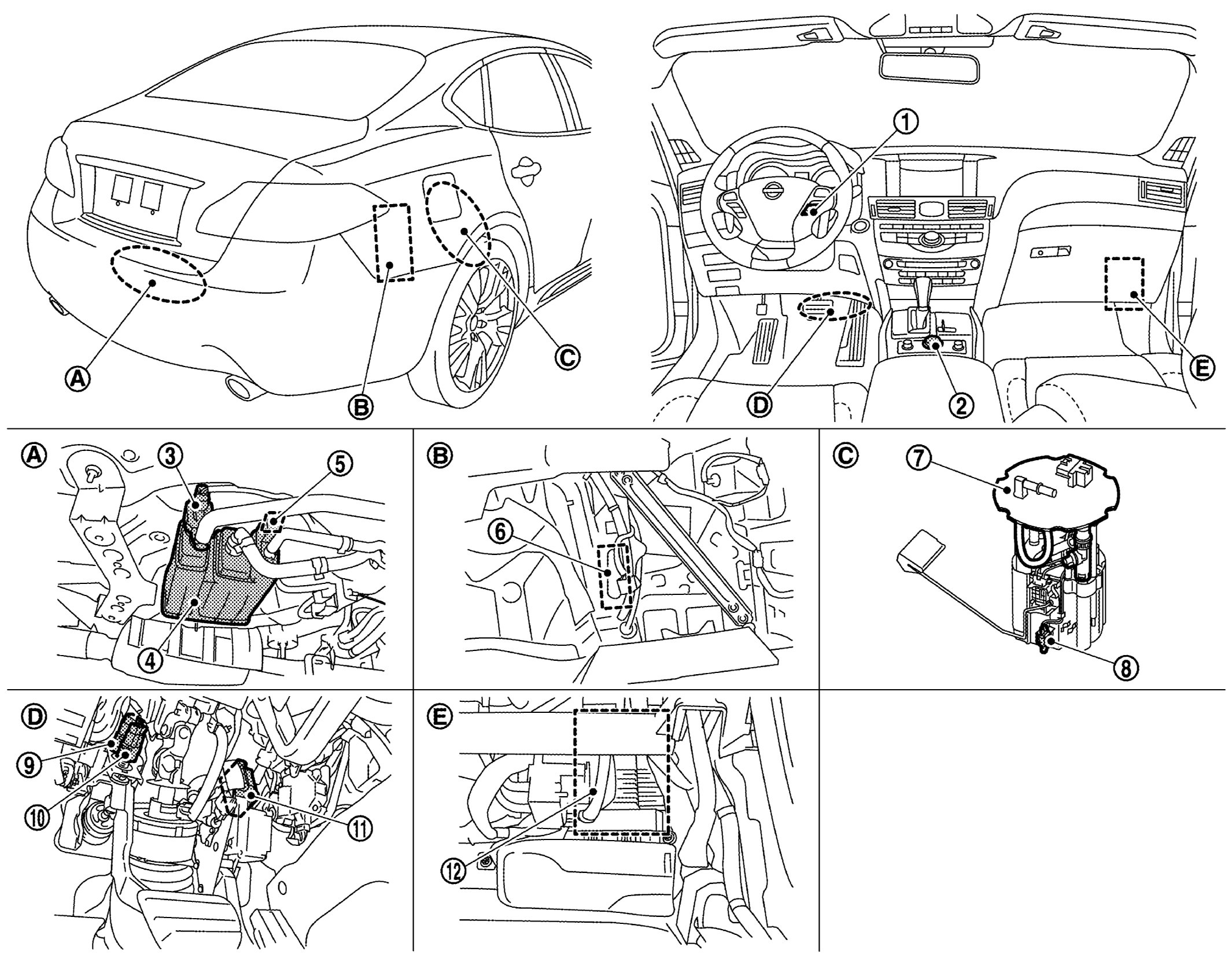

Body Compartment
| 1. | ASCD steering switch ICC steering switch |
2. | Drive mode select switch | 3. | EVAP canister vent control valve |
| 4. | EVAP canister | 5. | EVAP control system pressure sensor | 6. | Fuel pump control module (FPCM) |
| 7. | Fuel level sensor unit, fuel filter and fuel pump assembly | 8. | Fuel tank temperature sensor | 9. | Stop lamp switch |
| 10. | ASCD brake switch ICC brake switch |
11. | Accelerator pedal position sensor | 12. | ECM |
