Rear Power Window Switch
>>

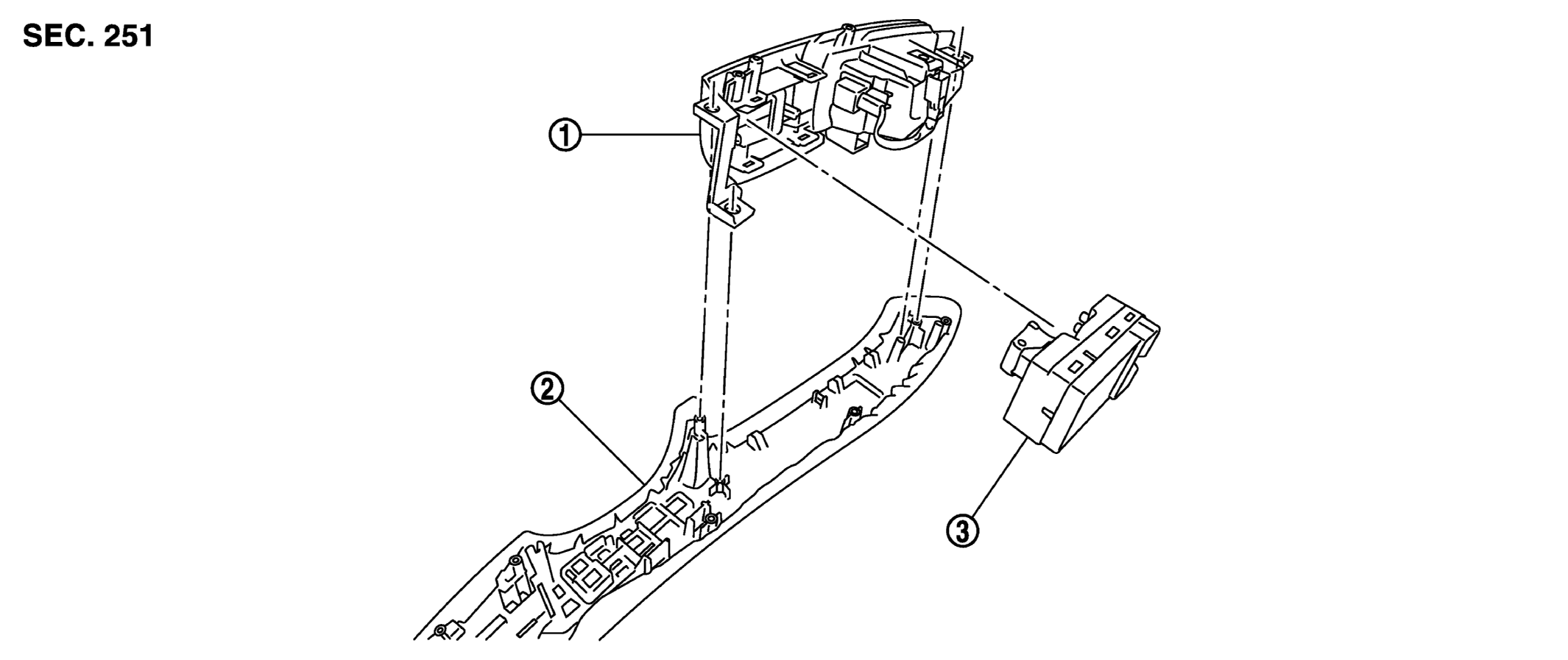

Exploded View With Torque Specifications
Exploded View With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Power window switch finisher
2.
Rear armrest
3.
Rear power window switch
Courtesy of NISSAN NORTH AMERICA, INC.
