Component Location
WARNING: This page is about a different car, the 2017 Infiniti Q70L. However, it is still accessible from the selected car via links, so may be relevant.

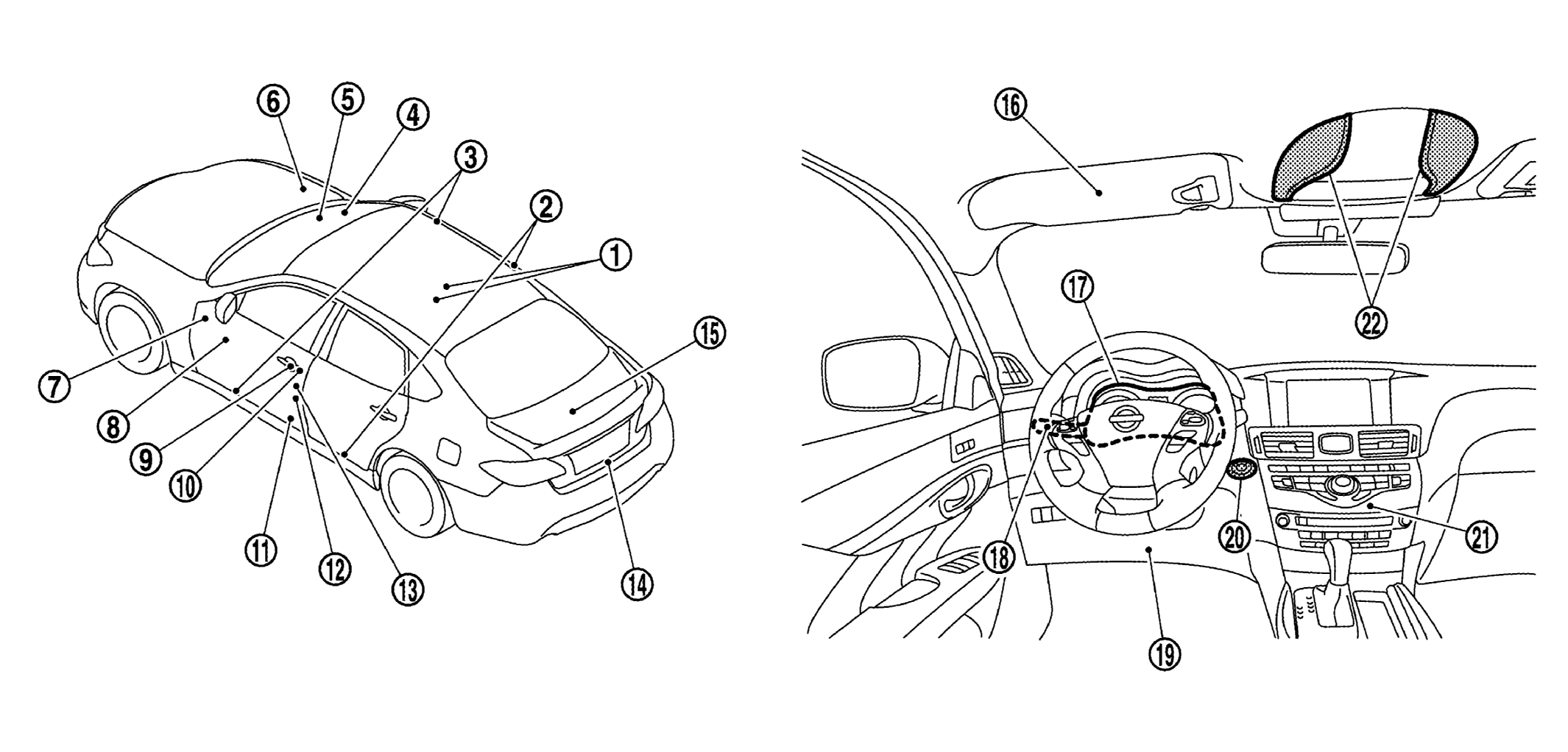

| 1. | Rear spot lamp | 2. | Rear kicking plate lamp | 3. | Front kicking plate lamp |
| 4. | Remote keyless entry receiver Refer to COMPONENTPARTSLOCATION . |
5. | Optical sensor | 6. | IPDM E/R Refer to COMPONENT LOCATION . |
| 7. | BCM Refer to COMPONENT LOCATION . |
8. | Door lock and unlock switch | 9. | Outside handle lamp |
| 10. | Front door request switch (driver side) | 11. | Step lamp | 12. | Door switch |
| 13. | Front door lock assembly (driver side) (unlock sensor) | 14. | Trunk closure assembly | 15. | Trunk room lamp |
| 16. | Vanity mirror lamp | 17. | Combination meter | 18. | Combination switch |
| 19. | Foot lamp | 20. | Push-button ignition switch | 21. | AV control unit
|
| 22. | Map lamp |
