EPS System: Wiring Diagram

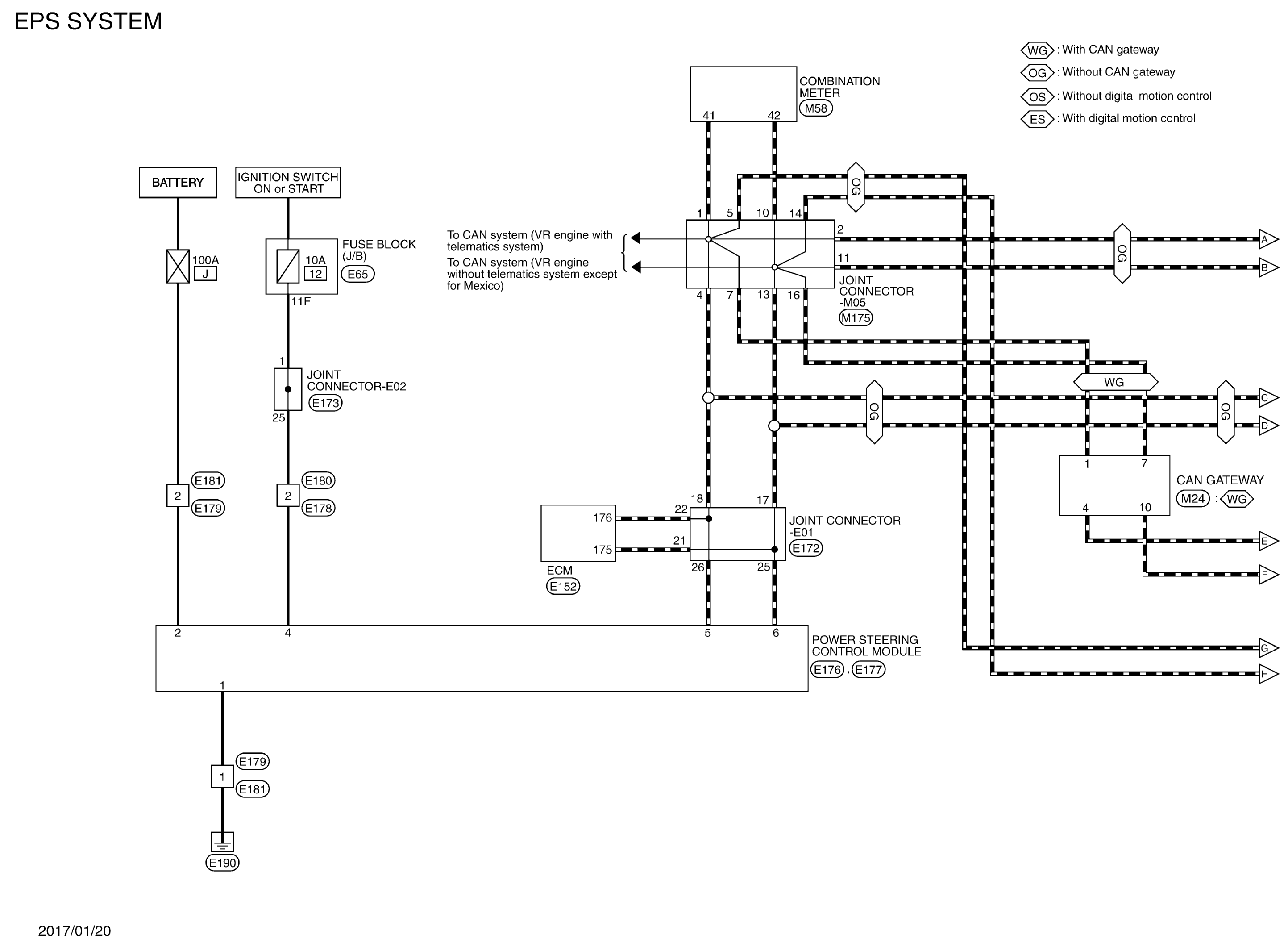

GNSJRGWC4442GB-442Courtesy of NISSAN NORTH AMERICA, INC.

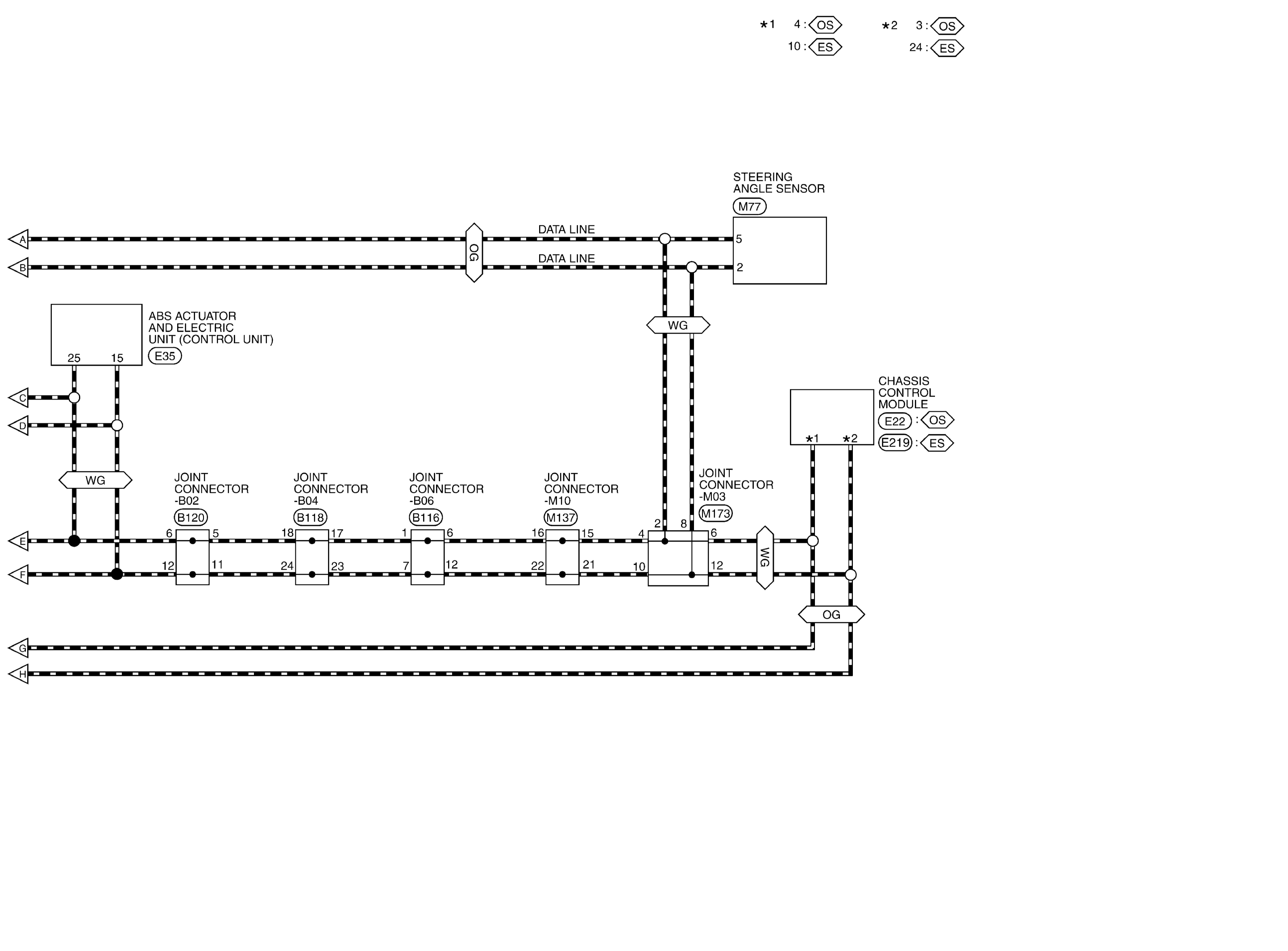

GNSJRGWC4443GB-443Courtesy of NISSAN NORTH AMERICA, INC.

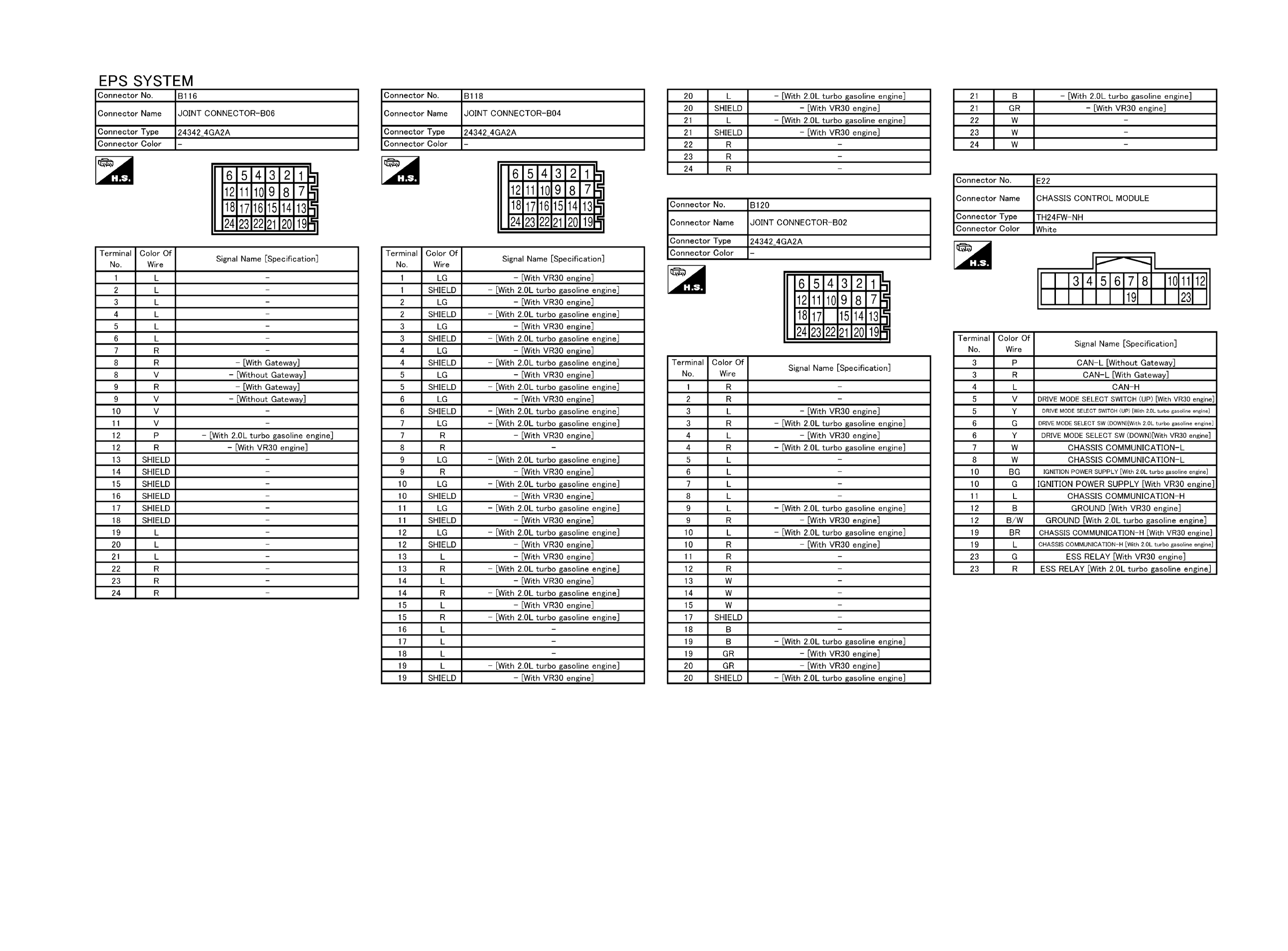

GNSJRGWC4444GB-444Courtesy of NISSAN NORTH AMERICA, INC.

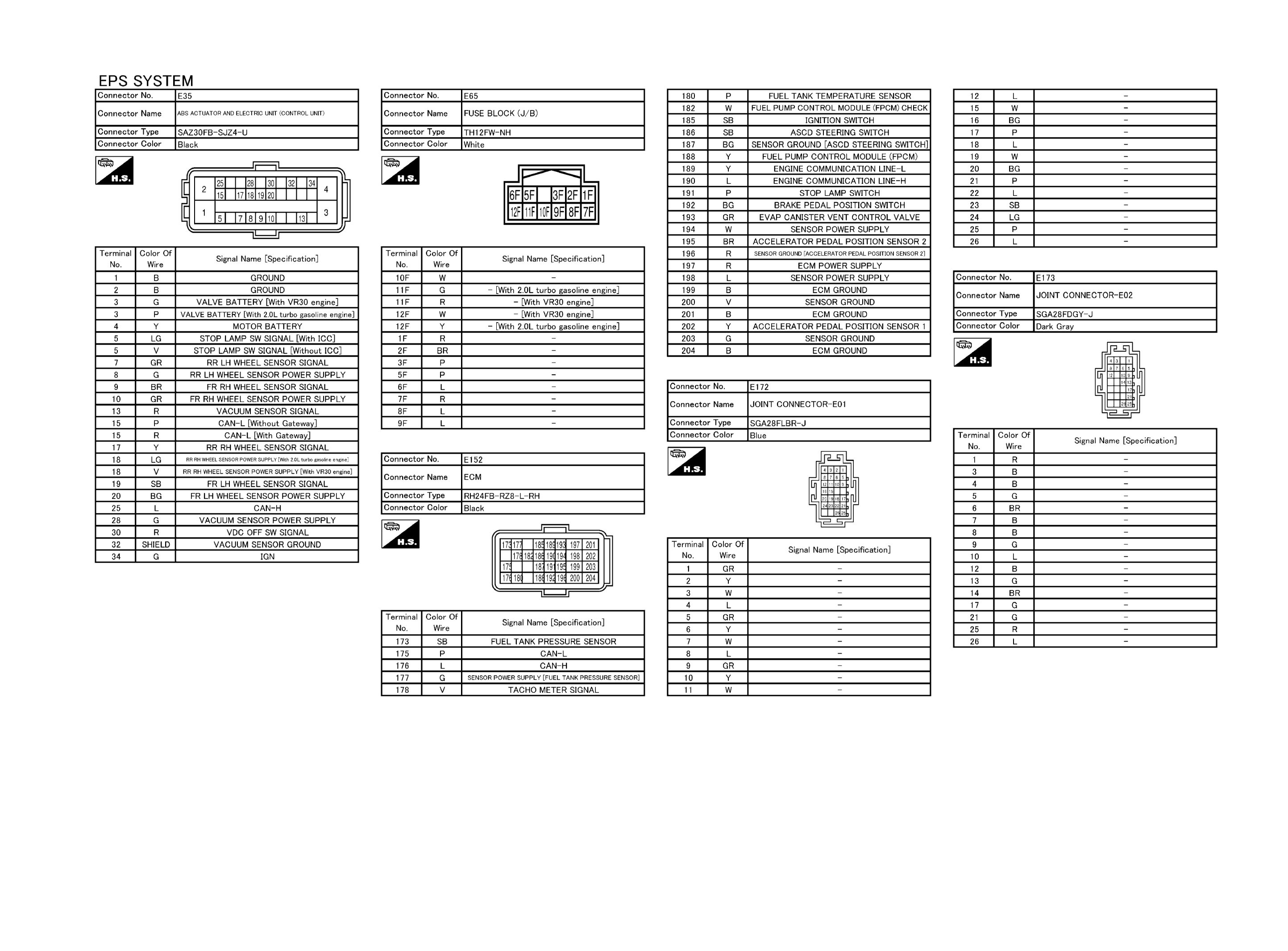

GNSJRGWC4445GB-445Courtesy of NISSAN NORTH AMERICA, INC.

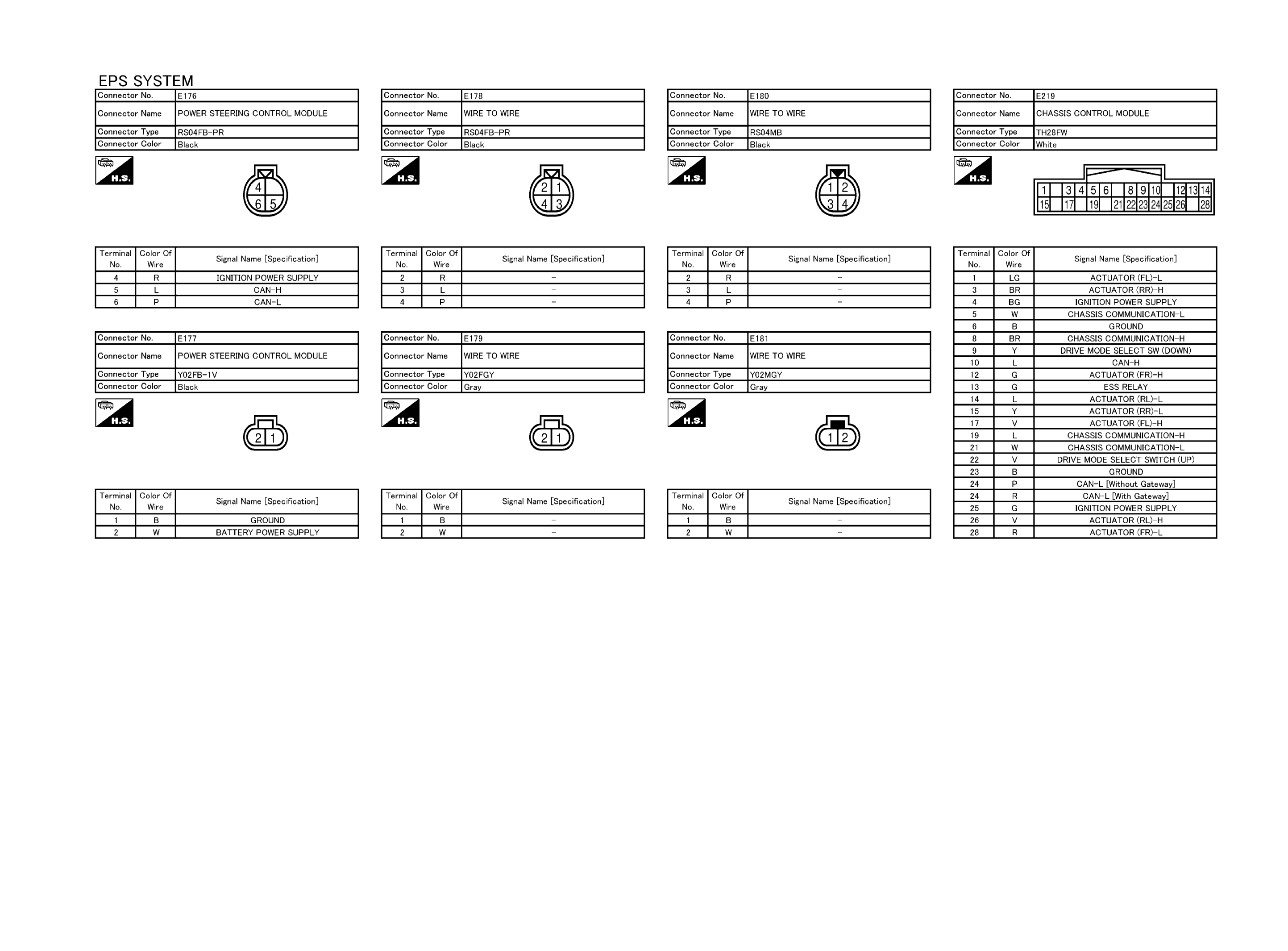

GNSJRGWC4446GB-446Courtesy of NISSAN NORTH AMERICA, INC.

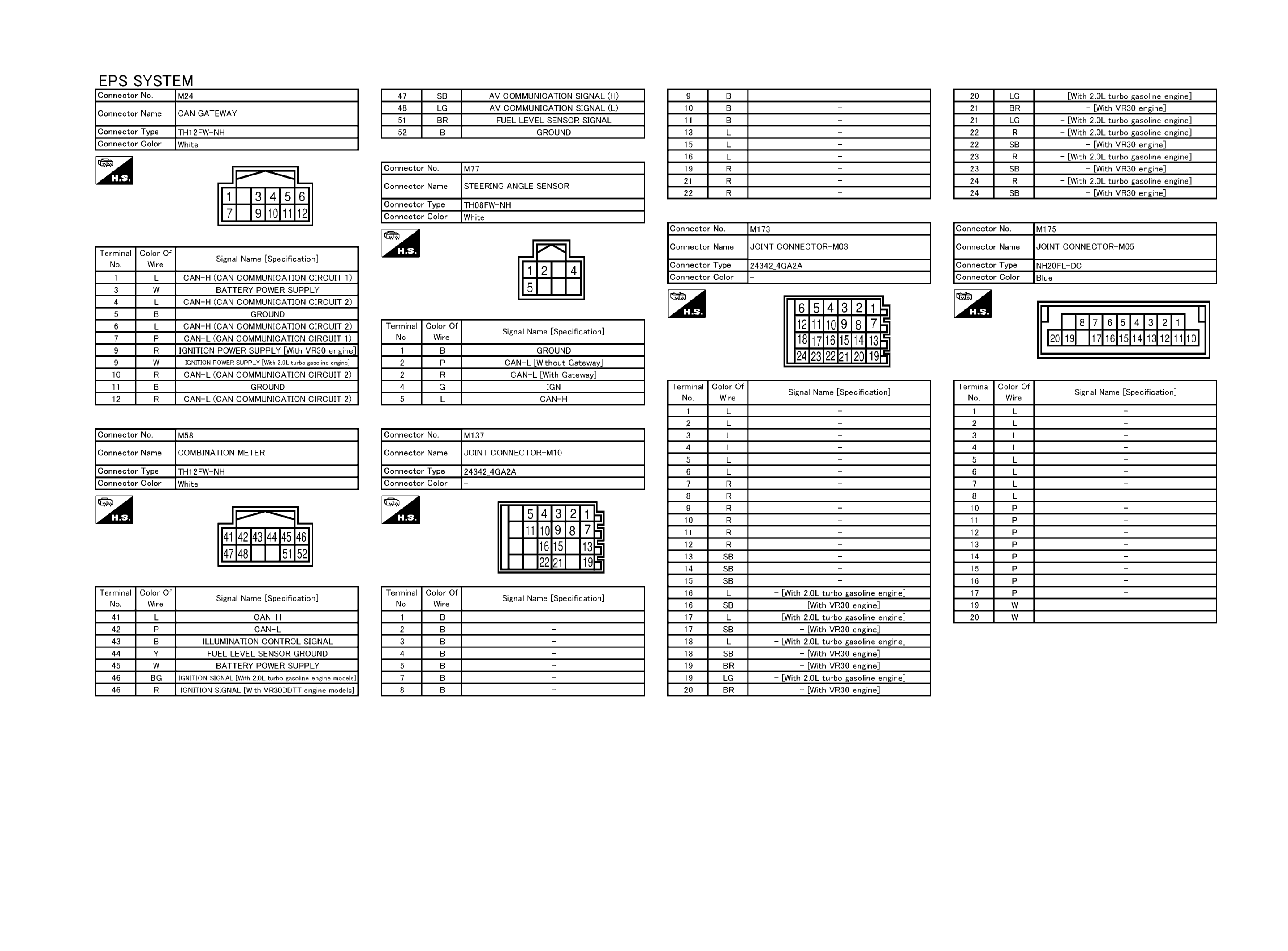

GNSJRGWC4447GB-447Courtesy of NISSAN NORTH AMERICA, INC.
