Installation
>>
Steering Column Assembly
Steering Column Assembly

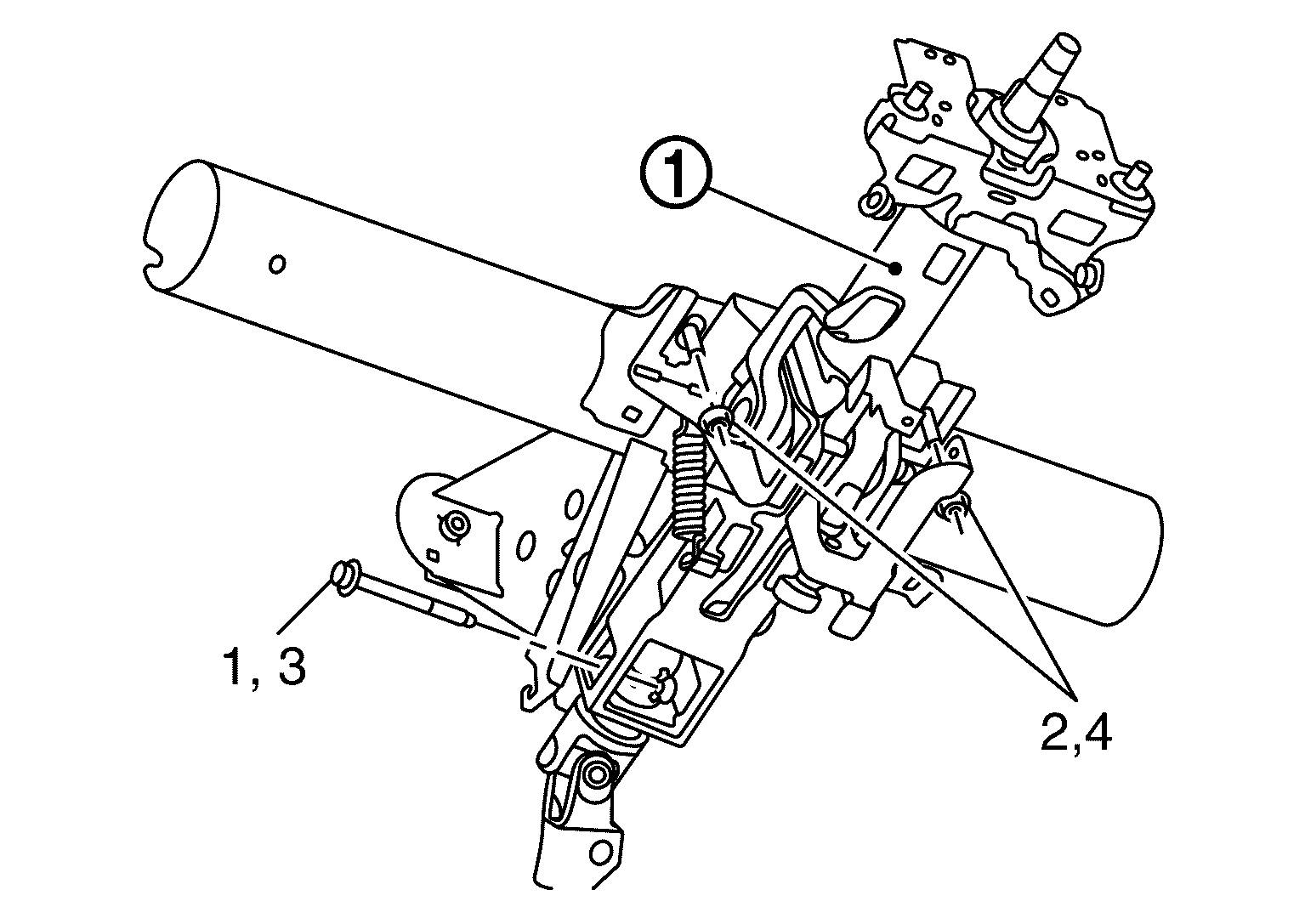

When installing the steering column assembly
, temporarily tighten the bolt and nuts before tightening to the specified torque, referring to the tightening method and the numerical order shown below:
Courtesy of NISSAN NORTH AMERICA, INC.
Temporary tightening
1 → 2
Final tightening
(Specified torque)
3 → 4
