Exploded View

WARNING: This page is about a different variant/trim than selected.

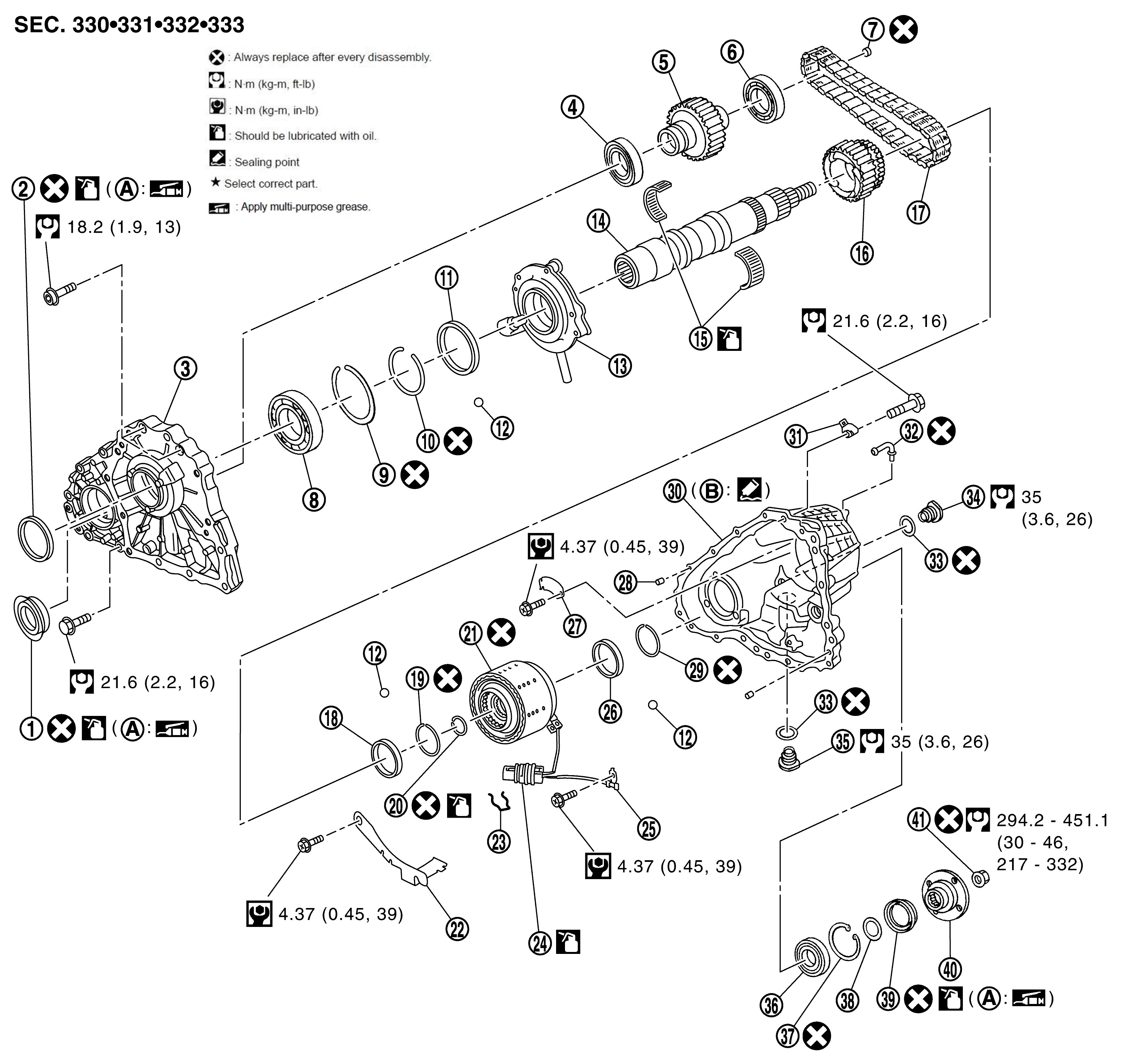

Fig 1: Main Shaft With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Front oil seal	Main shaft oil seal	Front case
	Front drive shaft front bearing	Front drive shaft	Front drive shaft rear bearing
	Plug	Main shaft bearing	Snap ring
	Snap ring	Spacer	Steel ball
	Oil pump	Main shaft	Needle bearing
	Sprocket	Drive chain	Spacer
	Snap ring	Circlip	Electric controlled coupling
	Oil cover	Retainer	O-ring
	Transfer fluid temperature sensor	Spacer	Baffle plate
	Dowel pin	Snap ring	Rear case
	Harness bracket	Breather tube	Gasket
	Filler plug	Drain plug	Rear bearing
	Snap ring	Spacer	Rear oil seal
	Companion flange	Self-lock nut
	Oil seal lip	Matching surface
: N•m (kg - m, in - lb)
: N•m (kg - m, ft - lb)
: Always replace after every disassembly.
: Apply transfer fluid.
: Apply multi-purpose grease.
: Apply Genuine Anaerobic Liquid Gasket Three Bond 1133C or equivalent.
