Home >> Infiniti >> 2017 >> Q60 Base, RWD >> Repair and Diagnosis >> External Pages >> Different variant/trim >> Section 13 (Transfer Case) >> System Description >> System >> AWD System >> Circuit Diagram >> VR30DDTT Engine

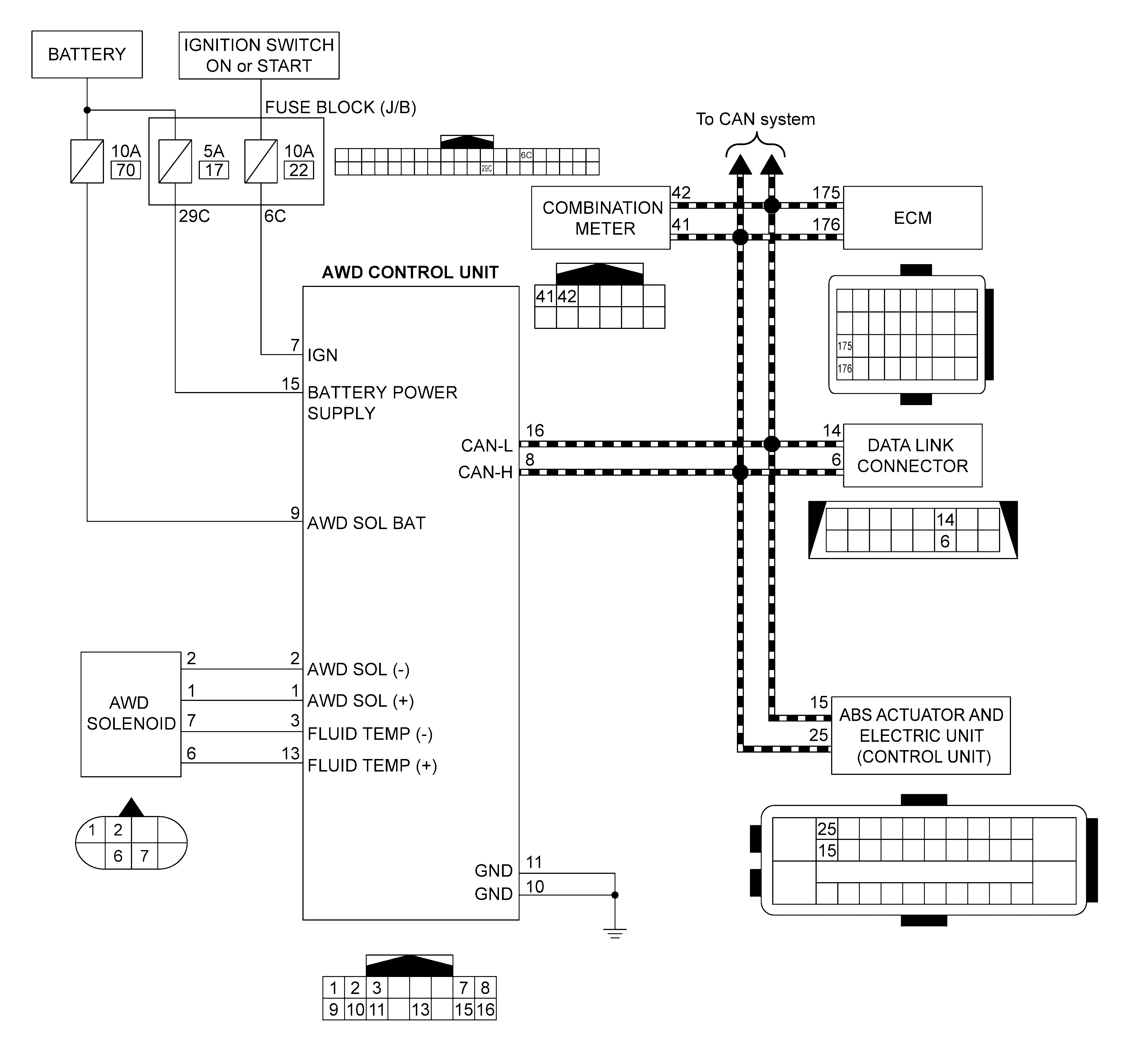

VR30DDTT Engine

WARNING: This page is about a different variant/trim than selected.

GNSJSDIB0192GB-192

Courtesy of NISSAN NORTH AMERICA, INC.
