Exploded View With Torque Specifications

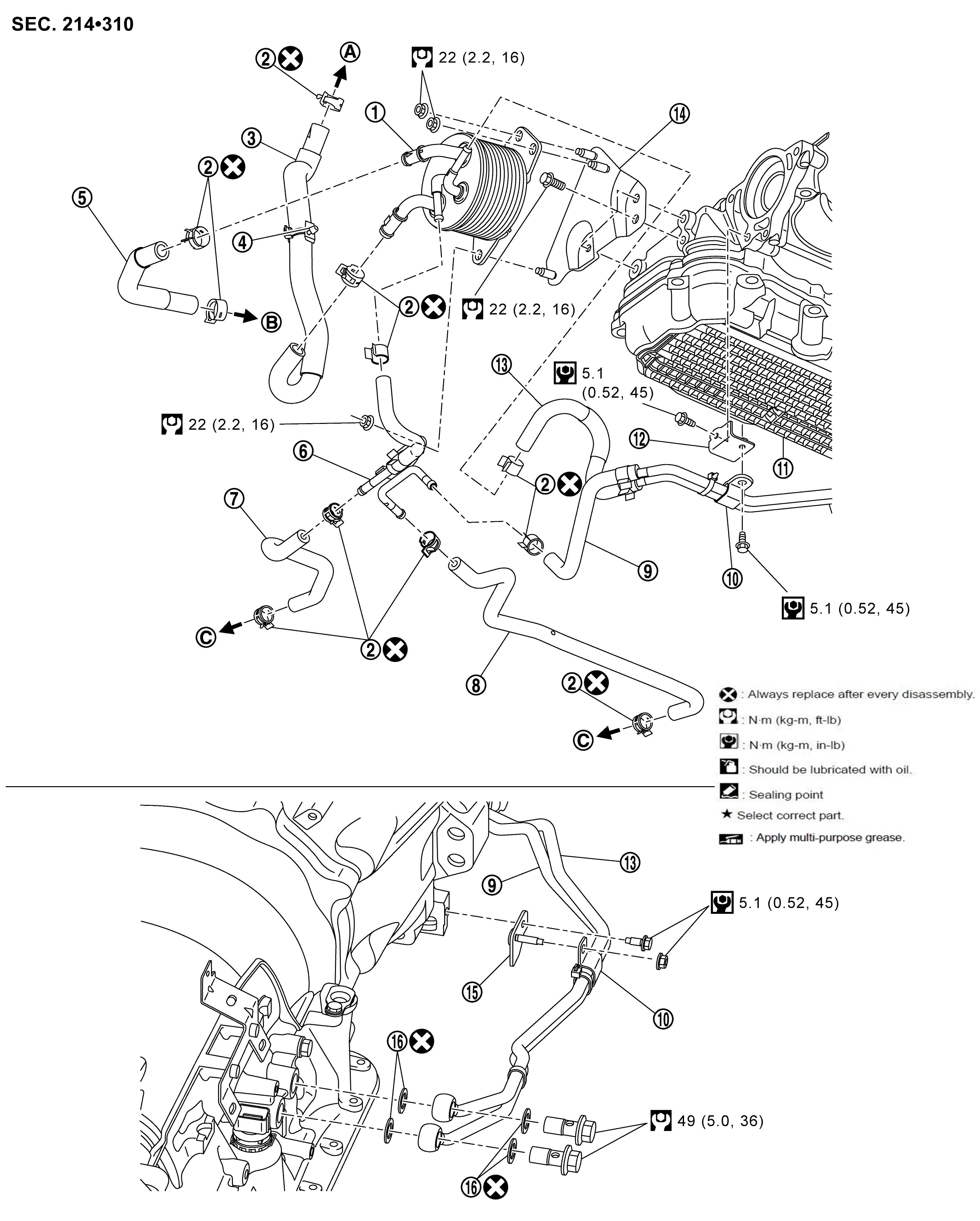

2WD Models (Engine Oil Cooler Air Cooling Type)

Courtesy of NISSAN NORTH AMERICA, INC.

	AT Fluid Warmer		Hose Clamp		Water Hose A
	Clip		Water Hose B		Fluid Cooler Hose A
	Fluid Cooler Tube A		Fluid Cooler Hose B		Oil Pan Lower
	Transmission Assembly		Clip		Fluid Cooler Tube B Assembly
	Fluid Cooler Tube C Assembly		Bracket		Bracket
	Copper Washer
	To Heater Tube		To Water Pipe 2		To Radiator
	: Always replace after every disassembly.
	: N•m (kg-m, ft-lb)
	: N•m (kg-m, in-lb)

* : To identify vehicle type, refer to ENGINE LUBRICATION SYSTEM .

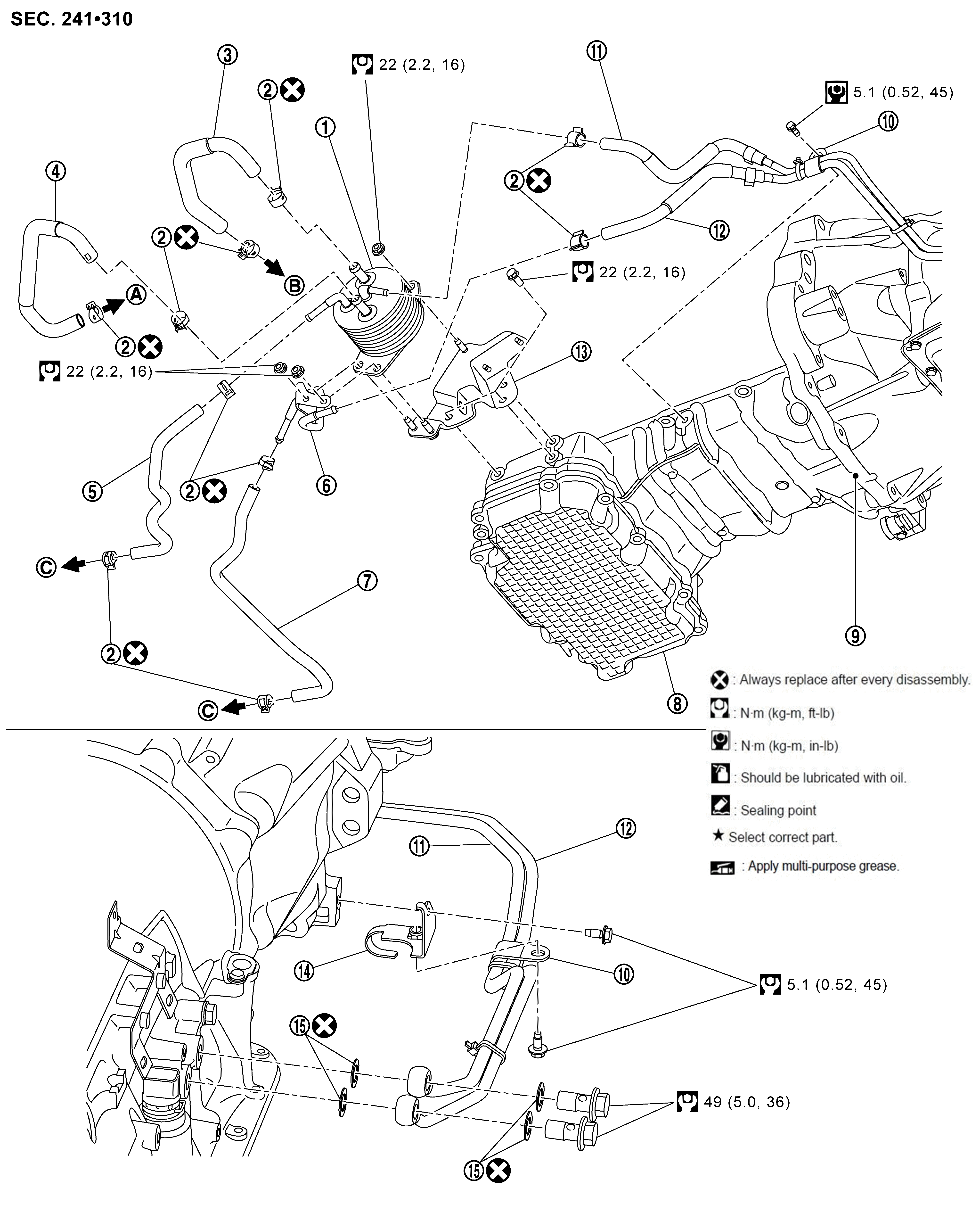

2WD Models (Engine Oil Cooler Water Cooling Type)

Courtesy of NISSAN NORTH AMERICA, INC.

	AT Fluid Warmer		Hose Clamp		Water Hose A
	Water Hose B		Fluid Cooler Hose A		Fluid Cooler Tube A
	Fluid Cooler Hose B		Oil Pan Lower		Transmission Assembly
	Clip		Fluid Cooler Tube B Assembly		Fluid Cooler Tube C Assembly
	Bracket		Bracket		Copper Washer
	To Heater Tube		To Water Pipe 2		To Radiator
	: Always replace after every disassembly.
	: N•m (kg-m, ft-lb)
	: N•m (kg-m, in-lb)

* : To identify vehicle type, refer to ENGINE LUBRICATION SYSTEM .

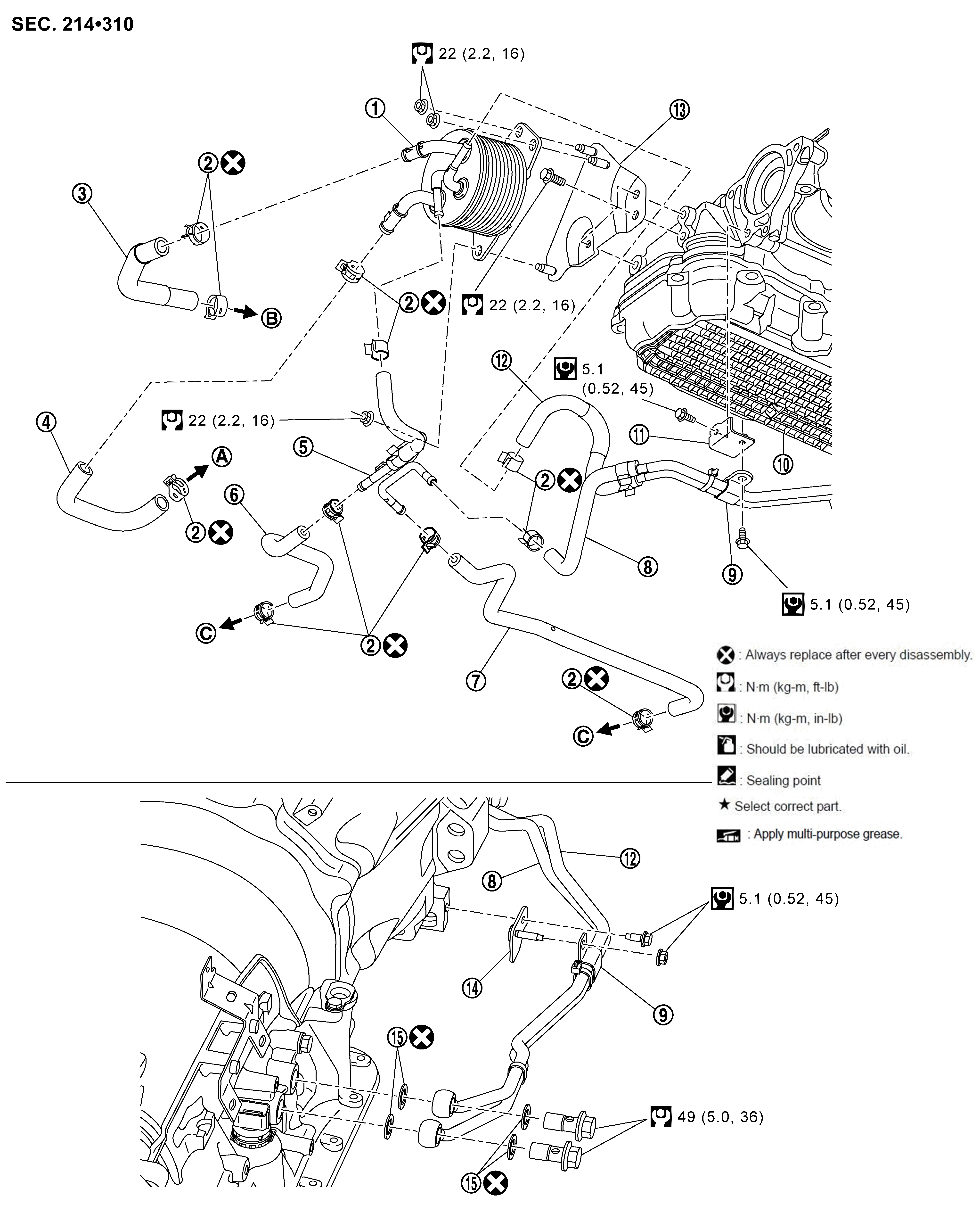

AWD Models (Engine Oil Cooler Air Cooling Type)

Courtesy of NISSAN NORTH AMERICA, INC.

	AT Fluid Warmer		Hose Clamp		Water Hose A
	Clip		Water Hose B		Fluid Cooler Tube A Assembly
	Fluid Cooler Hose A		Fluid Cooler Hose B		Fluid Cooler Tube B Assembly
	Clip		Oil Pan Lower		Bracket
	Fluid Cooler Tube C Assembly		Bracket		Bracket
	Copper Washer
	To Heater Tube		To Water Pipe 2		To Radiator
	: Always replace after every disassembly.
	: N•m (kg-m, ft-lb)
	: N•m (kg-m, in-lb)

* : To identify vehicle type, refer to ENGINE LUBRICATION SYSTEM .

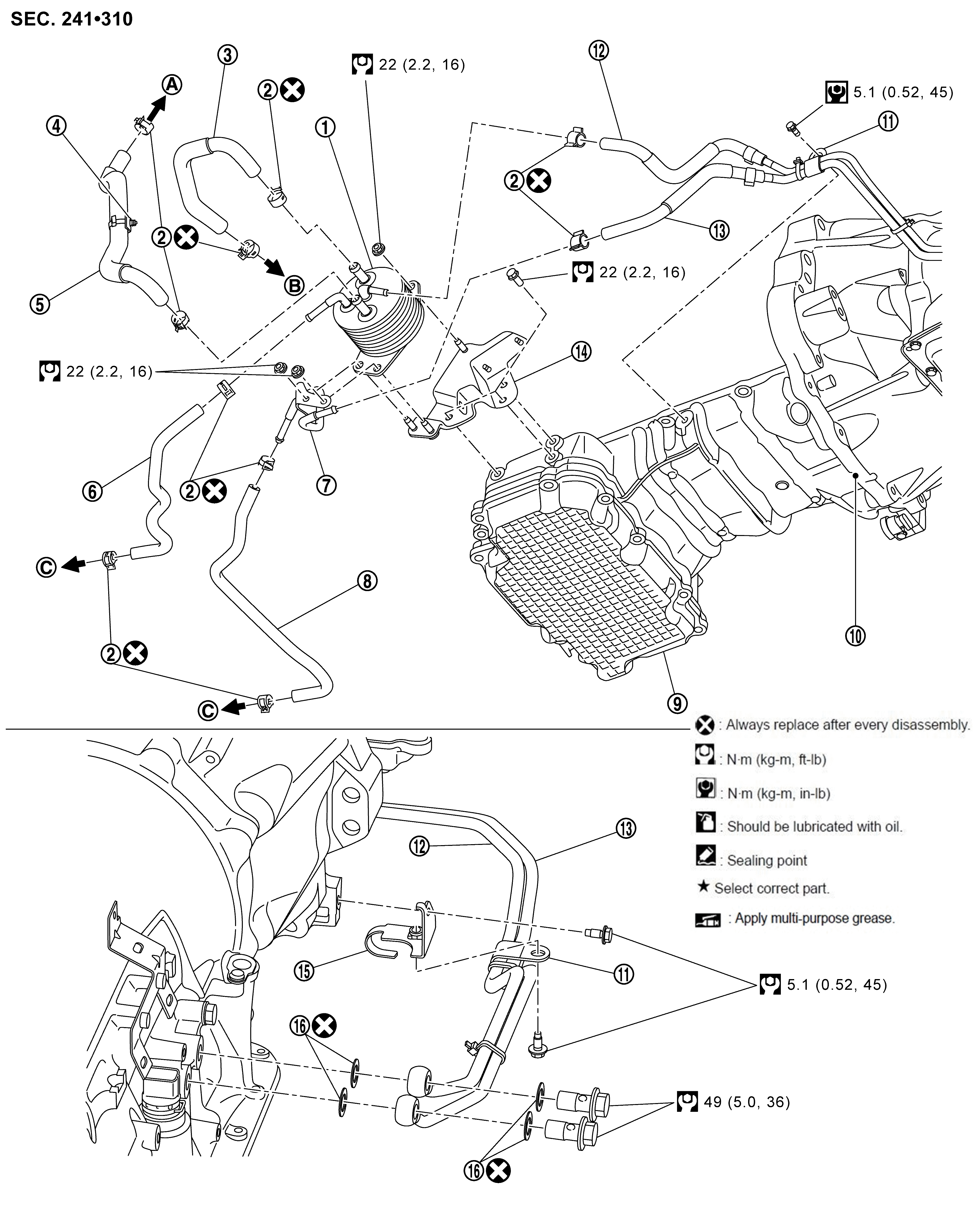

AWD Models (Engine Oil Cooler Water Cooling Type)

Courtesy of NISSAN NORTH AMERICA, INC.

	AT Fluid Warmer		Hose Clamp		Water Hose A
	Water Hose B		Fluid Cooler Tube A Assembly		Fluid Cooler Hose A
	Fluid Cooler Hose B		Fluid Cooler Tube B Assembly		Clip
	Oil Pan Lower		Bracket		Fluid Cooler Tube C Assembly
	Bracket		Bracket		Copper Washer
	To Heater Tube		To Water Pipe 2		To Radiator
	: Always replace after every disassembly.
	: N•m (kg-m, ft-lb)
	: N•m (kg-m, in-lb)

* : To identify vehicle type, refer to ENGINE LUBRICATION SYSTEM .
