Exploded View

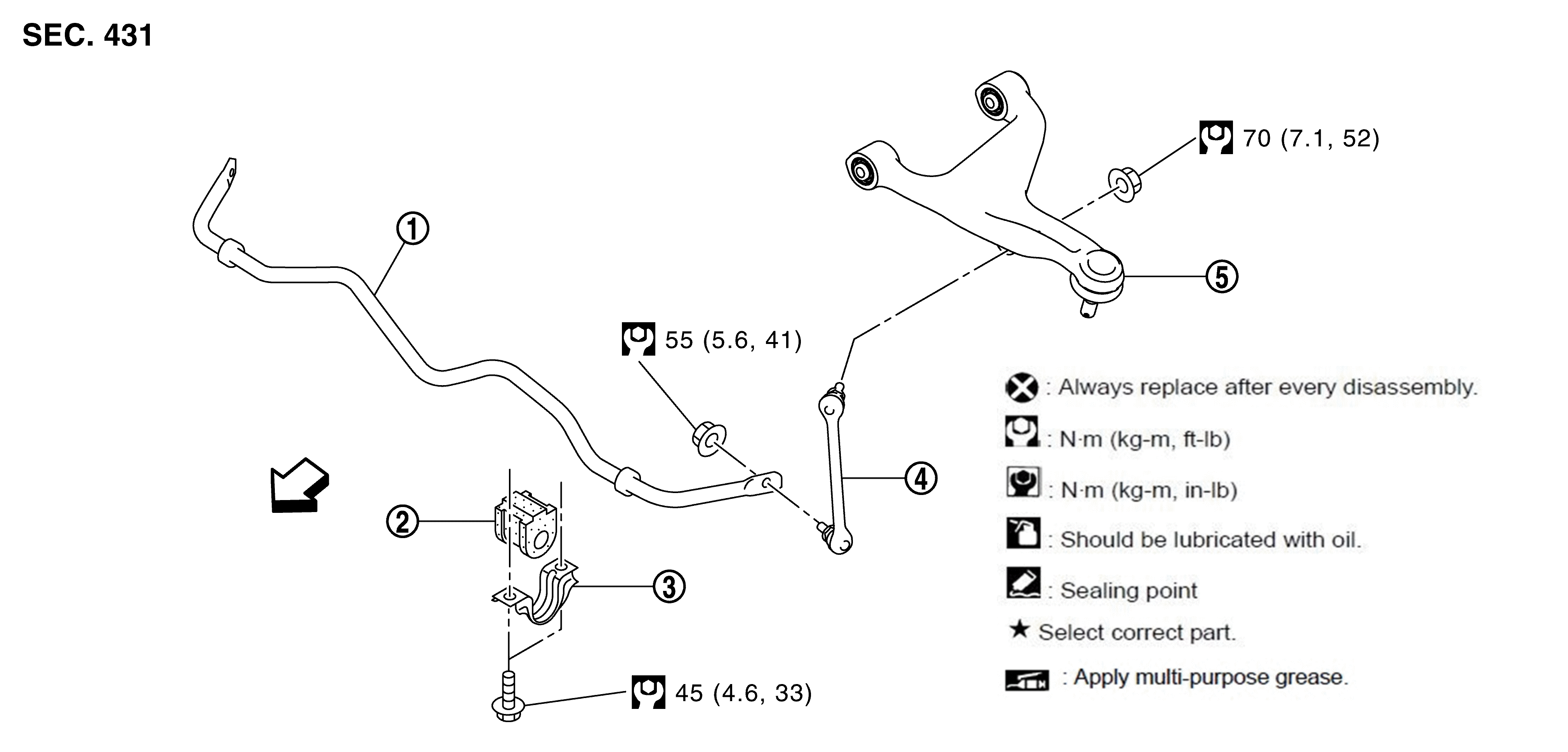

Fig 1: Rear Stabilizer With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Stabilizer Bar	Bushing	Stabilizer Clamp
	Stabilizer Connecting Rod	Suspension Arm
: Vehicle front
	: N•m (kg-m, ft-lb)
	: Always replace after every disassembly.
